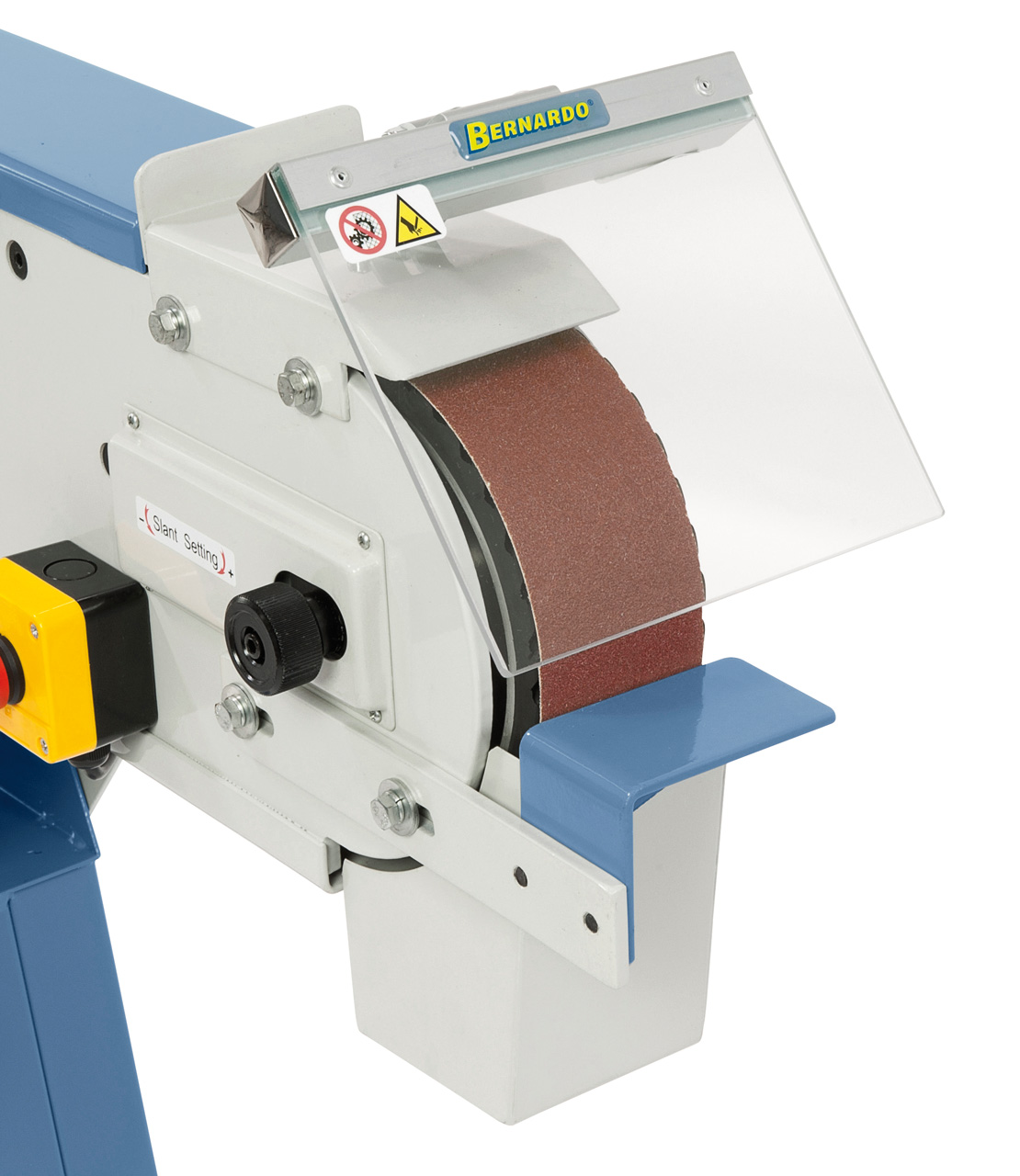

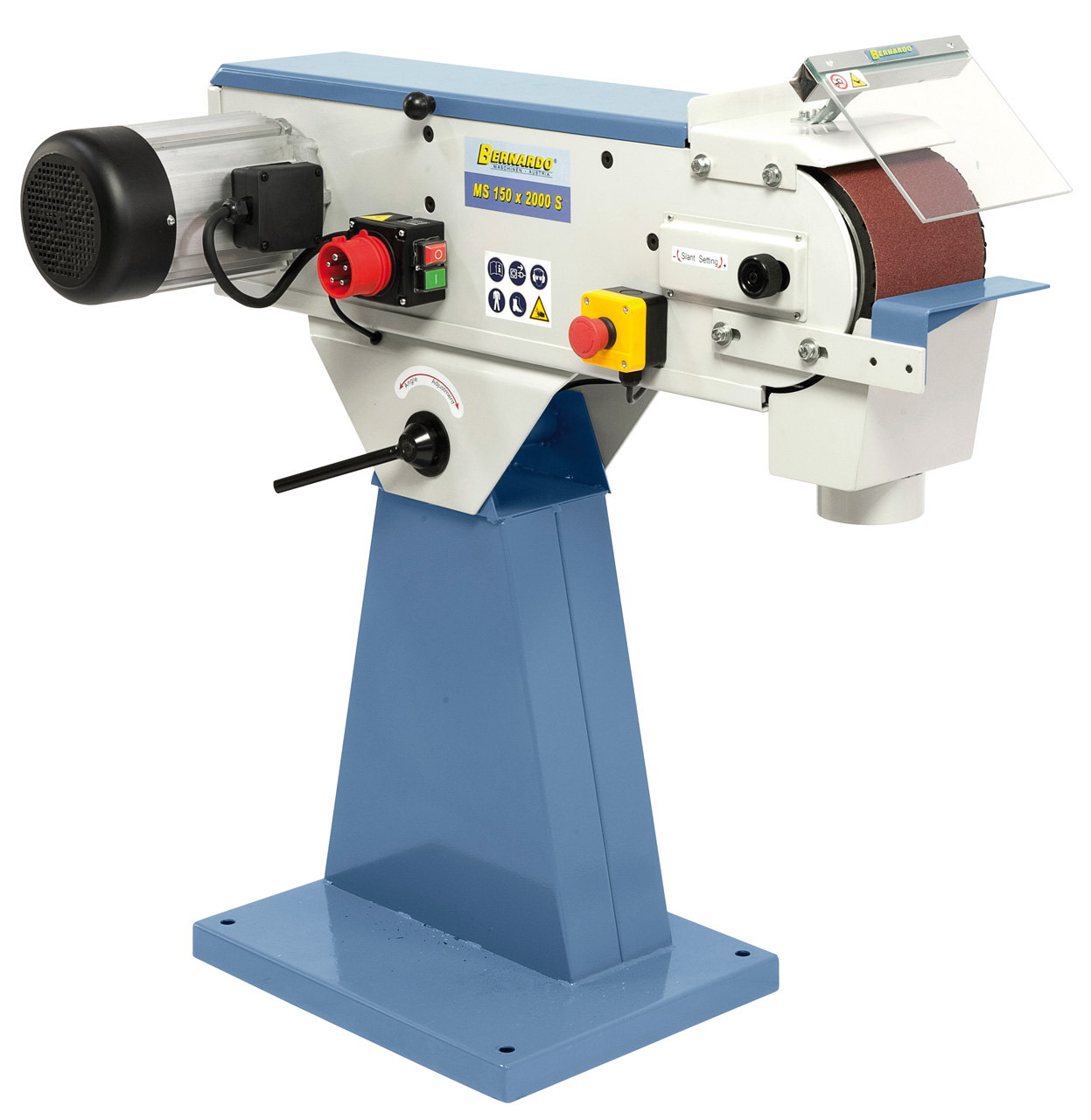

Belt sanding machine Bernardo MS 150 x 2000 S
Scope of delivery Belt sanding machine Bernardo MS 150 x 2000 S
- Sanding belt grit 80
- Folding protective glass

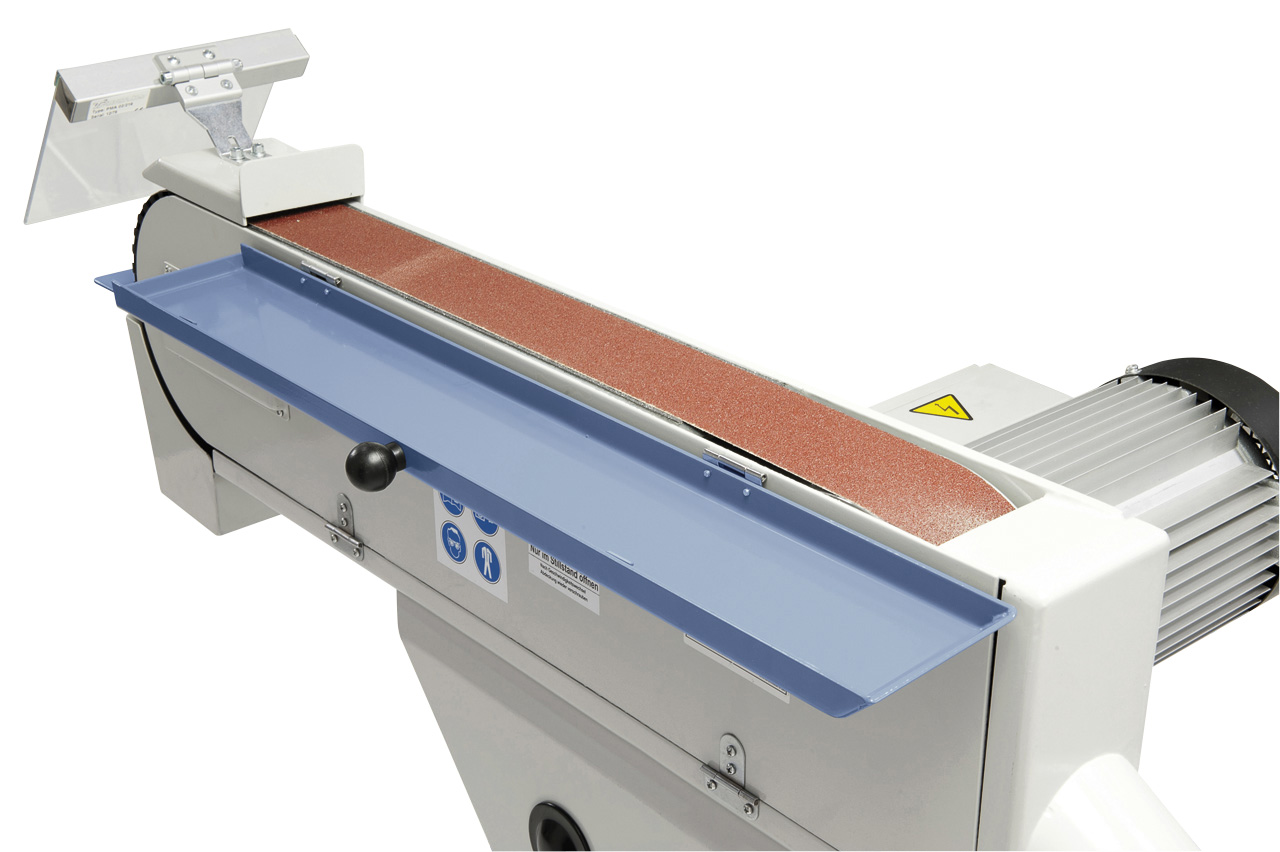

- Sanding and support table
- Workpiece fence
- Dust extraction outlet
- Stand
- Separate stop switch
Features Belt sanding machine Bernardo MS 150 x 2000 S
- High belt speed allows for top grinding performance
- Quick adjustment for horizontal and inclined position
- Continuous face grinding surface ensures ideal grinding of long workpieces
- Spring loaded clamping device guarantees consistent belt tension
- Universally applicable for grinding of edges, surface and cylindrical grinding

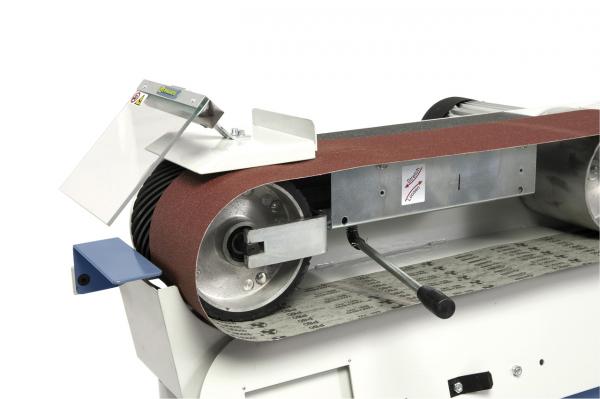

- Complete with quick clamping system for fast belt change
- Set screw allows easy adjustment of parallel belt run
- Graphite coating on planing surface increases sliding capacity of grinding belt
Technical details Belt sanding machine Bernardo MS 150 x 2000 S
| Belt dimensions | 150 x 2000 mm |
| Belt speed | 29 m/sec. |
| Contact disc Ø x W | 200 / 155 mm |
| Belt sanding table | 460 x 150 mm |
| Dust extraction outlet | 100 mm |

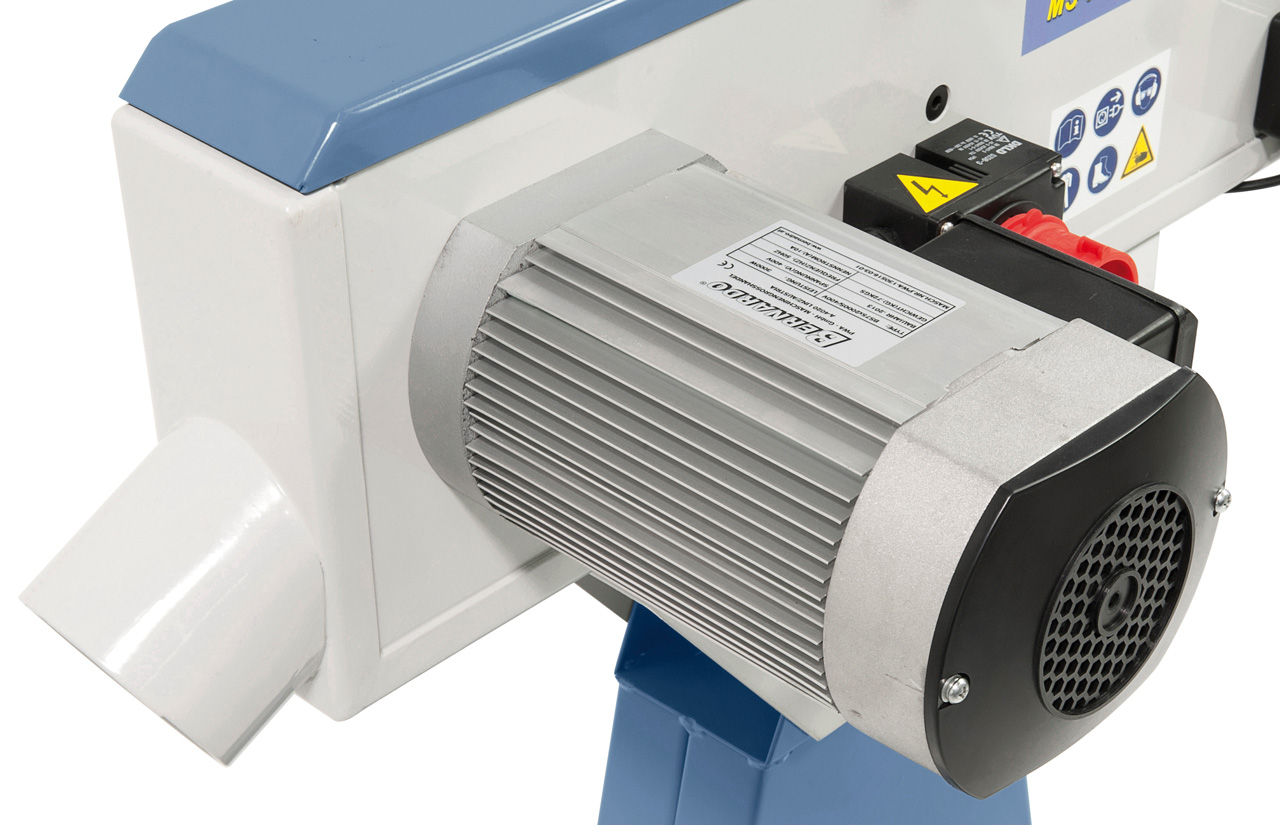

| Motor power output S1 100% | 4,0 kW |
| Motor power input S6 40% | 5,5 kW |
| Voltage | 400 V |
| Length | 1080 mm |
| Width | 520 mm |
| Height | 1000 mm |
| Weight approx. | 84 kg |
