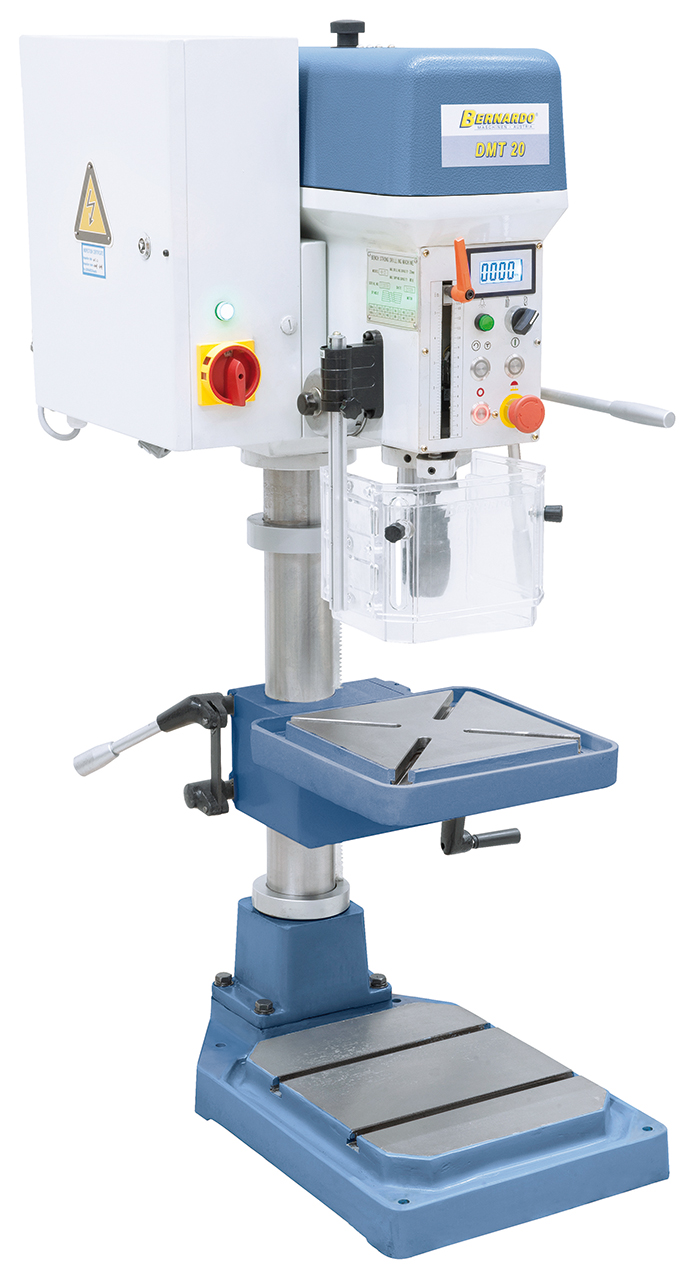

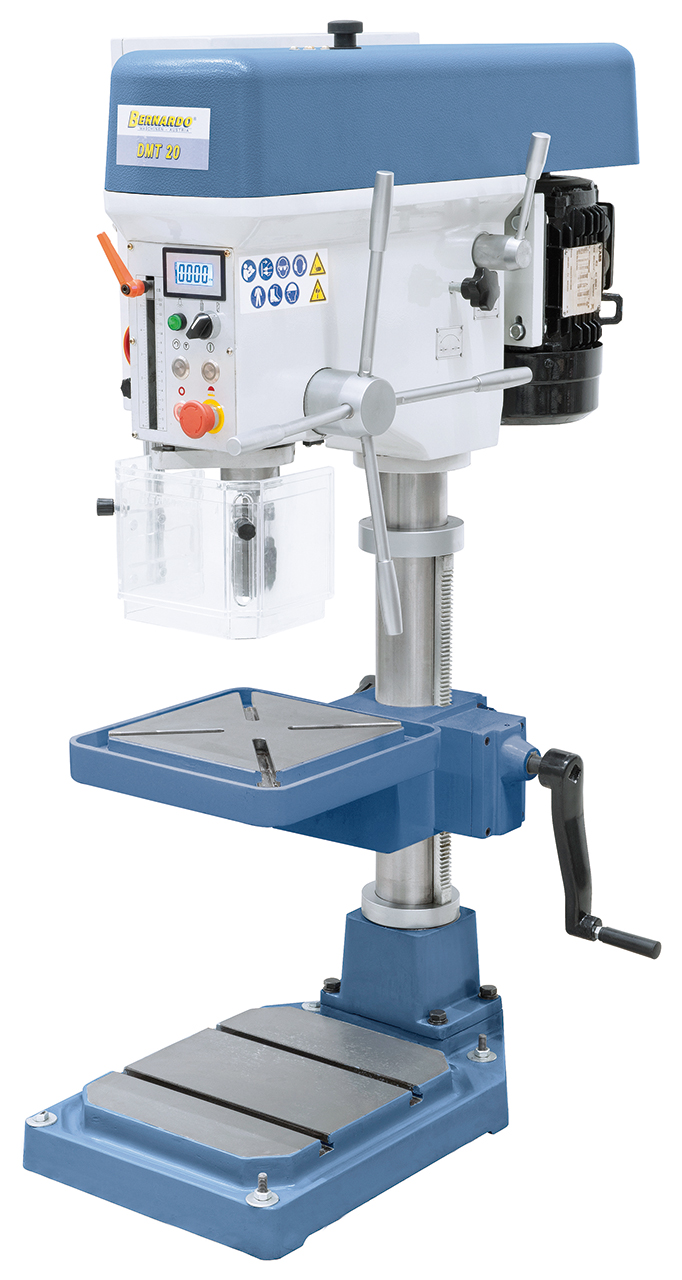

The table drilling machine DMT 20 offers outstanding performance and top precision at a relatively low cost. The compact construction makes this model highly suitable for general use in workshops.
Scope of delivery Bench drilling machine Bernardo DMT 20
- Drill chuck 1 - 16 mm / B 18
- Drill chuck arbor MT 2 / B 18

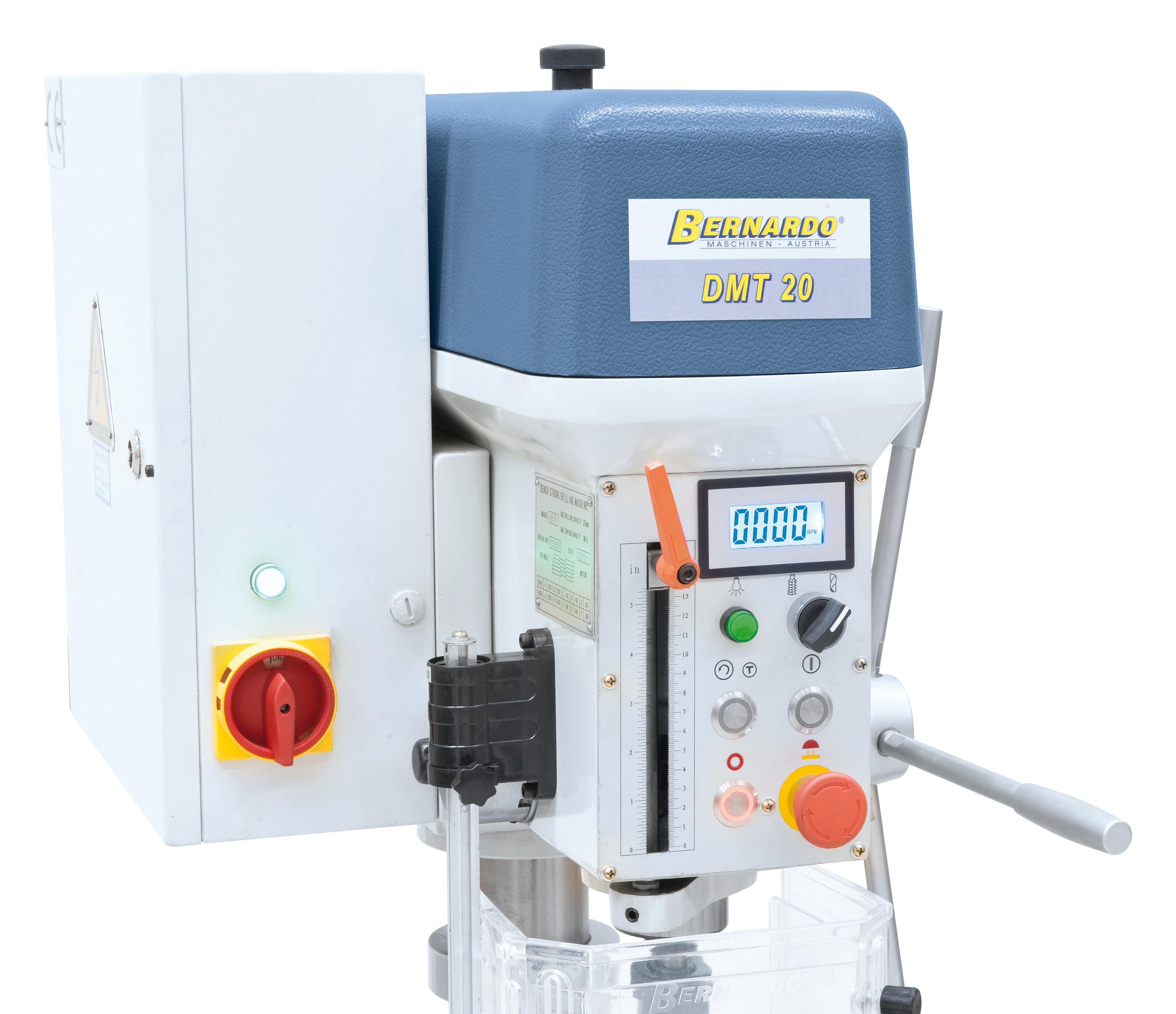

- Digital readout of speeds
- Thread cutting device
- LED-machine light

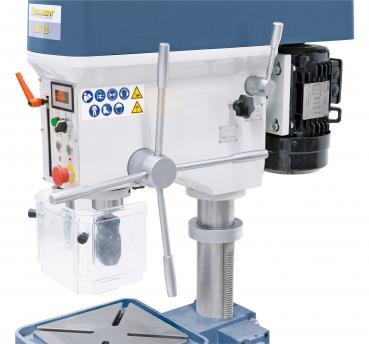

- Height adjustable protective cover
Features Bench drilling machine Bernardo DMT 20
- Protective cover in accordance to CE standards, adjustable to various drill bit sizes
- Surface treated work table, height adjustable via gear rack and crank
- Polished base plate features T-slots for mounting of large workpieces
- Adjustable drill depth stop allows accurate spindle feed
- High concentricity ≤ 0,02 mm measured at spindle

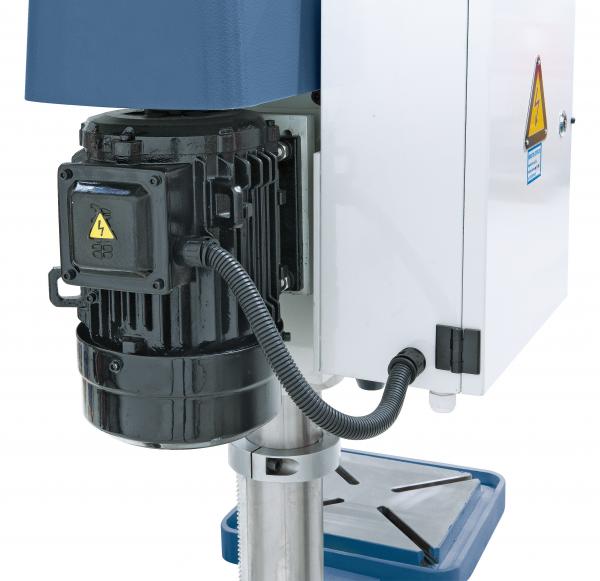

- Powerful motor even at continuous operation
- Solid and powerful drilling machine for high demands
- Including automatic reverse rotation for thread cutting
Technical details Bench drilling machine Bernardo DMT 20
| Drilling capacity max. |
20 mm
|
| Thread cutting max. | M16 |
| Morse taper | MT 2 |

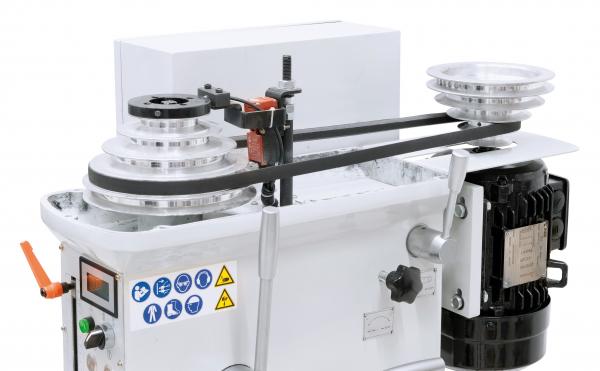

| Spindle speeds | (5) 320 - 1820 rpm |
| Distance spindle to column | 240 mm |
| Distance spindle to table max. | 360 mm |
| Distance spindle to base | 680 mm |
| Spindle stroke | 135 mm |
| Column diameter |
85 mm
|
| Table size / T-slot size |
252 x 252 mm / 14 mm
|
| Working surface of base |
367 x 305 mm
|
| Motor power output S1 100% | 1,1 kW / 400 V |
| Motor power input S6 40% | 1,5 kW / 400 V |
| Machine dimension (W x D x H) | 470 x 880 x 1270 mm |
| Weight approx. | 192 kg |
