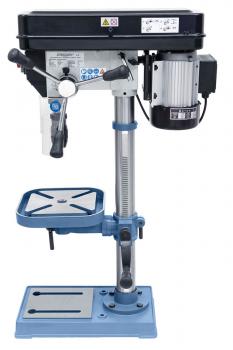

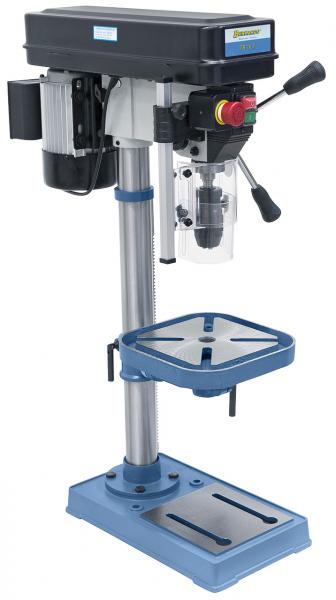

Bench drilling machine Bernardo TB 16 T

The inexpensive bench drilling machine TB 16 T, featuring a V-belt drive, is available with a drilling capacity of 16 mm. The height adjustable protective cover developed by Bernardo cover the drill as well as the drill chuck completely. This increases the safety and making them particulary suitable for craftsmen and training purposes.

Scope of delivery Bench drilling machine Bernardo TB 16 T

• Keyless drill chuck 1 - 16 mm / B 16
• Drill chuck arbor MT 2 / B 16
• Height adjustable protective cover
• Separate emergency stop switch
• T-slot nuts
• Tools

Features Bench drilling machine Bernardo TB 16 T

• High-quality ball bearings ensure high spindle concentricity
• Large drill table features diagonal T-slots

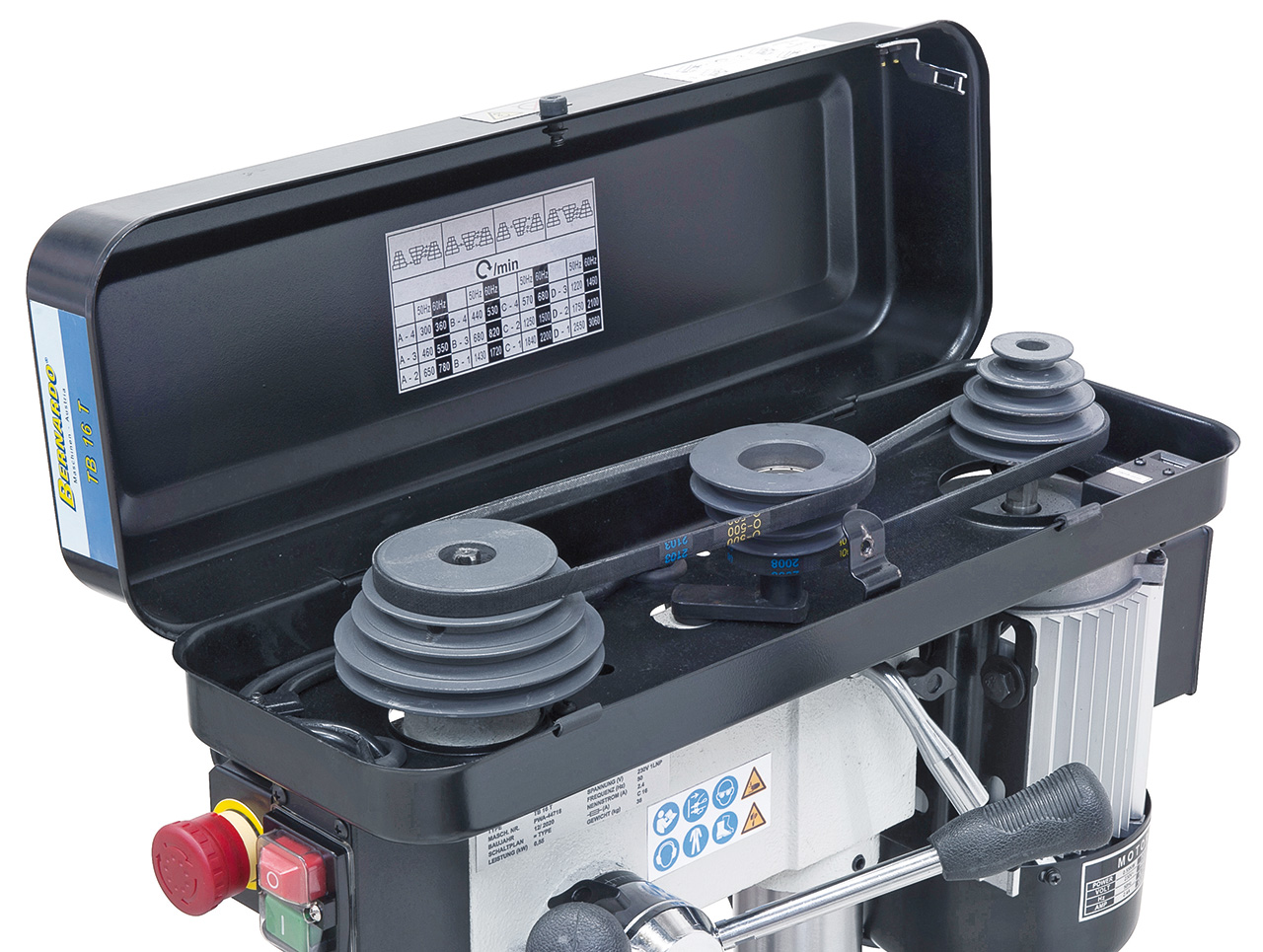

• Balanced drive wheels and high-quality belt ensure extremely smooth operation

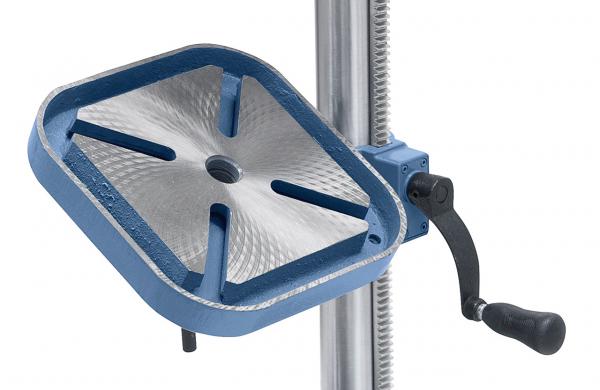

• Drill table swivels (±45°), height adjustable via gear rack
• Complete with T-slots in polished base plate
• Powerful, high-torque aluminium motor in accordance with IP 54
• Ergonomically arranged handles ensure high work comfort
• Treated base plate allows clamping of oversize work pieces
• Top precision keyless drill chuck included

Technical details Bench drilling machine Bernardo TB 16 T
