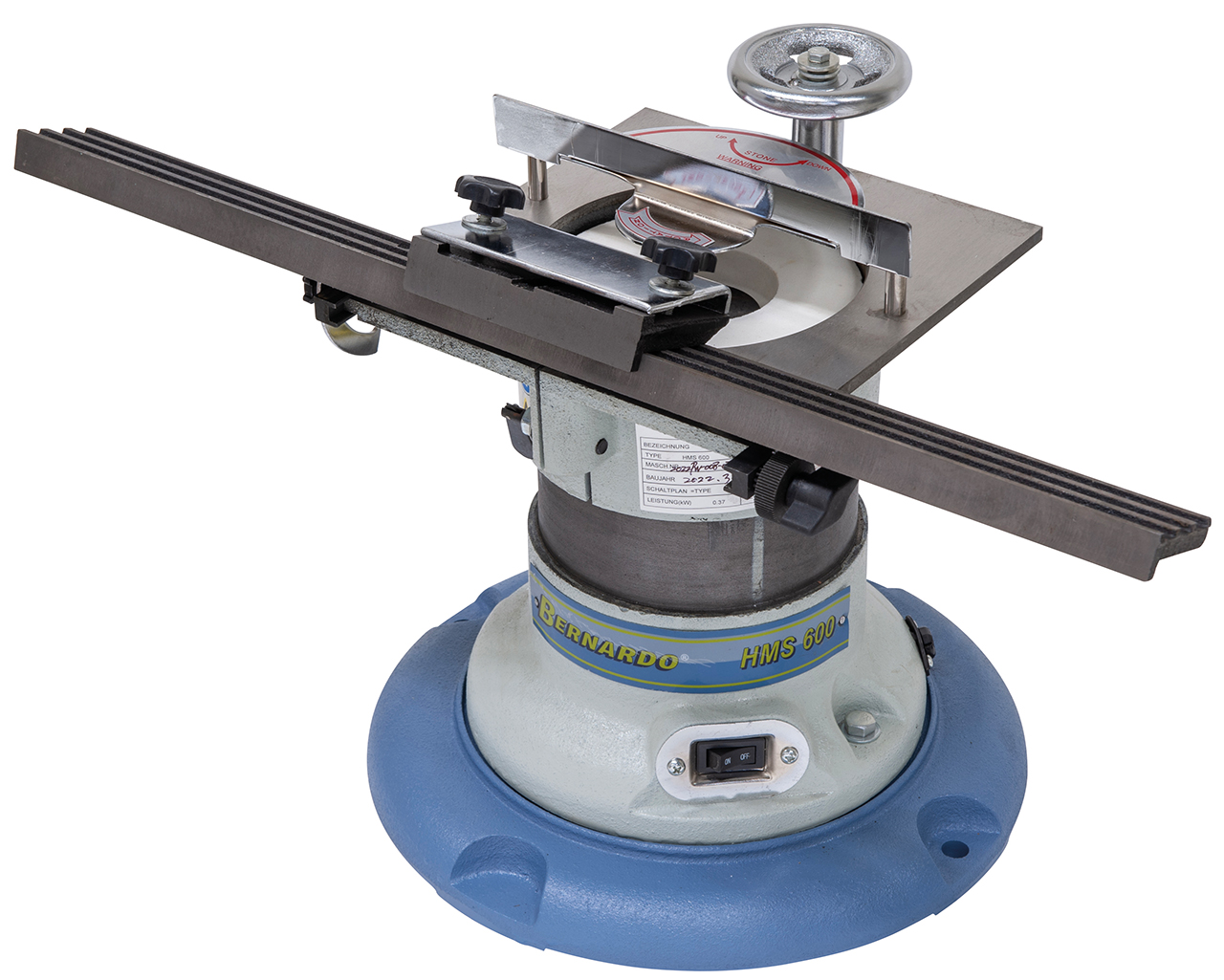

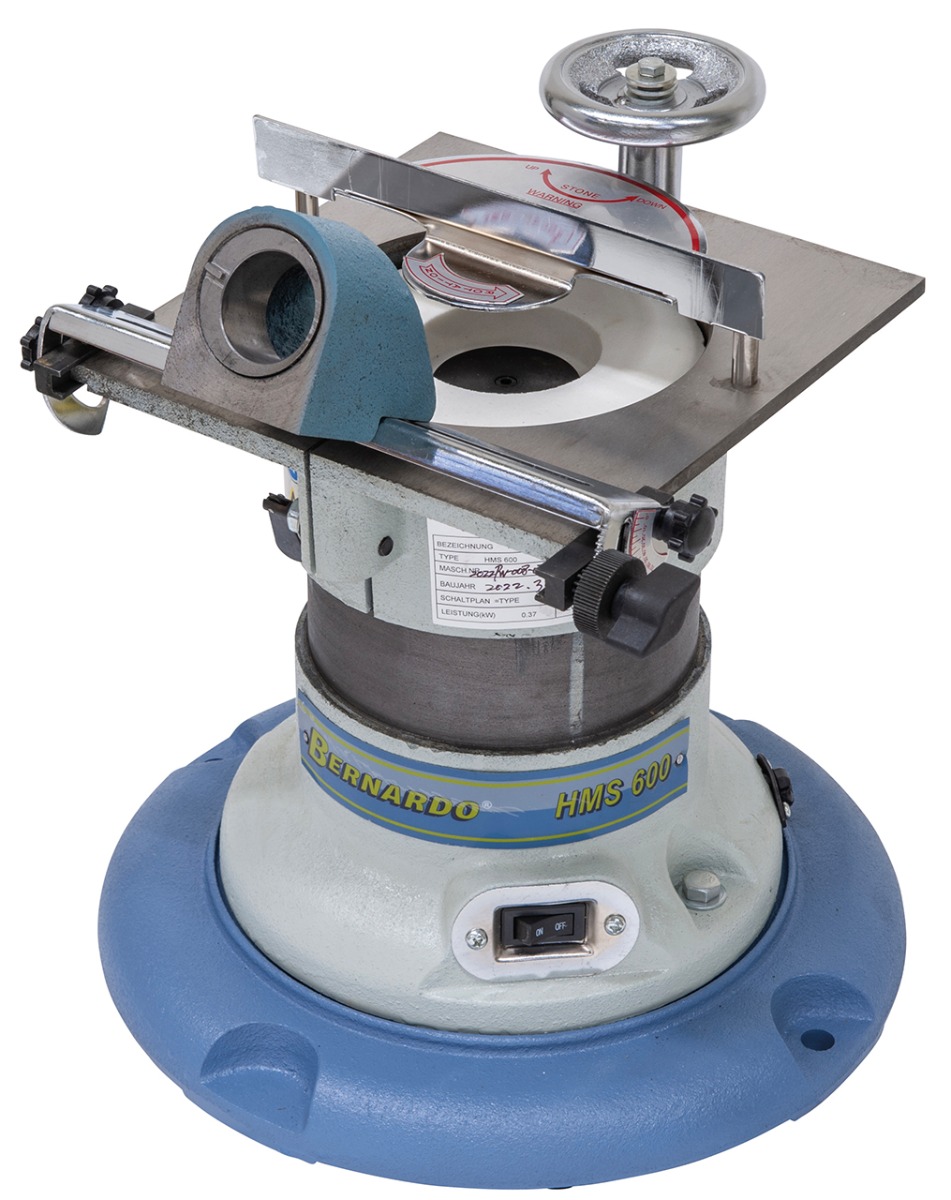

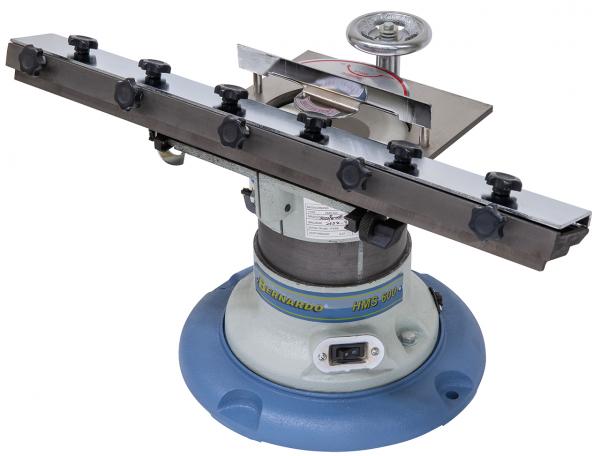

The cutter knife grinder HMS 600 is suitable for grinding of cutter knives up to 620 mm in length. Efficient and economic operation in addition to signifi cant cost and time savings, as a result of on site grinding, make this machine popular for every user.

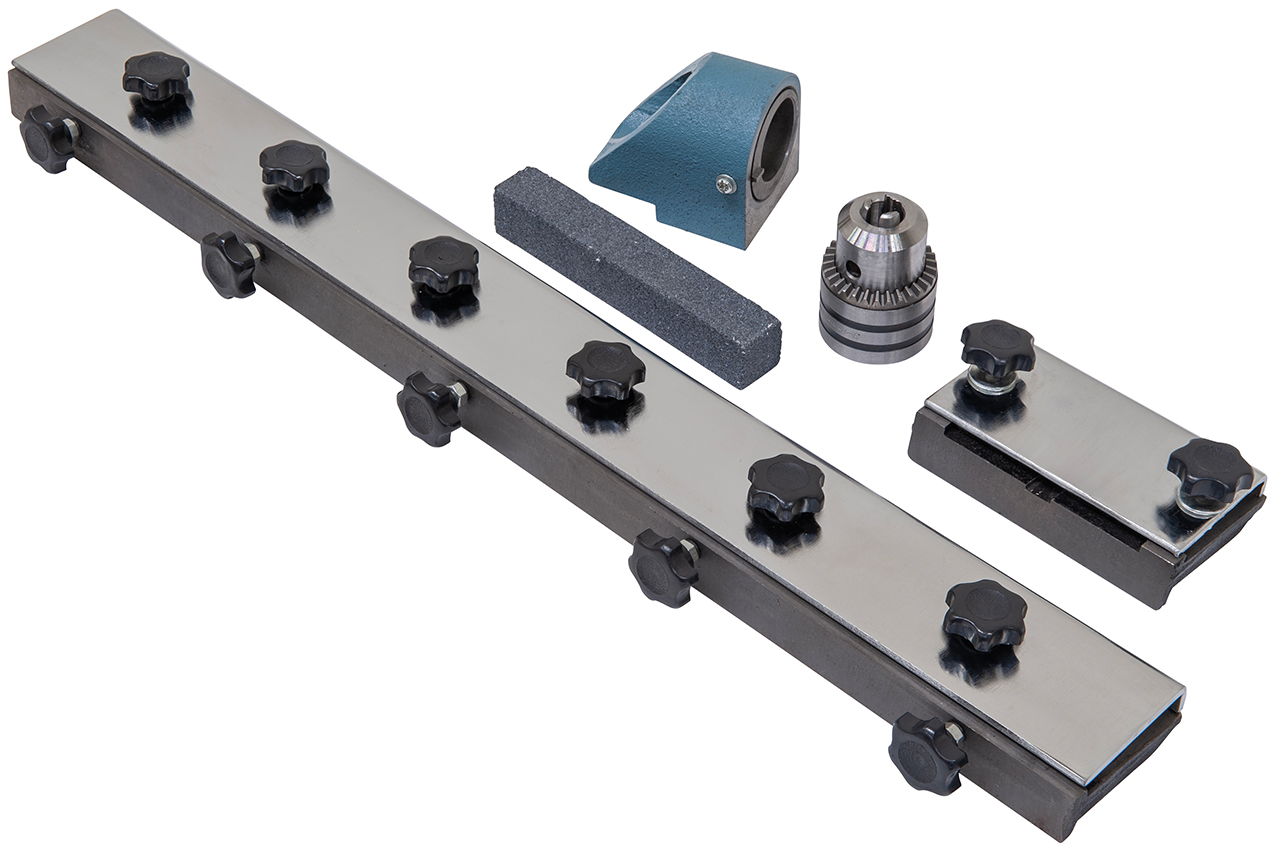

Scope of delivery Cutter knive sharpener Bernardo HMS 600
- Grinding wheel
- Knife lock plate
- Tool clamp 12 cm
- Drill chuck with turnable bushing
- Dressing stone
Features Cutter knive sharpener Bernardo HMS 600

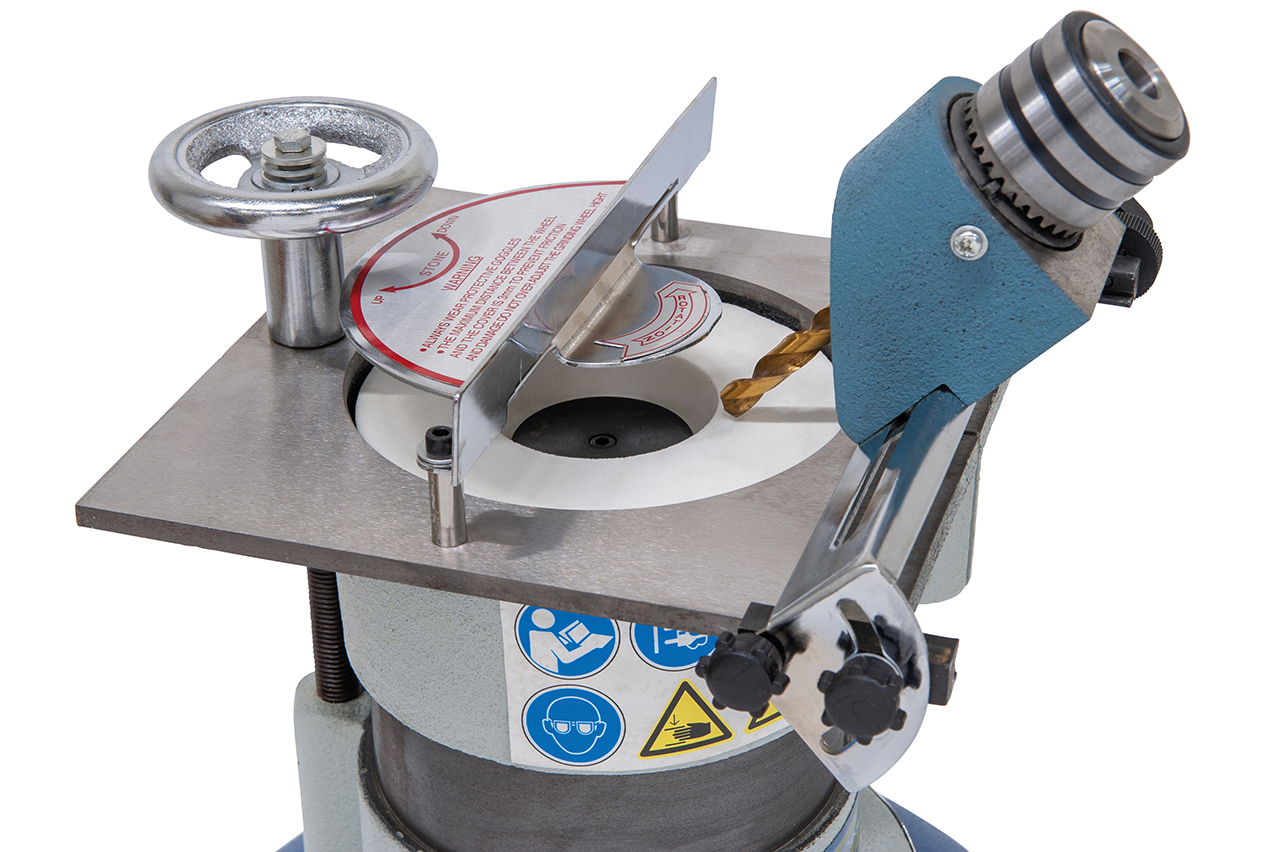

- Suitable for grinding of cutter knives, carving knives, drill bits etc.

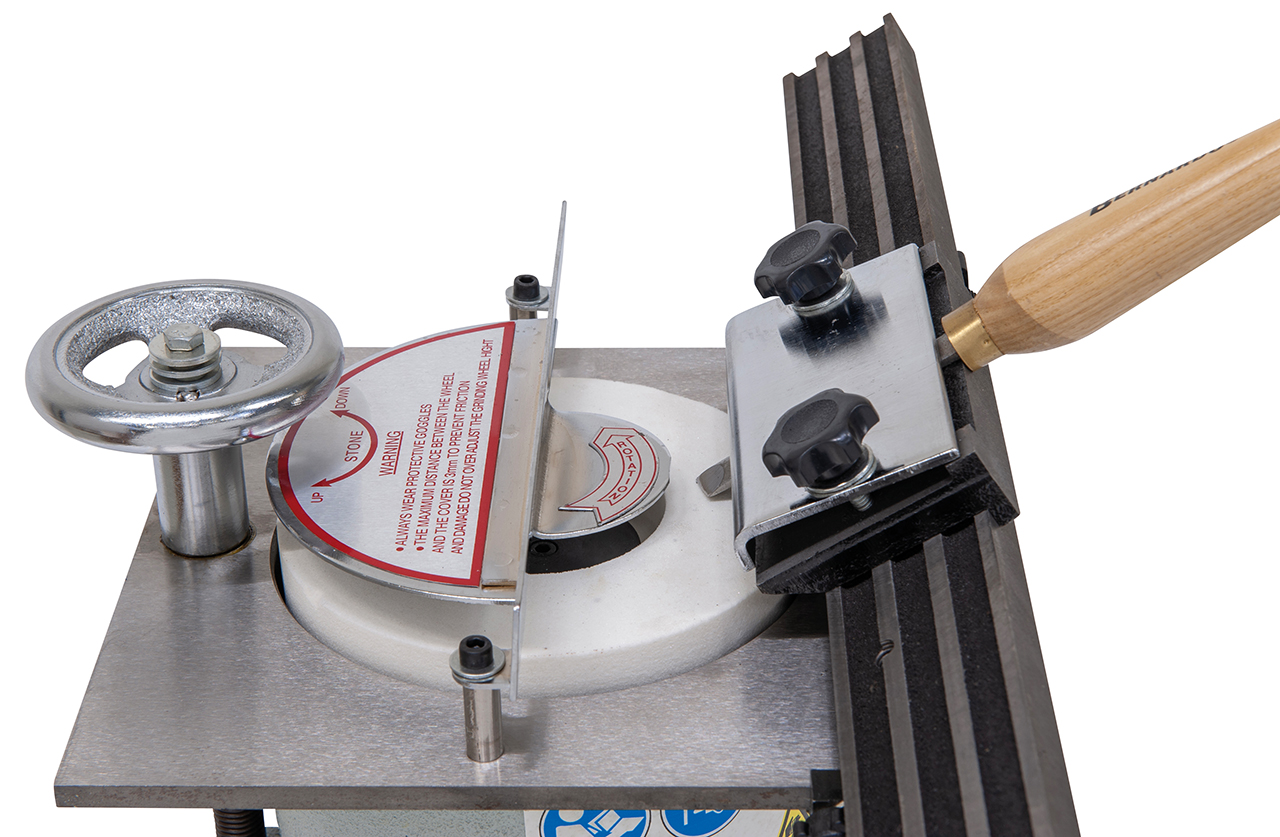

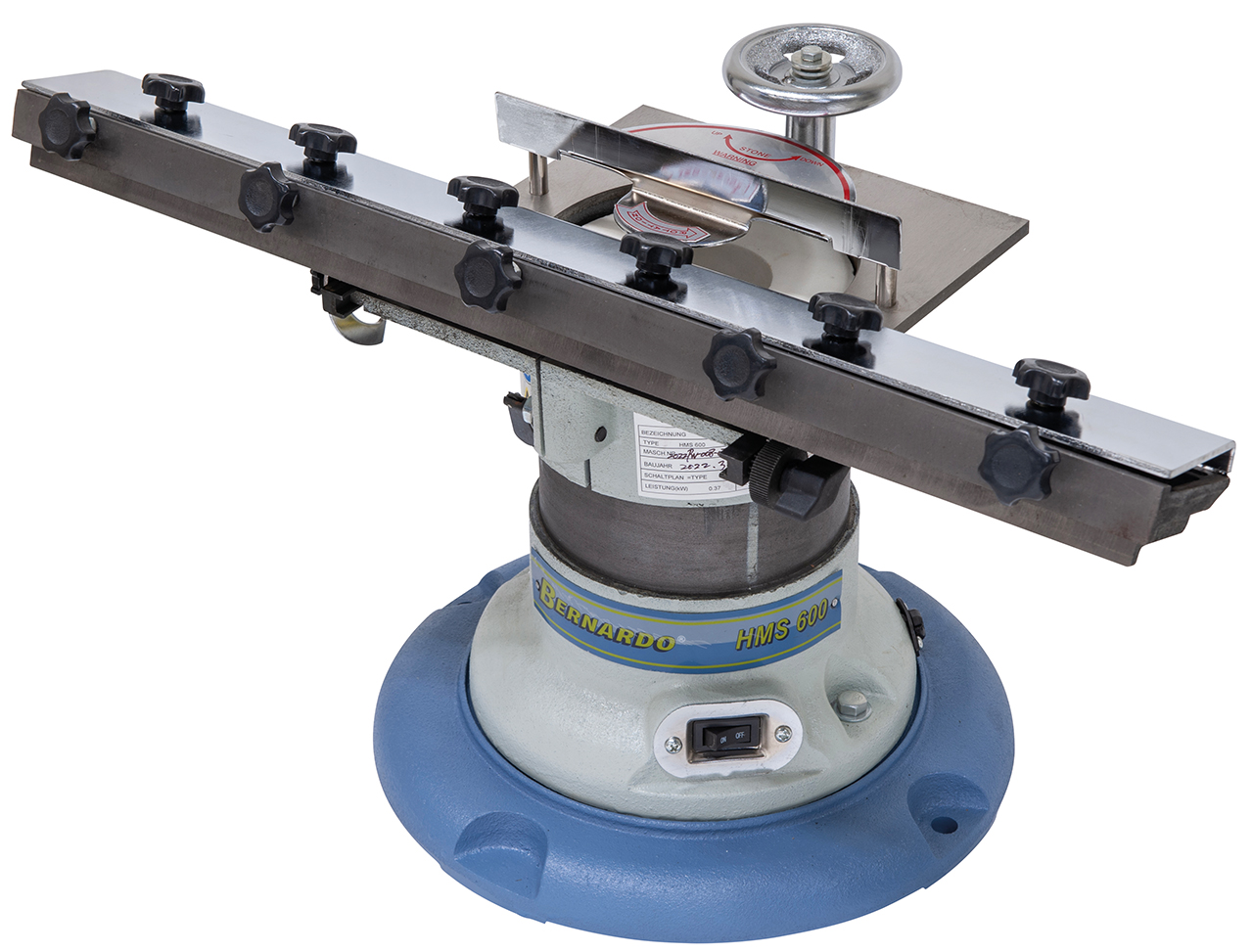

- Allows simultaneous grinding of two cutter knives of 310 mm each which halves time consumption (significant difference when grinding 4-knife cutterblock)
- Grinding wheel runs free from vibrations for optimal grinding results
- Precise cutter knife holder made from solid grey cast-iron

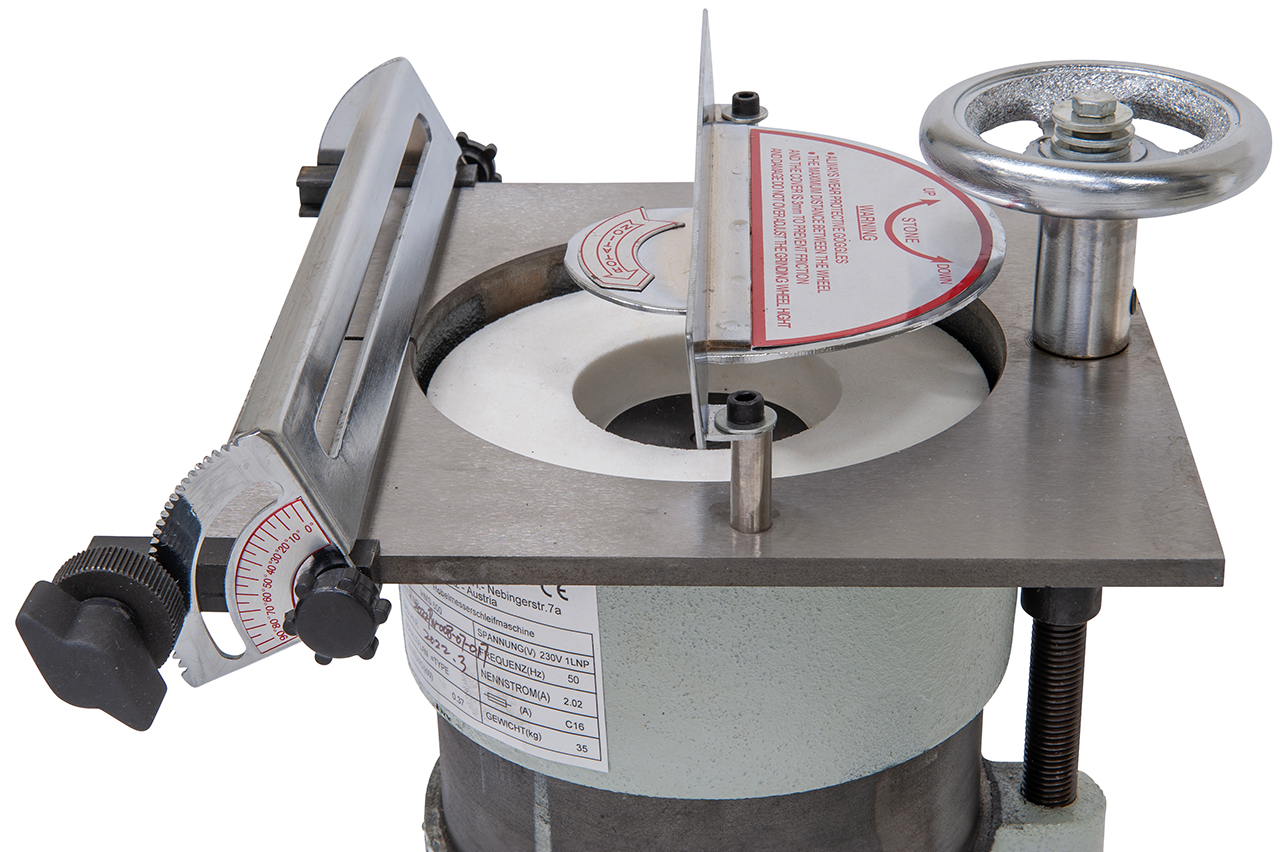

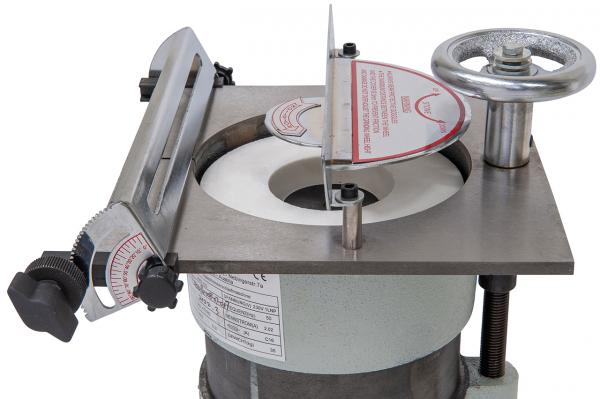

- Tiltable guide rail from 20° to 90°
- Handwheel on front of machine allows for adjustment of grinding angle
Technical details Cutter knive sharpener Bernardo HMS 600
|
Grinding wheel
|
150 x 40 x 12,7 mm
|
|
Speed
|
2800 rpm
|
|
Max. cutter knife length
|
620 mm
|
|
Tilting range guide rail
|
20° - 90°
|
|
Table height adjustment
|
30 mm
|
|
Motor power output S1 100%
|
0,36 kW (0,50 HP)
|
|
Motor power input S6 40%
|
0,50 kW (0,70 HP)
|
|
Voltage
|
230 V
|
|
Machine dimension (W x D x H)
|
620 x 330 x 350 mm
|
|
Weight approx.
|
36 kg
|
