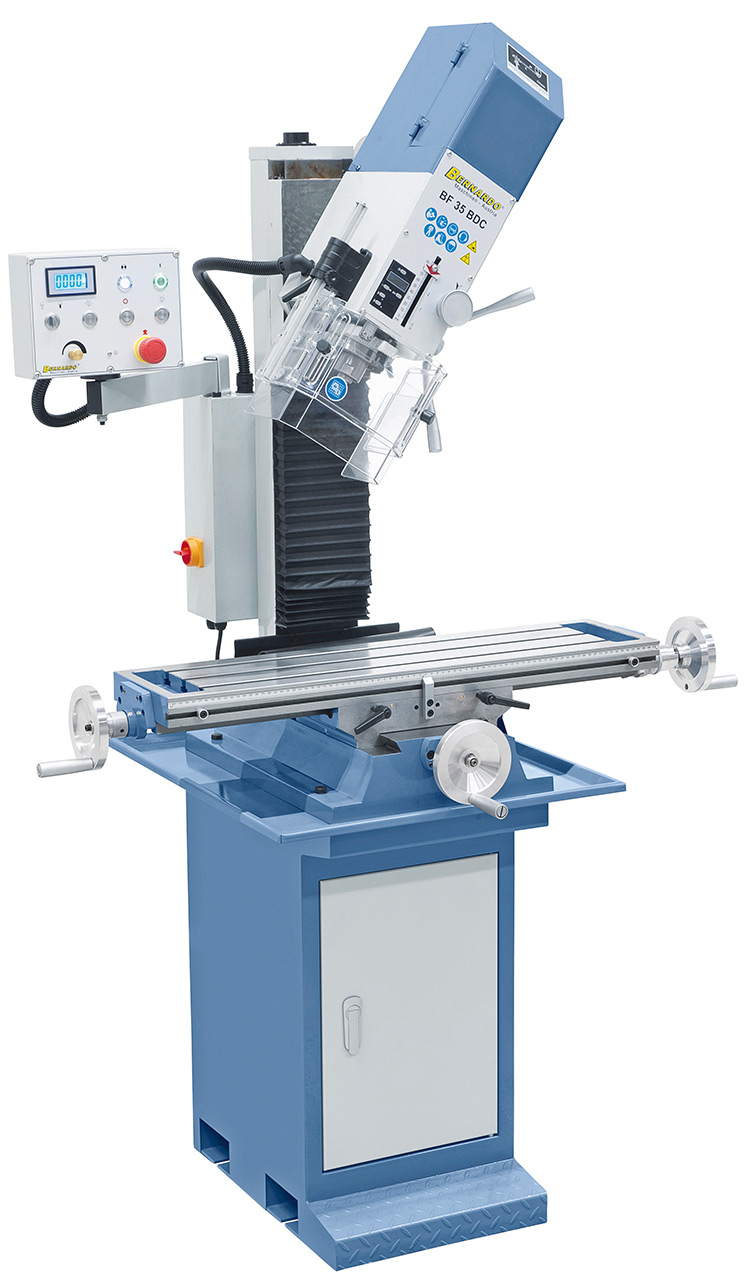

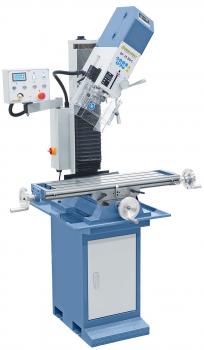

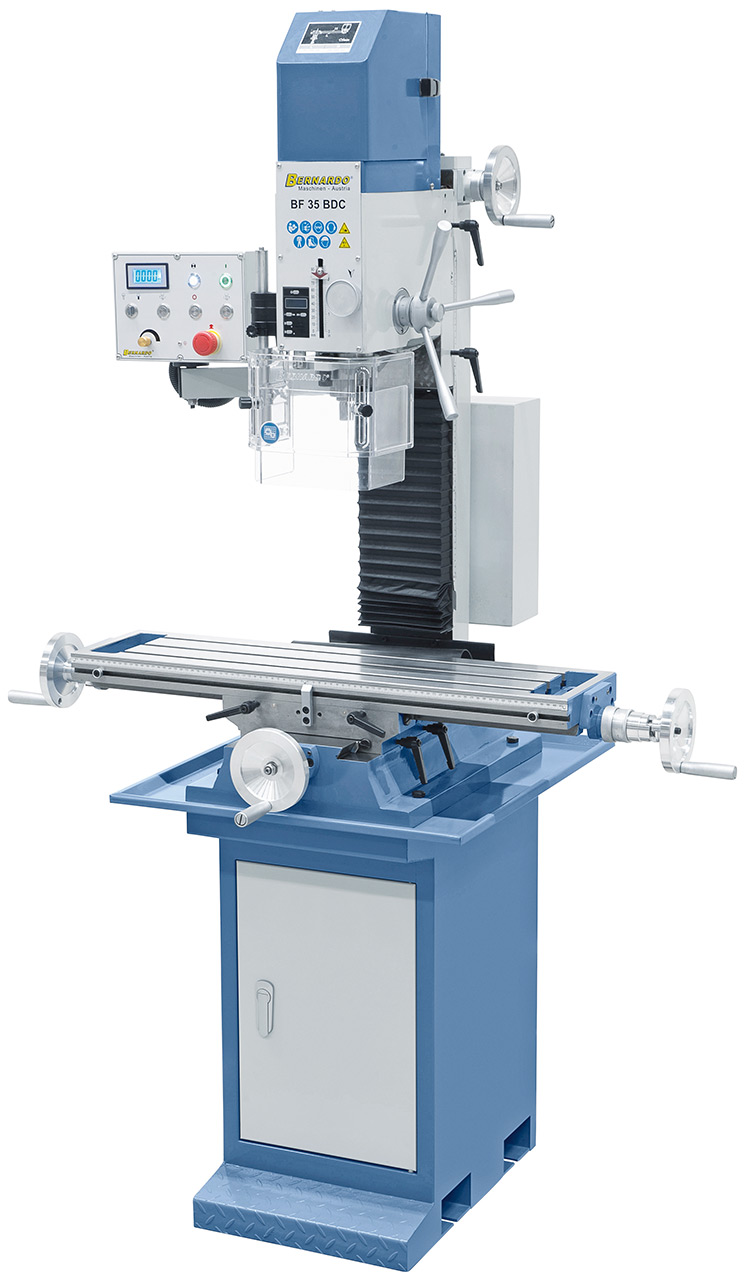

Drilling and milling machine Bernardo BF 35 BDC

The drilling and milling machine BF 35 BDC features a high speed range up to 3000 rpm, a powerful drive motor (1,5 kW) and a MT 3 spindle taper making this model ideal for user with high expectations. For reducing the non-productive time, this model is also available with a 3-axis digital readout and a stepless adjustable table feed.

Scope of delivery Drilling and milling machine Bernardo BF 35 BDC

• Drill chuck 3 - 16 mm / B 16
• Drill chuck arbor MT 3 / B 16
• Drawbar M 12

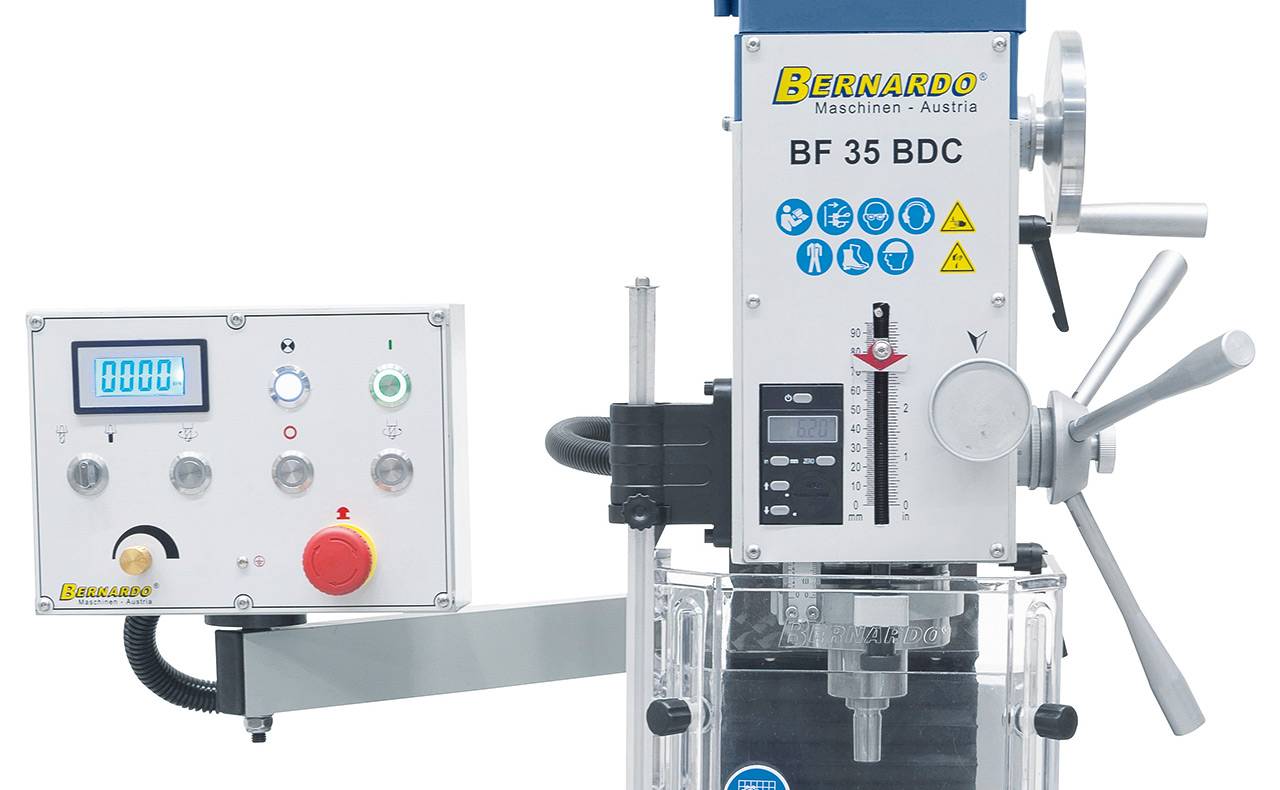

• Digital speed indicator
• Digital spindle stroke indicator
• EMC filter according to CE standard
• Height adjustable protective cover
• Thread cutting device
• Tools

Features Drilling and milling machine Bernardo BF 35 BDC

• Model can optionally be equipped with stepless table feed and 2-axis digital display (Art. no.  02-1117)
• Variable speed adjustment, stepless speed change for ideal adjustment to the workpiece
• Many possible applications, such as groove milling, face milling, reboring etc.

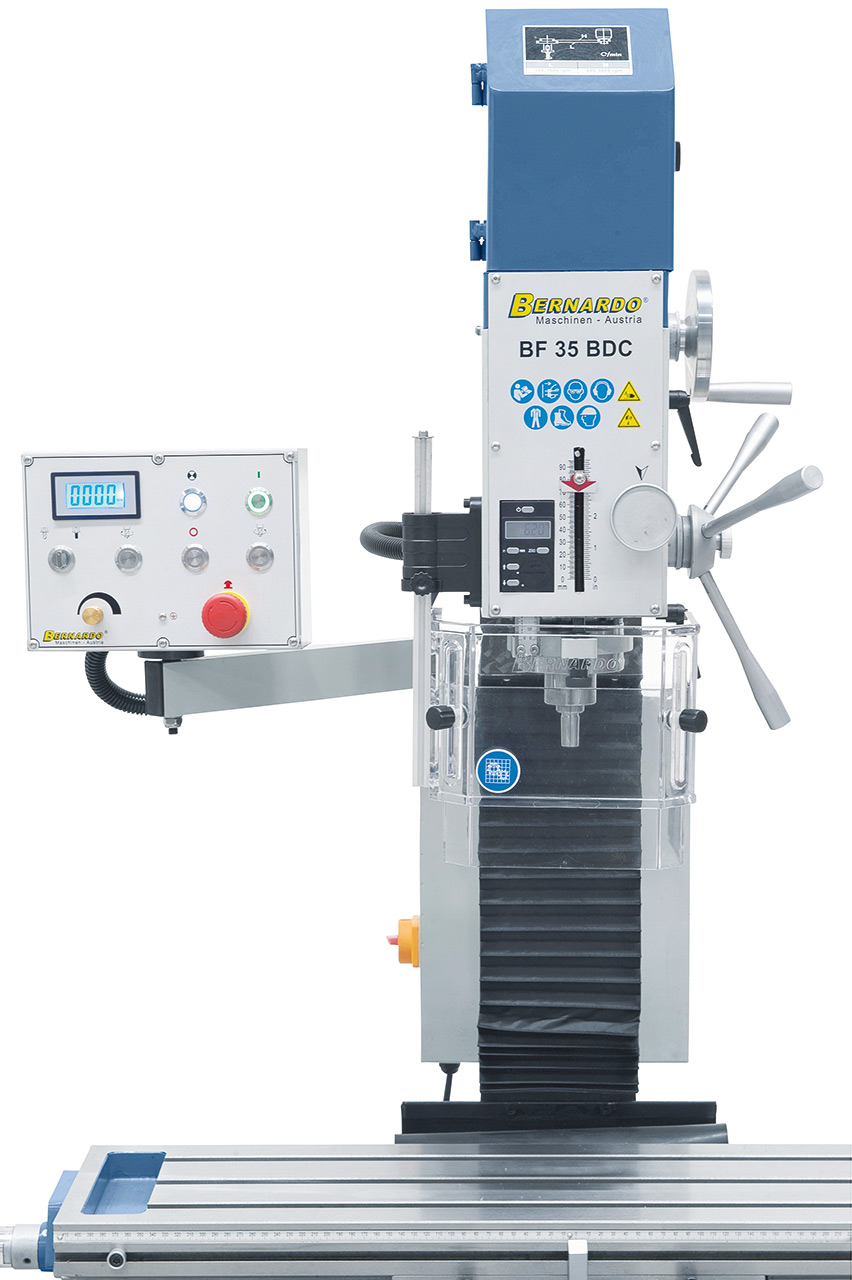

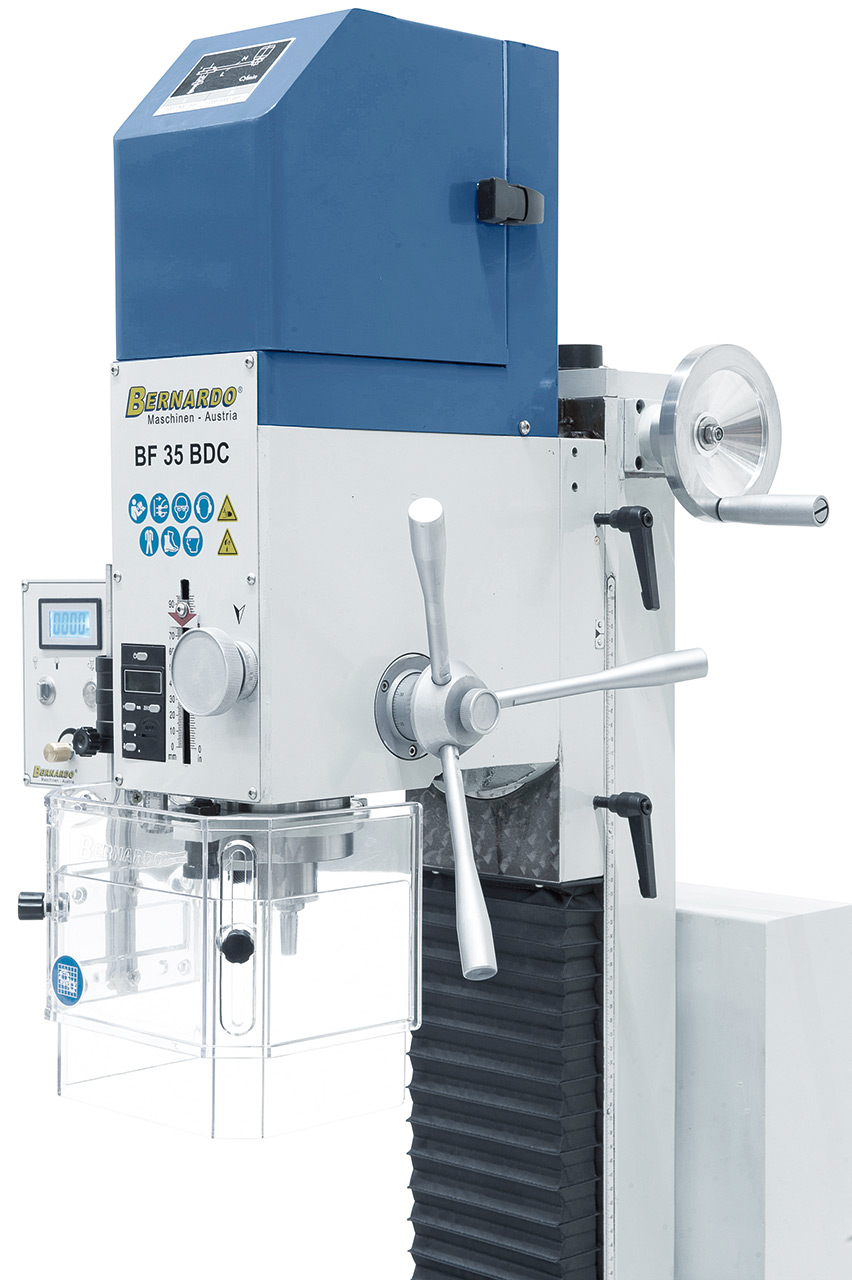

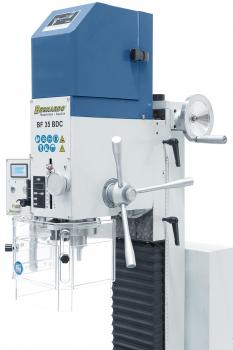

• Digital speed and spindle stroke indicator included as standard equipment
• Serially equipped with left and right turning, ideal for thread cutting

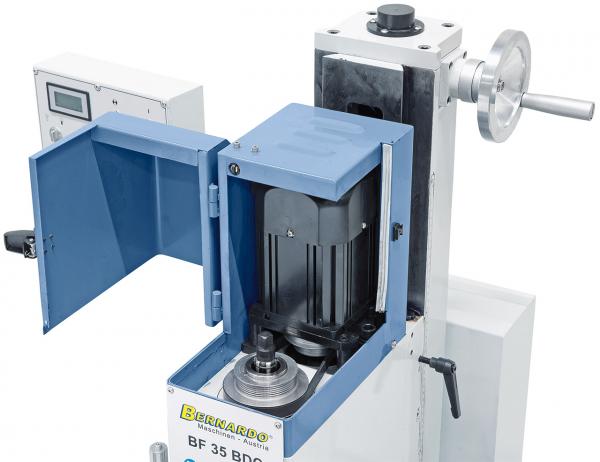

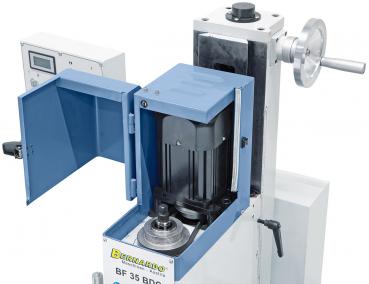

• Direct current motor for ideal torque at lower speed
• Dovetail guiding for the x-, y- and z-axis, adjustable via gibs
• High-quality bearings guarantees high spindle concentricity (≤0.015 mm)

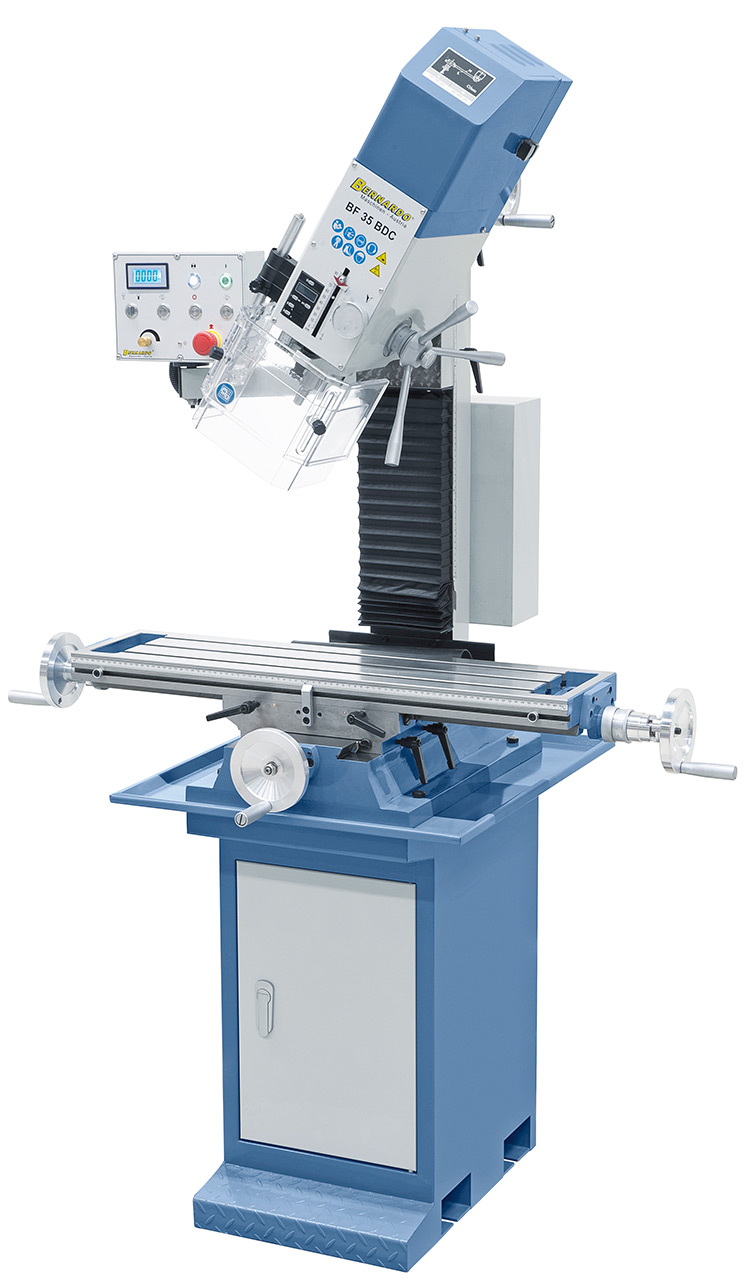

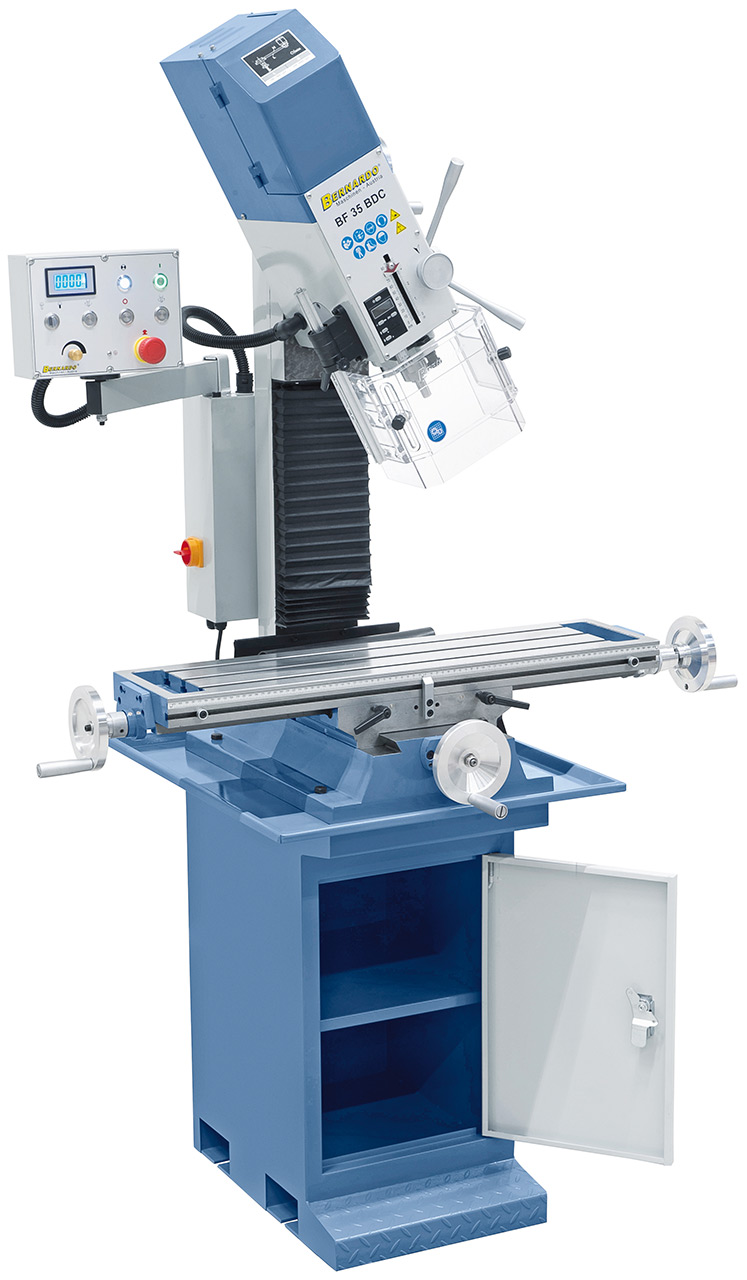

• Mill head tiltable to both sides for angular boring, milling of bevels etc.
• Large, surface treated cross table

Technical details Drilling and milling machine Bernardo BF 35 BDC

* without stand
