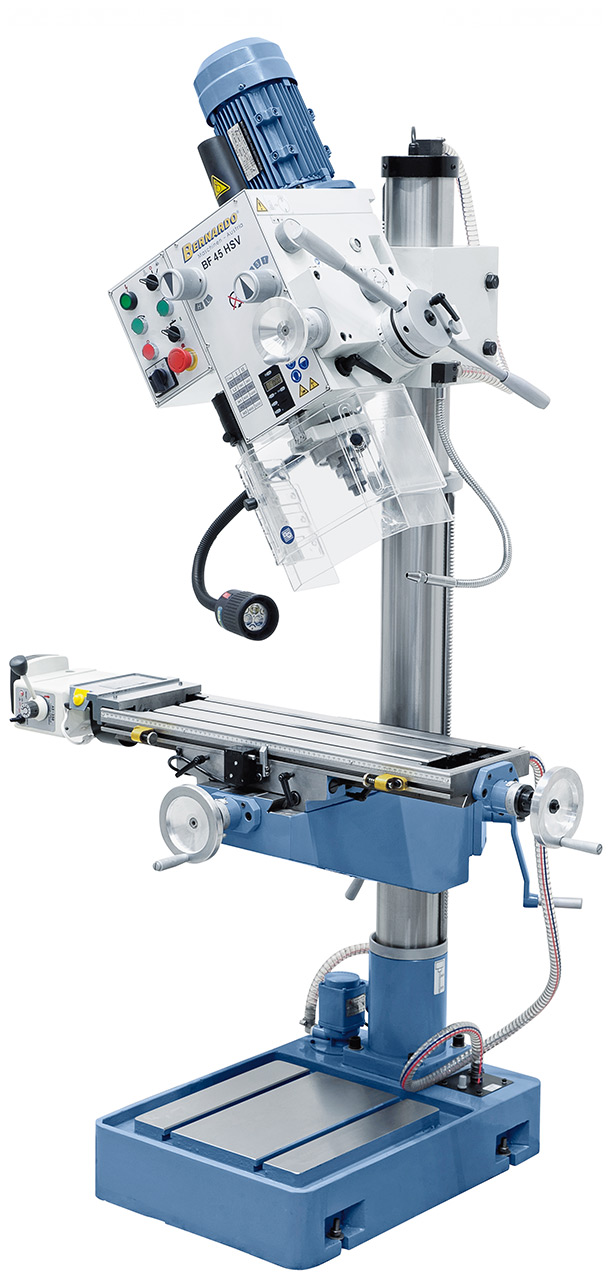

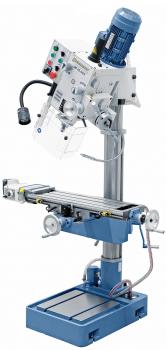

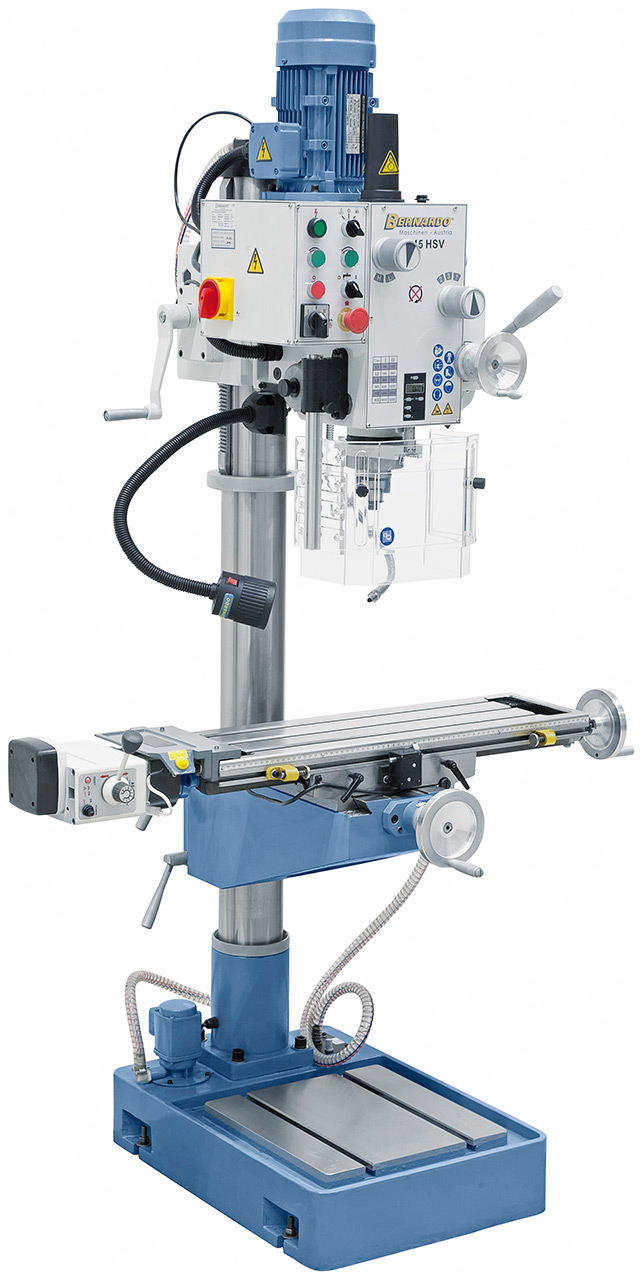

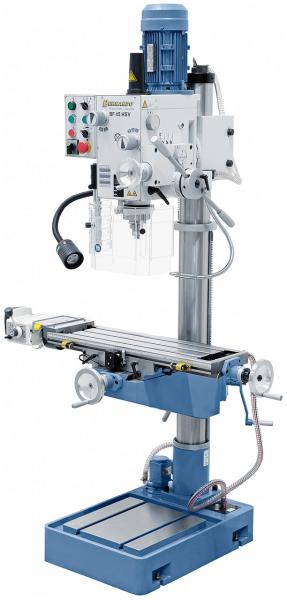

Drilling and milling machine Bernardo BF 45 HSV with x-axis power feed

Drilling and milling machine with spindle and table feed

Scope of delivery Drilling and milling machine Bernardo BF 45 HSV with x-axis power feed

• x-axis power feed AL 450 D
• Keyless drill chuck 3 – 16 mm / B 16
• Drill chuck arbor MT 4 / B 16
• Drawbar M 16
• Morse taper drill sleeve MT 4 / 3
• Taper shell end mill holder MT 4 / 27 mm
• Automatic spindle feed
• Height adjustable protective cover
• Digital spindle stroke indication
• Thread cutting device
• Coolant device
• LED machine light
• Longitudinal scale
• Tools

Features Drilling and milling machine Bernardo BF 45 HSV with x-axis power feed

• Powerful 2-step motor, speed range 75 - 3200 rpm
• Solid, polished steel column suitable for heavy workload
• Digital display for spindle stroke and LED-lamp comes standard
• Serially equipped with automatic spindle feed and thread cutting device
• Lever allows quick and easy speed change

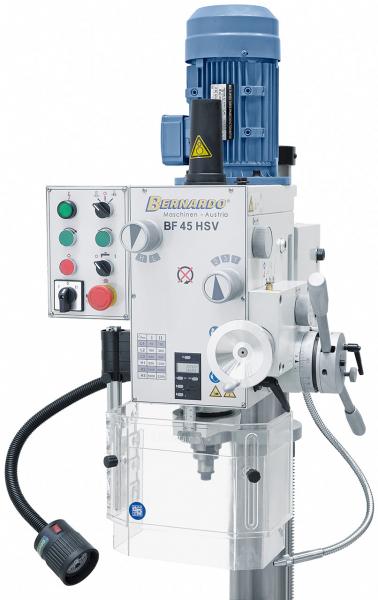

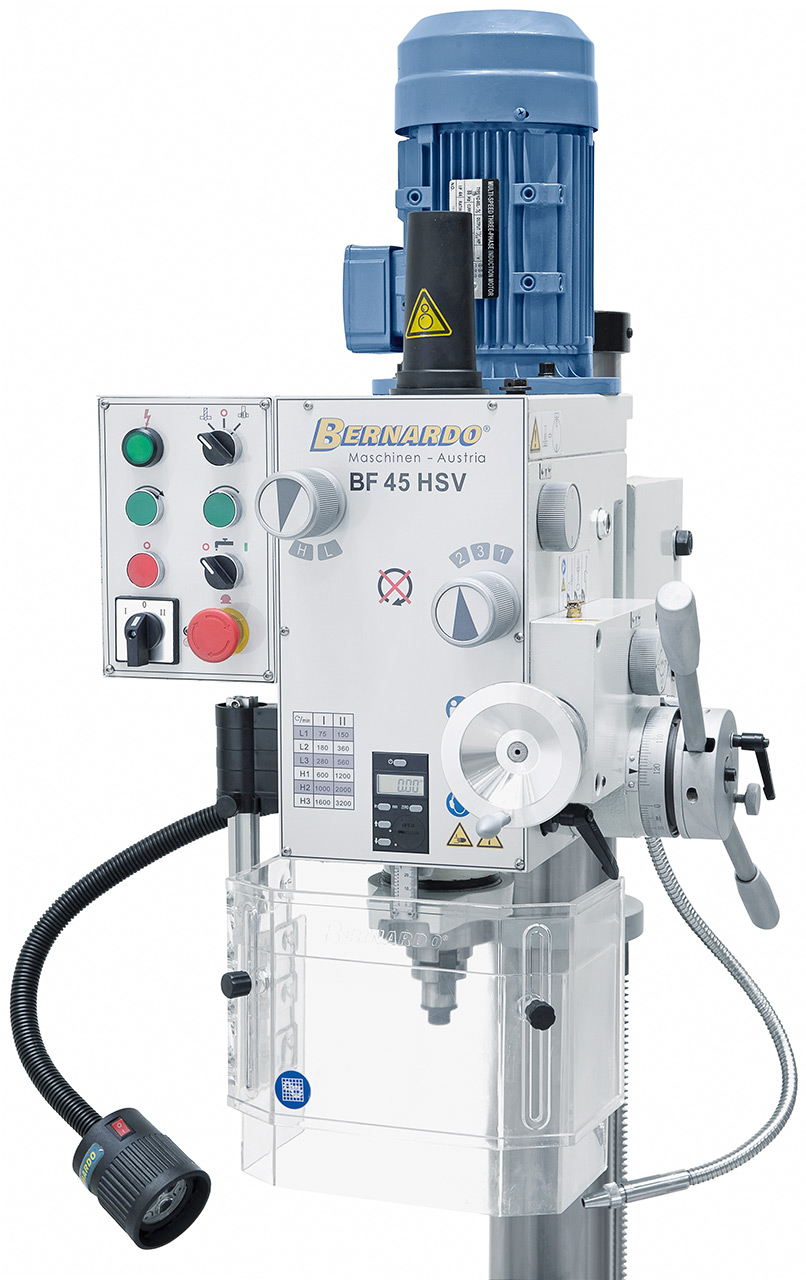

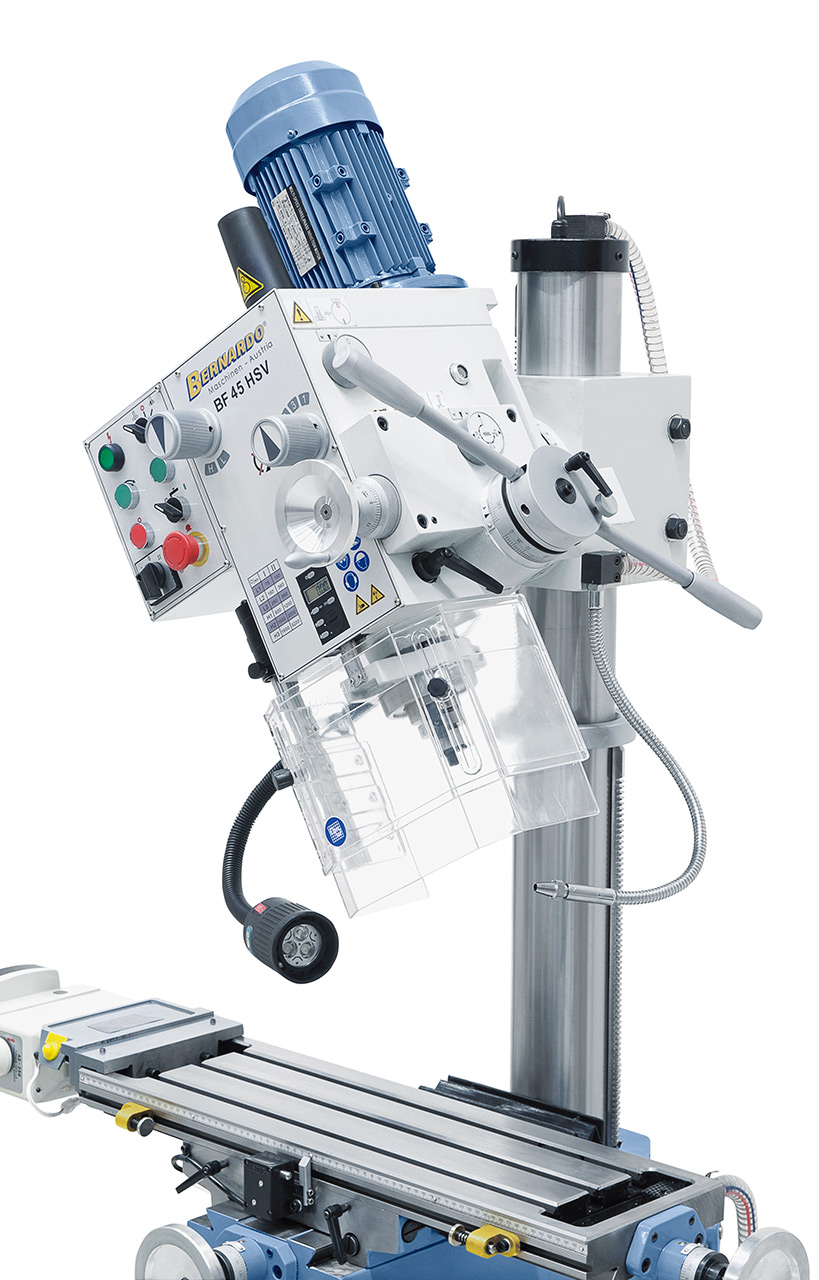

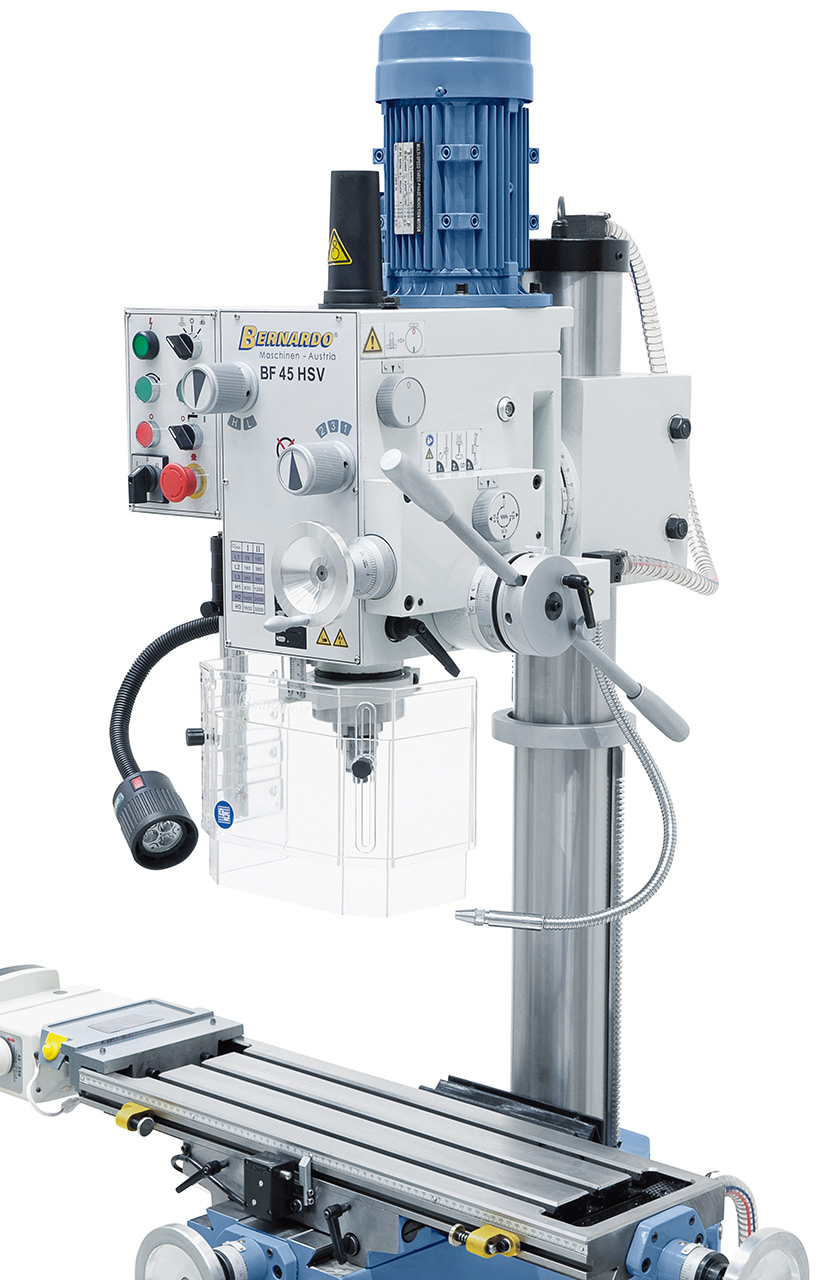

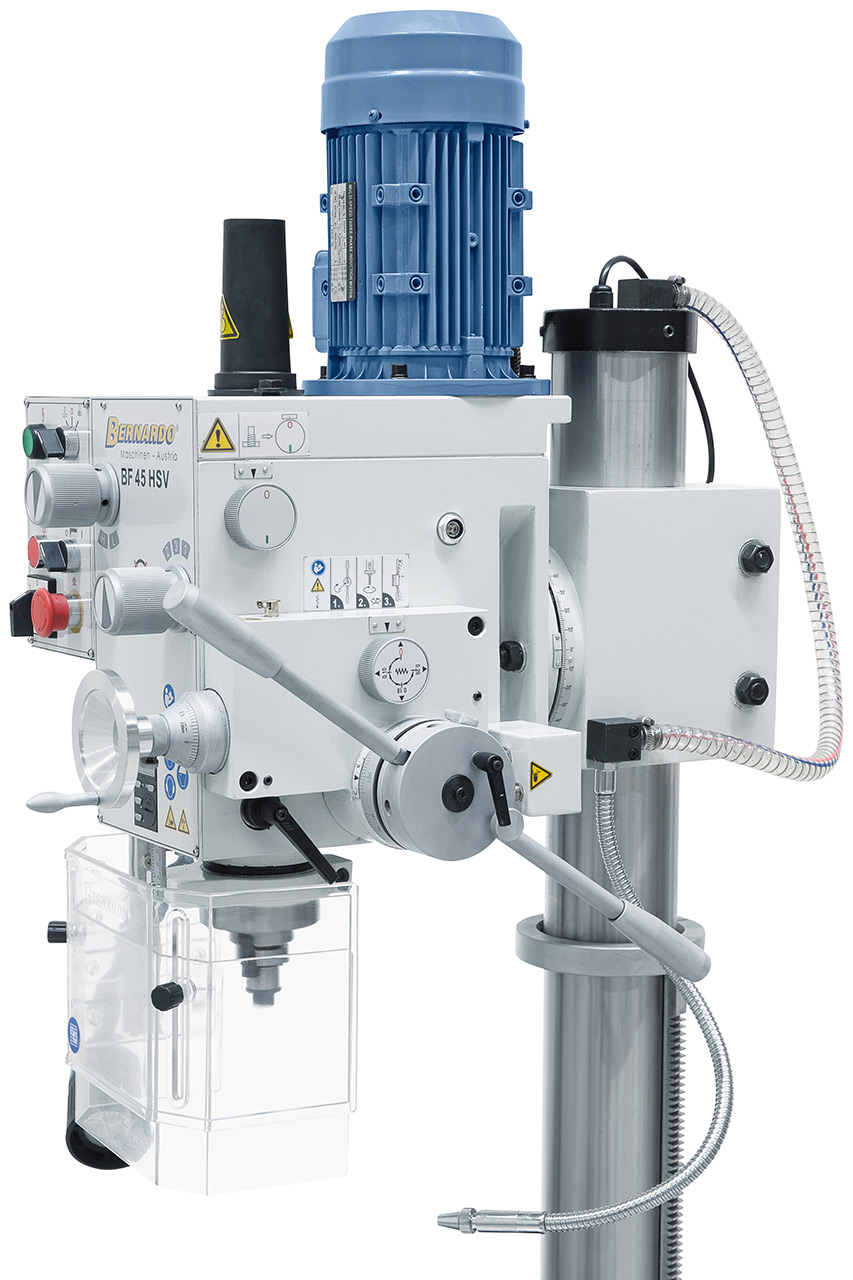

• Gear head is height adjustable, tilts 180˚ and rotates 360˚
• Polished gear wheels, in oil bath, guarantees smooth running
• Clutch allows change from manual to fine feed
• High-quality ball bearings allow for high concentricity
• Height adjustable protective cover with micro switch for increased safety

Technical details Drilling and milling machine Bernardo BF 45 HSV with x-axis power feed
