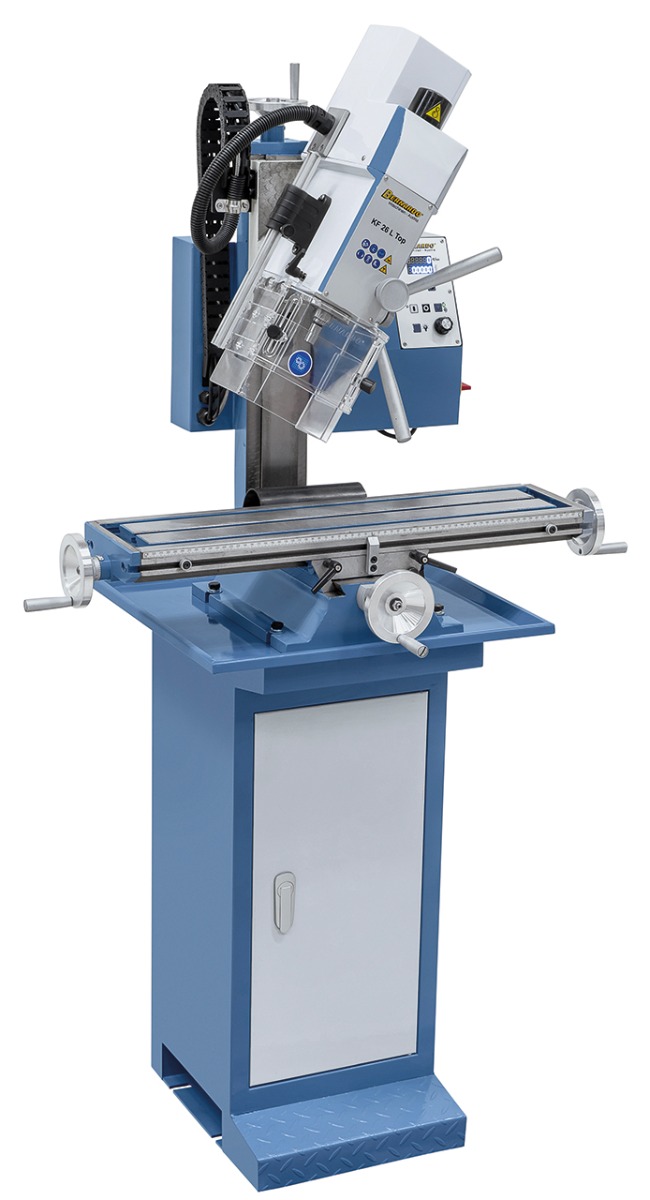

Drilling and milling machine Bernardo KF 26 L Top

The KF 26 L Top drilling and milling machine comes complete with a high quality direct current motor. Consequently, there are many advantages such as the high torque at low speed and the almost constant speed during processing.  This model is predominantly used among professionals, in model-making as well as for training purposes.

Scope of delivery Drilling and milling machine Bernardo KF 26 L Top

• Drill chuck 3 - 16 mm / B 16
• Drill chuck arbor MT 2 / B 16
• Drawbar
• LED machine light
• Digital display of spindle stroke
• Digital display of speed range
• EMC filter according to CE standard
• Height adjustable protective cover
• Energy chain
• Tools

Features Drilling and milling machine Bernardo KF 26 L Top

• High speed range from 60 - 2700 rpm, 2-step gear box ensures optimal transmission
• Variable speed adjustment, stepless speed change for ideal adjustment to the workpiece
• Model can optional be equipped with stepless table feed and 3-axis digital readout DT 40

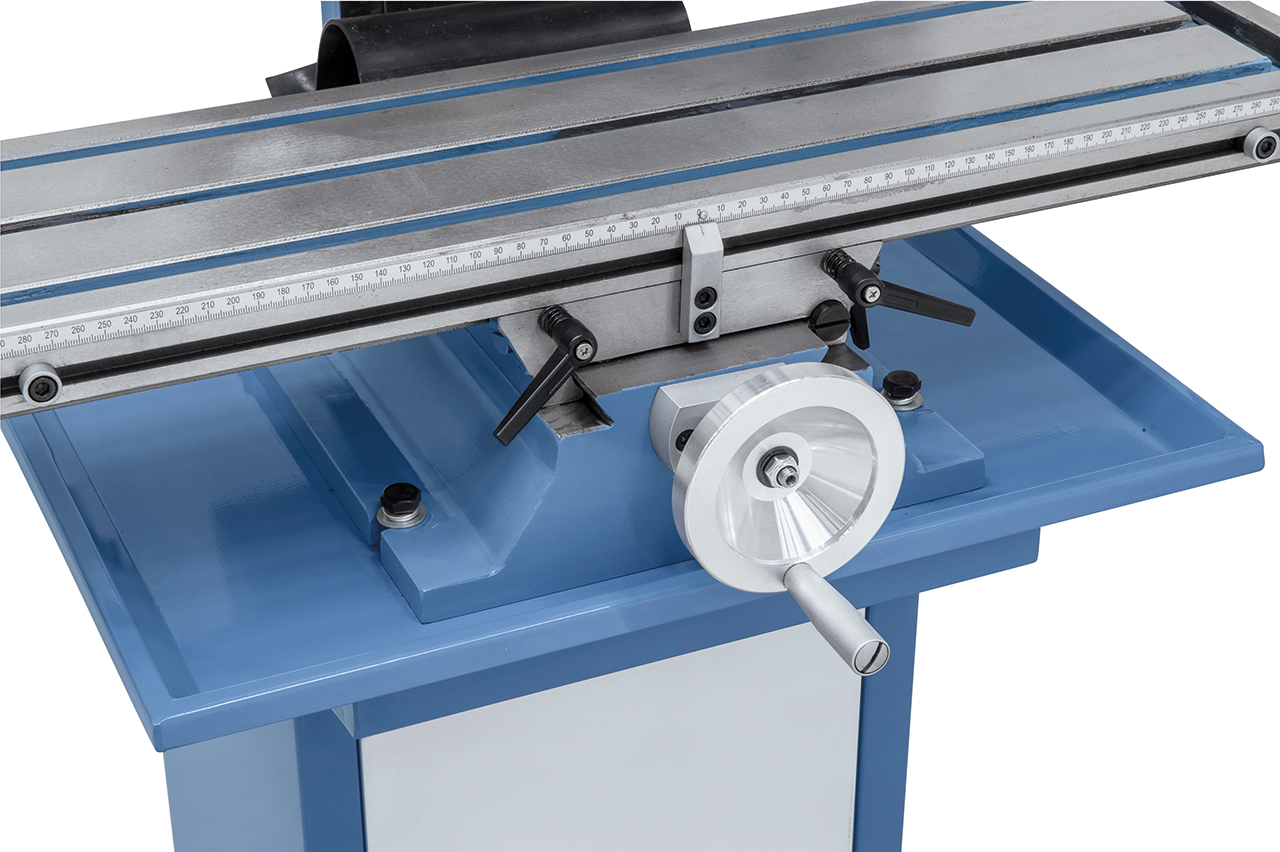

• Oversize cross table features T-slots, high grade surface finish
• Many possible applications, such as groove milling, face milling, reboring, etc.
• Direct current motor for ideal torque at lower speed
• Mill head tilts to both sides allowing angular boring, milling of bevels, etc.
• Incl. EMC filter, protect electrical equipment against electromagnetic interferences
• Left and right rotation for thread cutting comes standard
• Taper roller bearing guarantees high spindle concentricity (≤ 0,015 mm)
• Dovetail guiding in x-, y- and z-axis, adjustable via gibs
• Spindle adjustment via handle, fine feed via handwheel

Technical details Drilling and milling machine Bernardo KF 26 L Top

* without stand
