The ZSM 560 - 2 cylinder sanding machine is suitable for sanding works up to a width of 1120 mm. The feed of the conveyor belt can be adjusted steplessly to the workpiece to achieve optimal grinding results.

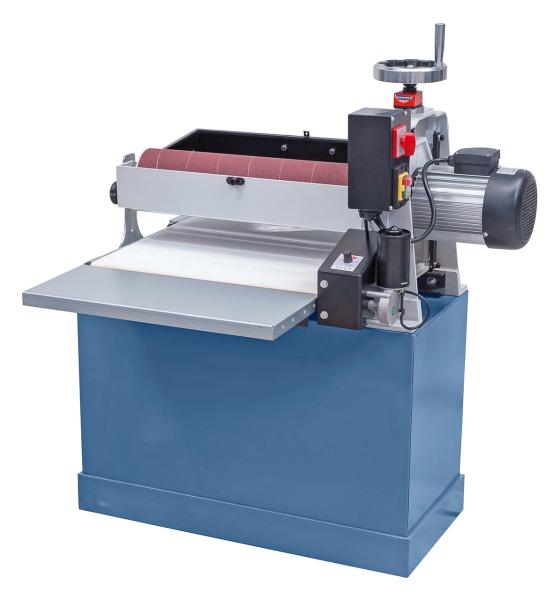

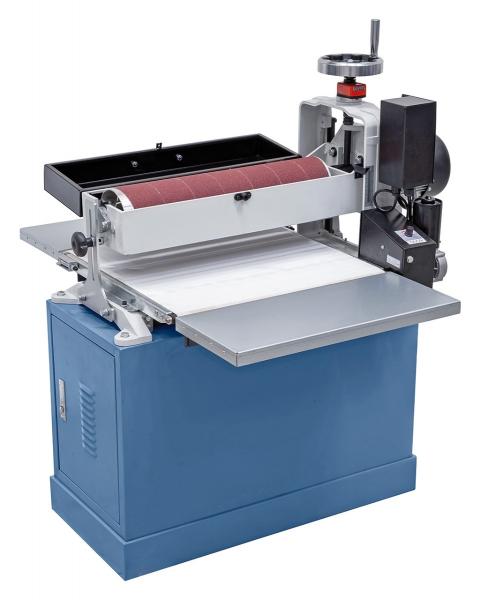

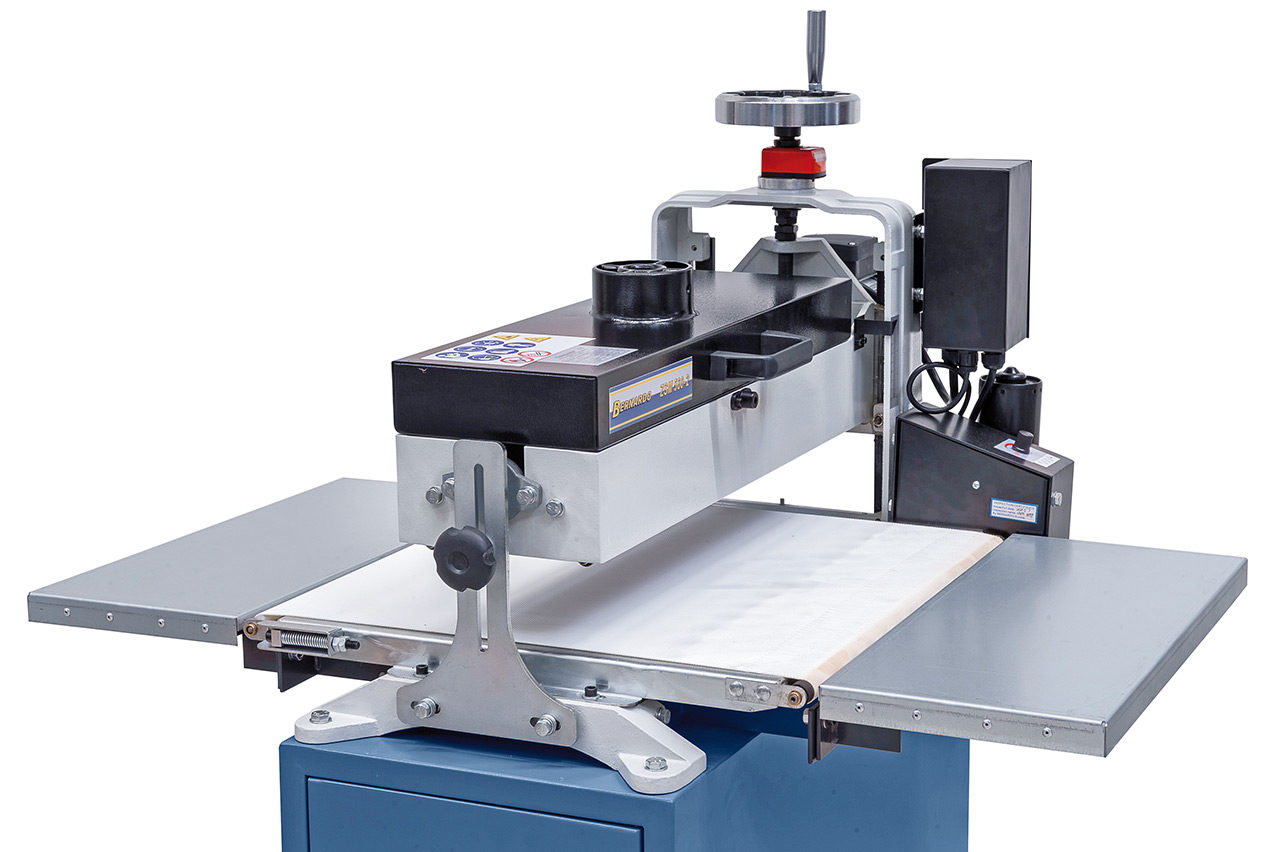

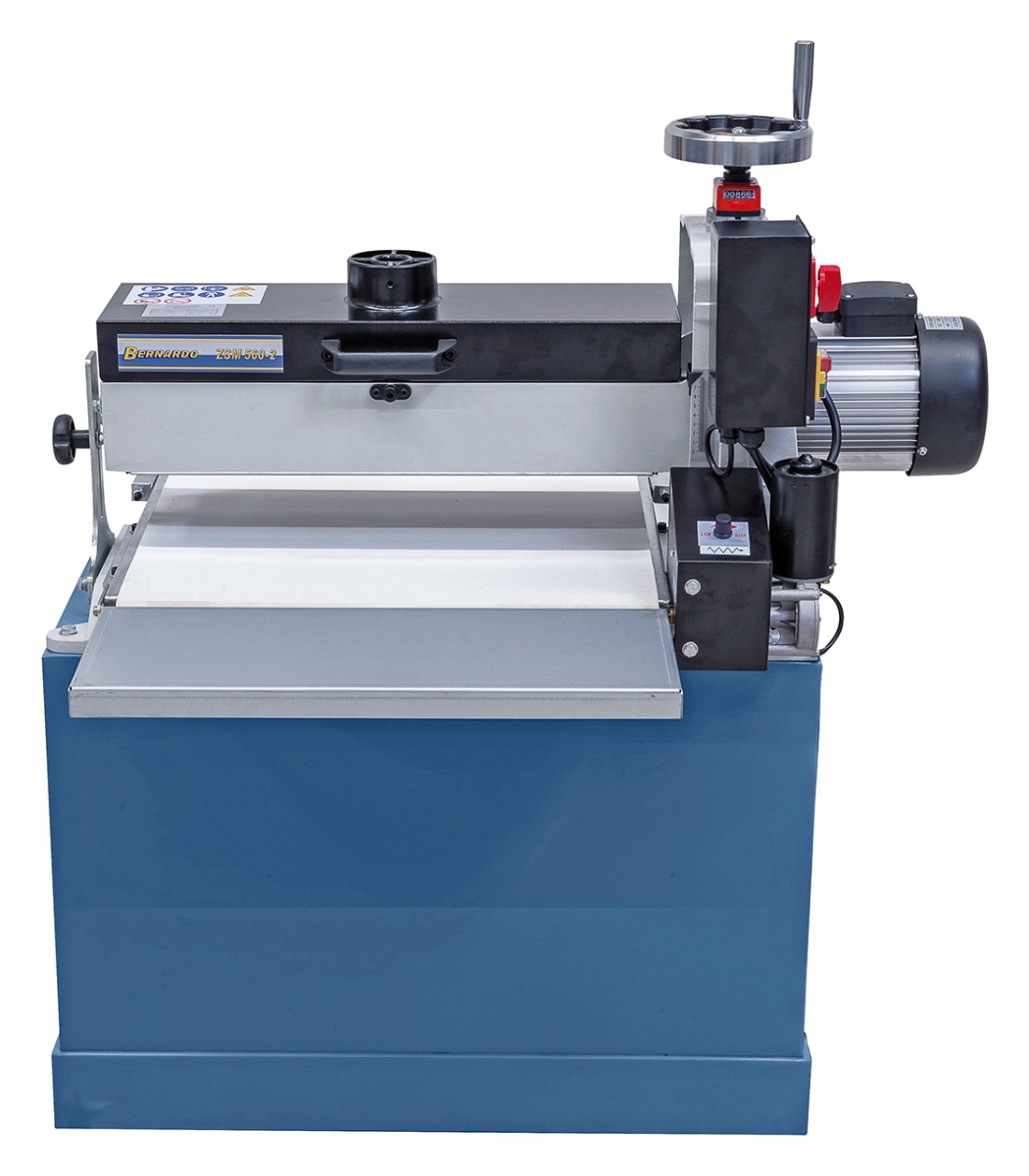

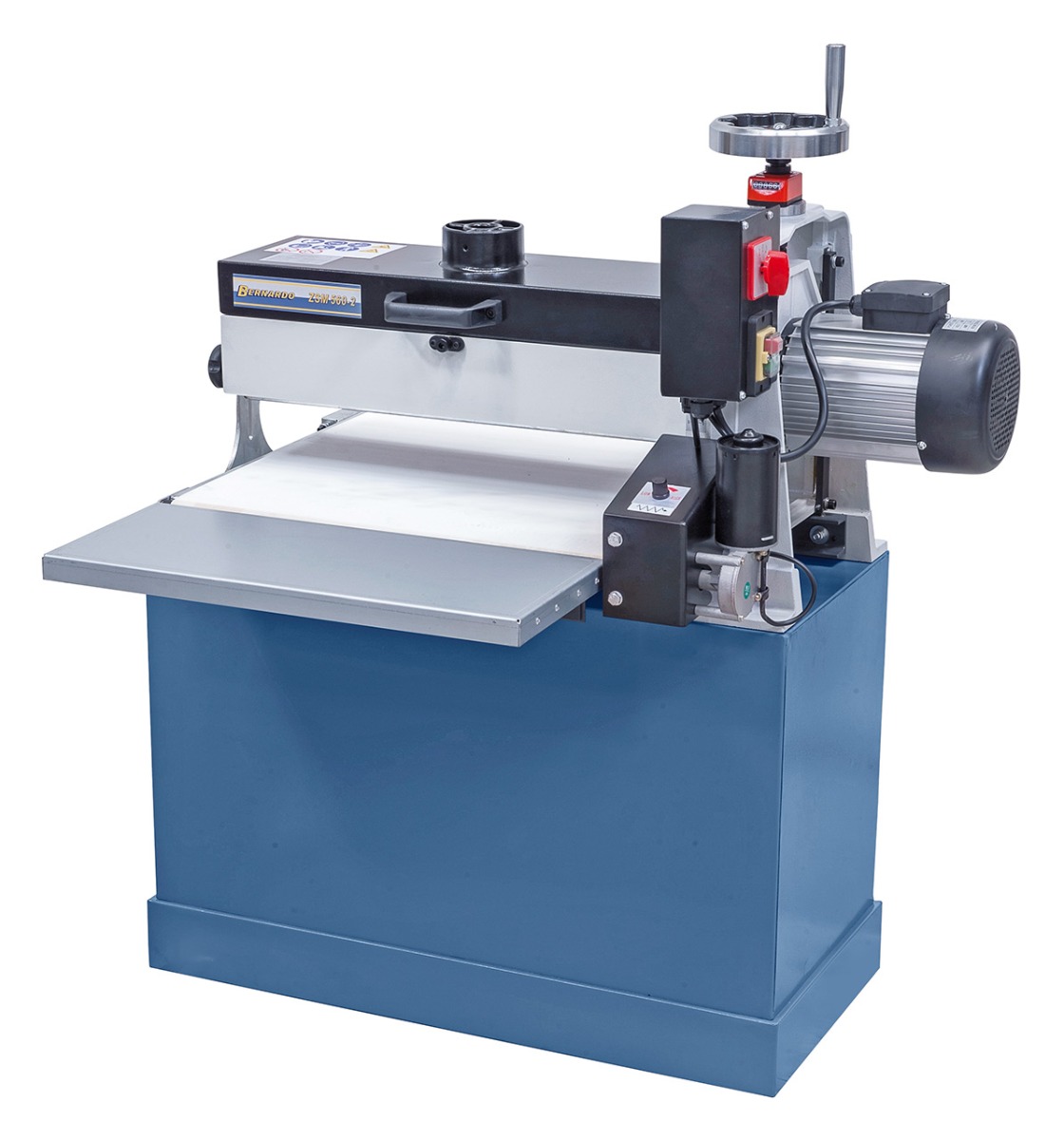

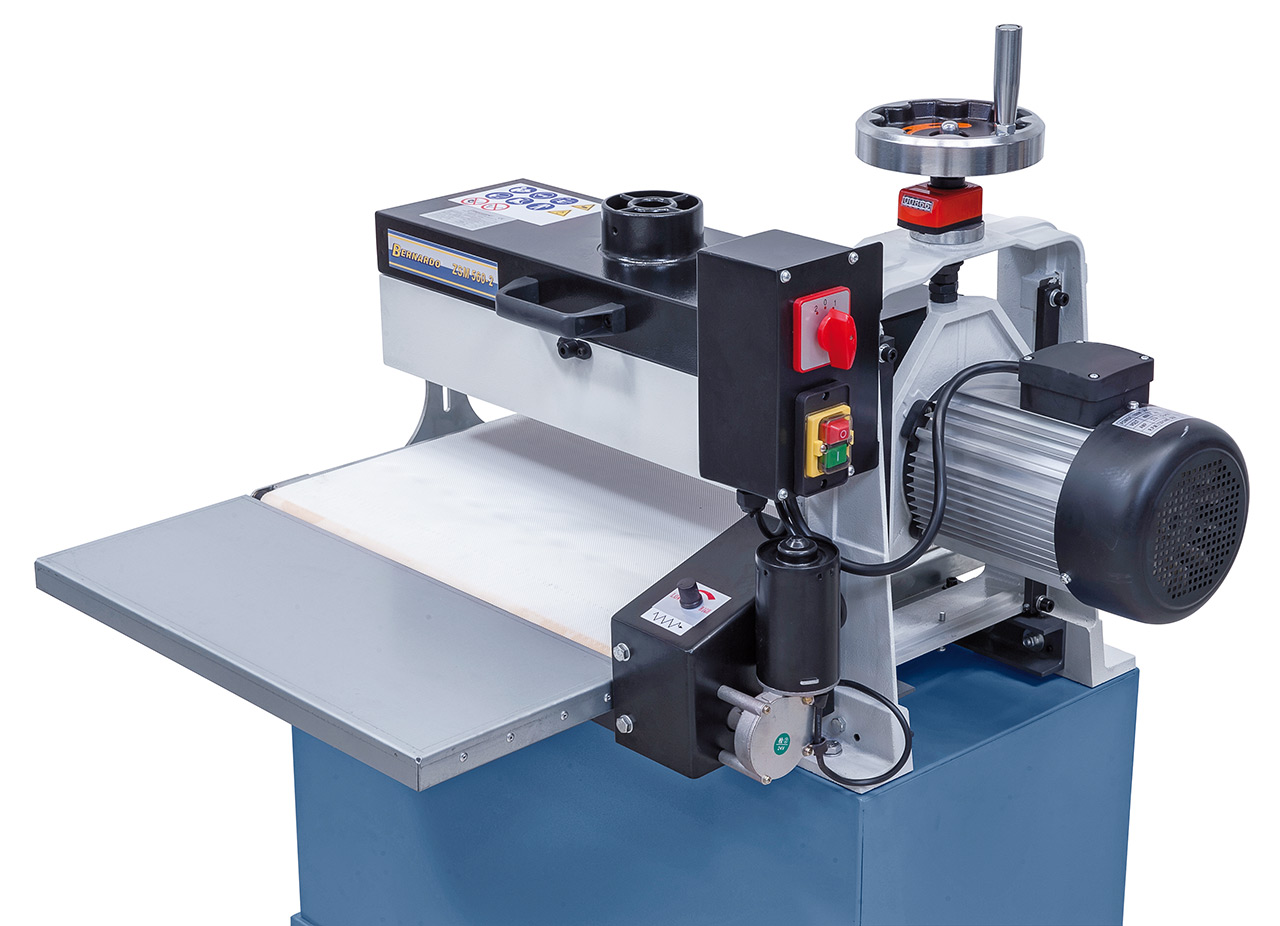

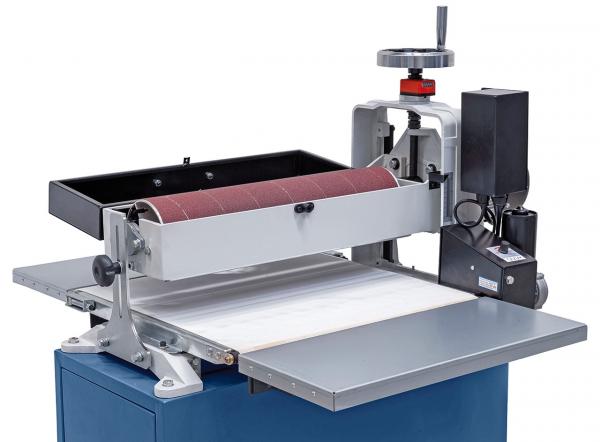

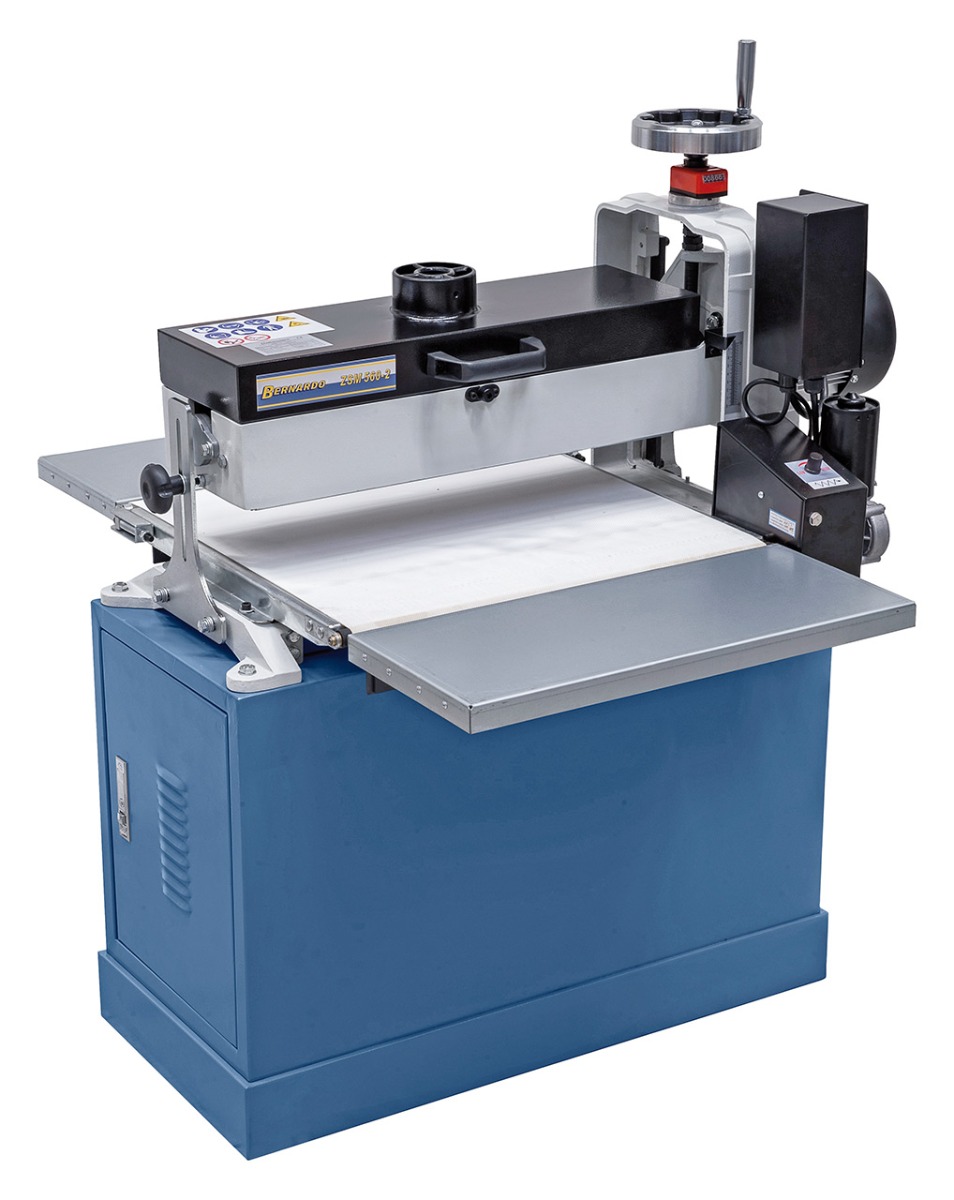

Scope of delivery Drum sander Bernardo ZSM 560-2 - 400 V
- Sanding belt grit K100
- Table extension on both sides
- Closed stand with tool storage
Features Drum sander Bernardo ZSM 560-2 - 400 V
- When side support not in use machine suitable for double the grinding width (eg. for frames etc.)
- Complete with dust port to connect an dust collector for a clean workplace
- Set variable conveyor belt speed
- Suitable for major commercial grinding abrasive cloths
- Scale ensures precise height adjustment of sanding unit
- Suitable for sanding of wood, plastics and similar materials
- Powerful motor guarantees best results
Technical details Drum sander Bernardo ZSM 560-2 - 400 V
| Max. sanding width | 560 mm (1120 mm) |
| Min. sanding length | 60 mm |
| Workpiece thickness, min. / max. | 5 – 80 mm |
| Table size (L x W) | 500 x 580 mm |
| Both-sided table extension (L x W) | 245 x 580 mm |
| Working height | 680 mm |
| Sanding roller | Ø 130 x 565 mm |
| Feed stepless | 0,5 – 3 m/min |
| Speed | 750 / 1400 rpm |
| Dust extraction outlet | 100 mm |
| Motor power | 1,5 KW (2,0 HP) |
| Voltage | 400 V |
| Machine dimension (W x D x H) | 1030 x 1060 x 1190 mm |
| Weight approx. | 110 kg |
