The DC 300 powerful, transportable dust collector improves the performance of your wood working machines significantly and it will keep your workspace free from chips and sawdust.
Scope of delivery Dust collectors Bernardo DC 300 - 400 V
- Filter bag
- Waste bag
- Y-adapter 1 x 130 mm / 2 x 100 mm
- Carriage
Features Dust collectors Bernardo DC 300 - 400 V
- Ideal device for extraction of sawdust, milling chips and wood shavings
- Solid steel plate construction reduces static charge - compared to plastic housing
- Complete with Y-adapter for simultaneous use of 2 machines
- Aerodynamically shaped steel plate fan wheel offers top performance

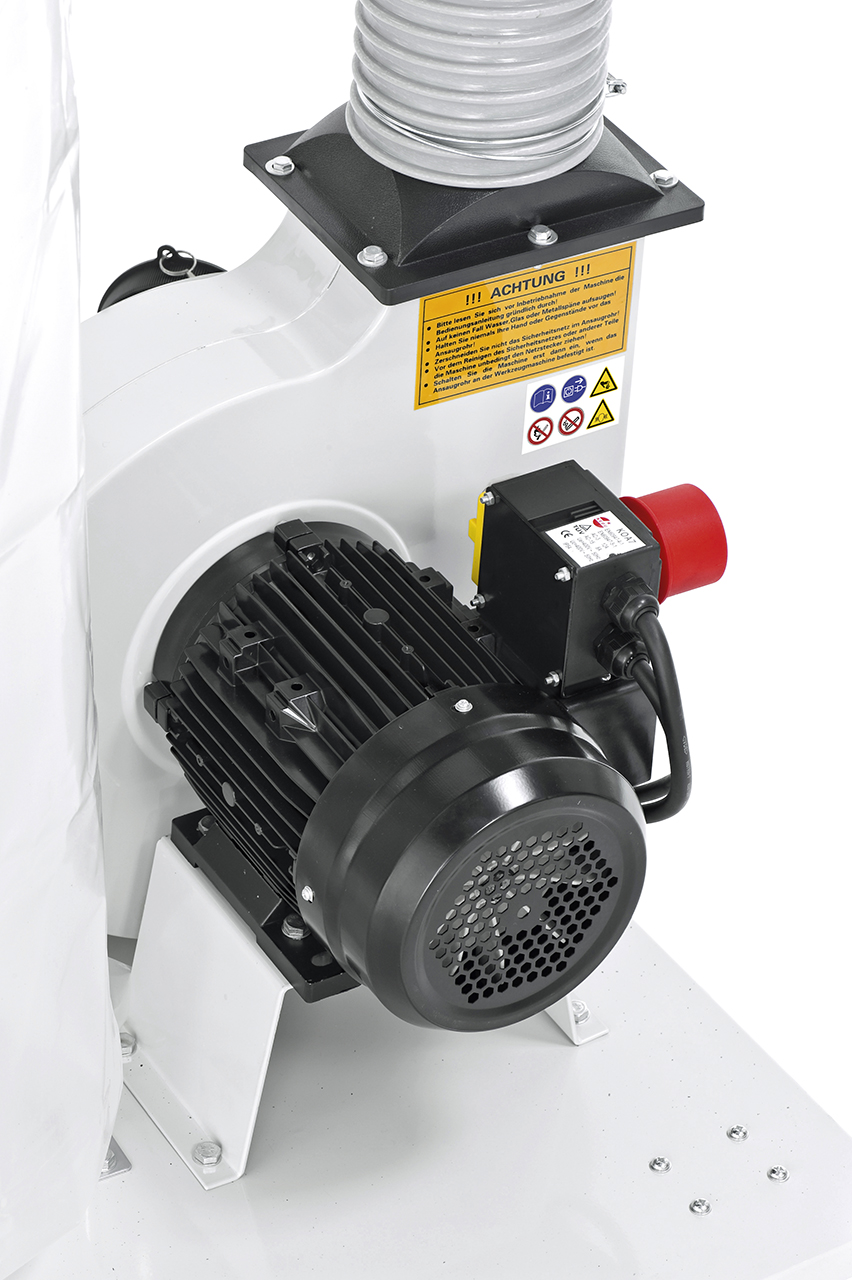

- Motor is serially equipped with thermo relay

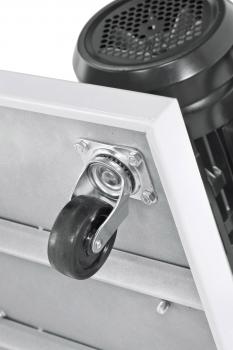

- Carriage allows for easy transport
Technical details Dust collectors Bernardo DC 300 - 400 V
|
Capacity
|
2520 m³/h
|
|
Filter area
|
1,45 m²
|
|
Low pressure max,
|
1800 Pa
|
|
Inlet diameter
|
1 x 130 / 2 x 100 mm
|
|
Waste bag volume
|
200 l
|
|
Idle speed
|
2950 rpm
|
|
Sound pressure
|
87,1 dB
|
|
Motor power output S1 100%
|
1,5 kW (2,0 HP)
|
|
Motor power input S6 40%
|
2,1 kW (2,8 HP)
|
|
Voltage
|
400 V / 50 Hz
|
|
Machine dimension (W x D x H)
|
860 x 670 x 1980 mm
|
|
Weight approx.
|
36 kg
|
