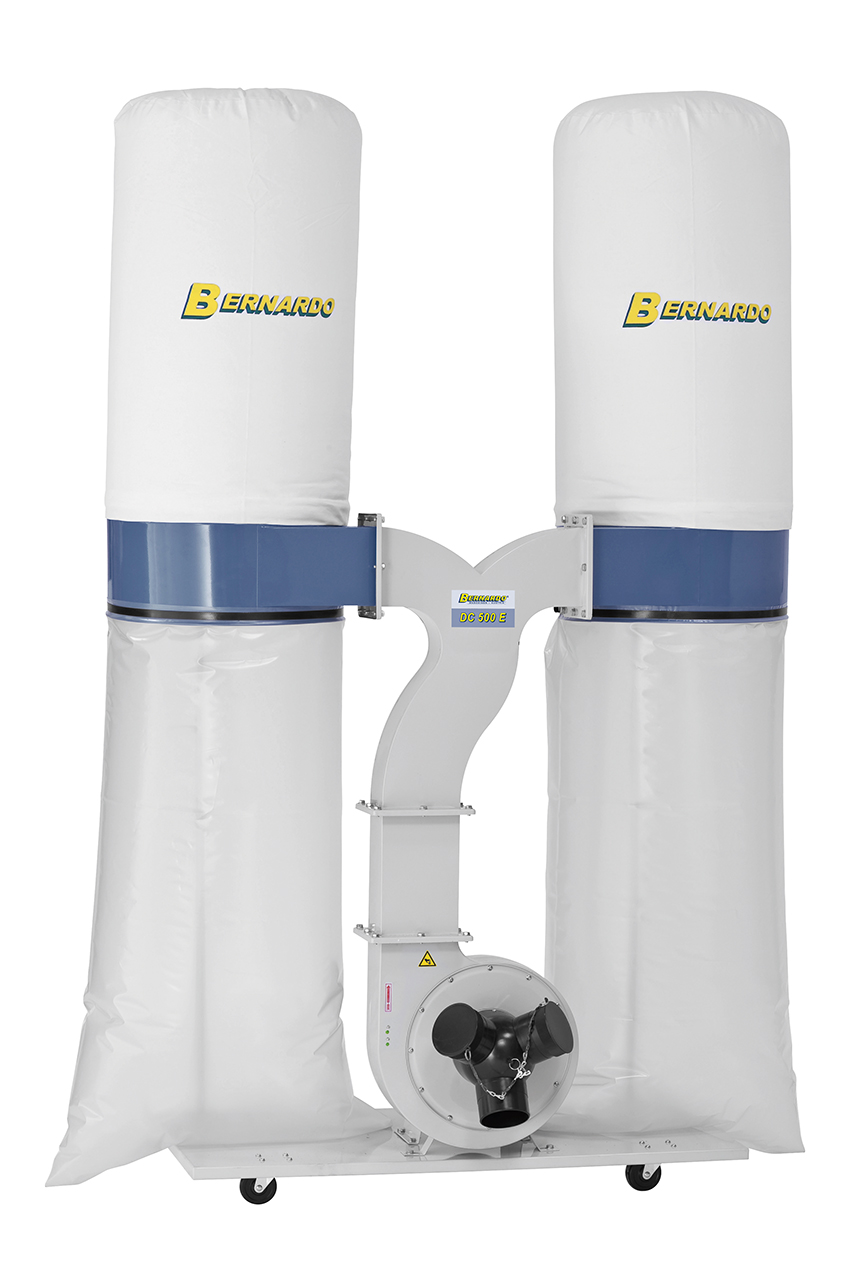

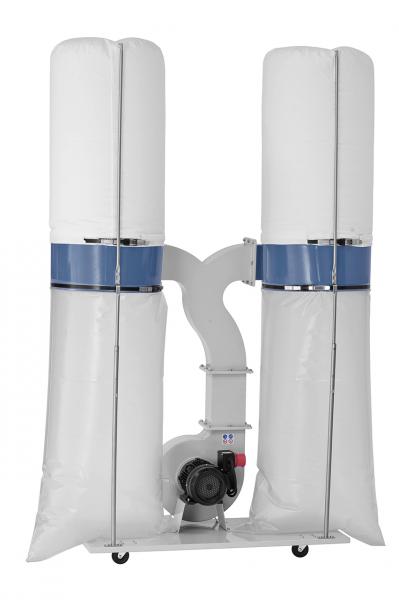

Dust collectors Bernardo DC 500 E - 230 V
The DC 500 E dust collector is the elite model of the DC series among amateurs. The powerful drive motor featuring overload protection, the amply dimensioned waste bag volume and the possibility to connect to three machines simultaneously allows this model to meet hobbyists' highest expectations.
Scope of delivery Dust collectors Bernardo DC 500 E - 230 V

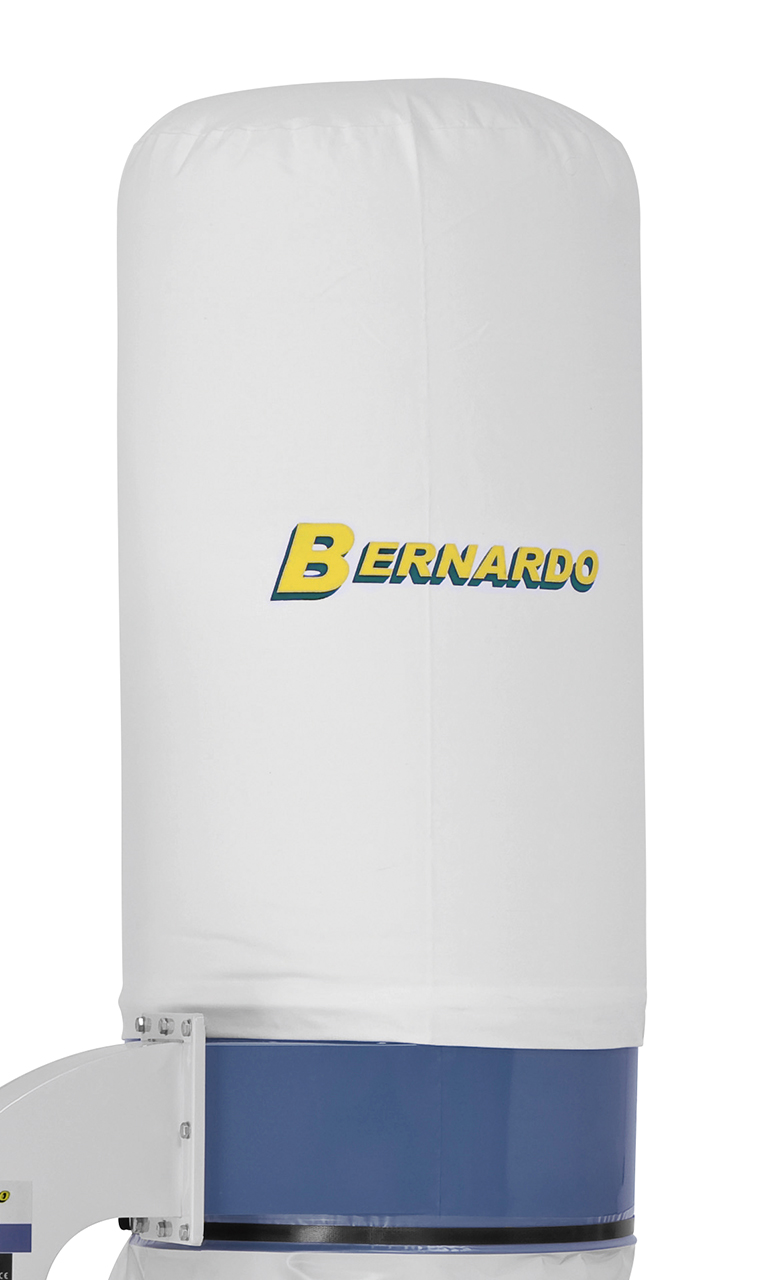

- Filter bags
- Waste bags

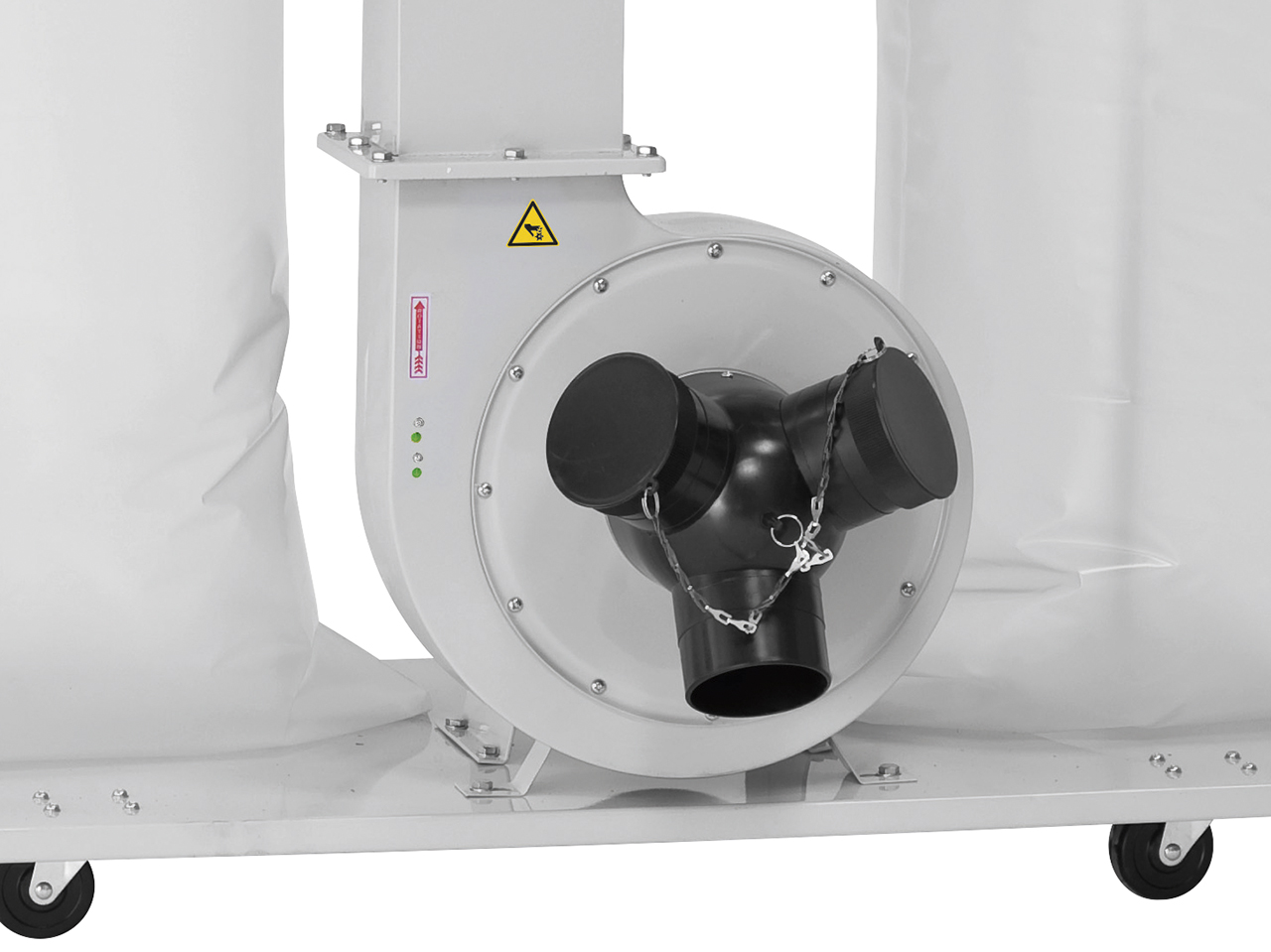

- Adapter 1 x 150 mm / 3 x 100 mm
- Carriage
Features Dust collectors Bernardo DC 500 E - 230 V
- Steel fan wheel restistent to suction of small pieces of wood
- Constant extraction force even during long operations
- Replaceable cartridge filter FP 2 or FB 3 increases extraction force significantly
- Connect to stationary or mobile wood working machines
- Connect to three machines at the same time

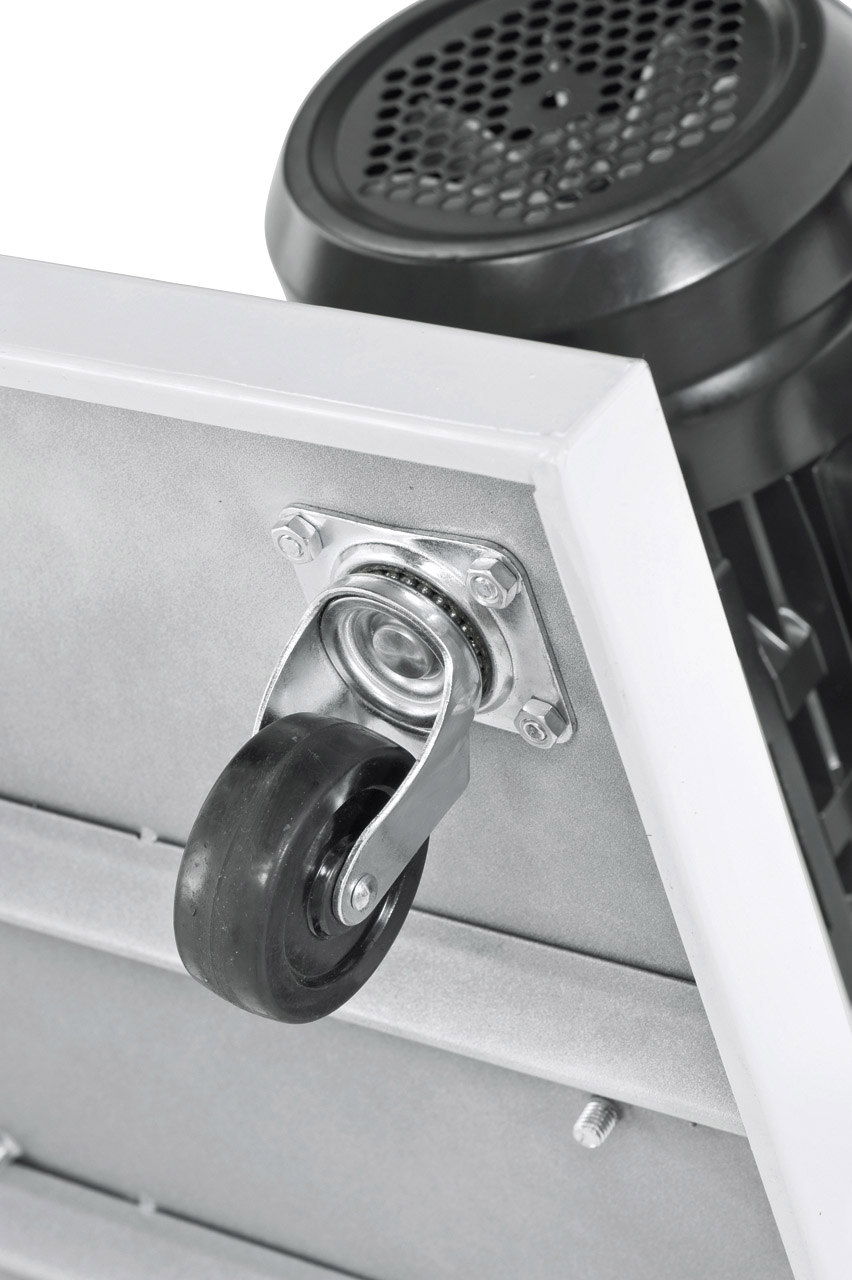

- Complete with carriage to allow for easy transport
Technical details Dust collectors Bernardo DC 500 E - 230 V
Capacity | 3900 m3/h |
Filter area | 2,9 m2 |
Low pressure max. | 1800 Pa |
Inlet diameter | 1 x 150 / 3 x 100 mm |
Waste bag volume | 2 x 300 l |
Idle speed | 2950 rpm |
Sound pressure | 89,4 dB |

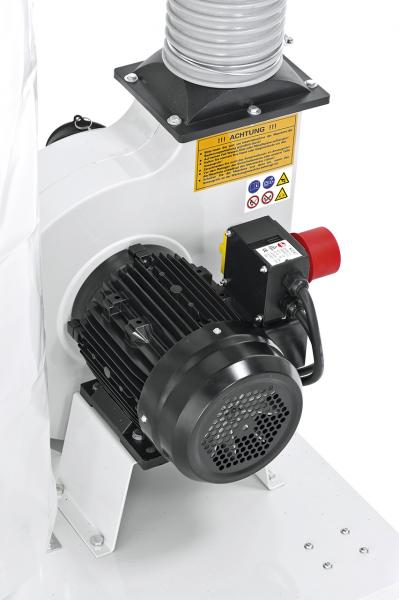

Motor power output S1 100% | 2,2 kW (3,0 HP) |
Motor power input S6 40% | 3,0 kW (4,2 HP) |
Voltage | 230 V / 50 Hz |
Machine dimension (W x D x H) | 1430 x 730 x 2150 mm |
Weight approx. | 52 kg |
