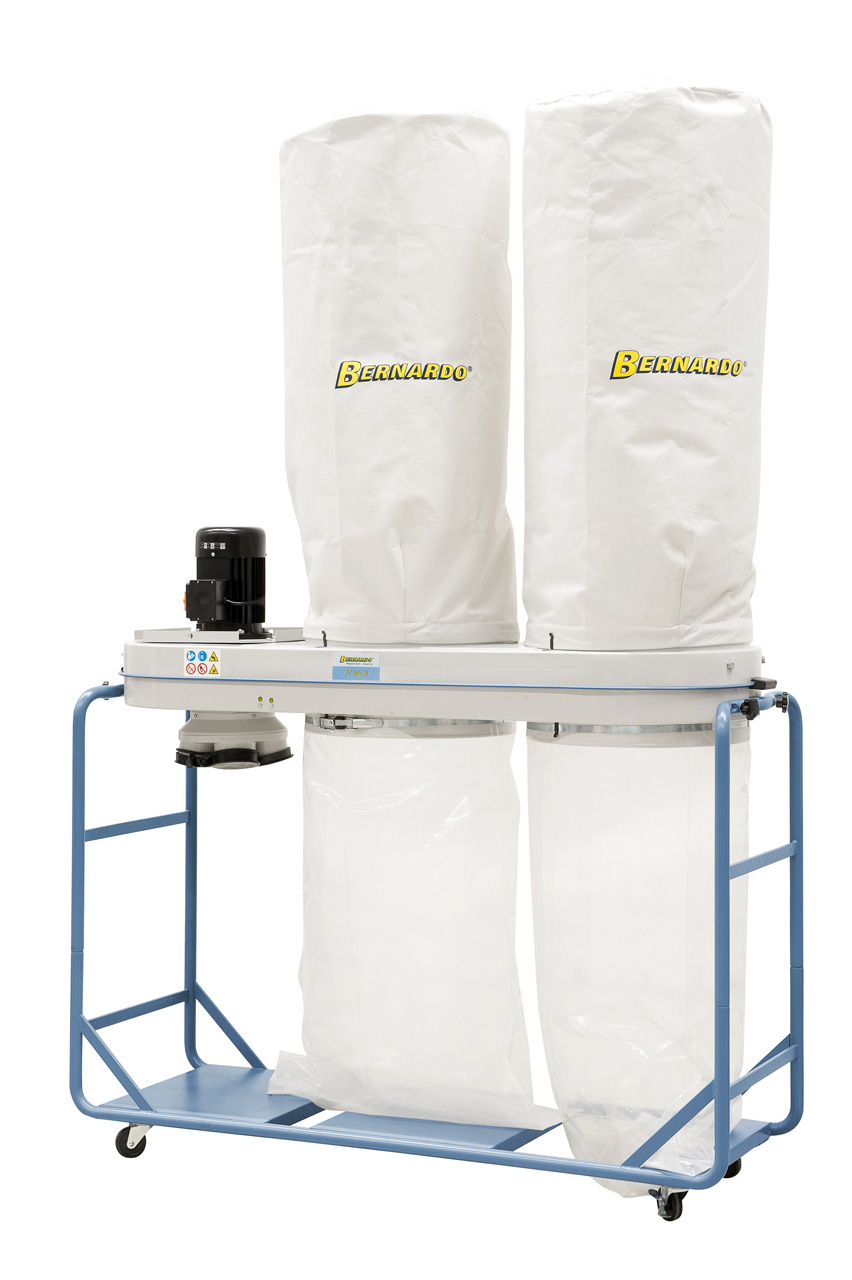

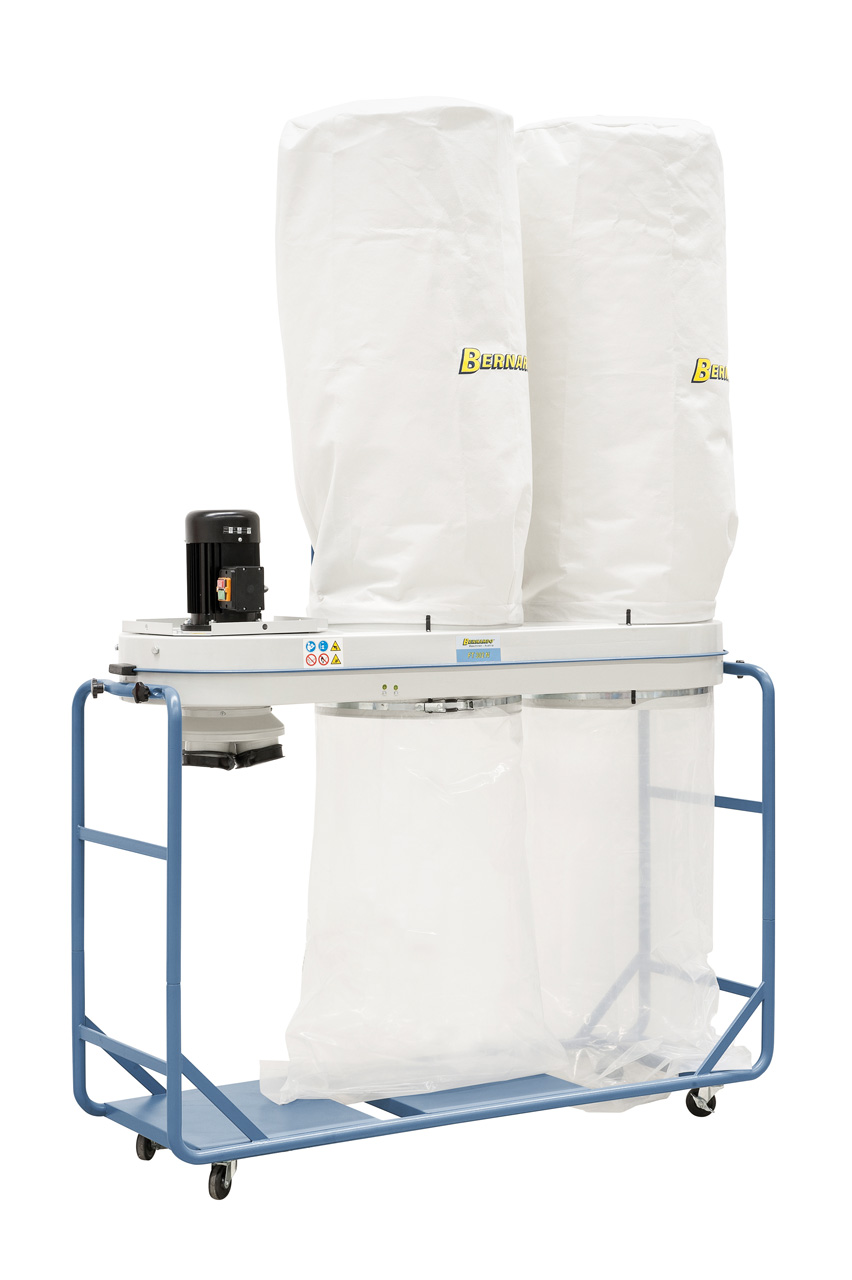

The dust collector FT 302 N satisfy through the enormous capacity, high economy and the convenient price-performance ratio. Through the possiblity to connect 4 machines simultaneously, this machine is also suitable for small workshops.
Scope of delivery Dust collectors Bernardo FT 302 N

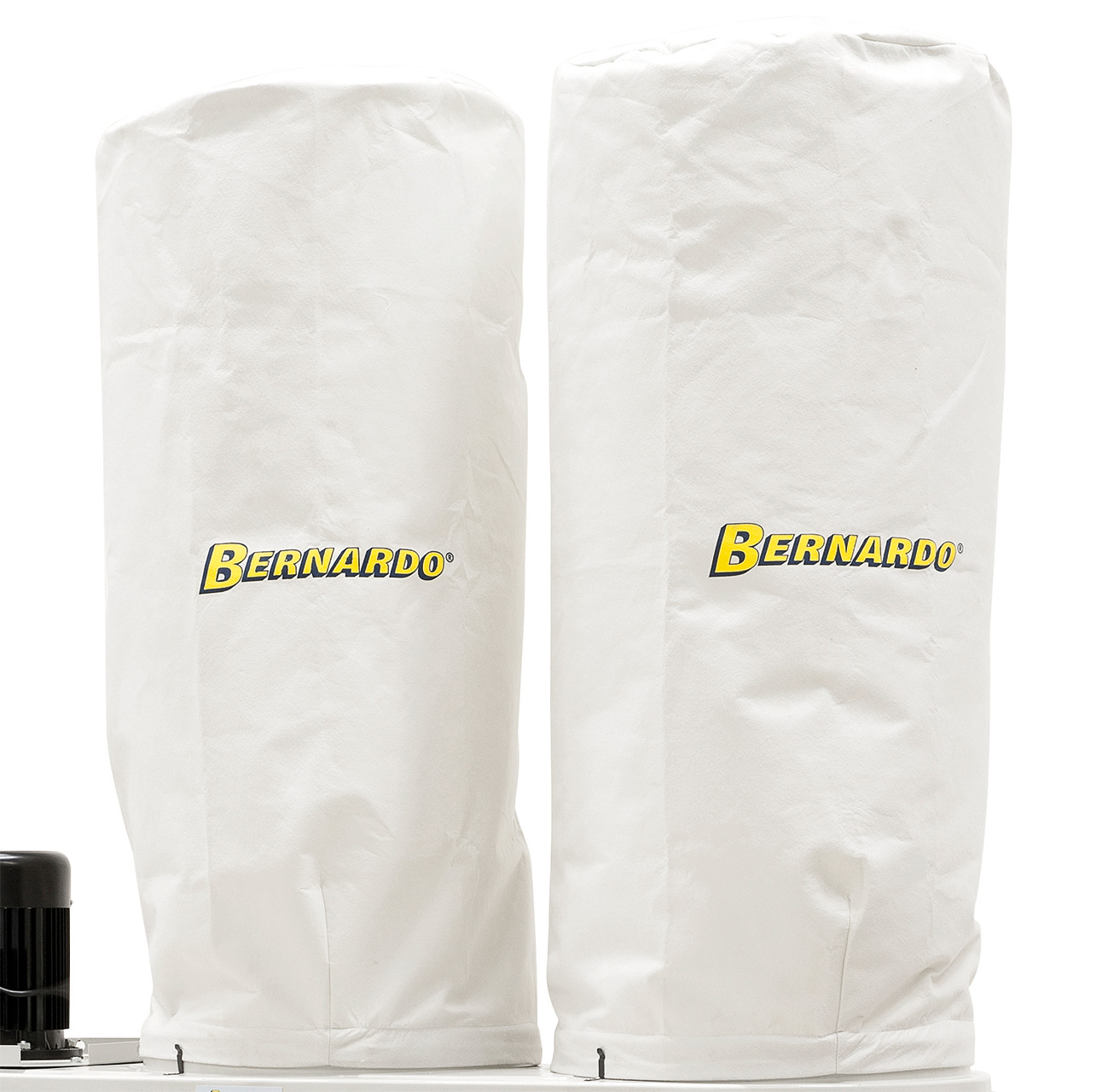

- Filter bag
- Waste bag
- Carriage
Features Dust collectors Bernardo FT 302 N
- Aerodynamically shaped, steel plate fan wheel ensures top performance
- Ideal device for extraction of sawdust, milling chips and wood shavings

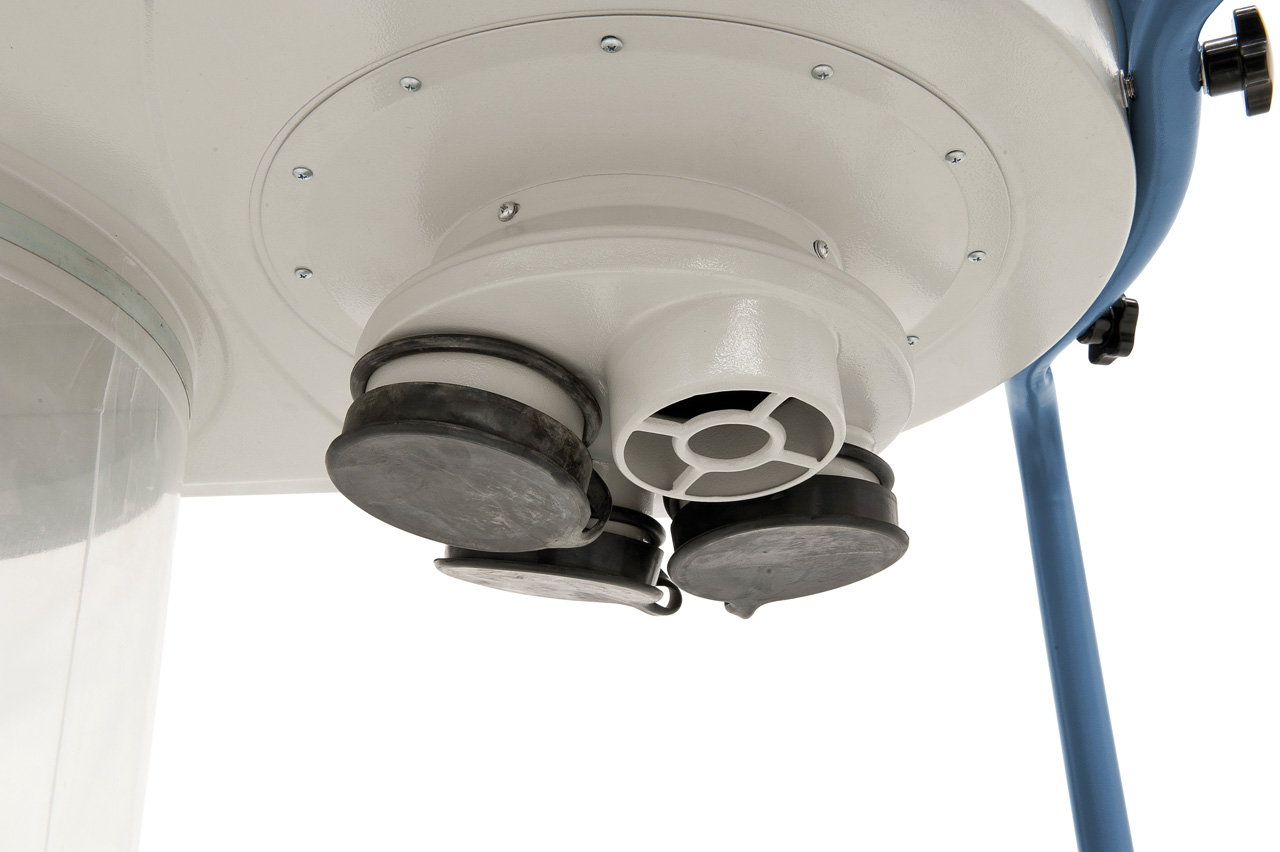

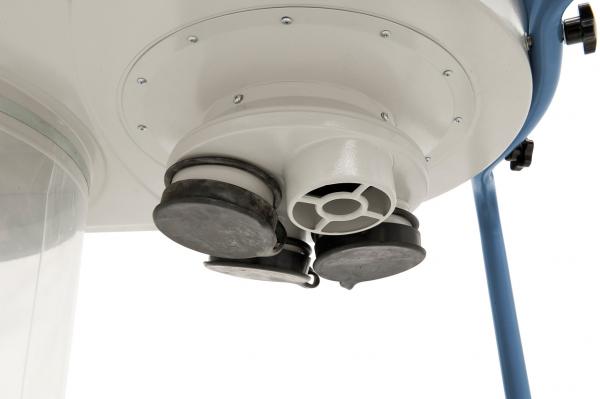

- Connect to four machines at the same time
- Generous waste bag volume increases user-friendliness
- Clamping belt allows for convenient, quick bag change
- Carriage allows for easy transport
Technical details Dust collectors Bernardo FT 302 N
|
Capacity
|
4200 m³/h
|
|
Filter area
|
4,8 m²
|
|
Low pressure max.
|
1800 Pa
|
|
Inlet diameter
|
4 x 100 mm
|
|
Waste sack volume
|
2 x 175 l
|
|
Idle speed
|
2950 rpm
|
|
Sound pressure
|
87 dB
|
|

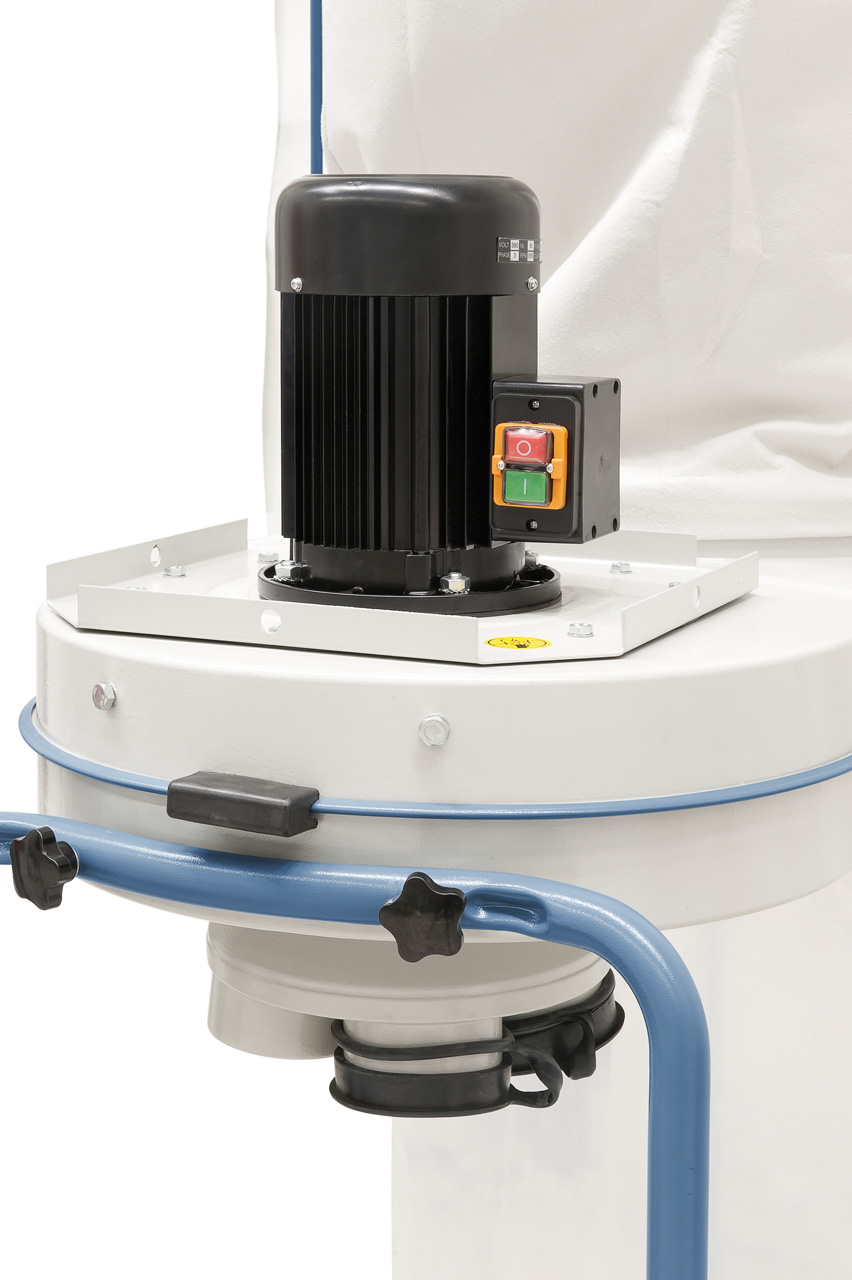

Motor power output S1 100%
|
3,0 kW (4,0 HP)
|
|
Motor power input S6 40%
|
3,8 KW (5,1 HP)
|
|
Voltage
|
400 V / 50 Hz
|
|
Machine dimension (W x D x H)
|
1700 x 600 x 2400 mm
|
|
Weight approx.
|
69 kg
|
