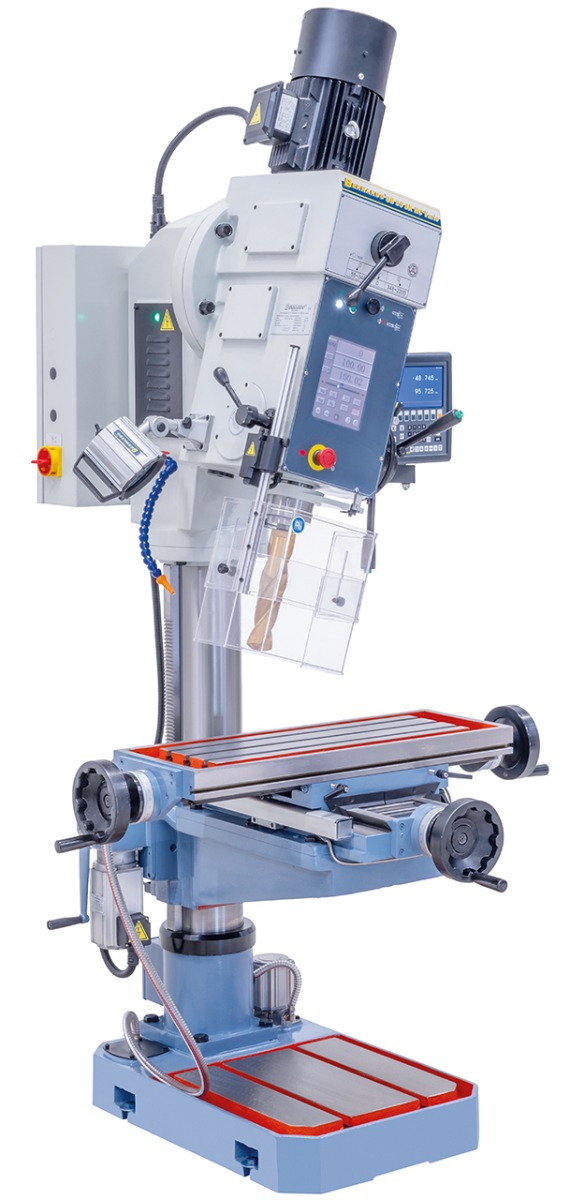

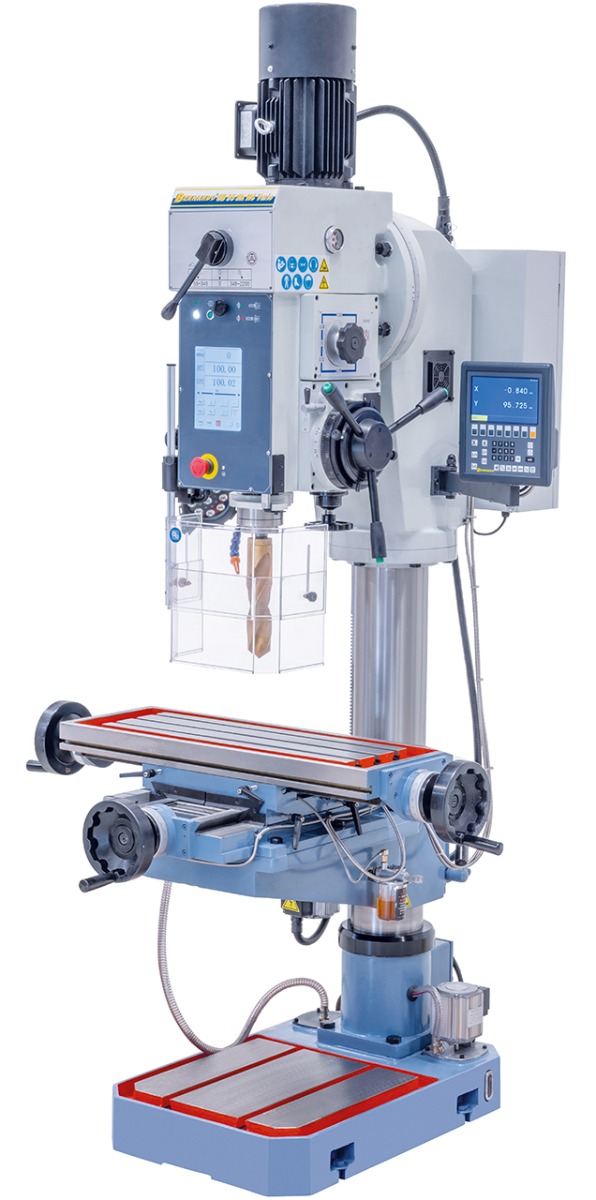

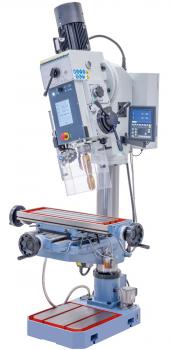

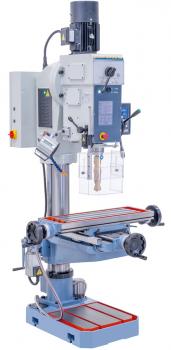

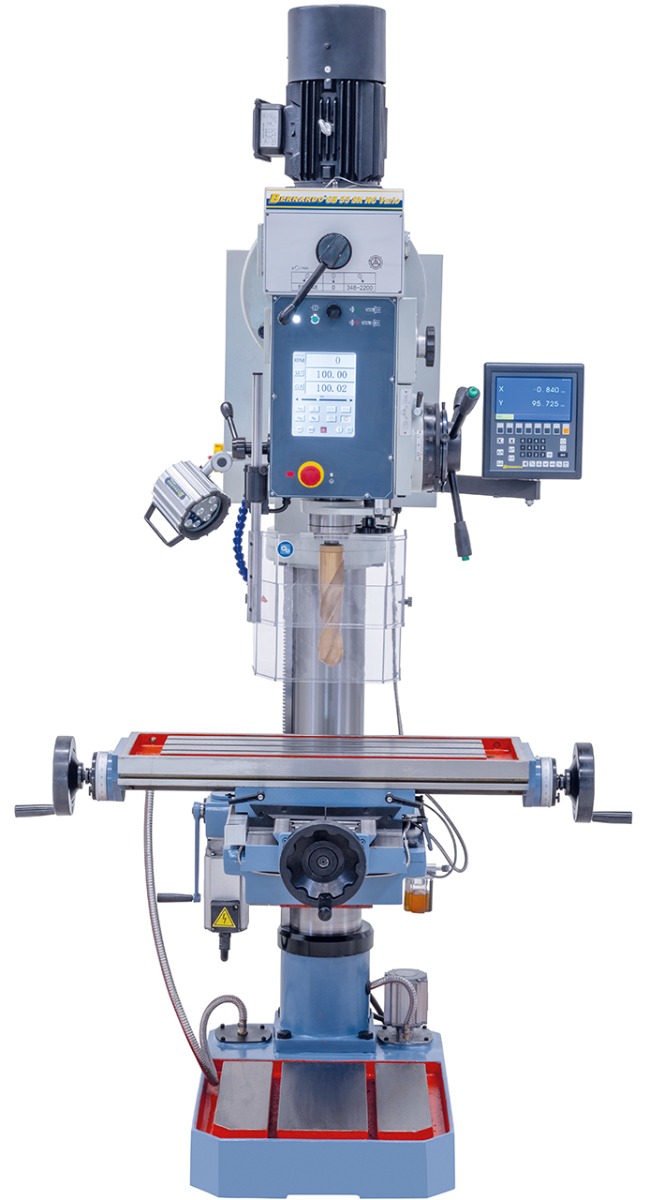

Gear box column drilling machine Bernardo GB 55 SK NC Vario with cross table

Scope of delivery Gear column drilling machine Bernardo GB 55 SK NC Vario with cross table

• 2-axis digital readout ES-12 H with LCD display
• Sprocket chuck 1 - 13 mm / B 16
• Drill chuck arbour MK 4 / B 16
• Reducing sleeve MK 4 / 3, MK 4 / 2, MK 3 / 1
• Combination arbor MK 4 / 27 mm
• Coolant device
• Electromagnetic spindle feed
• Thread cutting device
• Automatic tool ejector
• LED machine light
• Digital speed display
• Initial filling with Shell Tellus 46
• Height-adjustable protective cover

Special features Gear column drilling machine Bernardo GB 55 SK NC Vario with cross table

• Equipped with infinitely variable speed control as standard, the set speed is shown on a digital display
• Versatile application options such as Slot milling, face milling, boring
• Extended application range thanks to the drill head that can be swivelled from -45° to +45°
• With automatic spindle feed and thread cutting device as standard
• Precisely machined base plate with T-slots and integrated coolant pump
• Protective cover in accordance with CE standard, adjustable to the respective drill length
• Increased productivity thanks to standard digital display in 2 axes (x and y)

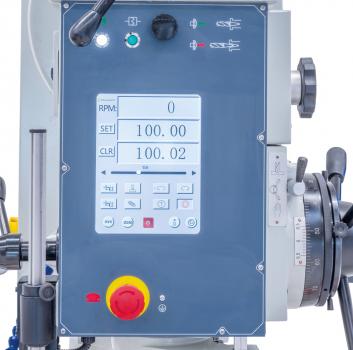

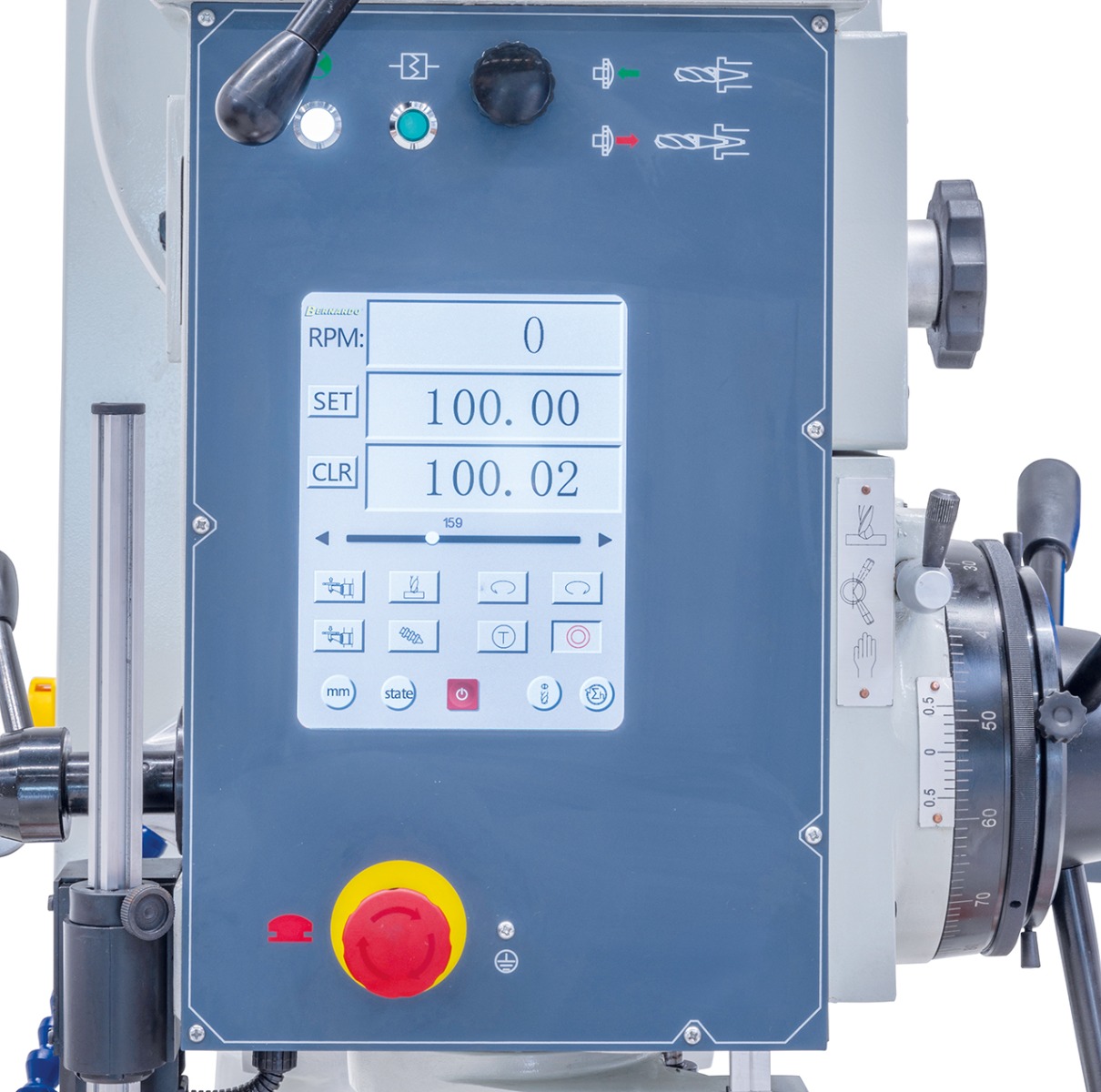

• All settings are made directly on the large touchscreen display
• 6 automatic spindle feeds switchable via electromagnetic clutch

Technical details geared pillar drilling machine Bernardo GB 55 SK NC Vario with cross table
