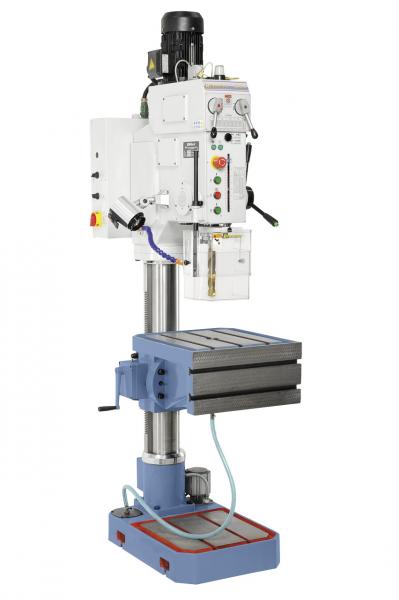

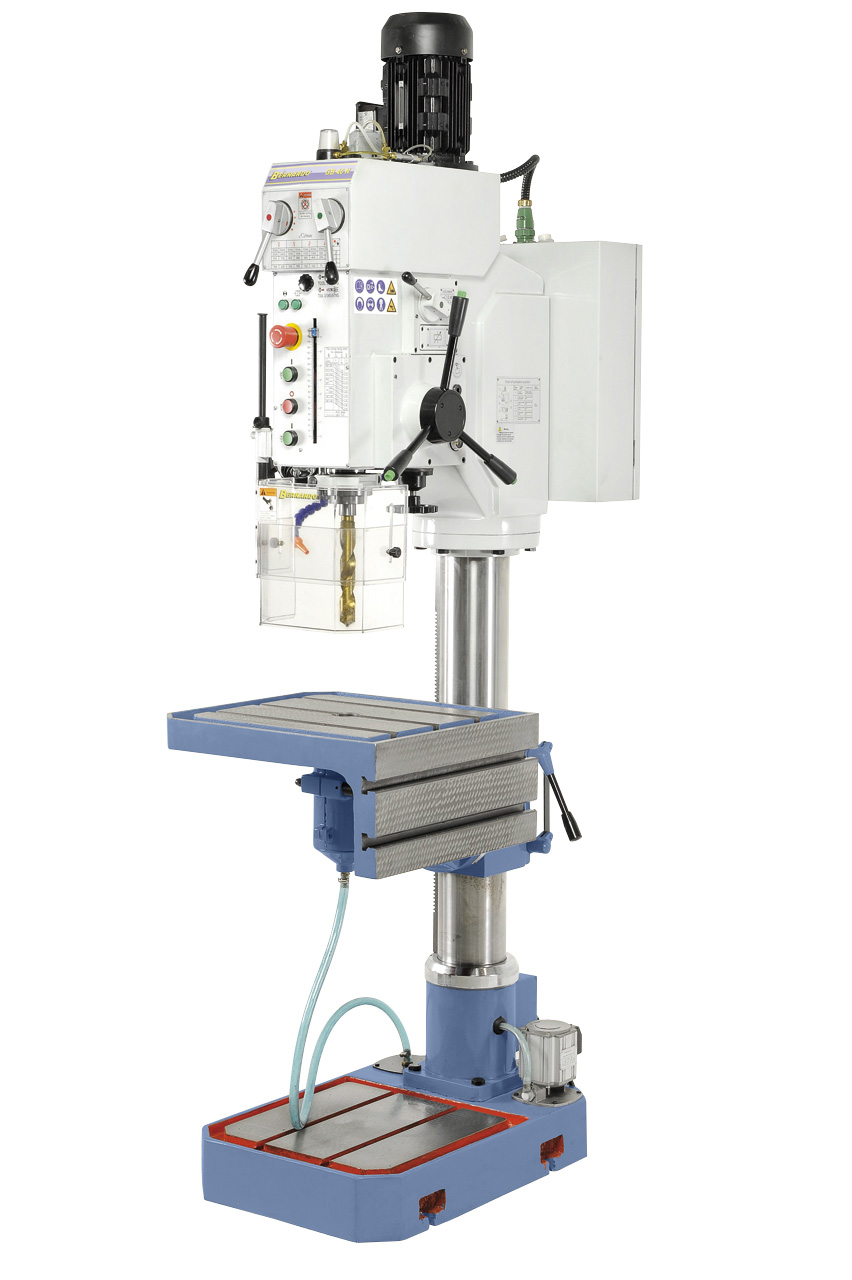

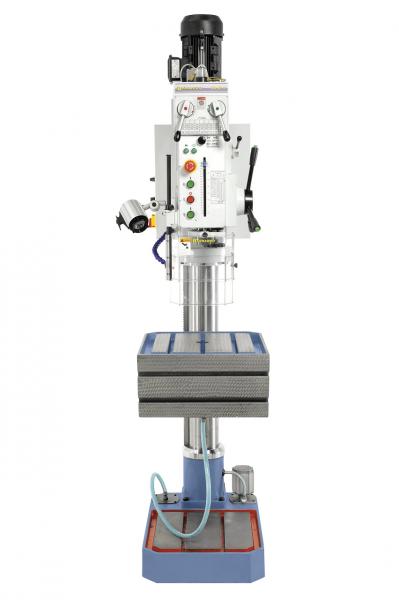

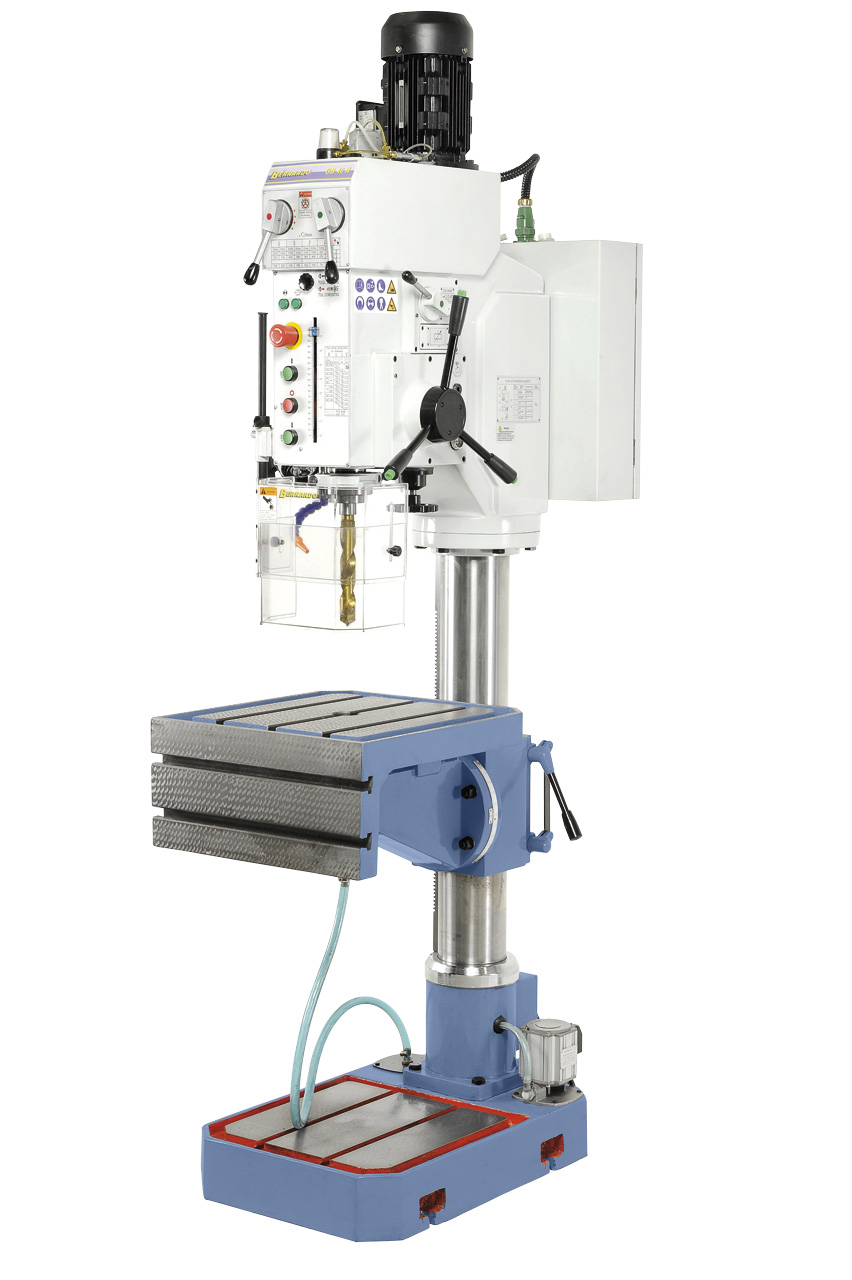

Gearhead bench and column drilling machine Bernardo GB 40 N with angle table

Product No.:
01-1292XL
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

6.952,58 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

The GB 40 N gear head drilling machine is solidly constructed and powerful, making this model ideal for repair shops as well as industrial production. Increased range of applications by the serially angle table featuring additional clamping possibilities.

Scope of delivery Gearhead bench and column drilling machine Bernardo GB 40 N with angle table

MT 3/1
  • Automatic tool release device
  • Thread cutting device
  • Electromagnetic spindle feed
  • Initial filling with Shell Tellus 46
  • LED working lamp
  • Coolant device
  • Height adjustable protective cover

Features Gearhead bench and column drilling machine Bernardo GB 40 N with angle table

  • Hardened gears with a smooth finish ensure a smooth run
  • High concentricity ≤ 0,02 mm, measured at spindle
  • Wide speed range 75 – 2020 rpm (12 steps) allows efficient work
  • Coolant device and work lamp come standard
  • Right and left spindle rotation allows thread-cutting

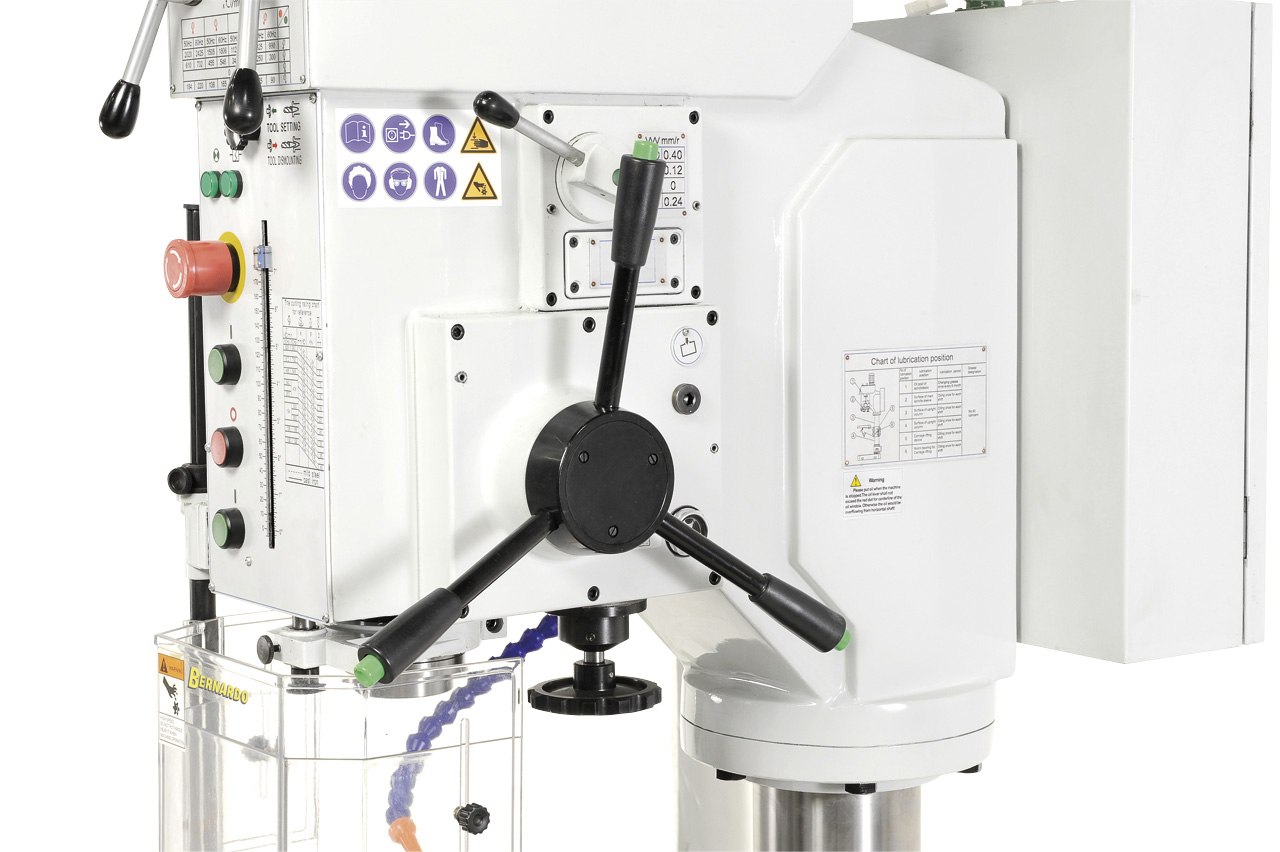

  • Includes 3 automatic spindle feeds, adjustable electromagnetically

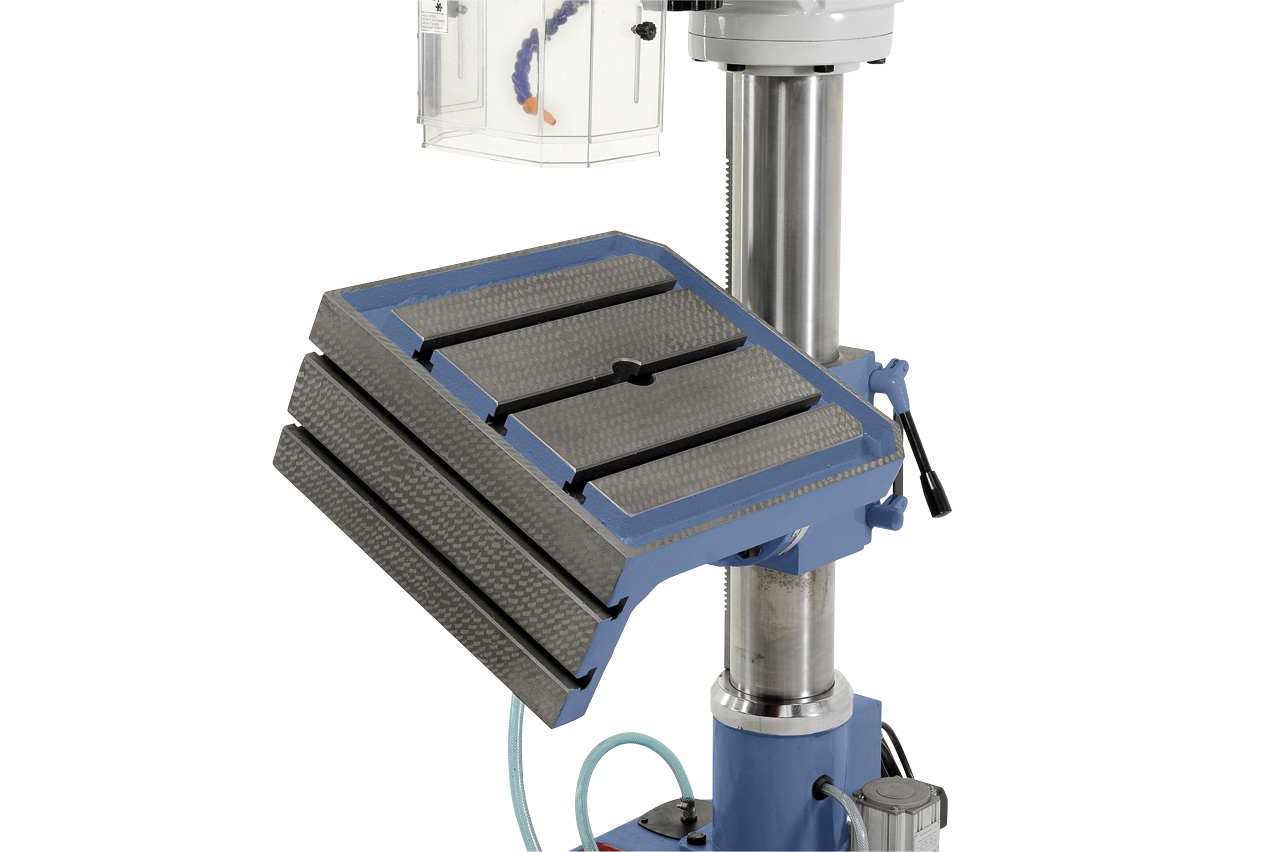

  • Worktable swivels horizontally around column, 45° tiltable left and right

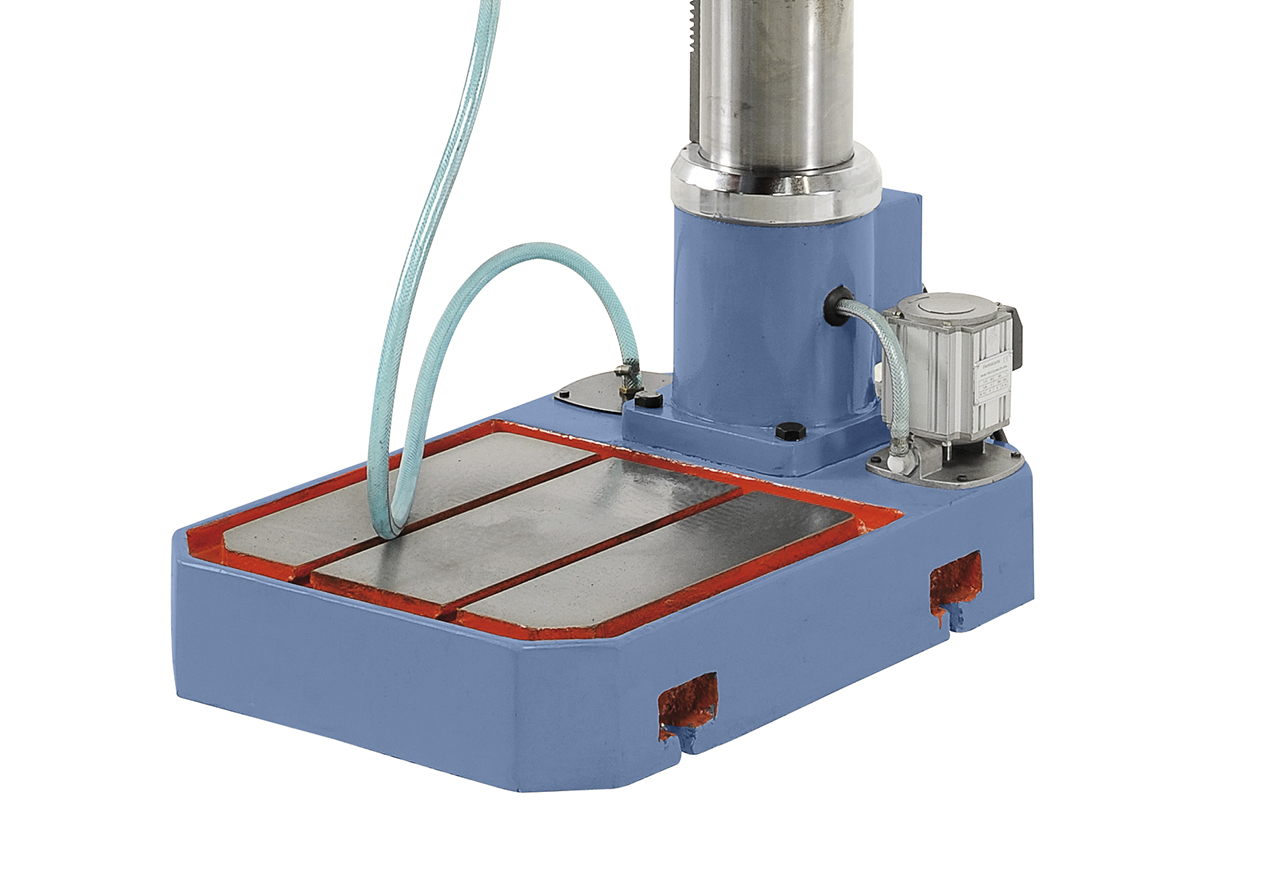

  • High-quality base with T-slots allows clamping of overly long workpieces

Technical details Gearhead bench and column drilling machine Bernardo GB 40 N with angle table

Drilling capacity in steel

40 mm

Drilling capacity in cast iron

45 mm

Thread cutting max.

M24

Drill chuck

1 - 13 mm / B 16

Morse taper

MT 4

Spindle speeds

(12) 75 - 2020 rpm

Feed range

0,12 / 0,24 / 0,40 mm/rev.

Distance spindle to column

340 mm

Table tiltable

-45° to +45°

Distance spindle to table max.

580 mm

Distance spindle to base

1200 mm

Spindle stroke

195 mm

Column diameter

140 mm

Table size / T-slot size

500 x 540 mm / 18 mm

Vertical clamping area / T-slot size

500 x 240 mm / 18 mm

Working surface of base

400 x 410 mm

Motor power output S1 100%

1,5 kW / 400 V

Motor power input S6 40%

2,2 kW / 400 V

Machine dimension (W x D x H)

570 x 850 x 2230 mm

Weight approx.

490 kg
