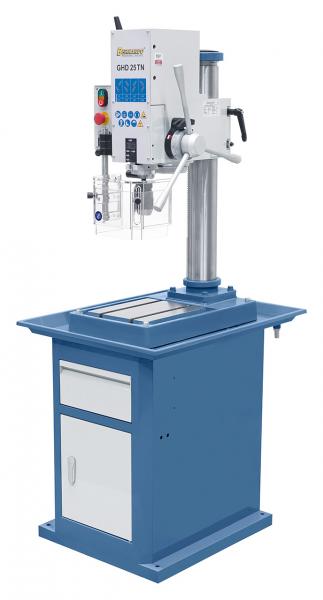

The GHD 25 TN gearhead - table drilling machine offers outstanding performance and top precision at a relatively low cost. The compact construction makes this model highly suitable for general use in workshops.
Scope of delivery Gearhead bench and column drilling machine Bernardo GHD 25 TN with digital drill depth indication
Gearhead bench and column drilling machine Bernardo GHD 25 TN with digital drill depth indication
Features Gearhead bench and column drilling machine Bernardo GHD 25 TN with digital drill depth indication
- Digital display for drill depth increases comfort
- Drill head swivels 360° and can be adjusted in height

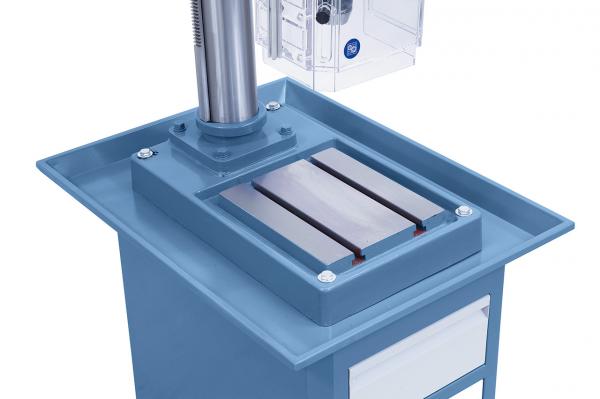

- Large machine table with T-slots
- Helical –teethed gearbox for optimal torque
- Switch for direction of rotation, right and left turning, allows for thread cutting
- High-quality ball bearings ensure optimal concentricity
- Solid, polished steel column, designed for heavy workloads
- Helical gears in combination steel against reinforced fiber material result in high efficiency and smooth run
- Powerful 2-step drive motor allows for 8 speed settings
Technical details Gearhead bench and column drilling machine Bernardo GHD 25 TN with digital drill depth indication
|
Drilling capacity max.
|
25 mm
|
|
Thread cutting max.
|
M10
|
|
Keyless drill chuck
|
1 - 16 mm / B 16
|
|
Morse taperx
|
MT 3
|
|
Spindle speed
|
(8) 105 - 2900 rpm
|
|
Distance spindle to column
|
255 mm
|
|
Distance spindle to base
|
535 mm
|
|
Spindle stroke
|
120 mm
|
|
Column diameter
|
100 mm
|
|
Working surface of base / T-slot size
|
250 x 290 mm / 14 mm
|
|
Motor power output S1 100%
|
0,65 / 1,2 kW (400 V)
|
|
Motor power input S6 40%
|
0,90 / 1,7 kW (400 V)
|
|
Machine dimension (W x D x H)*
|
500 x 570 x 1100 mm
|
|
Weight approx.
|
140 kg
|
| | |
* without stand
