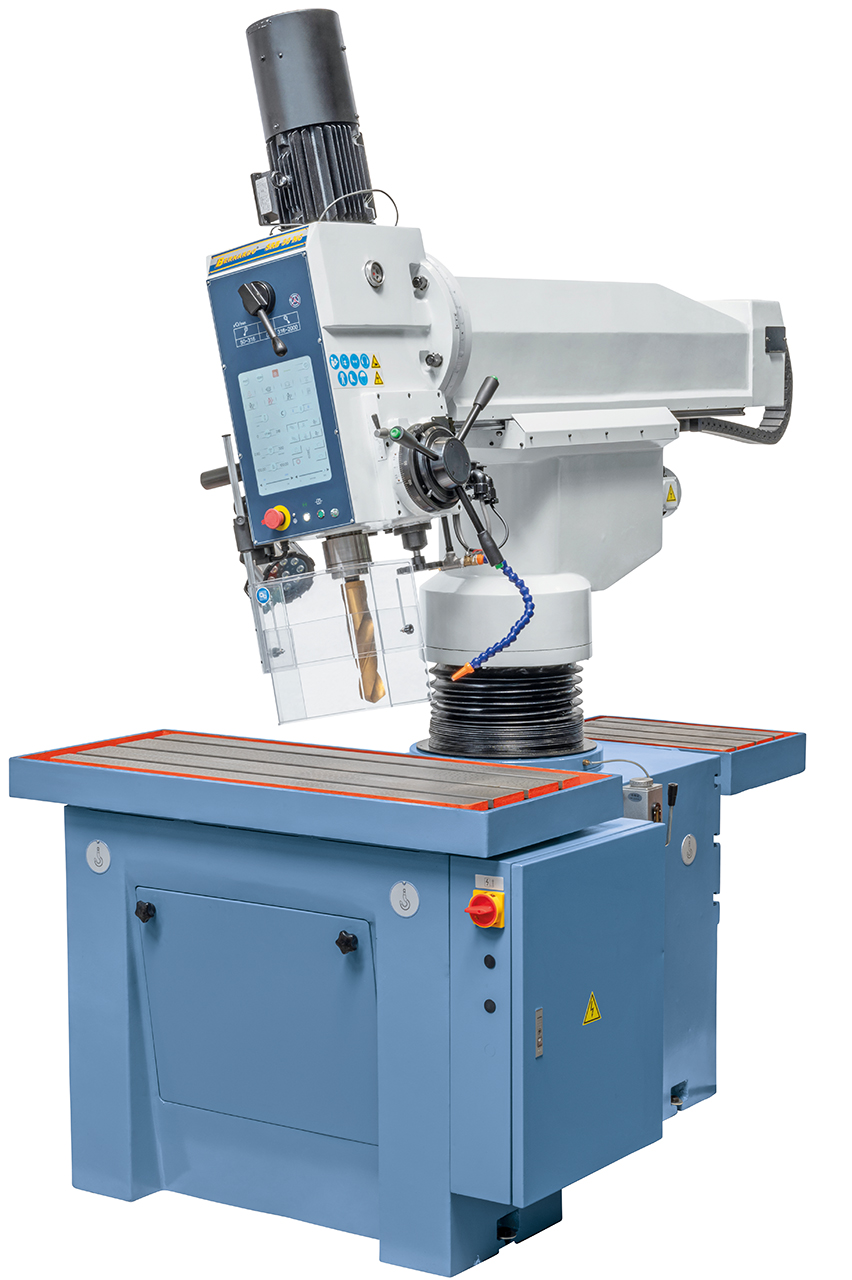

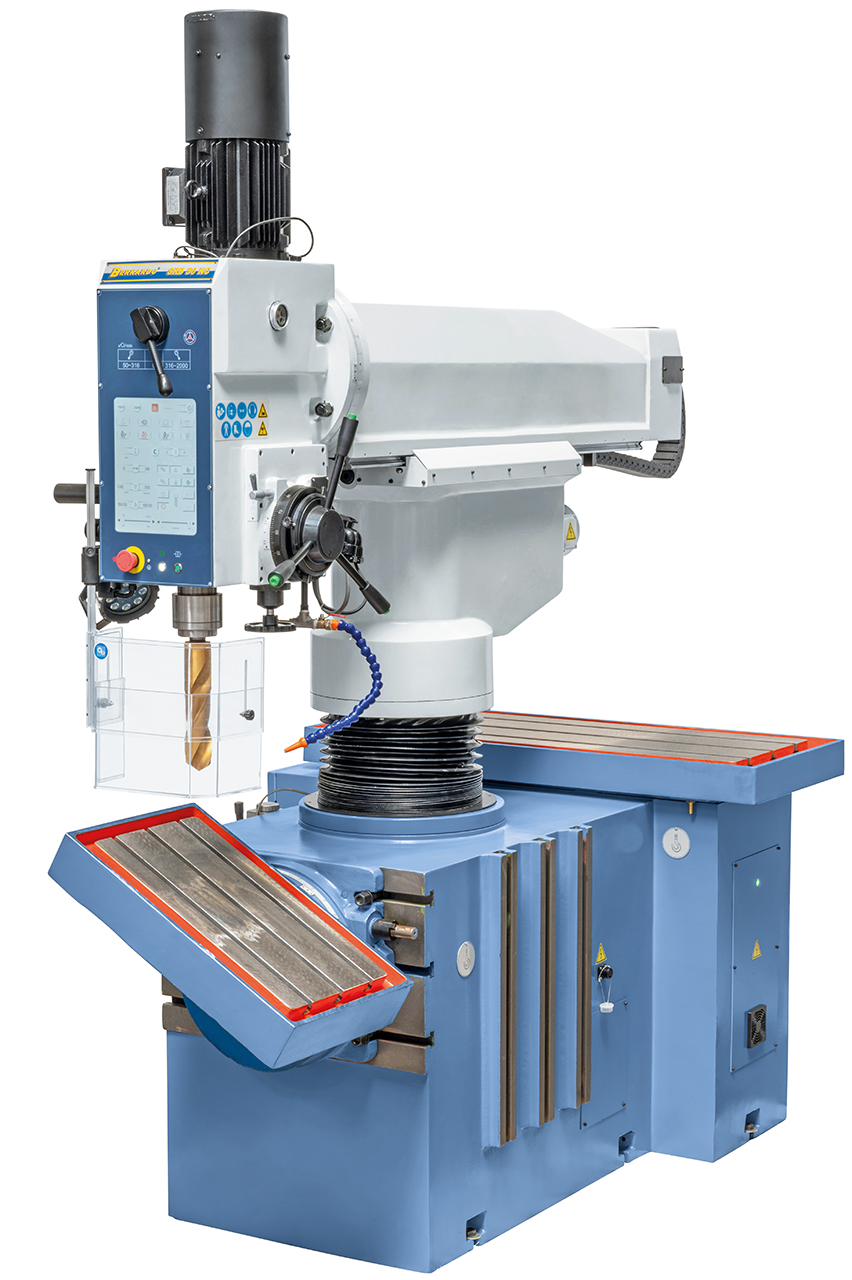

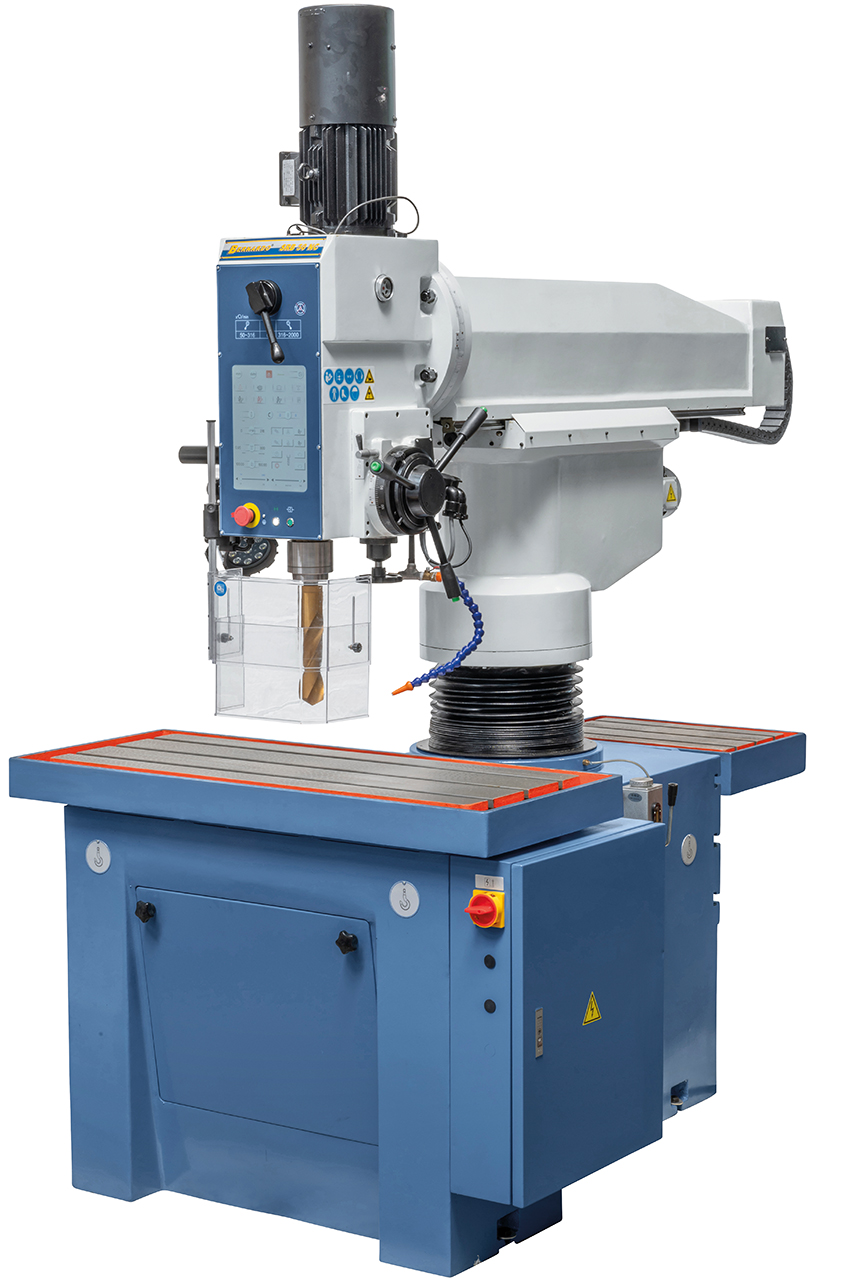

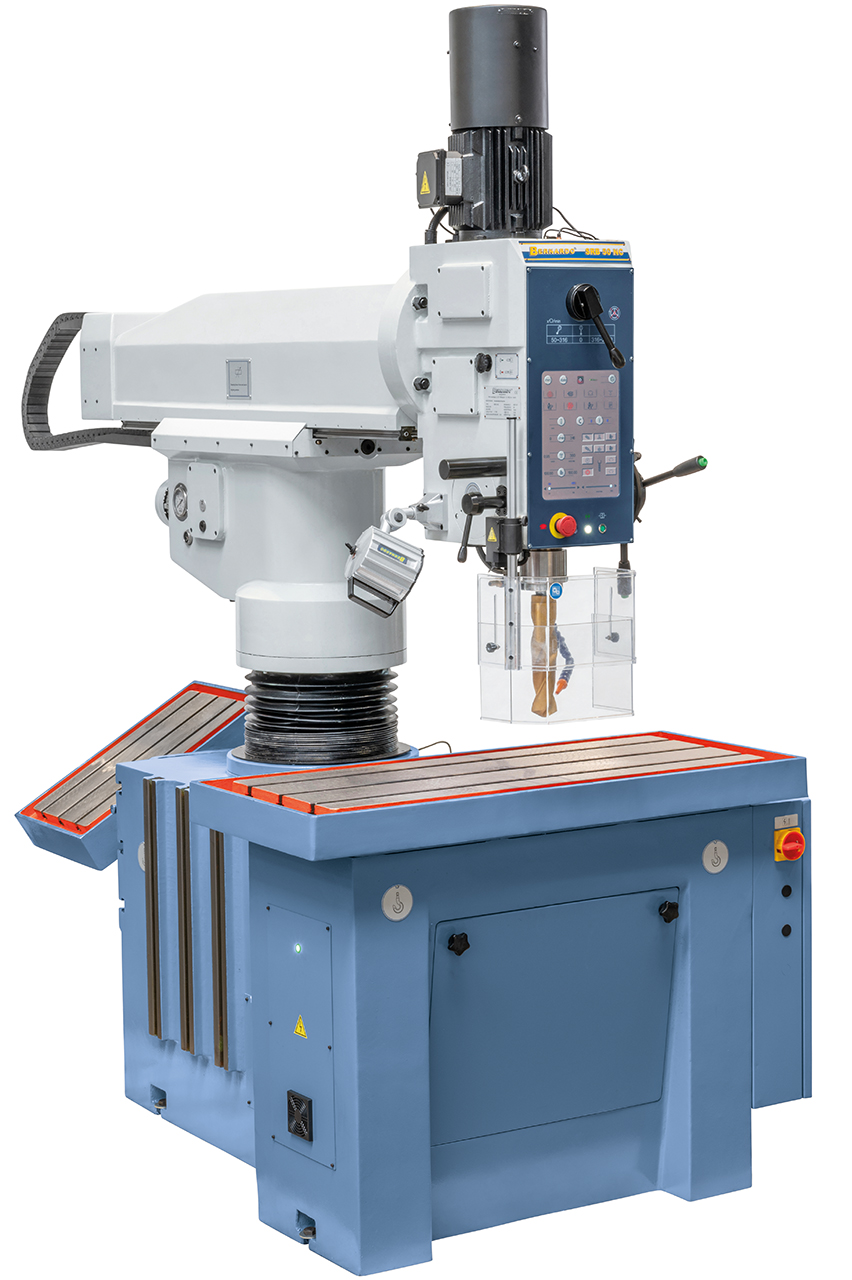

High-speed radial drilling machine Bernardo SRB 50 NC

Scope of delivery High-speed radial drilling machine Bernardo SRB 50 NC

• Electromagnetic spindle feed
• Touchscreen with Bohrtronic control
• Servo motor for quill feed
• Frequency converter
• Electromotive drill head adjustment
• Initial filling with Shell Tellus 46
• Reducing sleeve MK 4 / 3, 4 / 2, 3 / 1
• Tapping device
• Coolant device
• LED machine light
• Height-adjustable protective cover
• Operating tool

Special features high-speed radial drilling machine Bernardo SRB 50 NC

The SRB 50 NC is new to our range and the largest model in our high-speed radial drilling machine series. The special features of this model are the operation via a large touchscreen and the quill feed via servo motor.

• The standard Bohrtronic control system calculates the ideal speed or feed rate for drilling and tapping after entering the tool diameter and material (cast iron / steel)
• A wide range of clamping and machining options thanks to the design-specific construction

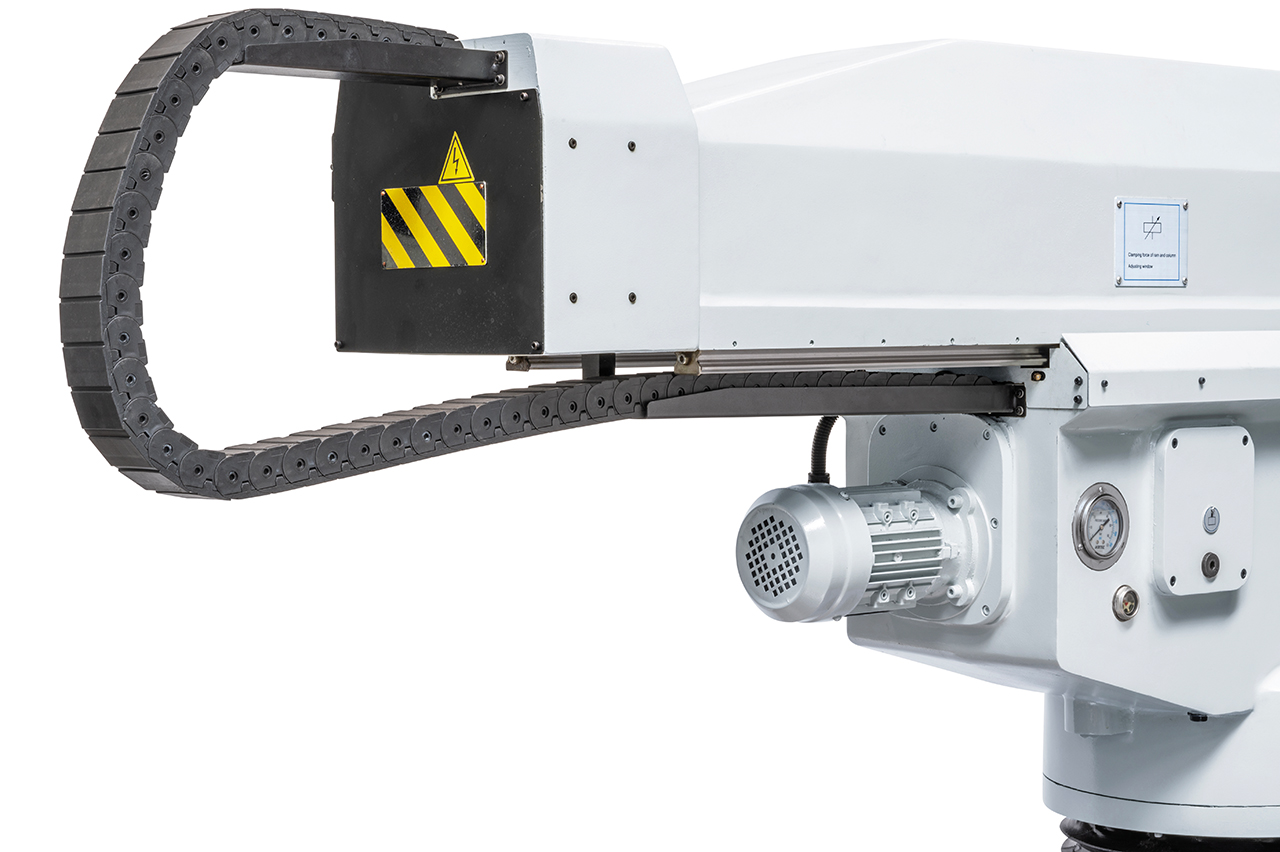

• Electromotive height adjustment of the drilling head without adjusting the drilling position, ideal for deep hole drilling
• Large table surface (1200 x 500 mm) for simultaneous clamping of several workpieces
• Quick set-up of the drill head on the workpiece, clamping is hydraulic
• With electronically infinitely variable speed control and 2 gear stages as standard
• Heavily ribbed column ensures high rigidity of the boom
• Stable construction guarantees vibration-free operation
• The quill is fed via a high-quality servomotor
• Infinitely variable speed control as standard, the set speed can be read directly from the display

Technical details high-speed radial drilling machine Bernardo SRB 50 NC
