Product No.:
21-5004
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

239,67 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

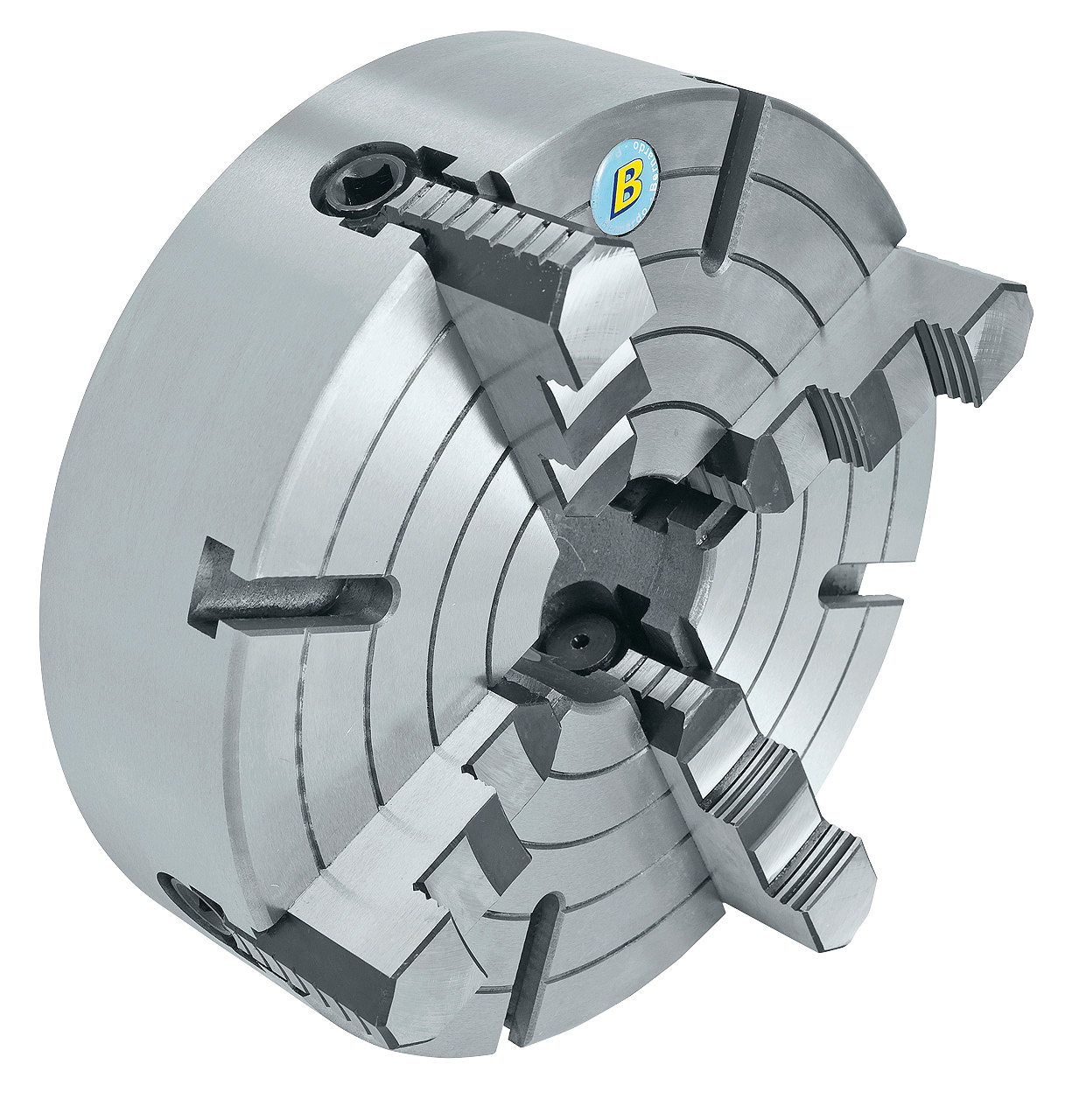

Features Independent chucks Bernardo Independent chuck K72 - 200

Execution:

  • 4-jaw independent chuck made out of cast iron
  • With centre mount according to DIN 6350
  • Four separate adjustable jaws
  • From a diameter of 160 mm the independent chuck is with front-mounting
  • Including milled T-slots from a diameter of 300 mm
  • Inclusive one set hard outside solid jaws



Application:

  • Useable for clamping of asymmetric and rectangular shaped workpieces on turning lathes

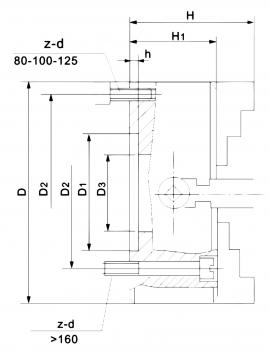

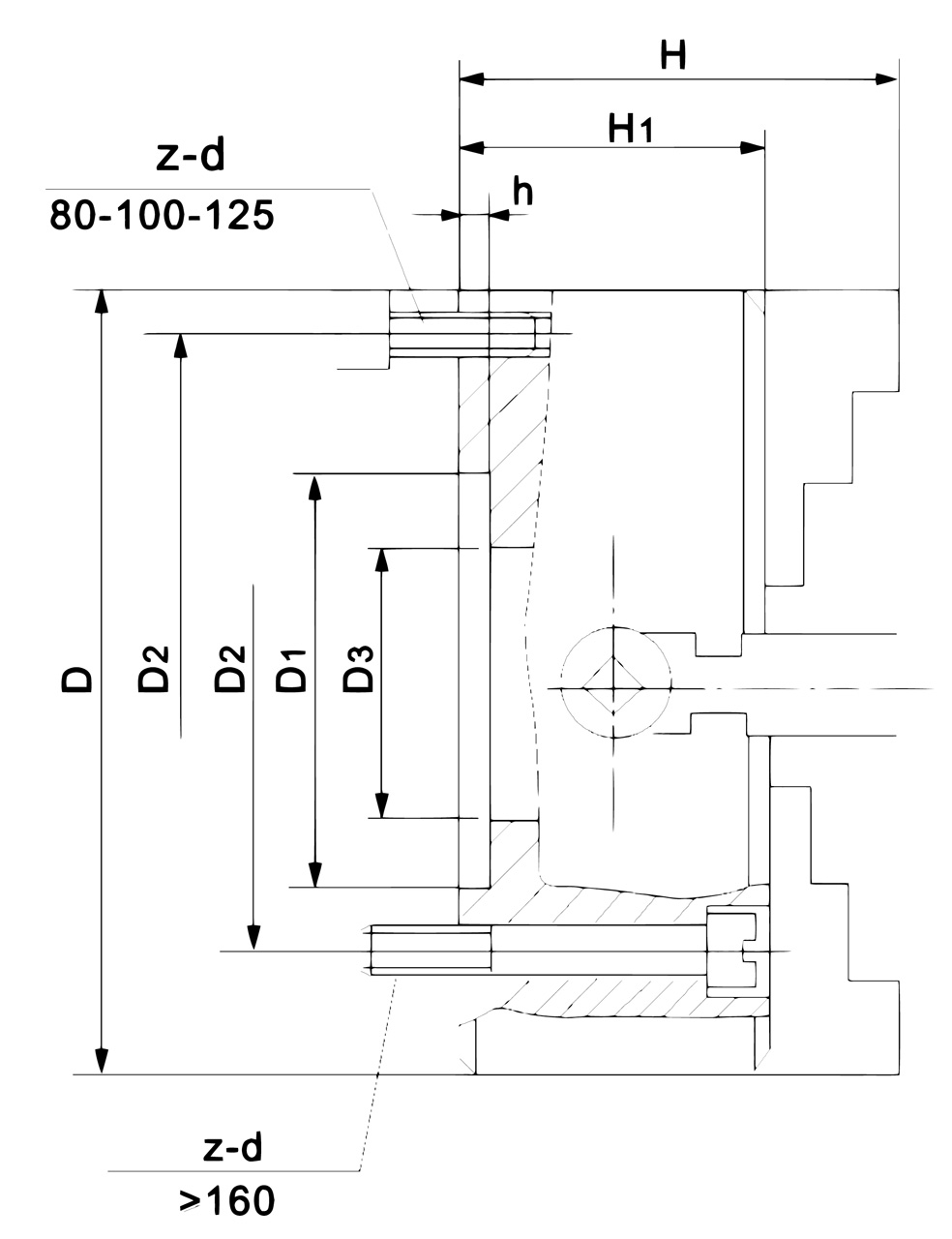

Technical details Independent chucks Bernardo Independent chuck K72 - 200

D - chuck size

200

D1

75 mm

D2

95 mm

D3

56 mm

H

110 mm

H1

75 mm

h

6 mm

Mounting bolts

4 x M10

Max. speed

1440 rpm

Weight approx.

15 kg
