Independent chucks Bernardo Independent chuck K72-630/D11

Product No.:
21-5074
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

2.215,78 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

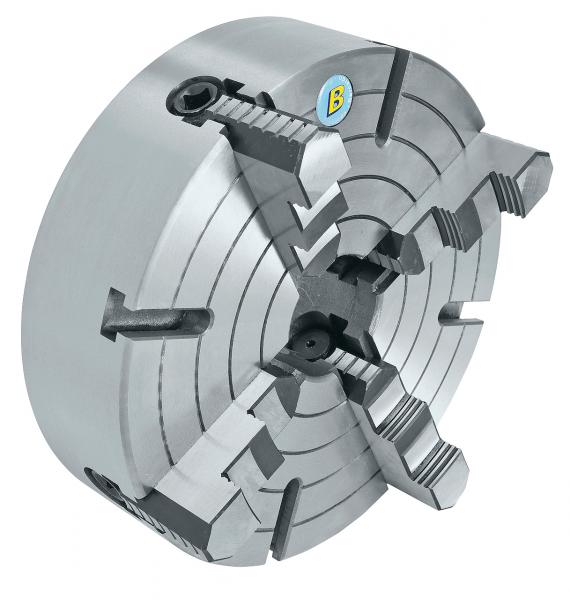

Features Independent chucks Bernardo Independent chuck K72-630/D11

Execution:

  • 4-jaw independent chuck made out of cast iron
  • With Camlock- direct mount according to DIN 55029
  • Four separate adjustable jaws
  • Including milled T-slots from a diameter of 300 mm
  • Inclusive one set hard outside solid jaws



Application:

  • Useable for clamping of asymmetric and rectangular shaped workpieces on turning lathes

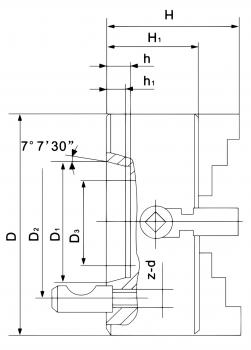

Technical details Independent chucks Bernardo Independent chuck K72-630/D11

Chuck size

630/D11

D - diameter

630 mm

Taper

11

D1 (max.)

196,87 mm

D2

235 mm

D3

180 mm

H1

115 mm

Max. speed

320 rpm

Weight approx.

169 kg
