The HS 14 E log splitter features innovative technology, such as two-handed safety operation, fast cutting speed for high work efficiency, stepless adjustable splitting stroke as well as a log lifter as part of the standard accessories.
Scope of delivery Log splitter Bernardo HS 14 E
- Two-handed safety operation
- Log lifter
- Switch-plug-combination
- Oil filling
- Carriage
- Splitting wedge
Features Log splitter Bernardo HS 14 E

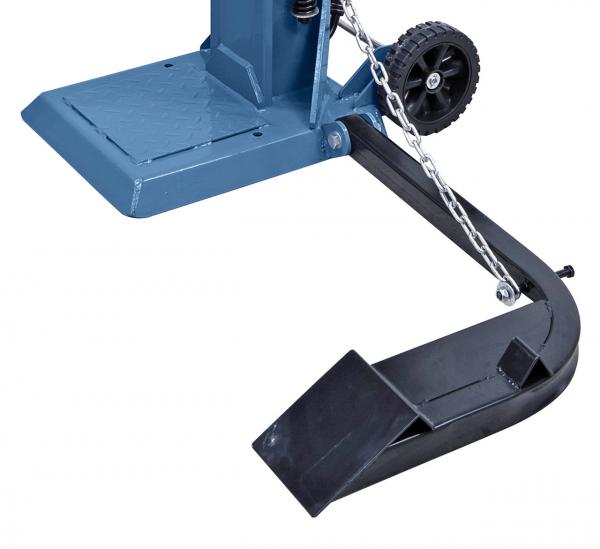

- Comes complete with log lifter for the uplifting of heavy, large logs and stabilization of cut logs
- Allows for cutting of short and long logs up to 1100 mm
- High quality powder coating ensures scratch proof surface
- Large splitting wedge features solid, durable plastic guide
- Stepless adjustable cutting stroke allows for less time consumption
- Low base plate with bevelled edge enables more convenient loading of large logs
- Lowerable cylinder reduces space requirements and simplifies transport
- Powerful hydraulic unit features high quality pressure hoses
Technical details Log splitter Bernardo HS 14 E
| Max. capacity | 14 to |
| Log length | 560 – 1040 mm |
| Log diameter | 100 – 300 mm |
| Ram travel max. | 850 mm |
| Forward speed | 21,8 cm/sec |
| Working speed | 4,2 cm/sec |
| Return speed | 5,2 cm/sec |
| Hydraulic pressure | 24,6 Mpa |
| Hydraulic tank | 7,5 l |
| Drive | E-Motor |
| Motor power S6 40% | 3,5 kW / 400 V |
| Machine dimension (L x W x H) | 1200 x 1500 x 2300 mm |
| Weight approx. | 185 kg |
