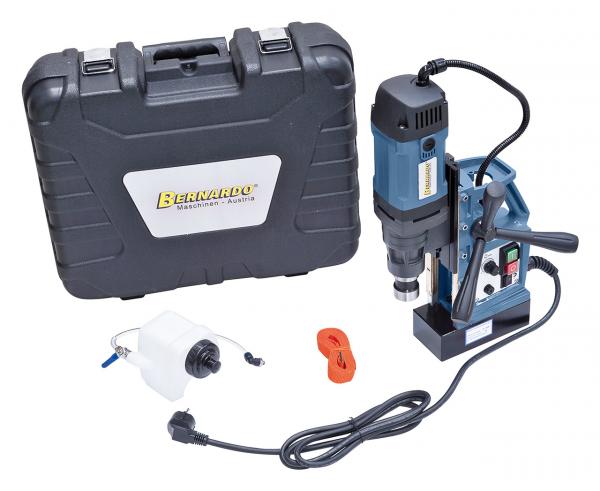

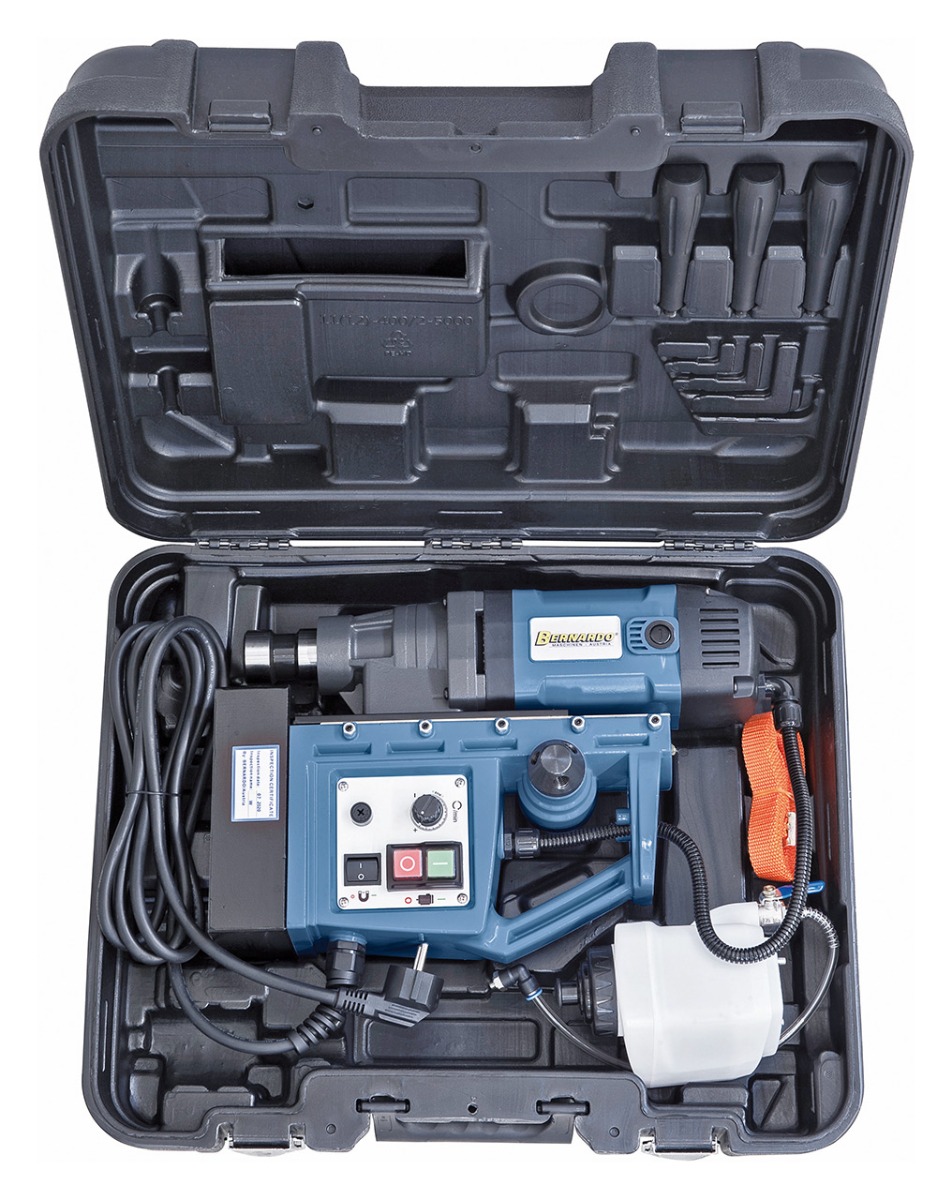

Scope of delivery Magnetic core drilling machine Bernardo MD 5050 VD

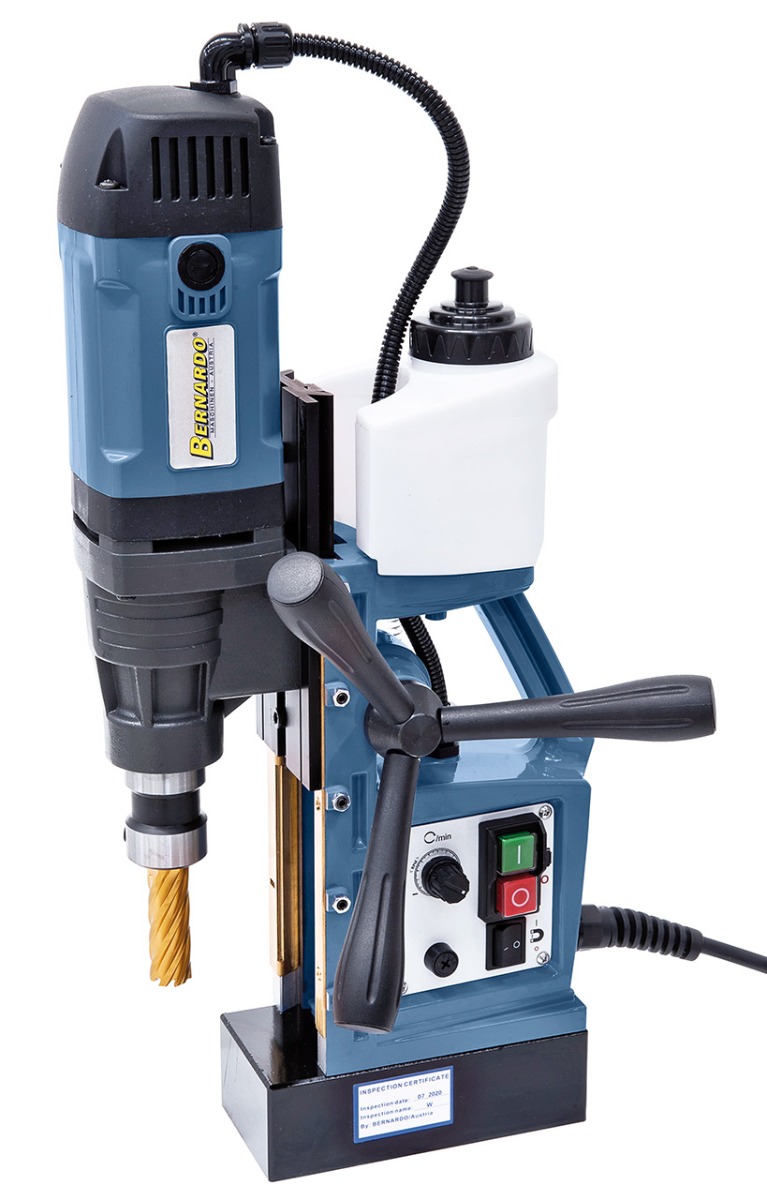

Magnetic core drilling machine Bernardo MD 5050 VD
Features Magnetic core drilling machine Bernardo MD 5050 VD
- Variable speed setting allows optimal adjustment of speed when core drilling, countersinking, reaming, ...
- Powerful electro magnet guarantees best possible magnetic force
- Standard safety belt for vertical or over head operation
- High-quality component ensure long life span

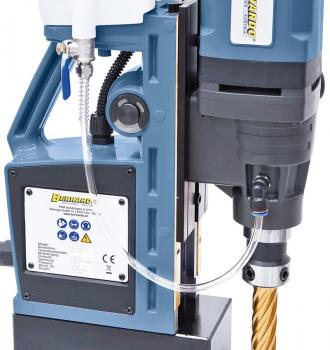

- Automatic internal lubrication – coolant spreads direct on core drill
- Compared to twist drills, machine requires significantly less feed force when using core drills
- Tool holder designed for core drills with 19 mm weldon shaft
Technical details Magnetic core drilling machine Bernardo MD 5050 VD
|
Core drill max. Ø
|
50 mm
|
|
Core drill max. drill depth
| 50 mm |
|
Twist drill max. Ø
| 13 mm |
|
Travel of drill head max.
| 155 mm |
|
Idle speed, stepless
| 100 - 810 rpm |
|
Arbor weldon shank
| 19 mm |
| Distance weldon shank / base max.
|
170 mm
|
|
Magnetic adhesion
| 15600 N |
|
Dimension magnetic base (L x W x H)
| 165 x 80 x 50 mm |
|
Motor power
| 1700 W |
|
Voltage
| 230 V |
|
Machine dimension (W x D x H)
| 150 x 280 x 430 mm |
|
Weight approx.
| 11,2 kg |
