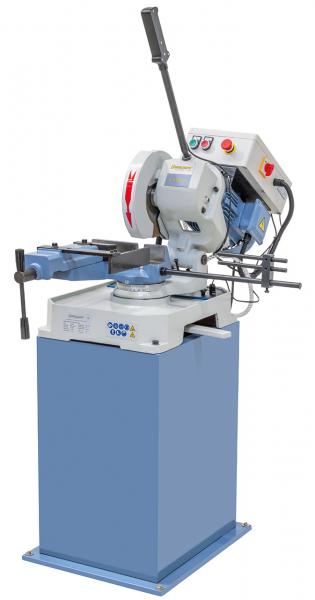

Scope of delivery Manual metal circular saw Bernardo CS 250 H 400V

Kühlmitteleinrichtung mit Filter
Untergestell
Werkstückanschlag

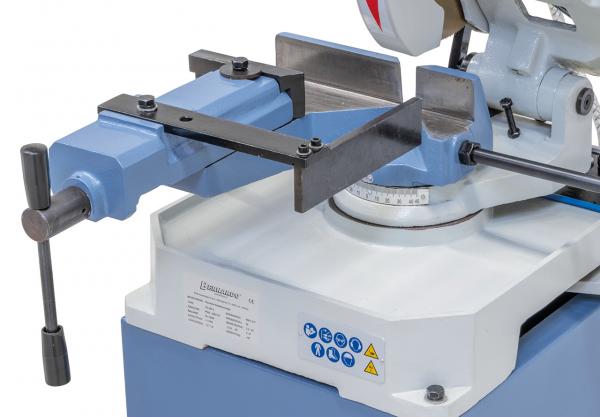

Schraubstock

Special features Manual metal circular saw Bernardo CS 250 H 400V

With its 2 cutting speeds, the CS 250 H manual metal circular saw is ideal for sawing profiles, pipes, solid materials made of iron, stainless steel and non-ferrous metals. Thanks to its robust design, precise cutting results and simple operation, this machine is indispensable in metalworking companies.

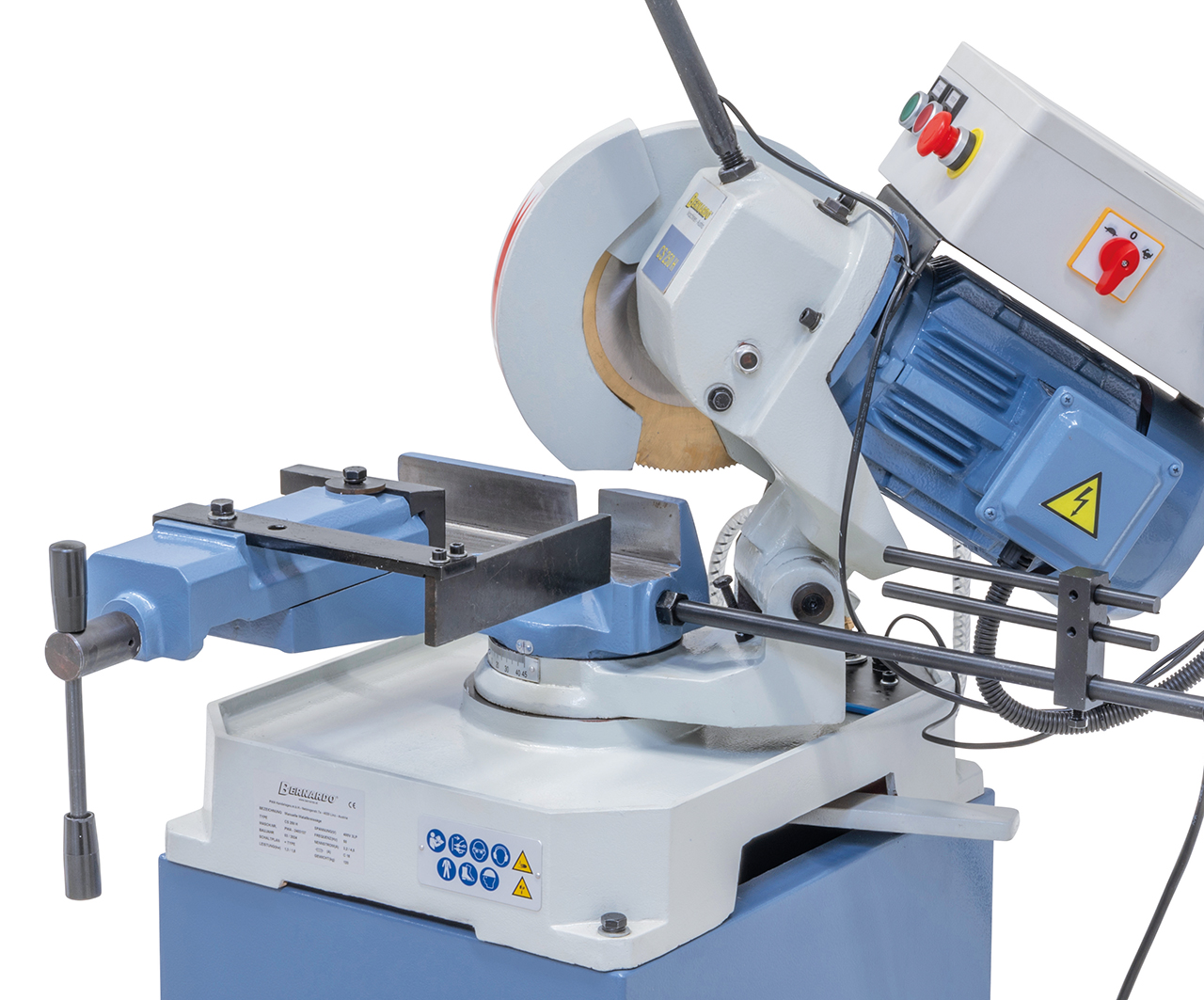

Gearbox with hardened and ground worm shaft and bronze worm wheel
Gearbox head can be swivelled 45° to the right and left for mitre cuts
Reduction gearbox, running in an oil bath
For cutting profiles, pipes, solid materials, ...
Safety guard opens automatically during cutting
Includes base frame with integrated coolant tank
Ergonomic control handle with safety switch

Technical details Manual metal circular saw Bernardo CS 250 H 400V

Saw blade dimension	250 x 32 mm
Speed	40 / 80 rpm
Vice open max.	110 mm
Working height	900 mm
Motor output power S1 100%	1,3 / 1,8 kW
Motor power consumption S6 40%	1,8 / 2,4 kW
Tension	400 V
Machine dimensions (W x D x H)	770 x 1000 x 1620 mm
Weight approx.	135 kg
Solid material round	90°: 60 mm, 45°: 50 mm
Round moulded tube	90°: 65 mm, 45°: 55 mm
Square moulded tube	90°: 55 x 55 mm, 45°: 50 x 50 mm
Rectangular moulded tube	90°: 100 x 70 mm, 45°: 65 x 65 mm
