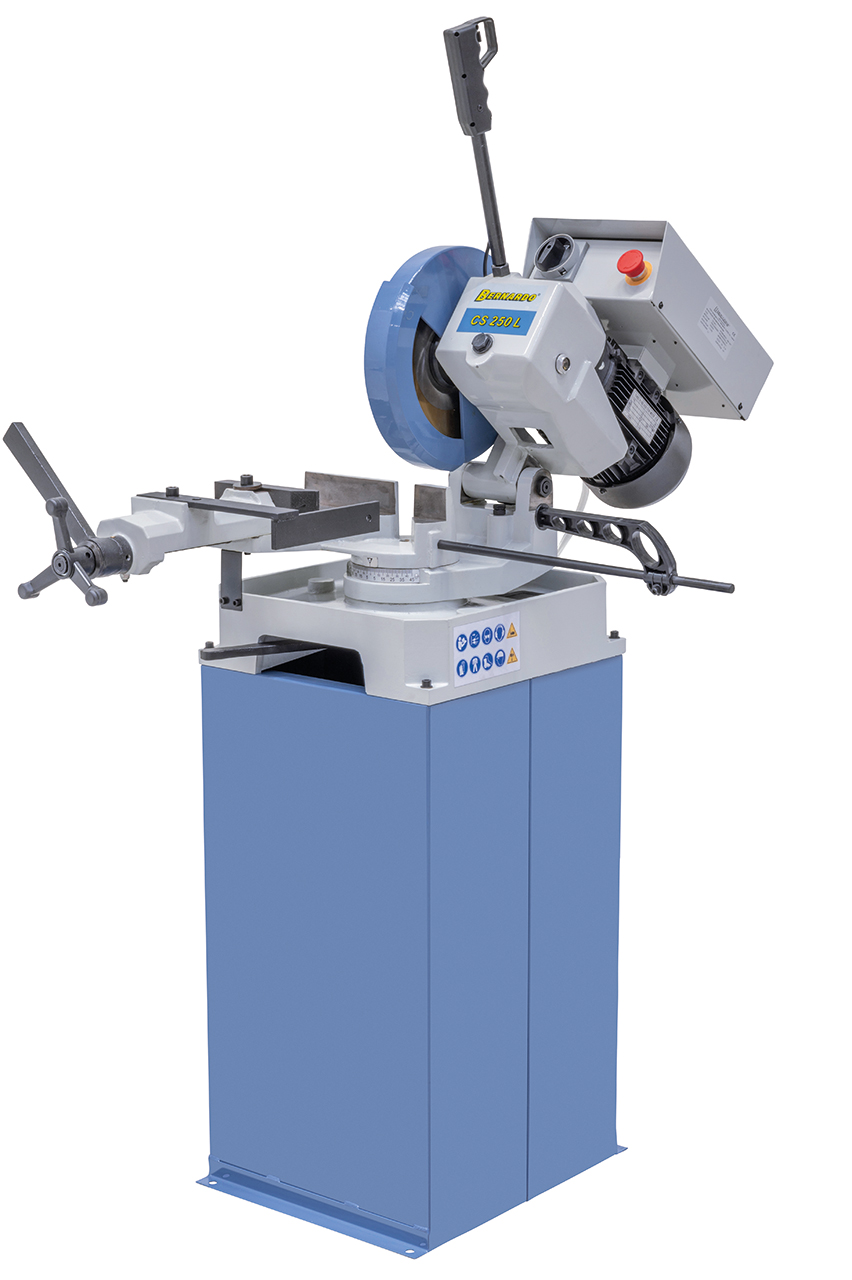

Scope of delivery Manual metal circular saw Bernardo CS 250 L

Coolant device with filter

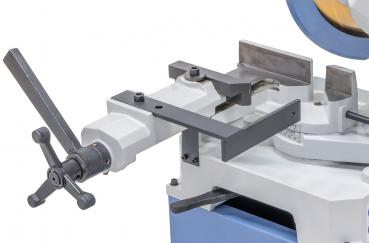

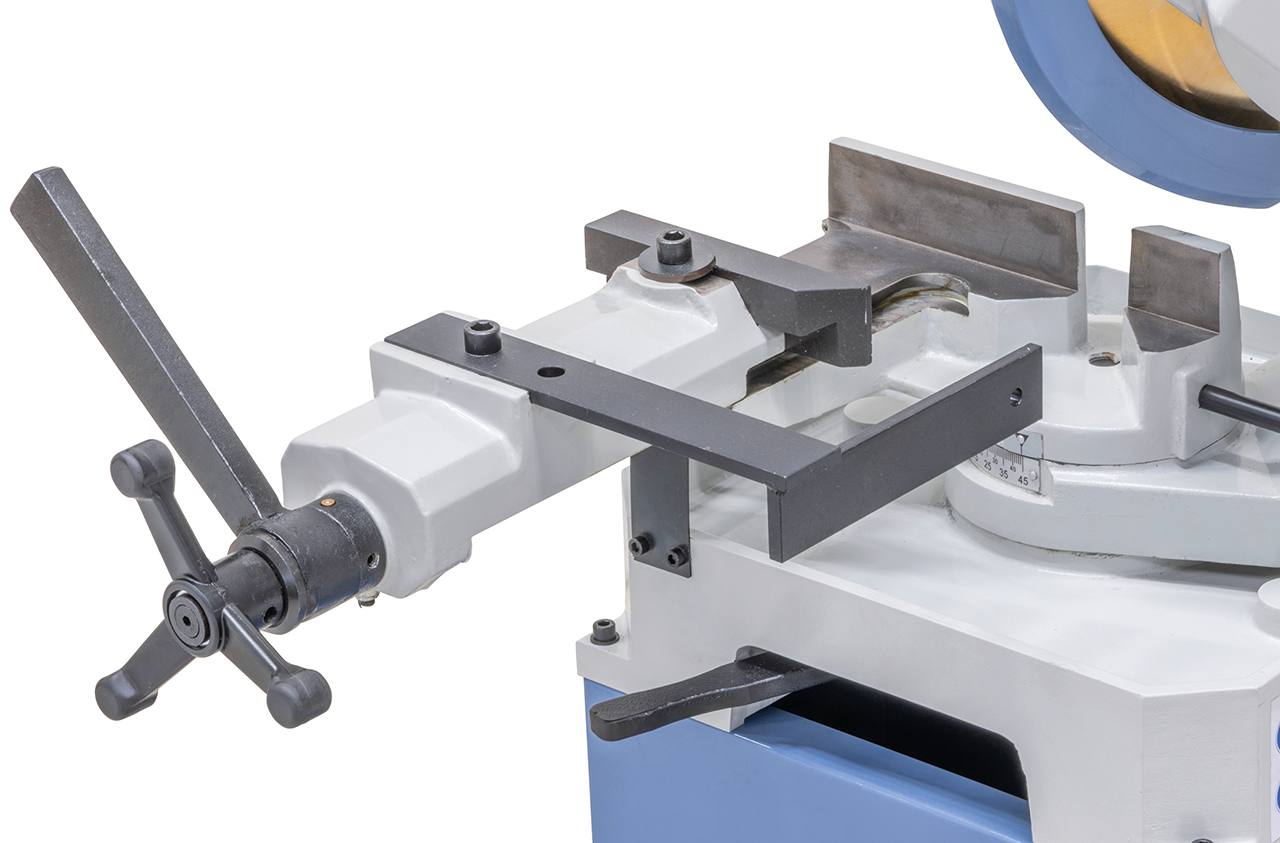

Vice with quick-clamping lever
TiN-coated saw blade
Workpiece stop
Underframe

Features Manual metal circular saw Bernardo CS 250 L

The CS 250 L metal circular saw offers an optimum price-performance ratio thanks to its complete equipment. Thanks to its robust design, precise cutting results and simple operation, this machine is indispensable in metalworking companies.

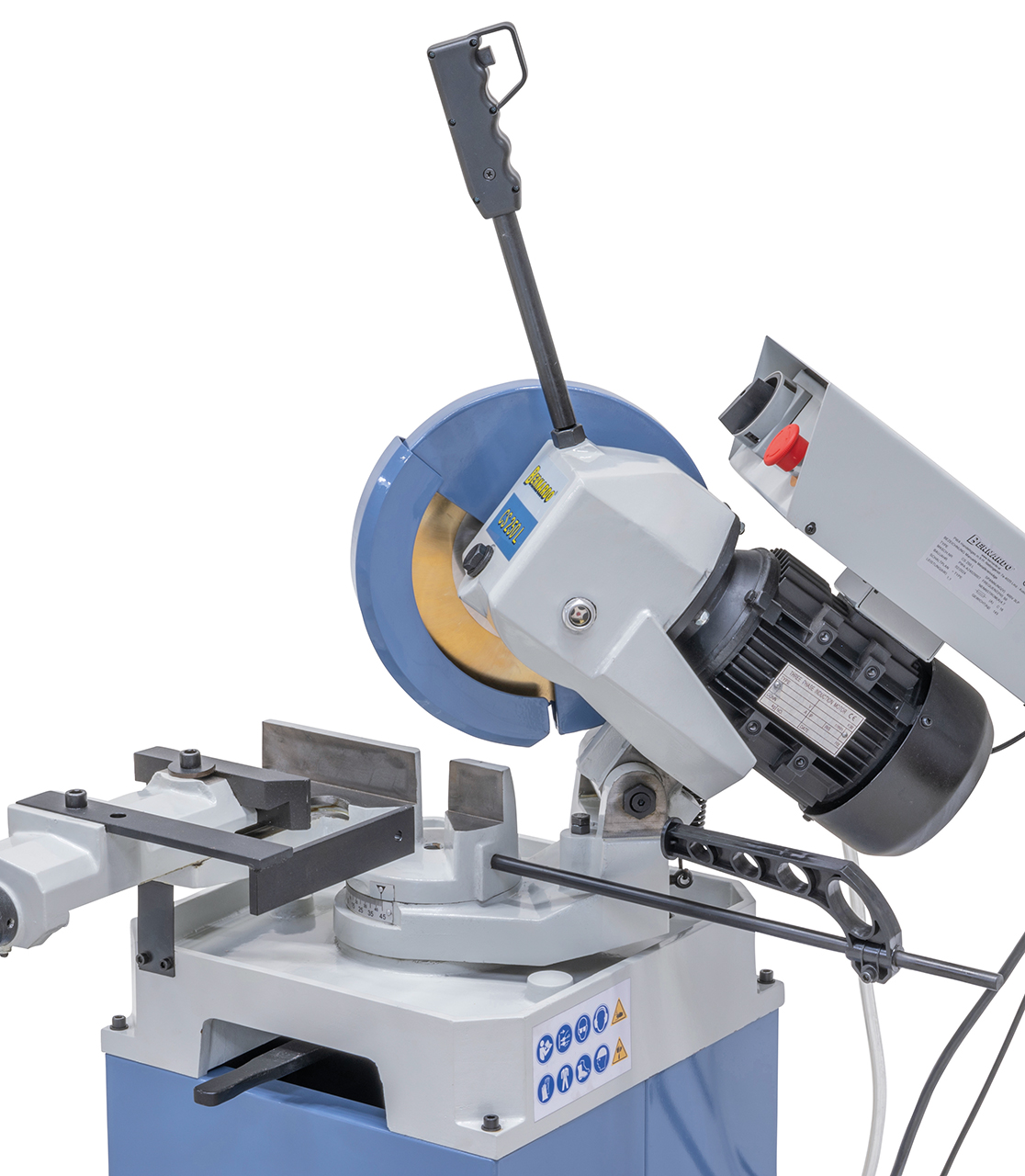

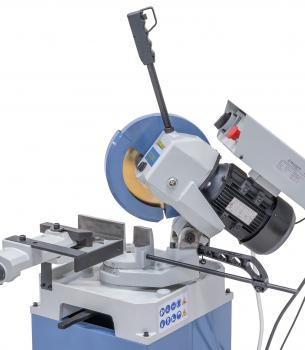

Gear head can be swivelled 45° to the right and left for mitre cuts
For cutting steel, light metals and plastics
CE-compliant saw blade guard, closes automatically when folded up
Ergonomic control handle with 24 V safety switch
TiN-coated saw blade as standard
Including workpiece stop for efficient work
Hardened and ground gears, running in an oil bath
Coolant system housed in the machine body to save space

Technical details Manual metal circular saw Bernardo CS 250 L

Saw blade dimension	250 x 32 mm
Speed	42 rpm
Vice open max.	115 mm
Working height	960 mm
Motor output power S1 100%	1,1 kW
Motor power consumption S6 40%	1,5 kW
Voltage	400 V
Machine dimensions (W x D x H)	900 x 1100 x 1620 mm
Weight approx.	134 kg
Solid material round	90°: 60 mm, 45°: 50 mm
Round moulded tube	90°: 65 mm, 45°: 55 mm
Square moulded tube	90°: 65 x 65 mm, 45°: 55 x 55 mm
Rectangular moulded tube	90°: 75 x 45 mm, 45°: 55 x 45 mm
