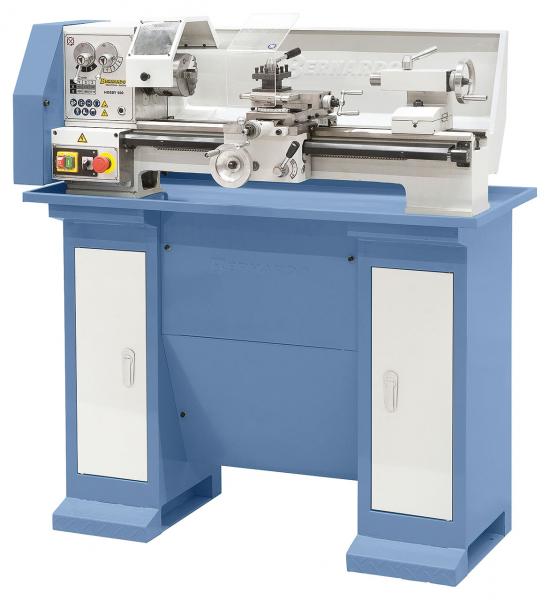

Precision lathes Bernardo Hobby 500 - 230 V
The Hobby 500 turning lathe is equipped with a 6-step control gear to allow for quick speed change. The compact construction guarantees smooth running and precise work.
Scope of delivery Precision lathes Bernardo Hobby 500 - 230 V

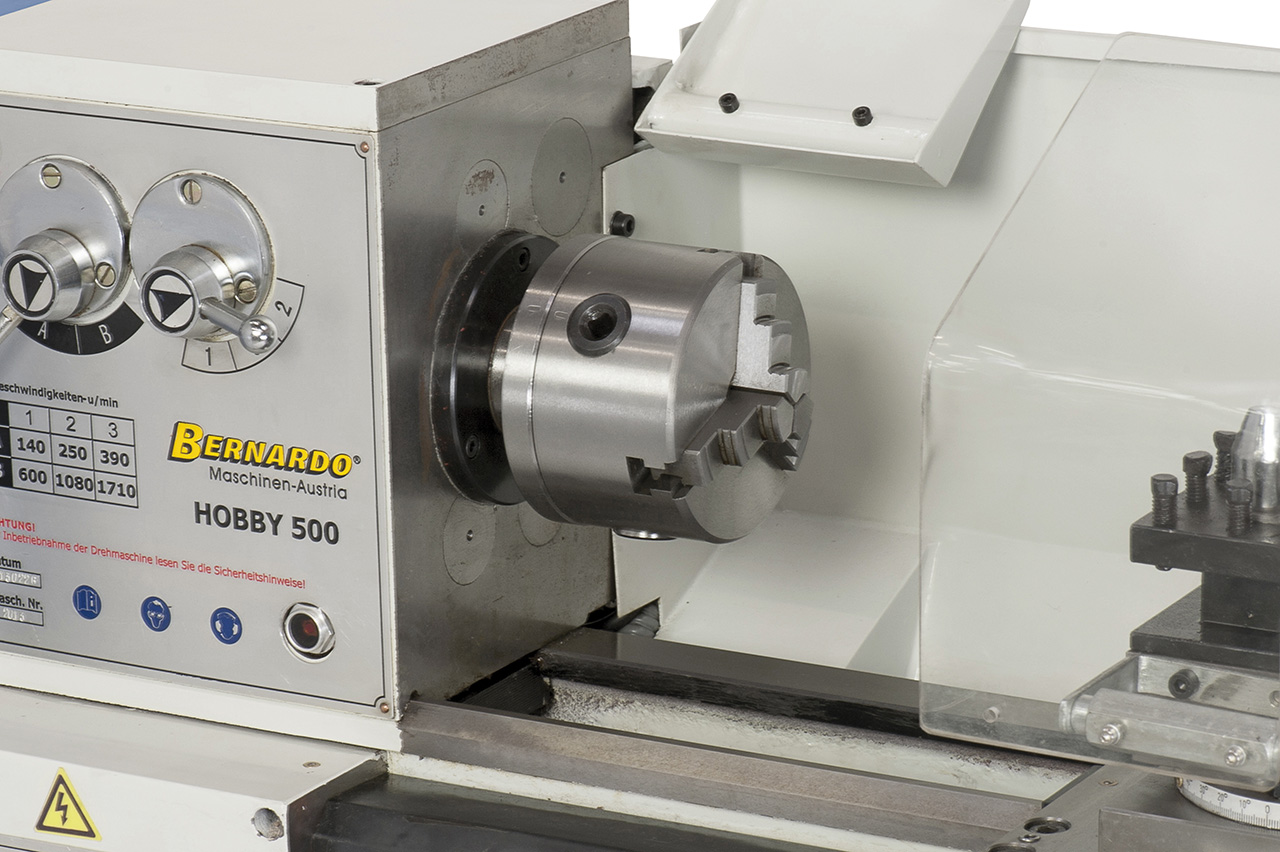

- 3-jaw chuck 100 mm
- Change gears
- Dead center
- 4-way tool post holder

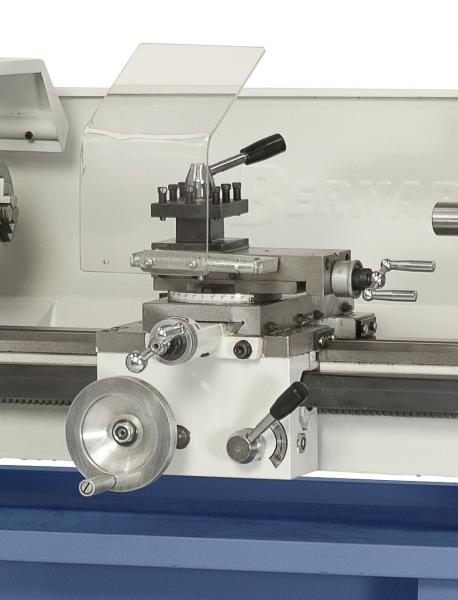

- Cross slide with top support
- Chuck guard
Features Precision lathes Bernardo Hobby 500 - 230 V

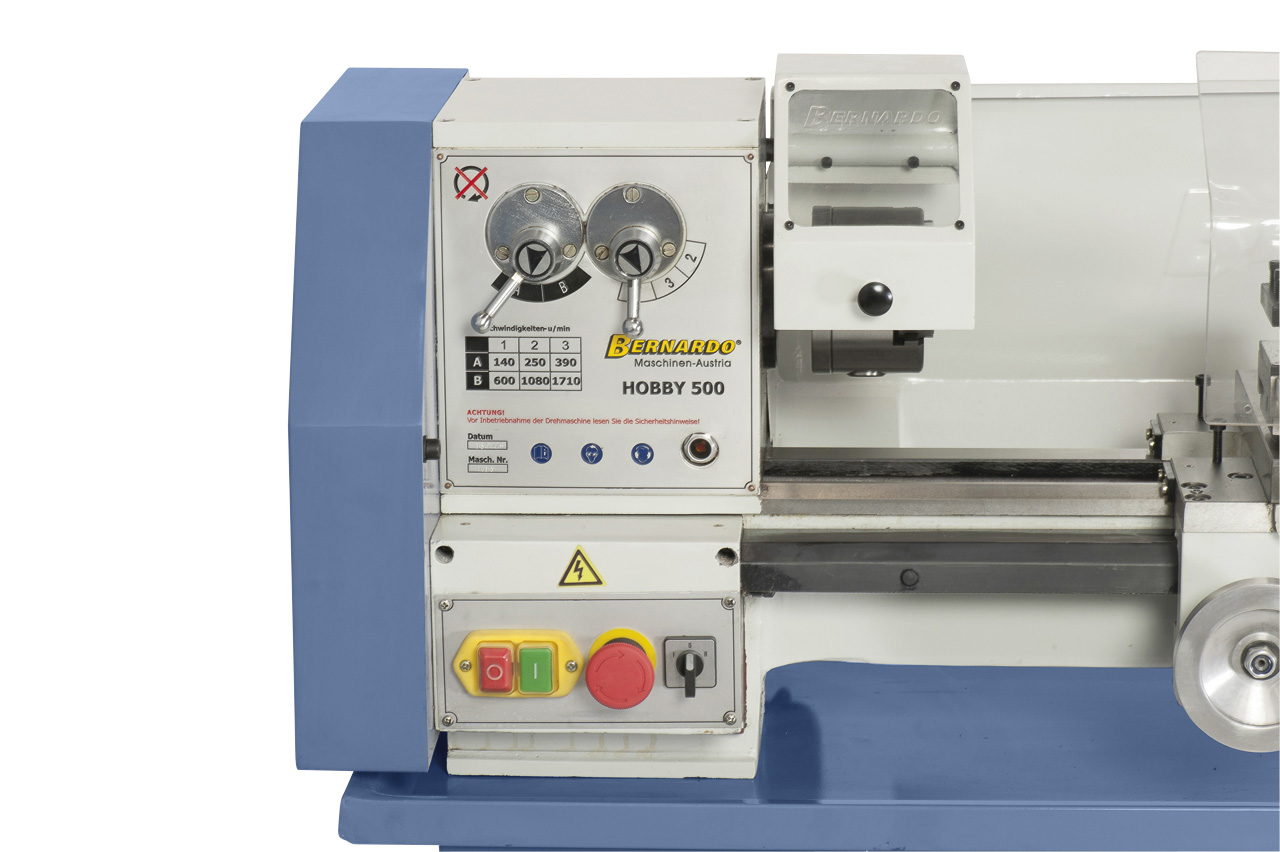

- Control gear allows easy and quick speed change
- Machine bed inductive hardened and polished
- Guideways adjustable via gibs
- Optimal price-performance-ratio
- Very handy machine with leadscrew for thread cutting
- Spindle bedded with 2 adjustable precision ball bearings
- Tailstocck an be adjusted for taper turning
- Protective switch with undervoltage release
- Solid and small construction
Technical details Precision lathes Bernardo Hobby 500 - 230 V
| Distance between centers | 500 mm |
| Center height | 110 mm |
| Swing over bed | 220 mm |
| Spindle bore | 20 mm |
| Taper at spindle bore | MT 3 |
| Speed range | 140 - 1710 rpm, 6 steps |
| Longitudinal feed | (4) 0,05 - 0,2 mm/rev. |
| Metric thread | (11) 0,4 - 3 mm |
| Inch thread | (11) 8 - 28 threads/1“ |
| Travel of tailstock sleeve | 45 mm |
| Taper of tailstock sleeve | MT 2 |
| Motor power output S1 100% | 0,55 kW / 230 V |
| Motor power input S6 40% | 0,80 kW / 230 V |
| Machine dimension (W x D x H)* | 1150 x 480 x 420 mm |
| Weight approx. | 130 kg |
* without stand
