Protective devices for Bernardo PFR 03/725/..
Protective devices for Bernardo PFR 03/725/..
Protective devices for Bernardo PFR 03/725/..

Protective devices for Bernardo PFR 03/725/..

Product No.:
57-1135
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

956,40 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Special features Safety guards for milling machine Bernardo PFR 03/725/..

  • Universal safety guard with articulated arms, ideal for frequently changing jobs, practical and easy to handle
  • The model protects the operator from direct contact with the vertical spindle and flying chips or coolant splashes
  • The safety guard is mounted on the machine stand and is equipped with a safety glass with a wide field of vision, a vertical opening system and a locking pin to secure the safety guard.
  • Equipped with a safety microswitch.

Available accessories:

  • PMG 60/185
  • PBA 01/190
  • PBA 01/325
  • PBA 02/325

Note: Describe the mounting side by adding: /SX = Left or /DX = Right

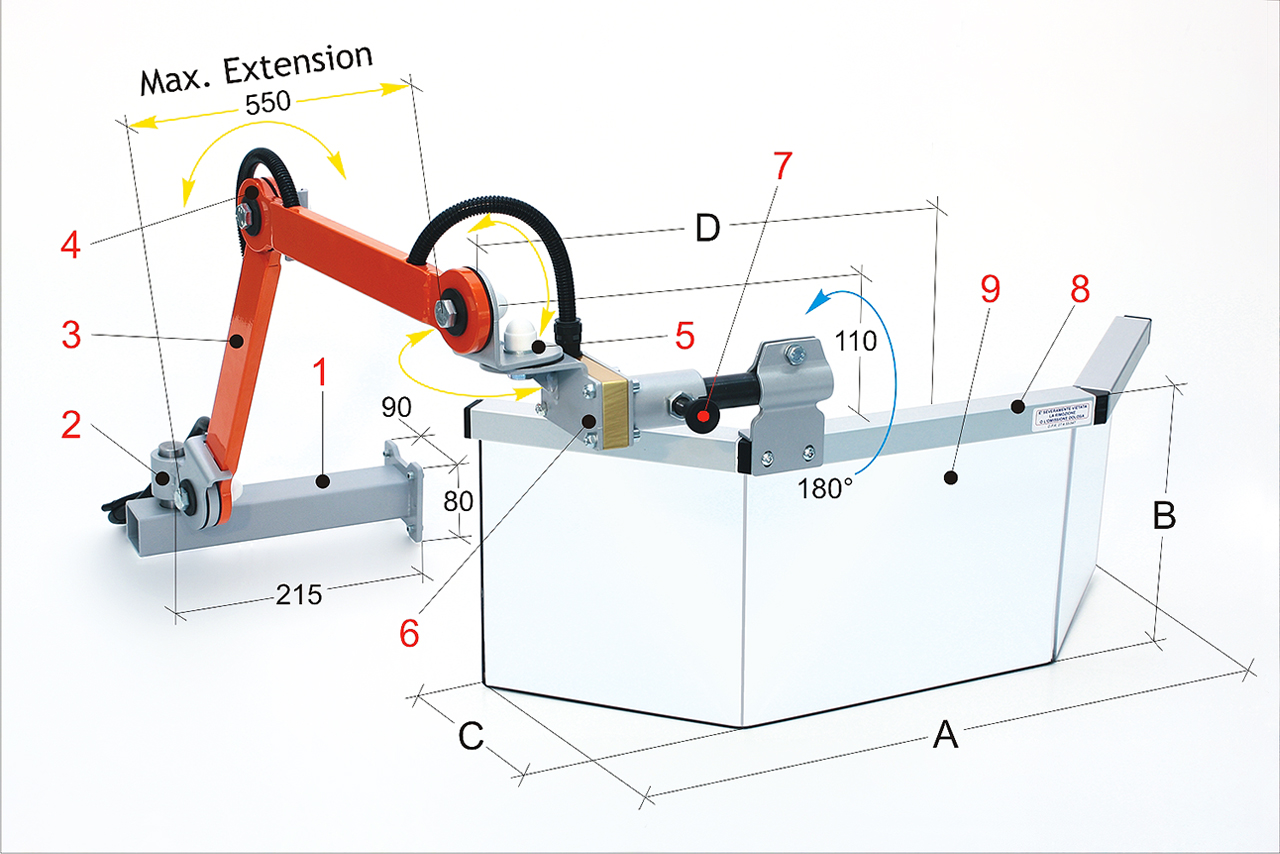

Technical details Safety guards for milling machine Bernardo PFR 03/725/..

A

B

C

D

Weight

725

300

200

430

9,4 kg


1  Bracket/mounting plate made of tubular steel
2  Clamp for horizontal adjustment
3  Tubular steel articulated arm
4  Joint adjustable by means of friction disc
5  Angled connection for vertical and horizontal swivelling of the protective screen
6  Housing for the safety microswitch, 180° rotatable, 2 NC contacts
7  Locking bolt for the protective screen
8  Protective frame made of aluminium profile
9  Protective screen made of impact-resistant and oil-resistant plastic material
