Protective devices for lathe Bernardo PTO 31/040
Protective devices for lathe Bernardo PTO 31/040
Protective devices for lathe Bernardo PTO 31/040

Protective devices for lathe Bernardo PTO 31/040

Product No.:
57-1089
2-4 days 2-4 days (abroad may vary)
  • Optimal price-performance ratio
  • Top quality
  • Reliable service
  • Fast delivery

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
5 kg per piece
534,73 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Special features Protective devices for lathe Bernardo PTO 31/040

  • Modular system for protection at the rear of the lathe. Protects the operator from direct contact with rotating parts accessible from the rear of the machine or from flying chips and coolant splashes
  • This guard can be attached to the lower part of the lathe body or to the floor using a system of adjustable aluminium profile arms. On request, article PTO31/.../T is available with a built-in inclined cover for better upward protection.
  • The structure is compatible with the PTO12/... protective device.
  • Important: Installation with the PTO12 protective device is not compatible with installation of the PTO31/.../T roof version.

Supplementary articles:

  • PTO 12/…
  • PTO 31/…/T

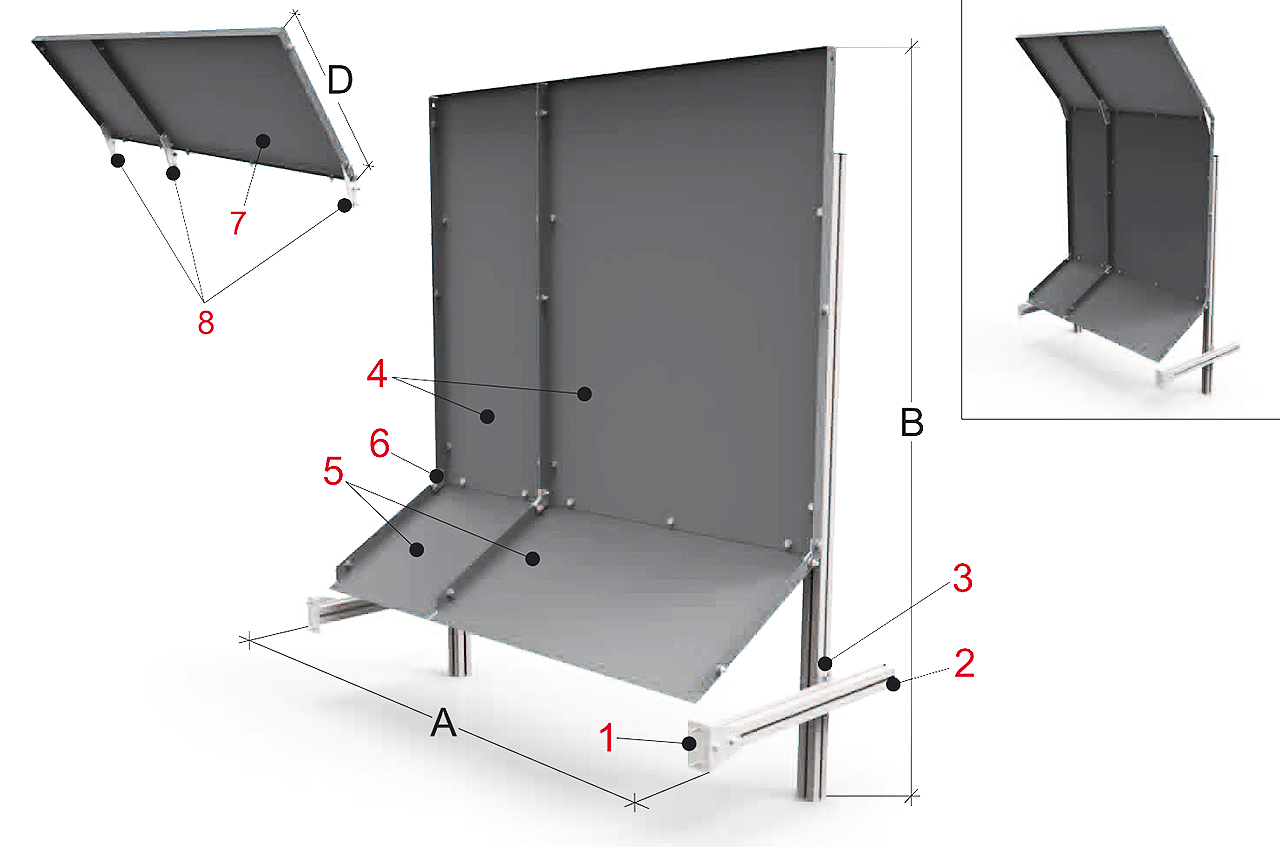

Technical details Safety guards for lathe Bernardo PTO 31/040

A

B

C

400

1200

600


1 Bracket/mounting plate for attachment to the machine
2 Adjustable support arms made of aluminium profile
3 Aluminium profiles for mounting the rear panel
4 Modular centre sections made of sheet steel
5 Modular lower sections made of sheet steel
6 Mounting bracket
7 Modular upper parts made of sheet steel
8 Mounting bracket
