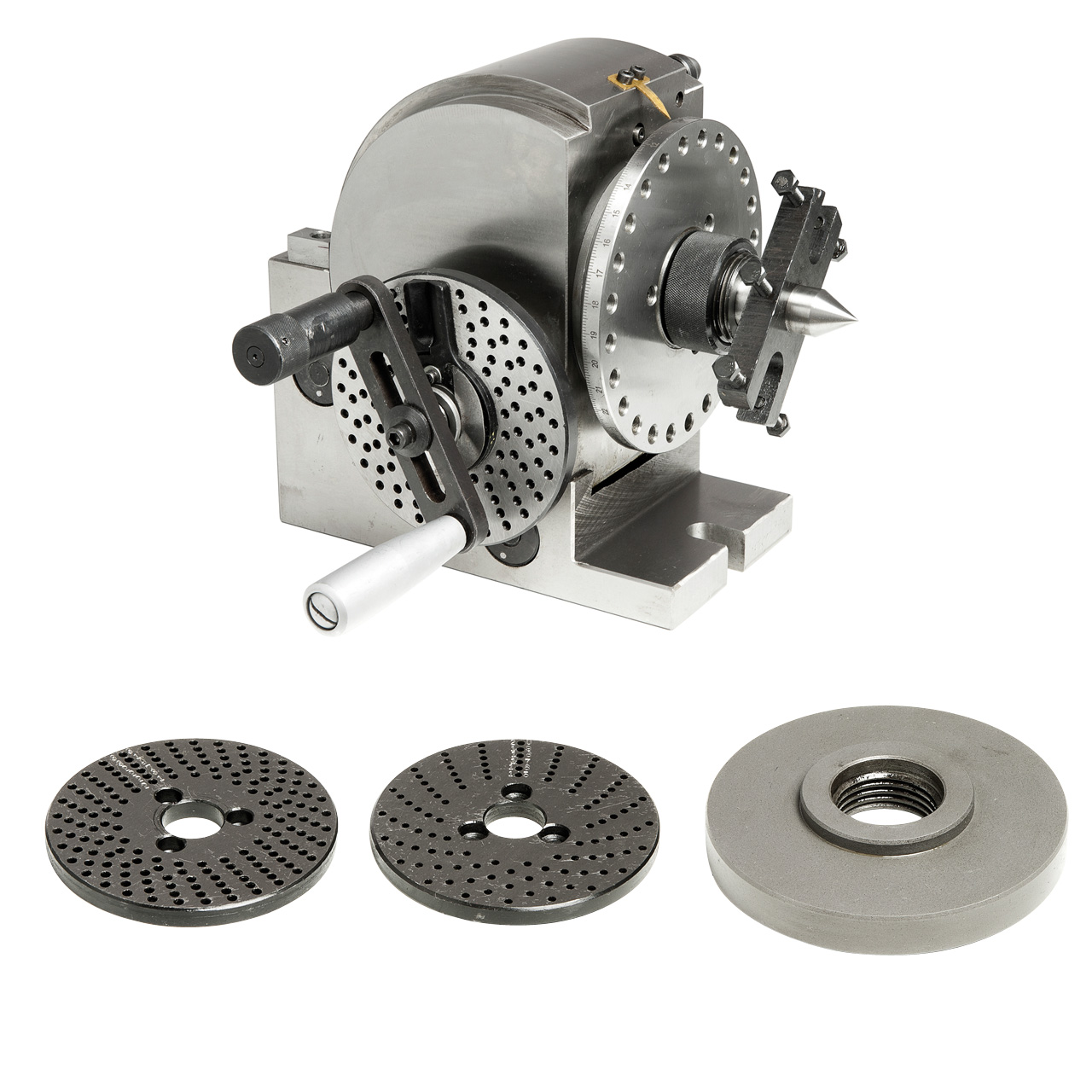

Scope of delivery Rotary table / Tiltable table / Cross table Bernardo Semi-universal dividing head BS-1

  • Tailstock
  • 2 dividing plates
  • Dead center
  • Driving dog
  • Flange

Features Rotary table / Tiltable table / Cross table Bernardo Semi-universal dividing head BS-1

  • Spindle in precision taper bearing
  • Worm  made of chromium-nickel steel, hardened and grounded
  • Phosphor bronze worm gear
  • Ratio unlatchable for direct dividing (40:1)
  • Tiltable from horizontal to vertical (-10° to +90°)
  • Direct dividing with 24 rests
  • Each divide from 2 to 50 and many divides from 52 to 380 possible

Technical details Rotary table / Tiltable table / Cross table Bernardo Semi-universal dividing head BS-1

Ratio 40:1
Height 220 mm
Width with centering tip 260 mm
Length 285 mm
Centering tip MT 3
Flange 165 mm
Tiltable 0° bis 90°
Spindle bore 20 mm
T-slot size 16 mm
Direct dividing disc (division) 24 (15°)
Weight approx. 30,5 kg



Dimension dividing head   Dimension tailstock
A 260 mm   A1 183 mm
B 168 mm   B1 87 mm
H 220 mm   H1 137 mm
h 128 mm   h1 128 mm
a 206 mm   a1 158 mm
b 113 mm   b1 110 mm
g 16 mm   g1 16 mm
