Special features Safety devices for milling machine Bernardo PBA 01/190

Complete sets for extending the working range of all protective devices equipped with articulated arms.
Increases the operating range of the protective screen on all systems originally equipped with articulated arms - complete with all necessary accessories and screws.

These sets are available in three versions, depending on the area and the stability to be achieved:

PBA 01/190 = single articulated arm, centre distance 190 mm
PBA 01/325 = single articulated arm, centre distance 325 mm
PBA 02/325 = Reinforced articulated arm (consisting of two adjacent arms), centre distance 325 mm

Accessories available:

The PMG 60/185 gas cylinder is designed to provide better support for heavy guards and to make frequent vertical adjustments, which also increases the holding force of the first arm.

Technical details Safety guards for milling machine Bernardo PBA 01/190

A	Weight
190	0,9 kg

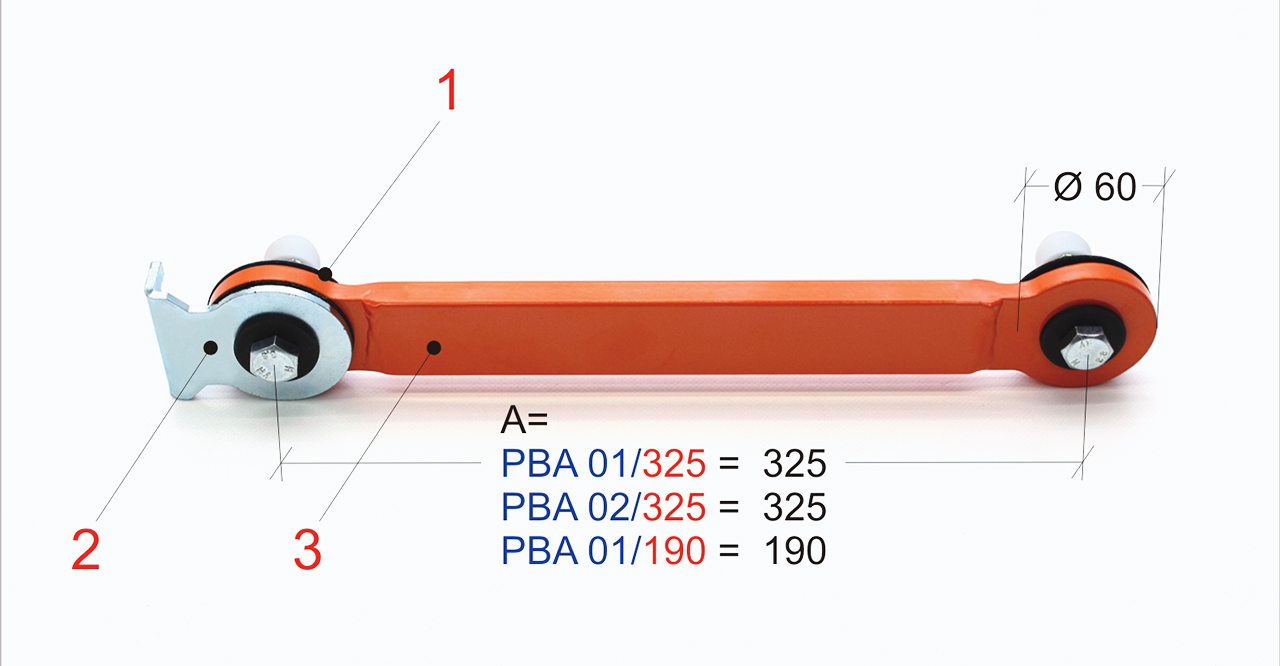

1 Friction disc 60 mm diameter - with brake pad
2 Opposite articulated plate - made of sheet steel
3 Additional articulated arm - made of tubular steel with welded-on steel discs
