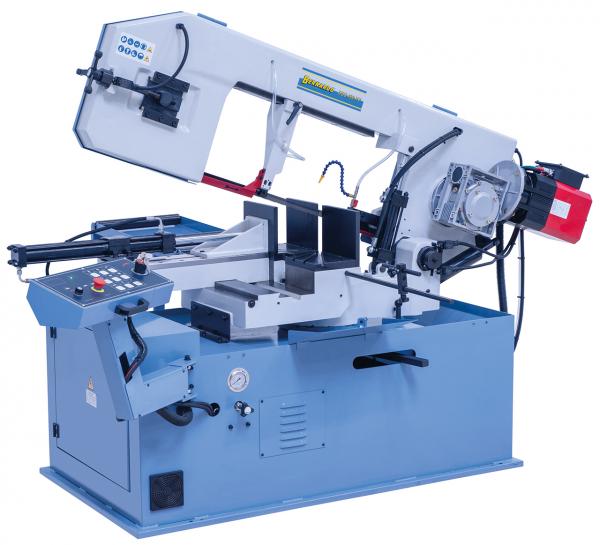

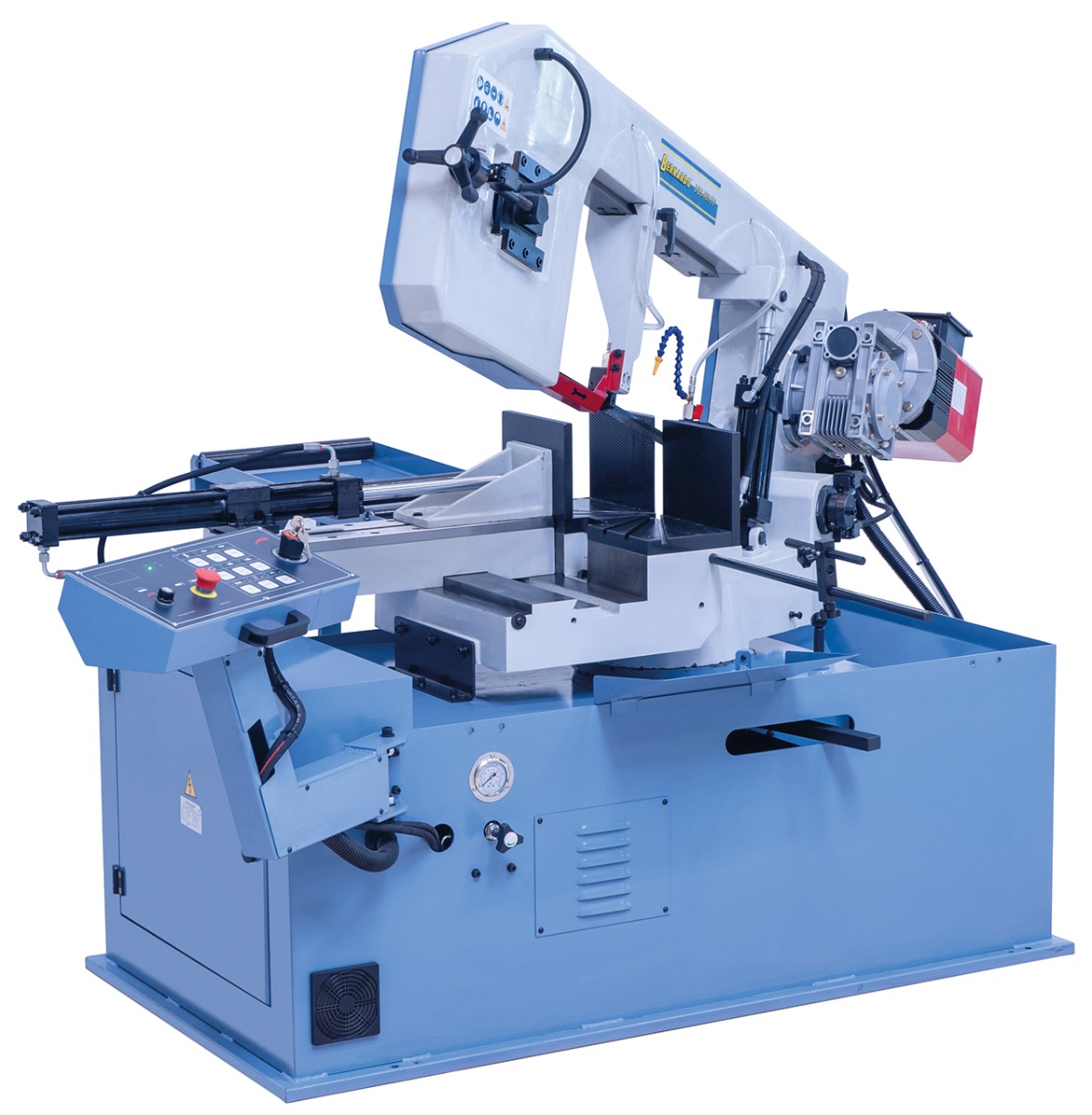

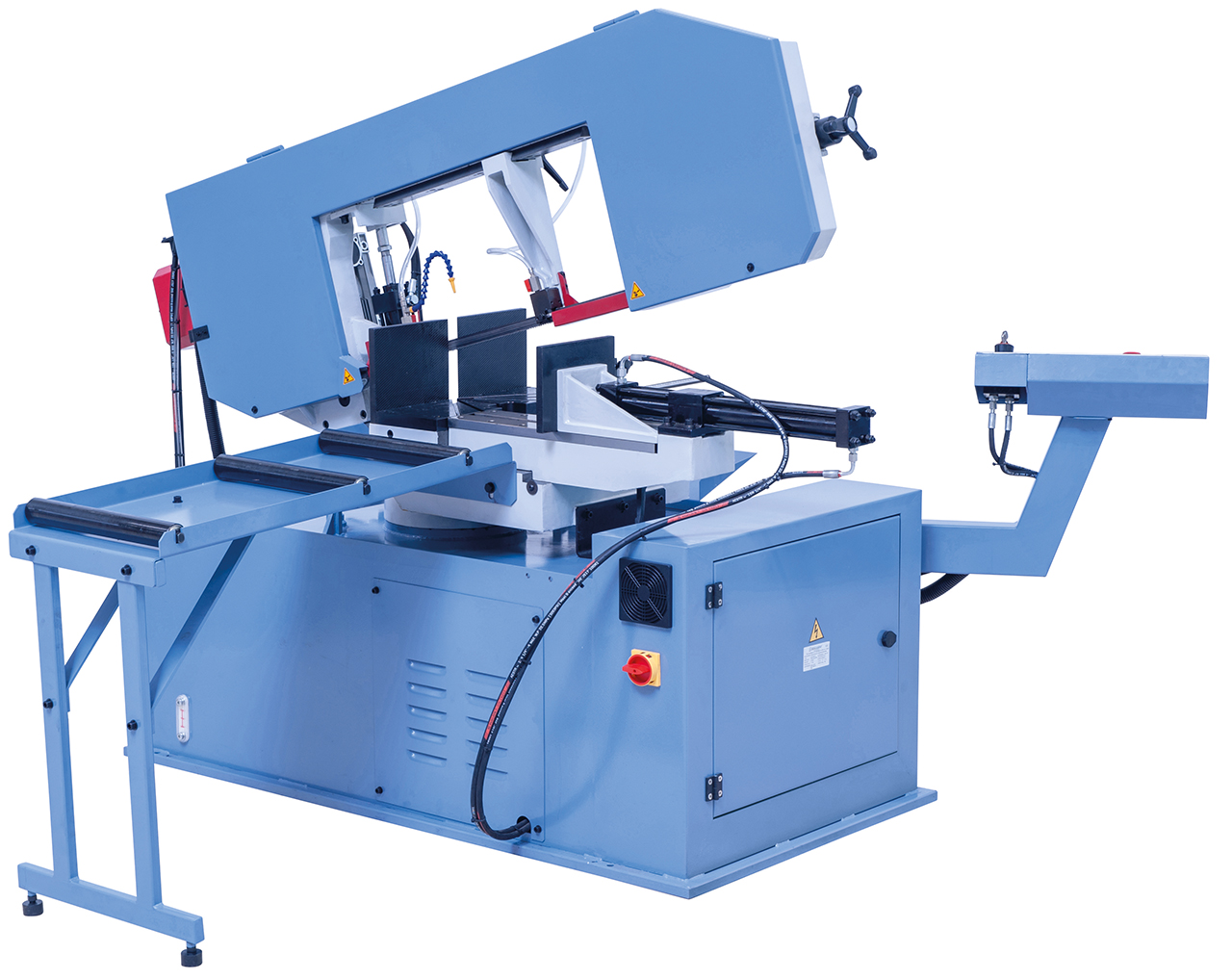

Semi-automatic double mitre bandsaw Bernardo DGS 460 HV
The DGS 460 HV is a cost-effective double mitre band saw for cutting of hollow profiles, solid materials, stainless steel, tool steel etc. The stepless cutting speed and the hydraulic vice ensure comfortable working. The semi-automatic function increases the productivity, making this model ideal for machine construction, mould-making and metalworking shops.
Scope of delivery Semi-automatic double mitre bandsaws Bernardo DGS 460 HV
- Bandsaw blade
- Material fence
- Hydraulic vice
- Coolant device
- Hydraulic lowering cylinder
- Frequency inverter
- Motor protective switch
- Regulation of cutting pressure
- Automatic blade break control
- Automatic shut-down
Features Semi-automatic double mitre bandsaws Bernardo DGS 460 HV
- Semi-automatic function increases productivity significantly
- Stepless cutting speed allows for ideal adjustment to each workpiece

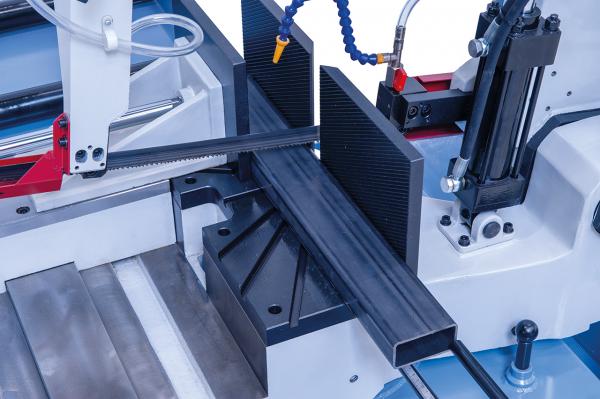

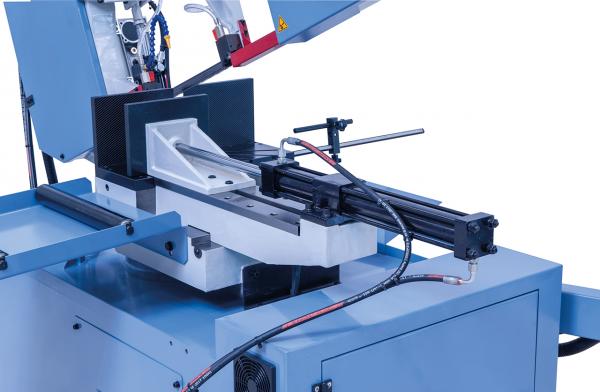

- Adjustable vice with hydraulic clamping
- Smooth and vibration-free run guarantees cutting accuracy
- Adjustable hydraulic cylinder for pressure regulation of the saw frame
- Torsion-free, strong spheroidal cast iron saw frame
- Automatic shut-down at cutting end
- Saw frame tilts left (-45°) and right (+60°) for double mitre cutting

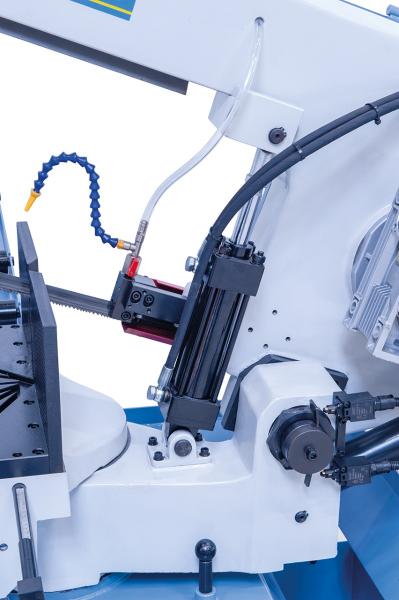

- Ball bedded bandsaw blade guide with quick adjustment to the workpiece width guarantees optimal results

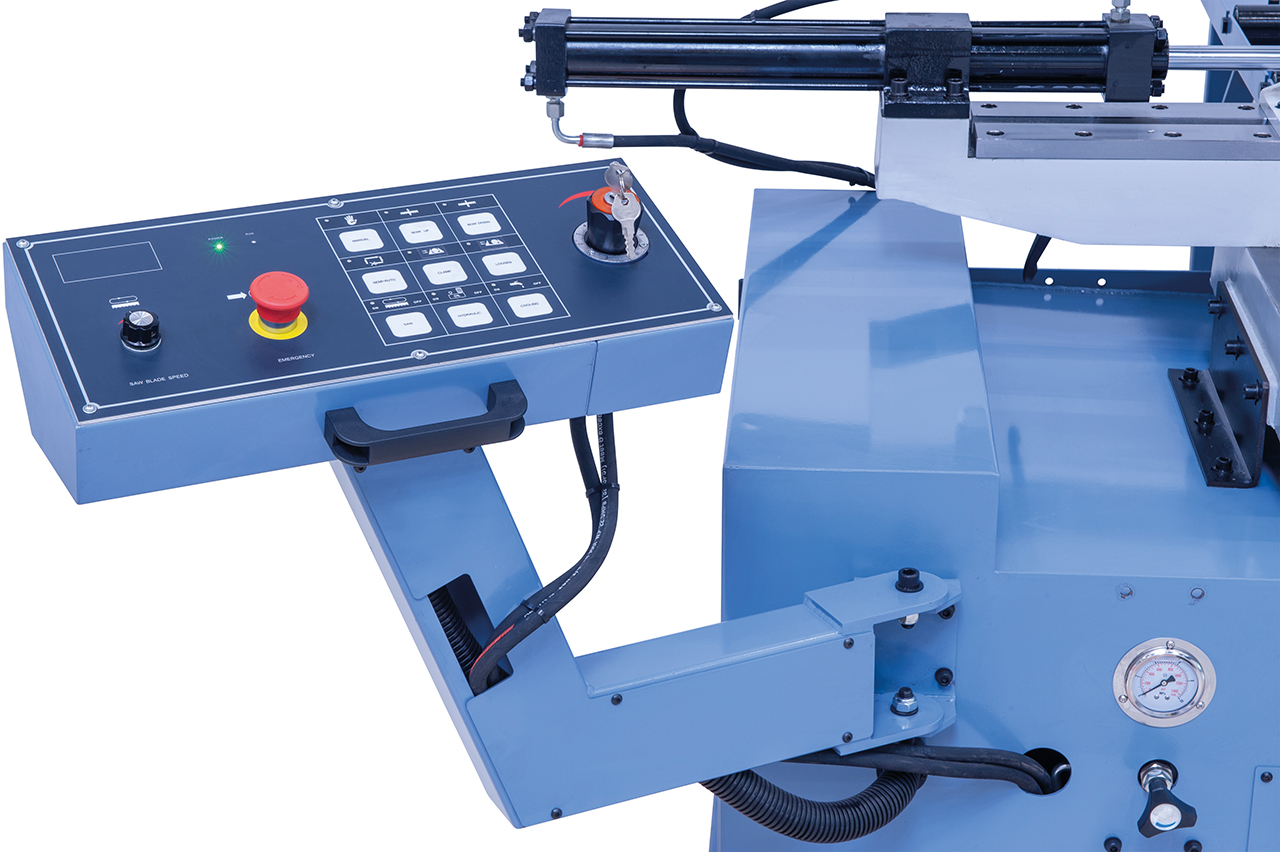

Semi-automatic operating mode:
- Hydraulic clamping of the vice
- Hydraulic lowering of the saw frame
- Lifting of the saw frame
Technical details Semi-automatic double mitre bandsaws Bernardo DGS 460 HV
| Cutting capacity round / square 90° | 340 mm / 280 x 280 mm |
| Cutting capacity flat 90° | 460 x 250 mm |
| Cutting capacity round / square 45° R | 320 mm / 280 x 280 mm |
| Cutting capacity flat 45° R | 320 x 280 mm |
| Cutting capacity round / square 45° L | 320 mm / 280 x 280 mm |
| Cutting capacity flat 45° L | 320 x 280 mm |
| Cutting capacity round / square 60° R | 205 mm / 205 x 205 mm |
| Working height | 860 mm |
| Bandsaw blade dimension | 3960 x 27 x 0,9 mm |
| Cutting speeds | 19 - 94 m/min |
| Coolant pump | 0,045 kW |

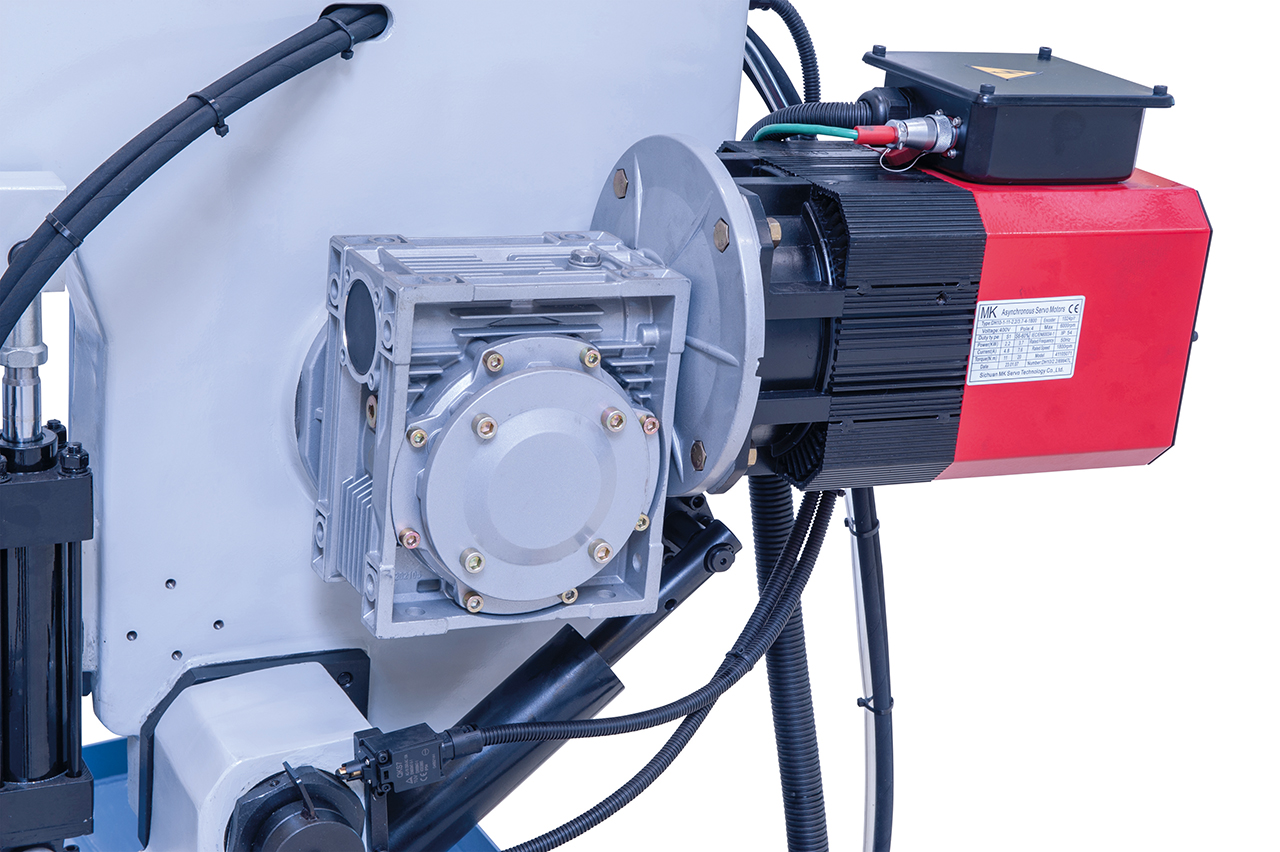

| Motor power | 2,2 kW |
| Machine dimension (L x D x H) | 2600 x 1350* x 1900 mm |
| Weight approx. | 895 kg |
* without roller tables
