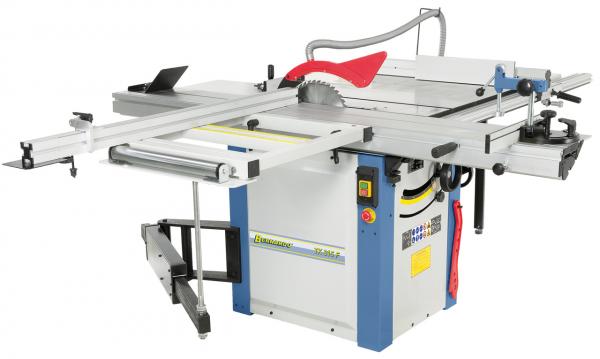

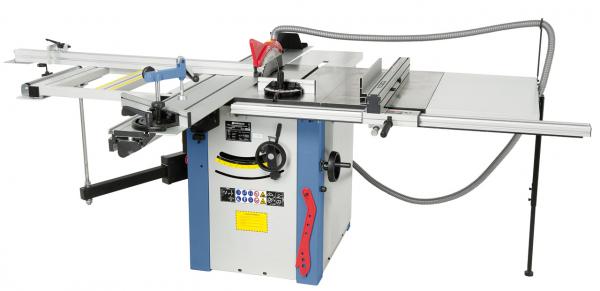

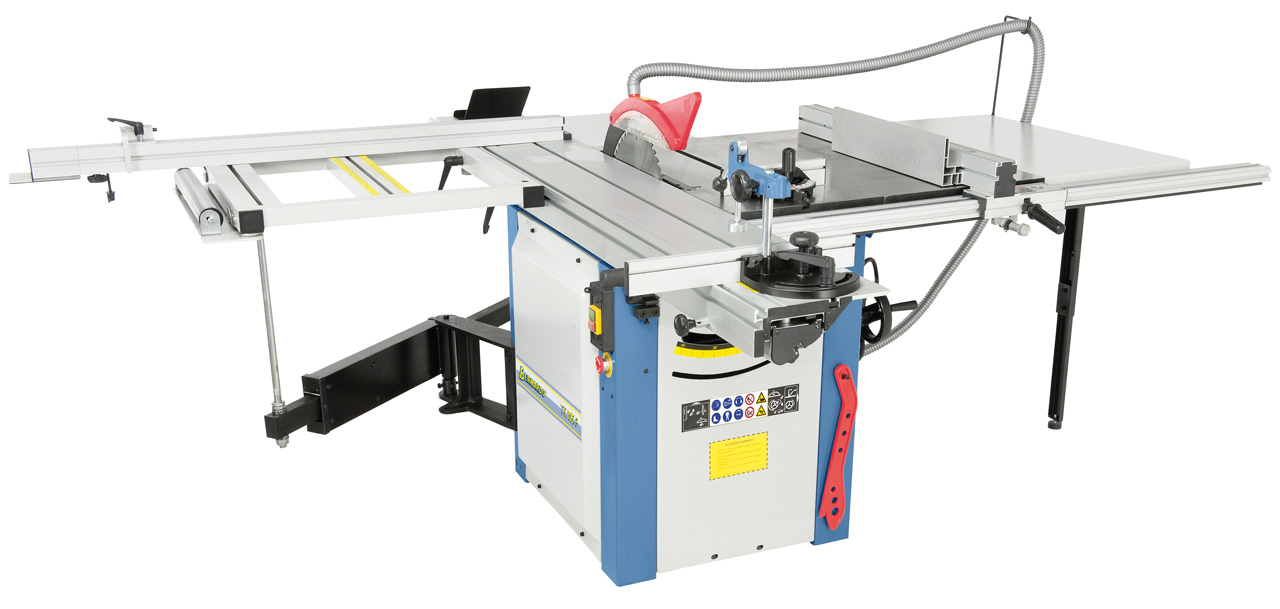

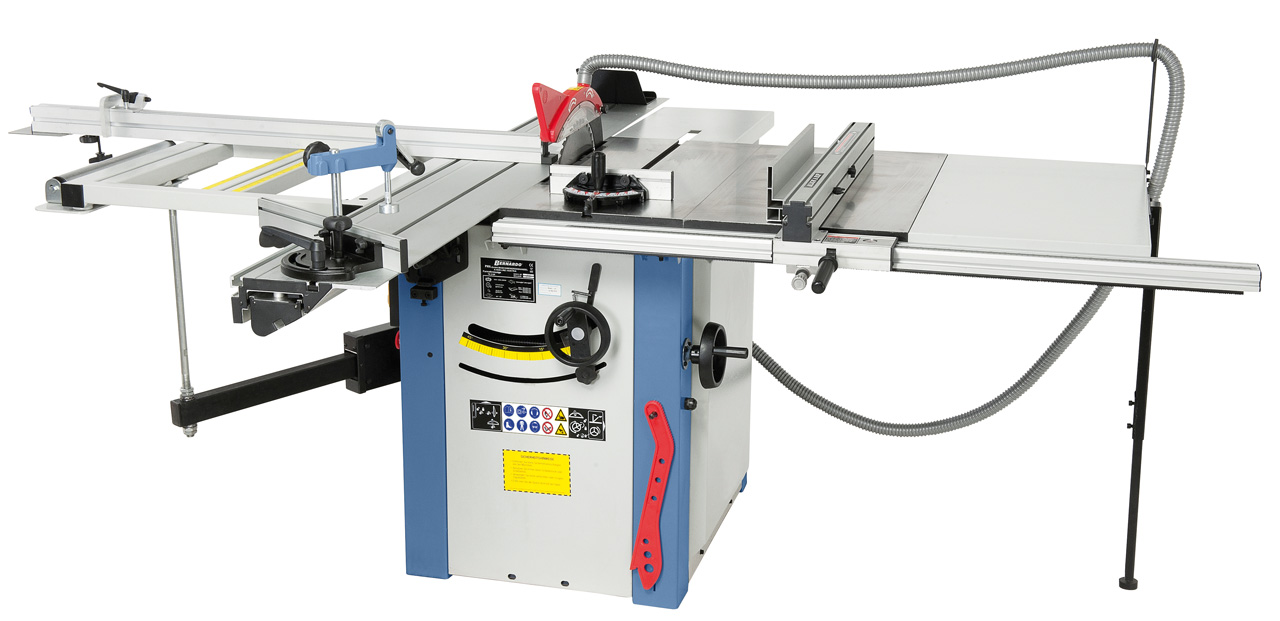

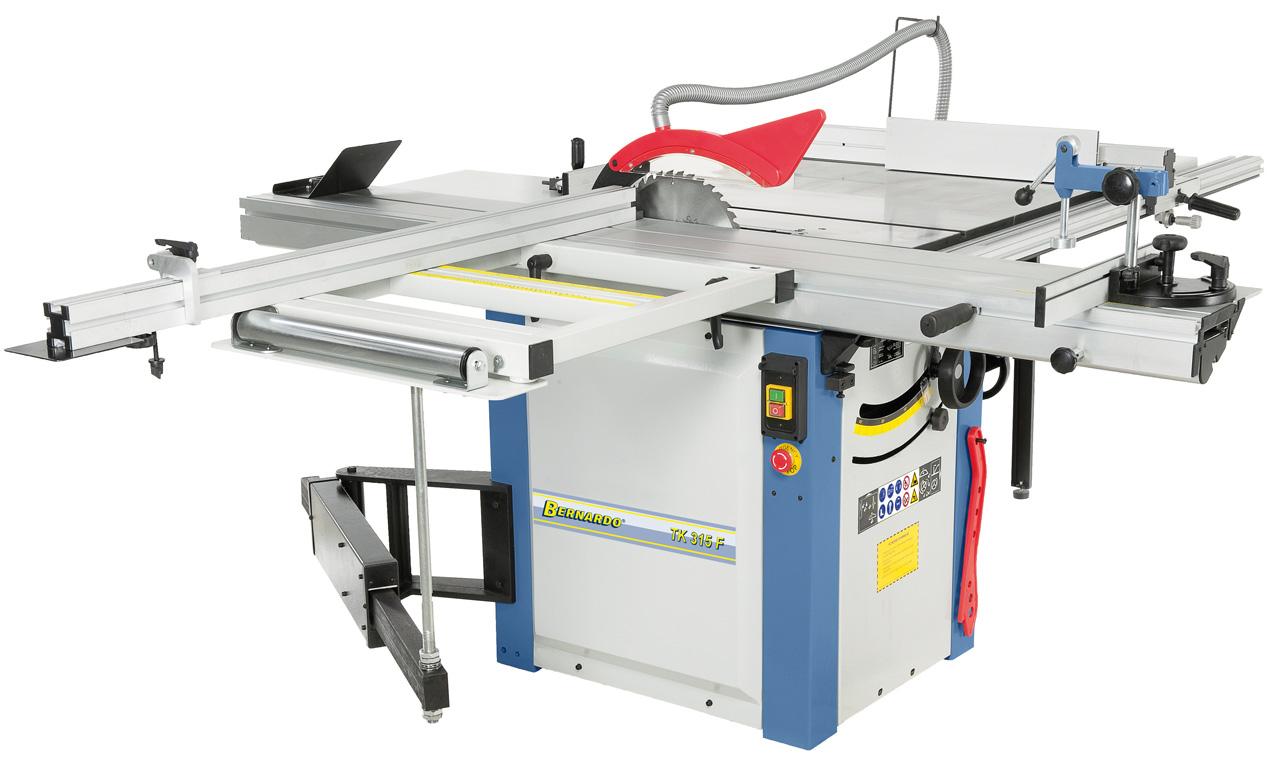

Sliding table saws Bernardo TK 315 F / 1600 - 400 V

The TK 315 F sliding table saw is available with a table length of 1600 mm. Part of the standard equipment is a 3.0 kW motor, a sawblade (diameter 315 mm) for cutting height up to 100 mm and scoring unit for smooth processing of coated materials.

Scope of delivery Sliding table saws Bernardo TK 315 F / 1600 - 400 V

• Carbide sawblade 315 x 3,0 x 30 mm / 40T
• Scoring sawblade 90 x 3,0 x 20 mm / 12T
• Protective cover with dust extraction outlet
• Connector tube with Y-piece
• Mitre fence with eccentric holder
• Mitre fence
• End stop
• Table extension
• Table enlargement
• Extractable telescopic fence
• Stop with fine adjustment
• Square table with roller
• Push stick
• Tools

Features Sliding table saws Bernardo TK 315 F / 1600 - 400 V

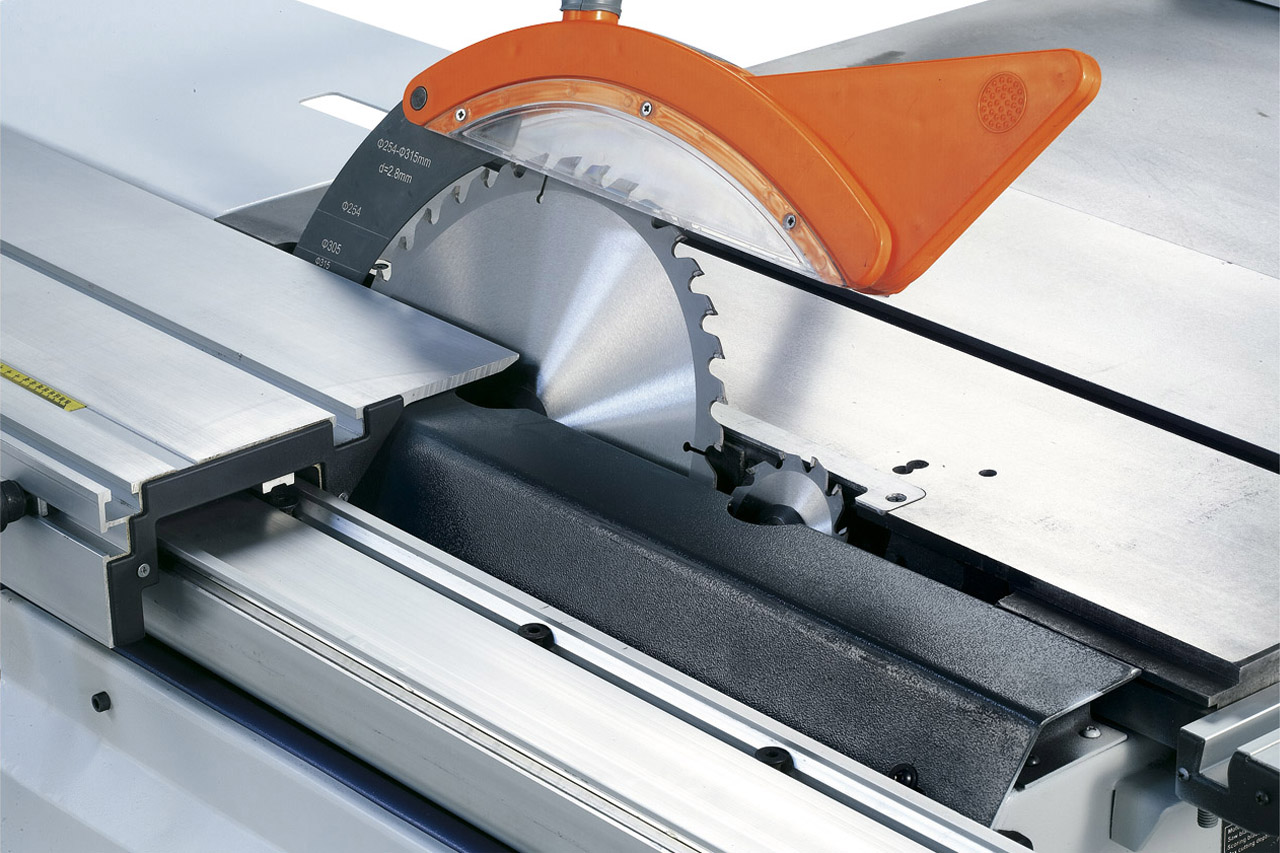

• Important feature: Sawblade diameter 315 mm can be used when scoring unit is mounted
• Solid square table with roller and telescopic arm guarantee high stability
• Anodized aluminium sliding table available in two lengths
• Powerful drive motor for constant cutting speed, even at cutting height of 100 mm

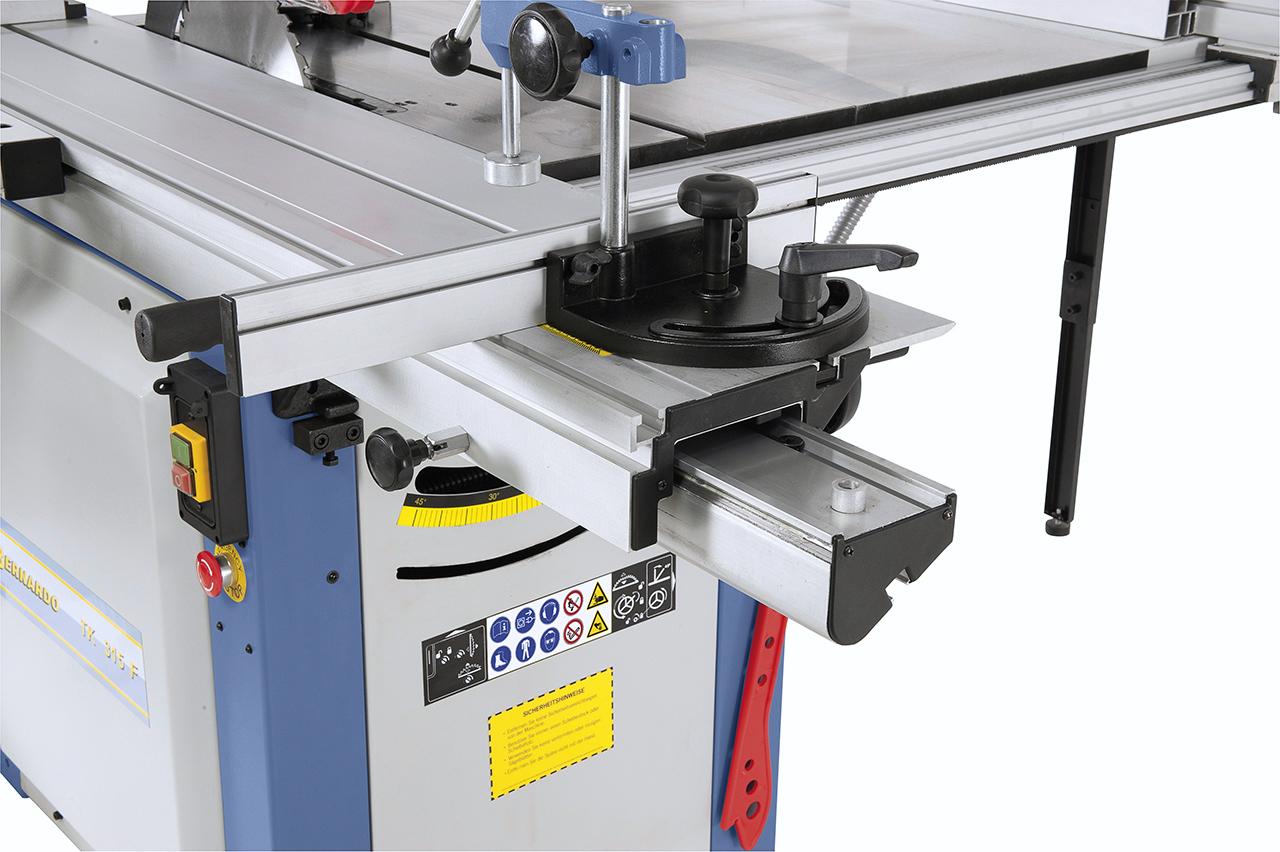

• Mitre fence and downholder can be moved along entire table length
• Amply sized work table and table extensions for cutting width up to 1200 mm come standard

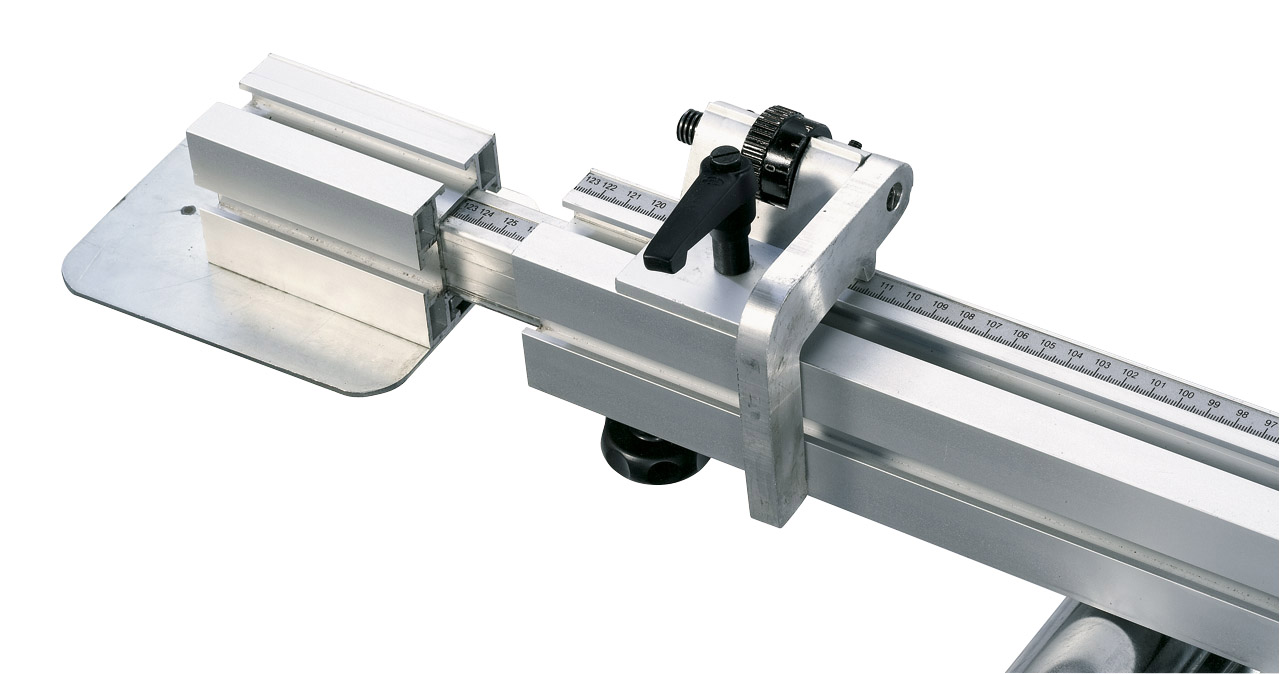

• Extractable telescopic fence (up to 2260 mm) mountable at front or rear of square table, steplessly tiltable from 90º to 45º

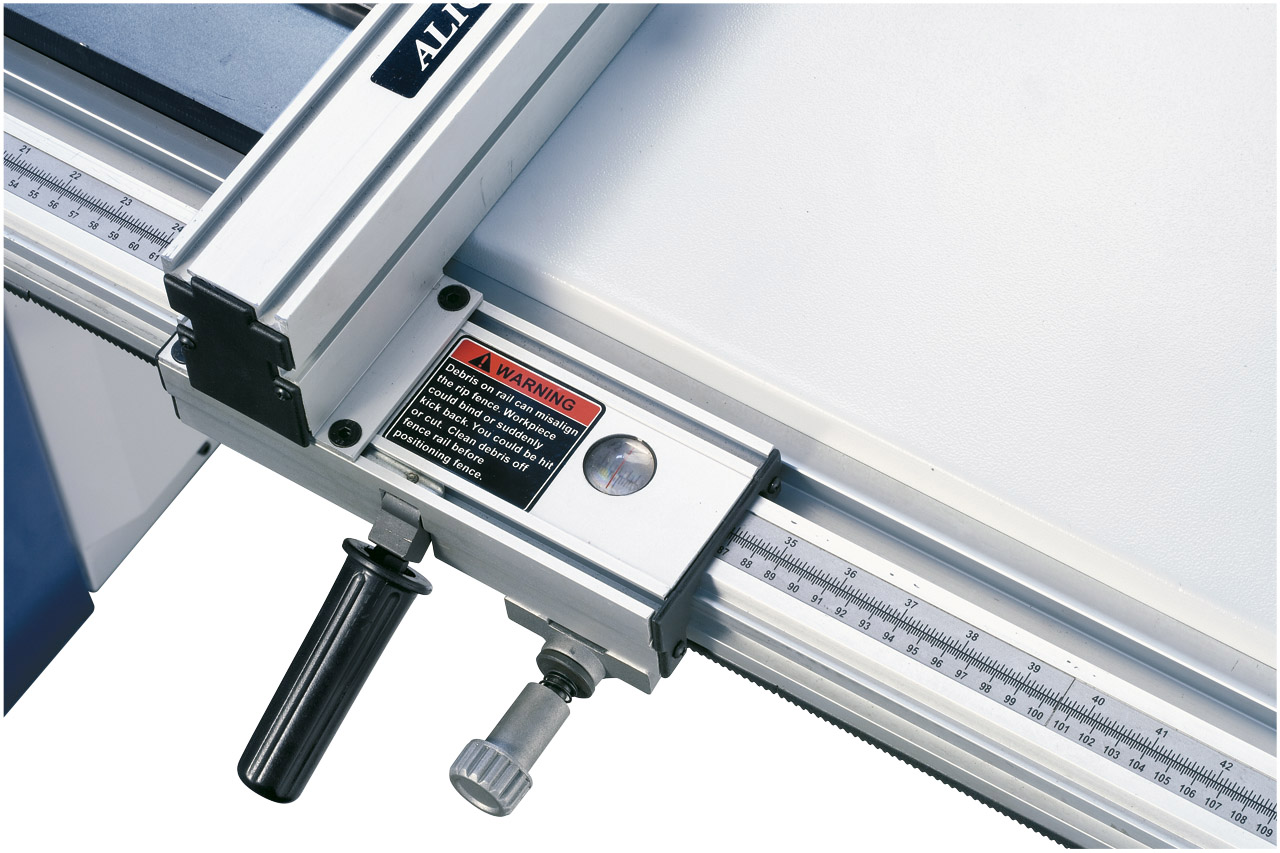

• Aluminium parallel fence with micrometric fine adjustment and integrated magnifying glass
• Solid saw unit guarantees precise work, free from vibrations
