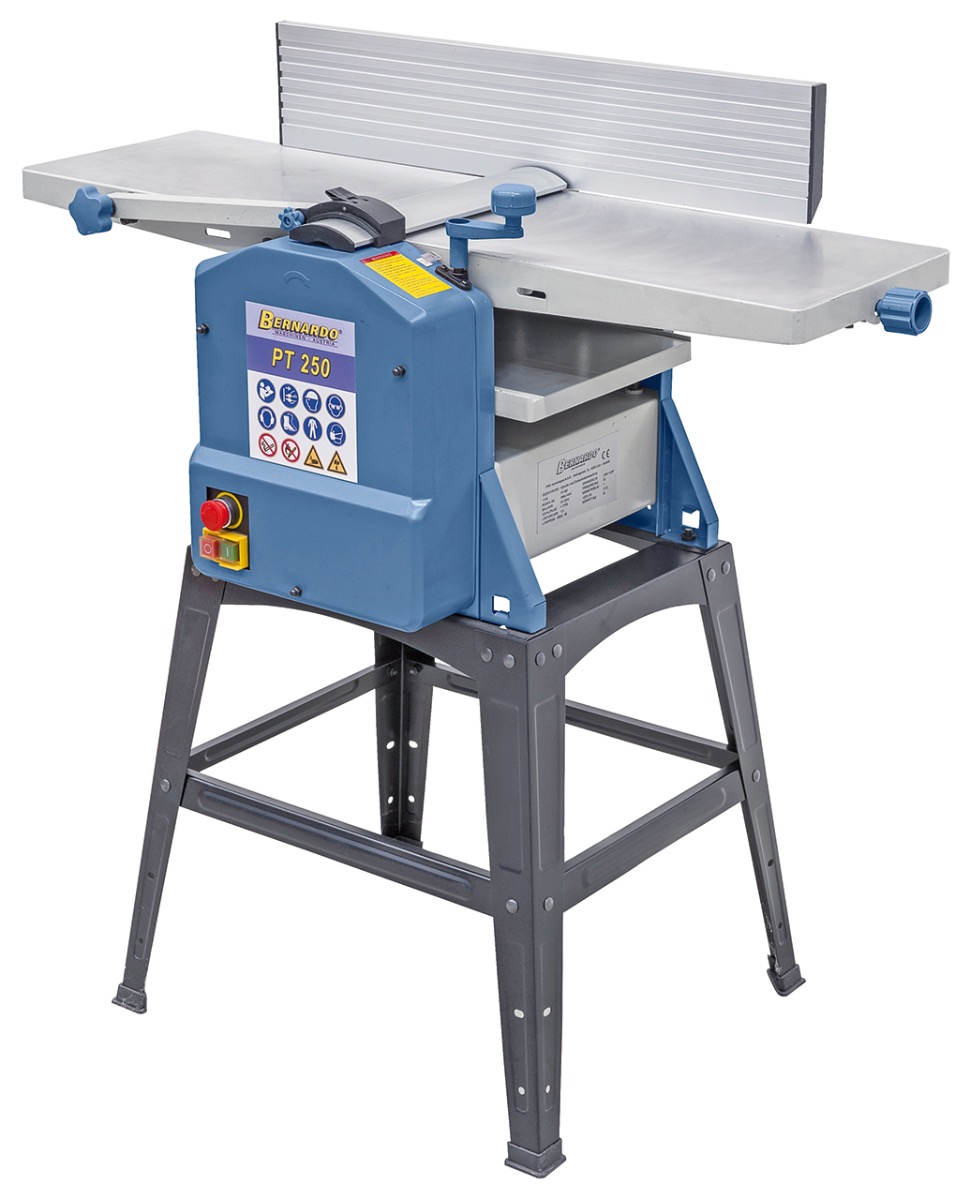

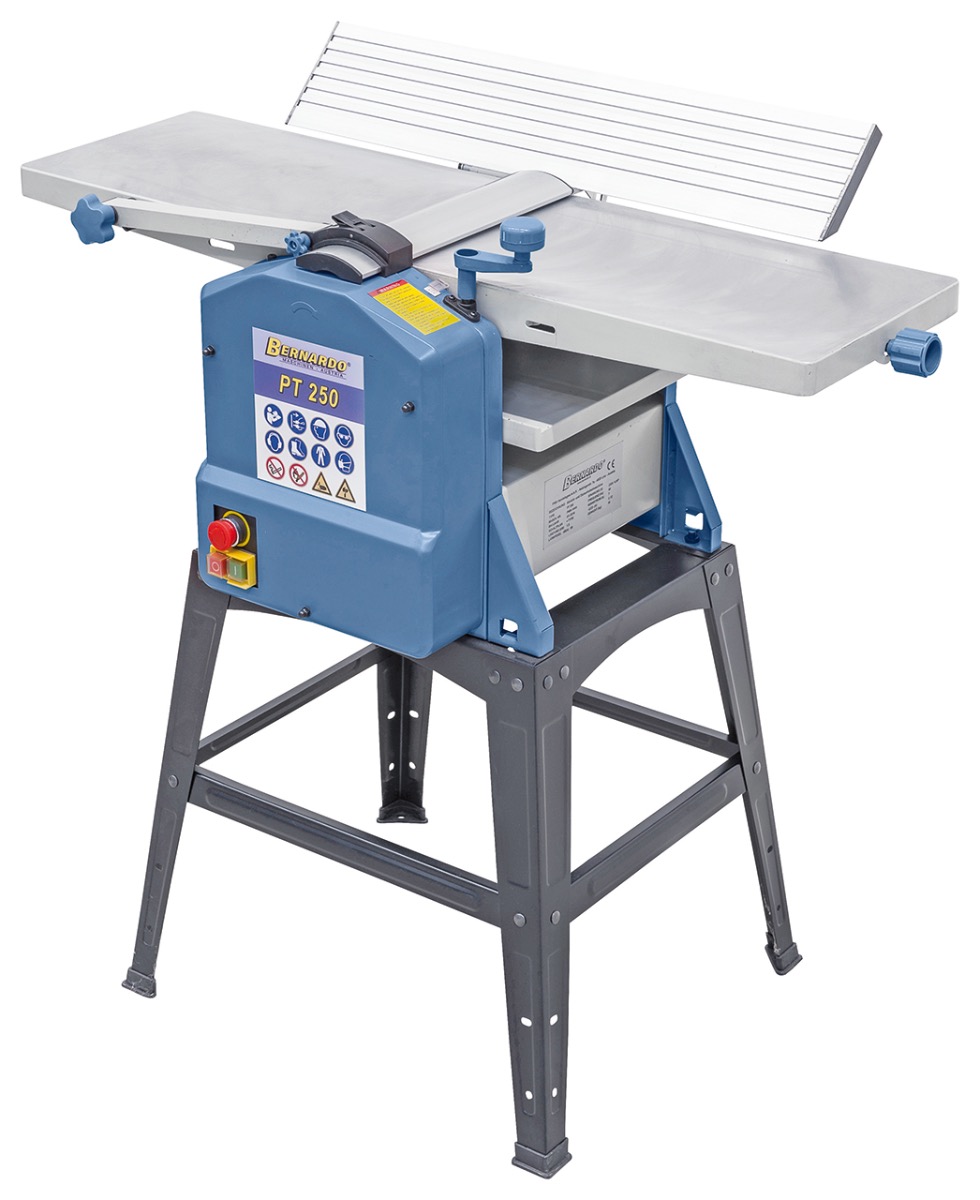

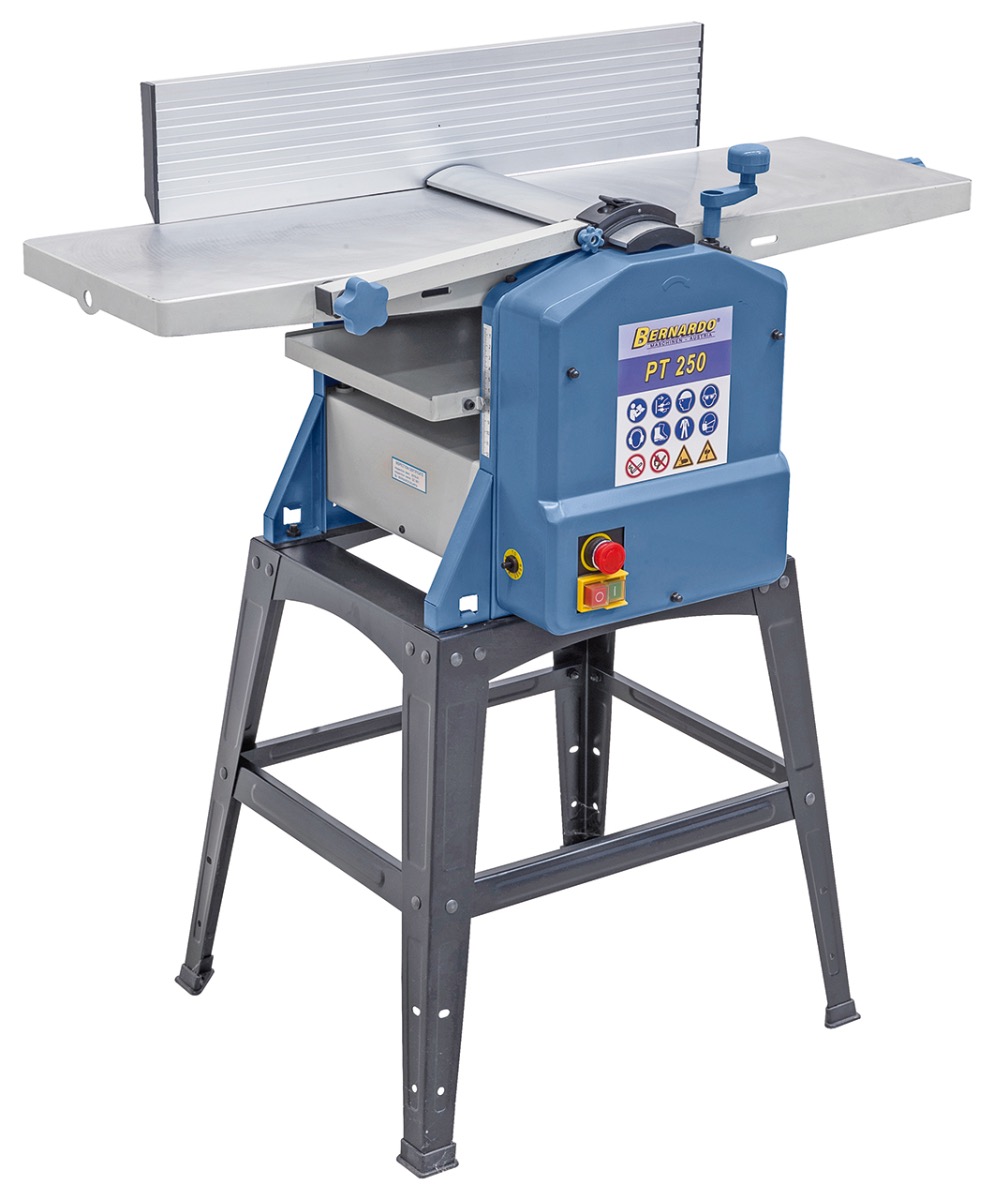

Surface planer and thicknesser Bernardo PT 250
The PT 250 surface planer and thicknesser features a small and compact construction to allow for easy transport and use on different sites. This model comes complete with a machine base.
Scope of delivery Surface planer and thicknesser Bernardo PT 250
- Cutter knives in HSS-quality
- Dust hood
- Knife gauge
- Push handle
- Stand
Features Surface planer and thicknesser Bernardo PT 250
- Cutterblock cover in accordance with CE-standards guarantees high safety
- On/Off switch in accordance with IP 54 features undervoltage release
- Ideal for craftsmen and home users
- Quick and easy setting of chip removal
- Precise aluminium planing tables to achieve high accuracy
- Combined dust hood can be used for planing or thicknessing
- Solid planing fence tilts 90° to 45°
- Precisely bedded 2-knife cutterblock with HSS cutter knives
- Powerful drive motor for optimal planing results
- Solid machine structure enables easy transportation, ideal for use on construction sites
Technical details Surface planer and thicknesser Bernardo PT 250
| Planer |
|
| Planing width | 255 mm |
| Table length | 925 mm |
| Shaft rotation speed | 8500 rpm |
| Cutter knives | 2 pcs. |
| Planer shaft diameter | 50 mm |
| Planer fence | 620 x 125 mm |
| Fence tiltable | 90° to 45° |
| Max. cutting depth | 2 mm |
| Thicknesser |
|
| Table length | 380 mm |
| Working width | 250 mm |
| Working thickness, min./max. | 5 - 120 mm |
| Max. cutting depth | 2 mm |
| Feed speed | 7 m/min |
| Dust extraction outlet | 75 mm |
| Motor power output S1 100% | 1,5 kW (2,0 HP) |
| Motor power input S6 40% | 2,1 kW (2,8 HP) |
| Voltage | 230 V |
| Machine dimension (L x W x H) | 970 x 460 x 990 mm |
| Weight approx. | 30 kg |
