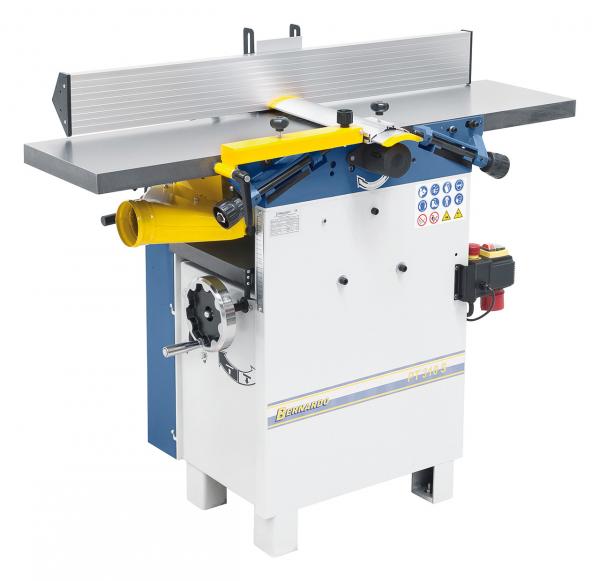

Surface planer and thicknesser with spiral cutter head Bernardo PT 310 S / 400 V

The PT 310 S compact surface planer and thicknesser features a working thickness of up to 180 mm, making it the ideal model for planing of boards, planks and beams.The optionally available mortising unit makes the machine suitable for drilling and slotting. Another advantage is the spiral cutter head for reduced noise level and optimal planing results.

Scope of delivery Surface planer and thicknesser with spiral cutter head Bernardo PT 310 S / 400 V

• Spiral cutter head with 30 pcs. TCT-blades
• Replacement TCT-blades (5 pcs.)
• Switch-plug-combination
• Push handle

Features Surface planer and thicknesser with spiral cutter head Bernardo PT 310 S / 400 V

• Reduction of noise level (approx. 50%) due to the standard spiral cutter head and up to 20 times the cutting edge life (results from four-way carbide inserts)
• Advantage of the carbide inserts: If damaged, individual knives can be exchanged or turned
• Integrated tiltable dust hood, extraction outlet 100 mm
• The carbide blades ensure tear-free planing results and optimal surfaces with any type of wood
• Folding planing tables allows fast conversion from planer to thicknesser
• Solid planing fence with prism guide, tiltable from 90° - 45°
• Both planing tables feature fine adjustment and are designed with table lips to keep noise level down
• Cutterblock in accordance with CE allow for safe working conditions

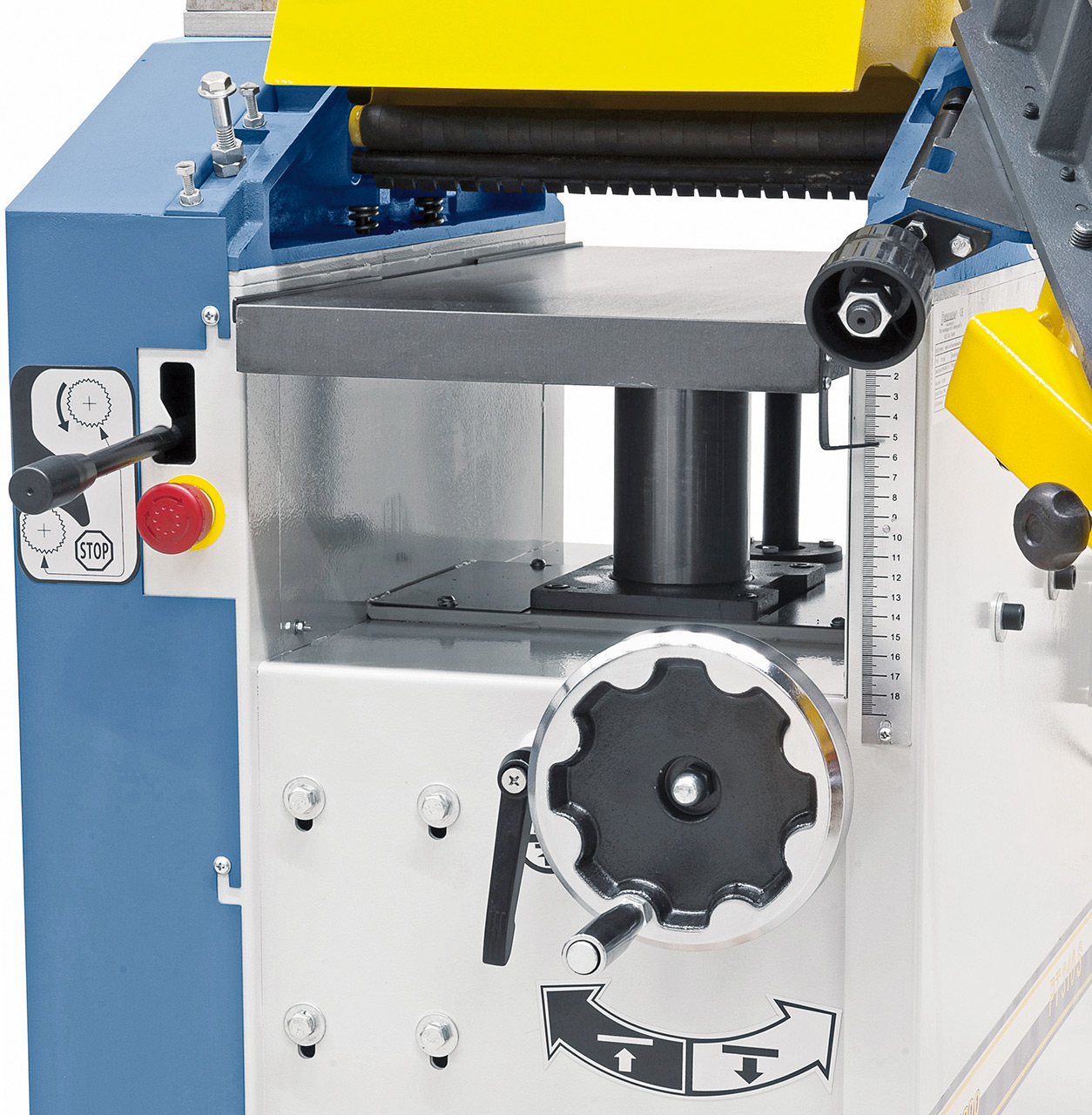

• Thicknessing table guided by centre column and support for accurate planing
• Torsion-free, grey cast-iron planing tables for best planing results

Technical details Surface planer and thicknesser with spiral cutter head Bernardo PT 310 S / 400 V
