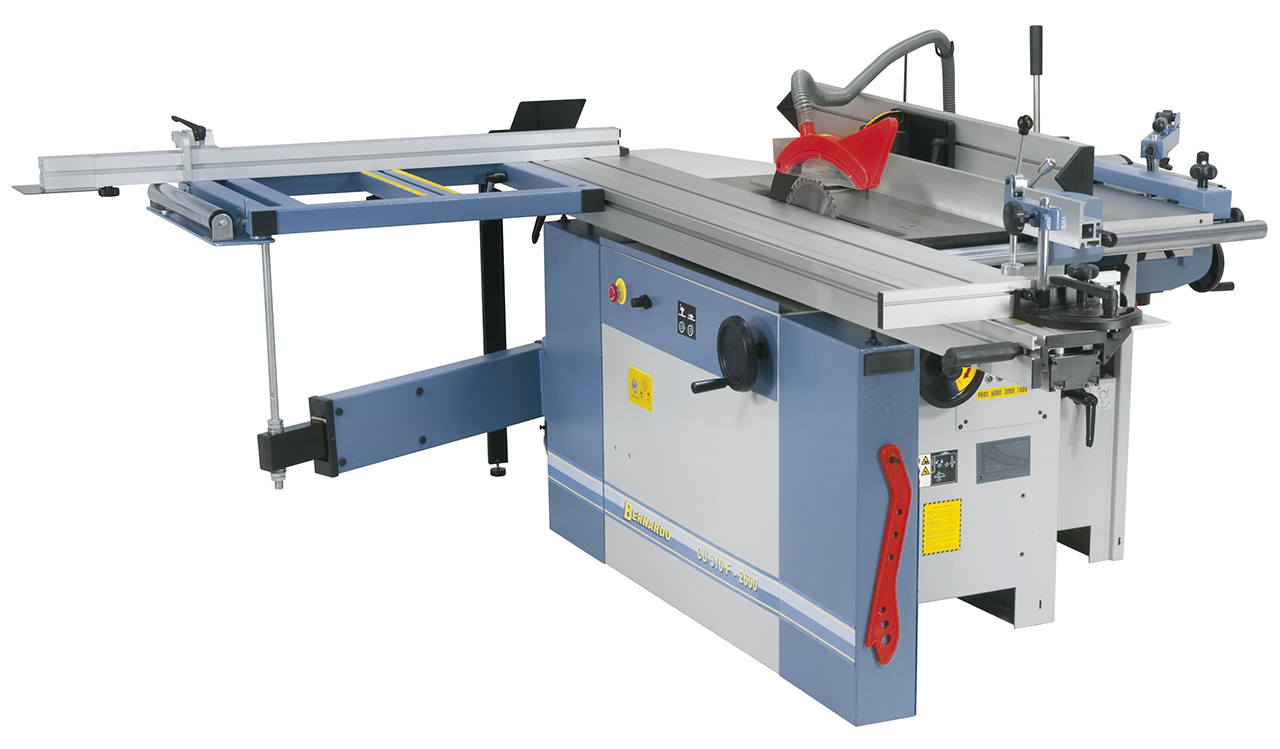

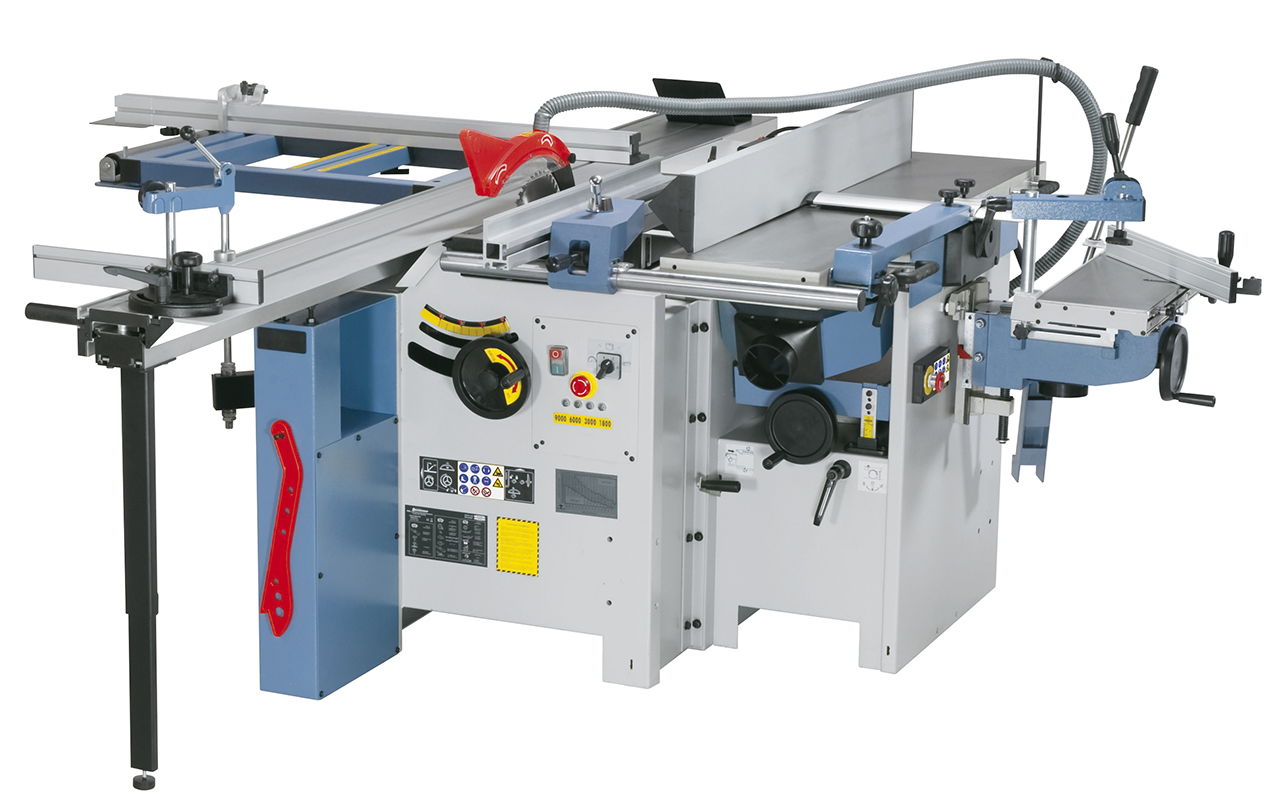

Universal combined machine Bernardo CU 310 F - 2000
The CU 310 F wood processing centre offers an enormous number of applications and best possible performance for professional users. The combination of planer, thicknesser, circular saw, spindle moulder and mortising unit all in one, gives a wide range of applications yet requires minimum space.
Scope of delivery Universal combined machine Bernardo CU 310 F - 2000
Universal combined machine Bernardo CU 310 F - 2000Features Universal combined machine Bernardo CU 310 F - 2000
- Powerful drive motors guarantee optimal results even at continuous operation
- Solid square table features roller for processing of heavy and large panels
- Machine body consists of a torsion-free, steel and grey cast-iron construction
- Extractable telescopic fence can be mounted at front or rear of square table
- Tiltable planer fence (90º to 45º) features generous surface

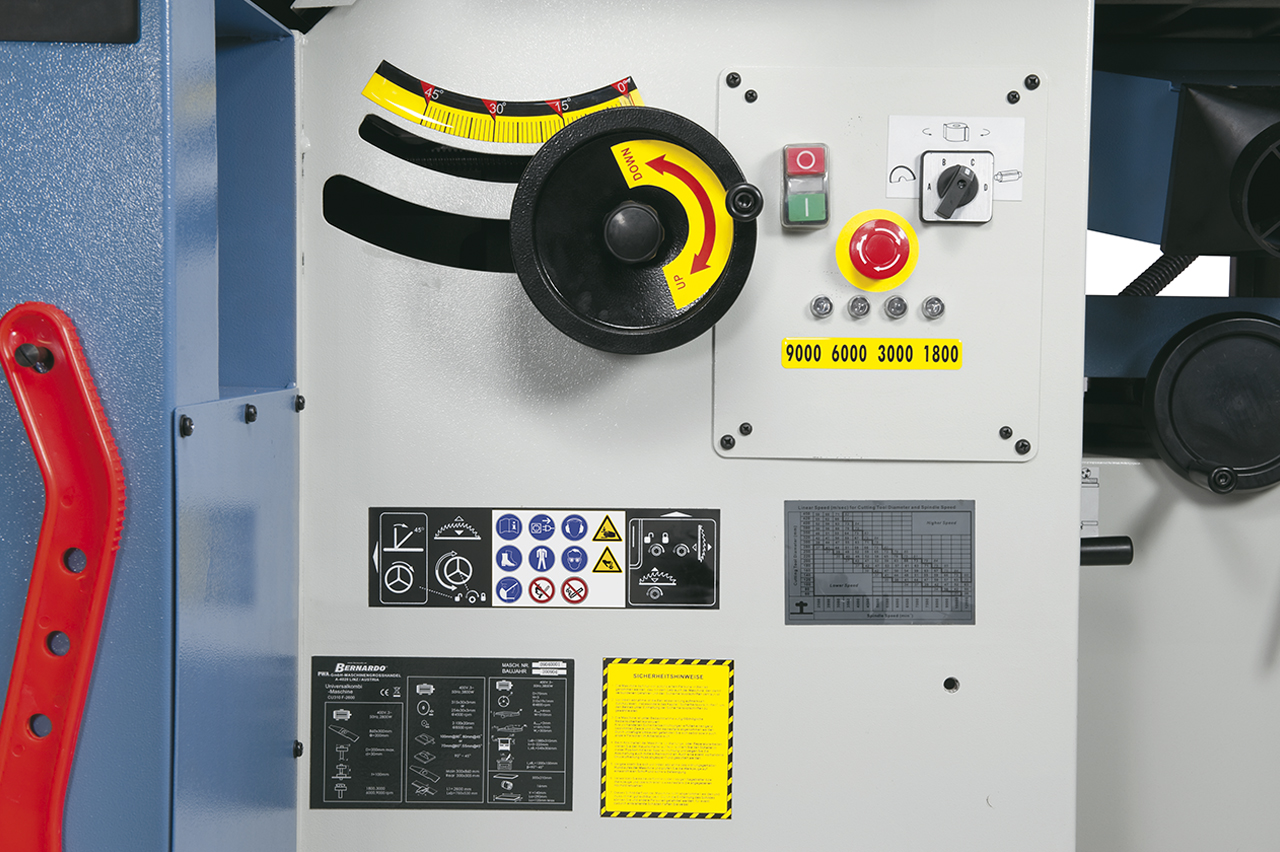

- Electronic speed display with LED when using spindle moulder
- Complete with mortising unit (16 mm capacity)

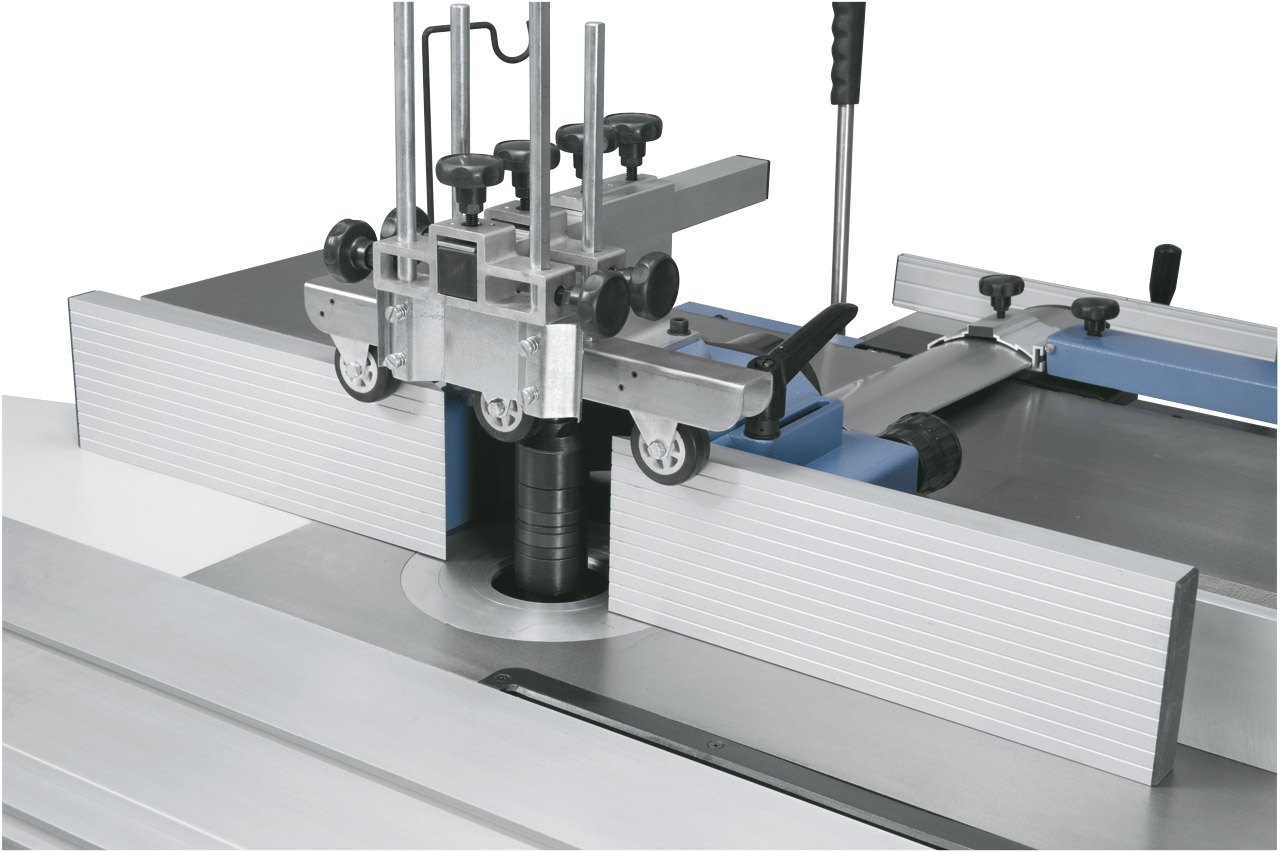

- Robust moulding fence with anodized fence rails
- Dynamically balanced moulder spindle for precise running

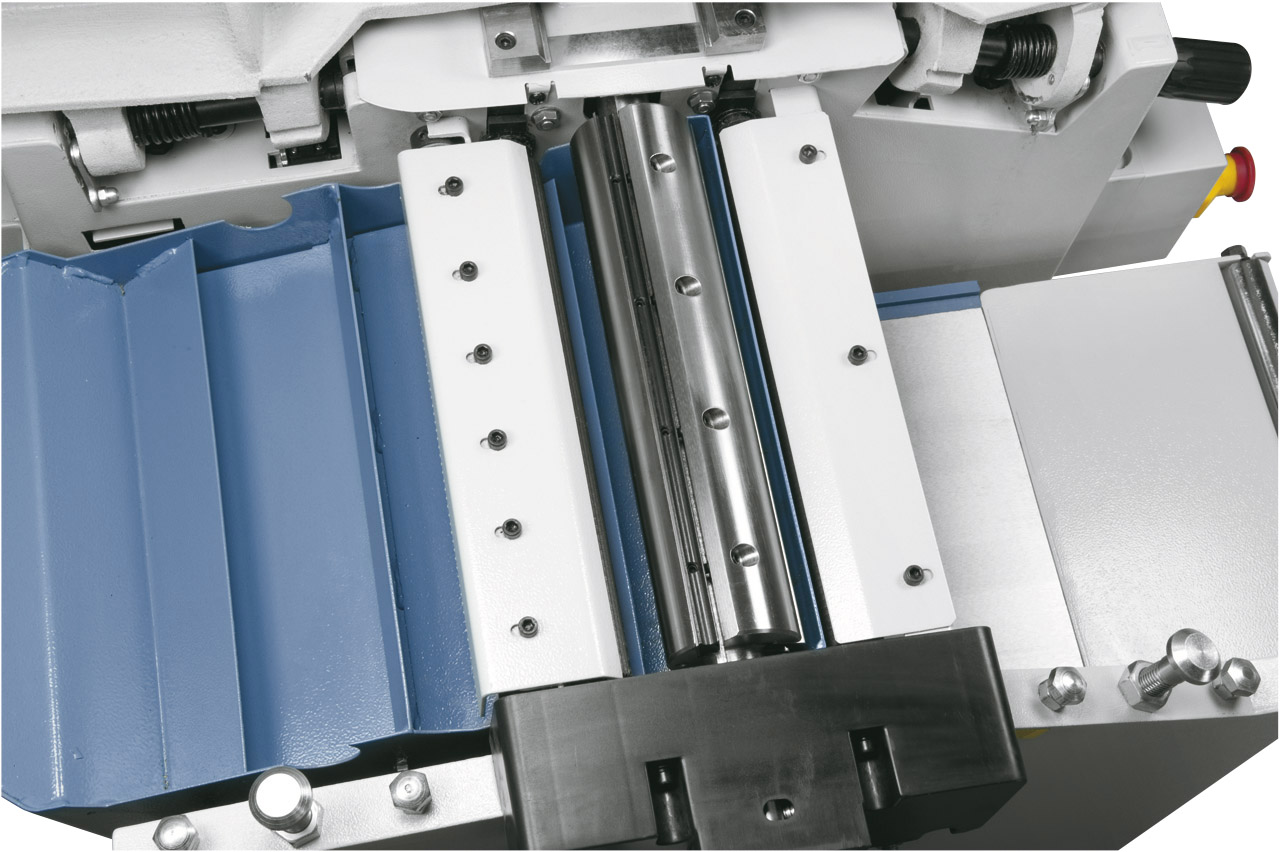

- Planer unit with precisely bedded 3-knife cutterblock
Technical details Universal combined machine Bernardo CU 310 F - 2000
| Planer |
|
| Planing width | 310 mm |
| Table length | 1390 mm |
| Table height | 850 mm |
| Shaft rotation speed | 4800 rpm |
| Cutter knives | 3 pcs. |
| Planer shaft diameter | 70 mm |
| Planer fence | 1220 x 150 mm |
| Fence tiltable | 90° to 45° |
| Max. cutting depth | 4 mm |
| Motor power output S1 100% | 2,8 kW (3,8 HP) |
| Motor power input S6 40% | 3,9 kW (5,3 HP) |

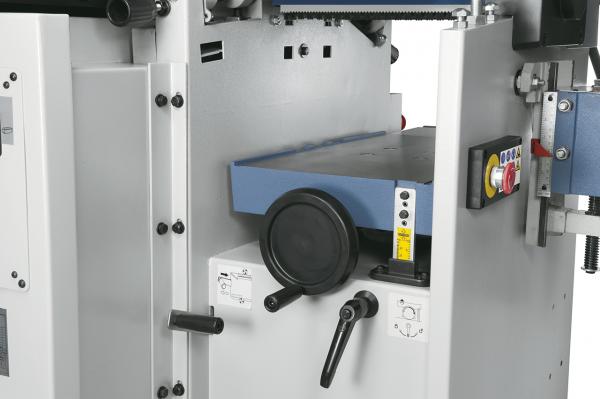

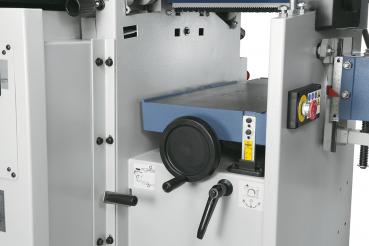

| Thicknesser |
|
| Table length | 540 mm |
| Working width | 305 mm |
| Working thickness, min/max. | 5 - 225 mm |
| Max. cutting depth | 2 mm |
| Feed speed | 6 m/min |
| Dust extraction outlet | 100 mm |
| Mortising unit |
|
| Table size | 500 x 200 mm |
| Westcott drill chuck | 0 - 16 mm |
| Max. drill depth | 155 mm |
| Drill width | 285 mm |
| Height adjustment | 140 mm |
| Dust extraction outlet | 100 mm |

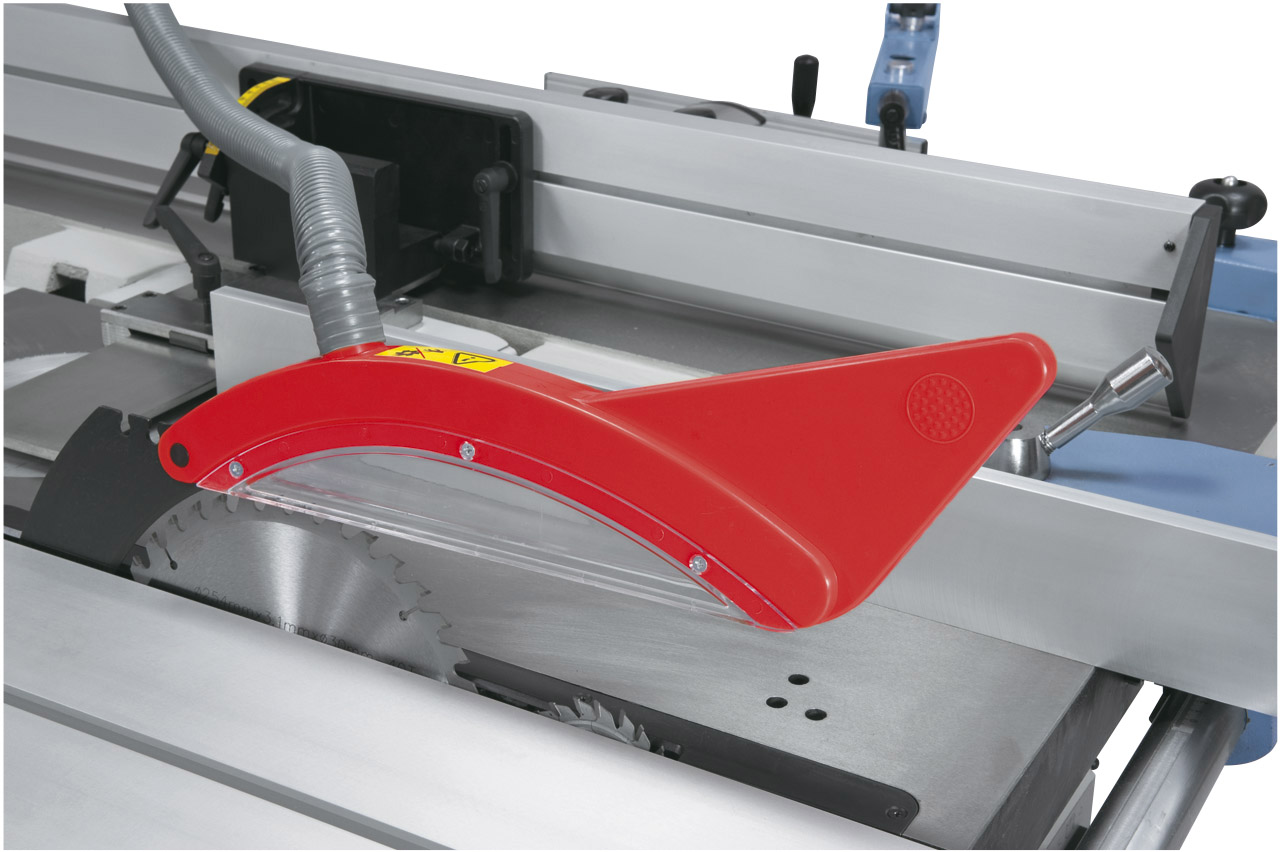

| Circular saw |
|
| Table size | 830 x 300 mm |
| Table height | 850 mm |
| Table extension | 505 x 300 mm |
| Square table with roll | 830 x 530 mm |
| Sliding table | 2000 x 270 mm |
| Cutting length | 2000 mm |
| Max. sawblade diameter | 315 x 30 mm |
| Max. cutting height 90° / 45° | 100 / 80 mm * |
| Cutting width on rip fence | 630 mm |
| Speed main sawblade | 4500 rpm |
| Speed scoring sawblade | 8500 rpm |
| Scoring sawblade | 2-100 x 20 mm |
| Dust extraction outlet | 100 mm |
| Motor power output S1 100% | 2,8 kW (3,8 HP) |
| Motor power input S6 40% | 3,9 kW (5,3 HP) |
| Spindle moulder |
|
| Spindle diameter | 30 mm |
| Height adjustment | 100 mm |
| Table opening | 80 / 100 / 140 / 190 mm |
| Working length of spindle | 100 mm |
| Max. tool diameter |
|
| - for profiling | 180 mm |
| - for tenoning | 200 mm |
| Spindle speed | 1800 / 3000 / 6000 / 9000 rpm |
| Motor power output S1 100% | 2,8 kW (3,8 HP) |
| Motor power input S6 40% | 3,9 kW (5,3 HP) |
| Voltage | 400 V |
| Machine dimension (W x D x H) | 2000 x 2690 x 1250 mm |
| Weight approx. | 565 kg |
* without scoring unit | Carbide sawblade 315 mm
