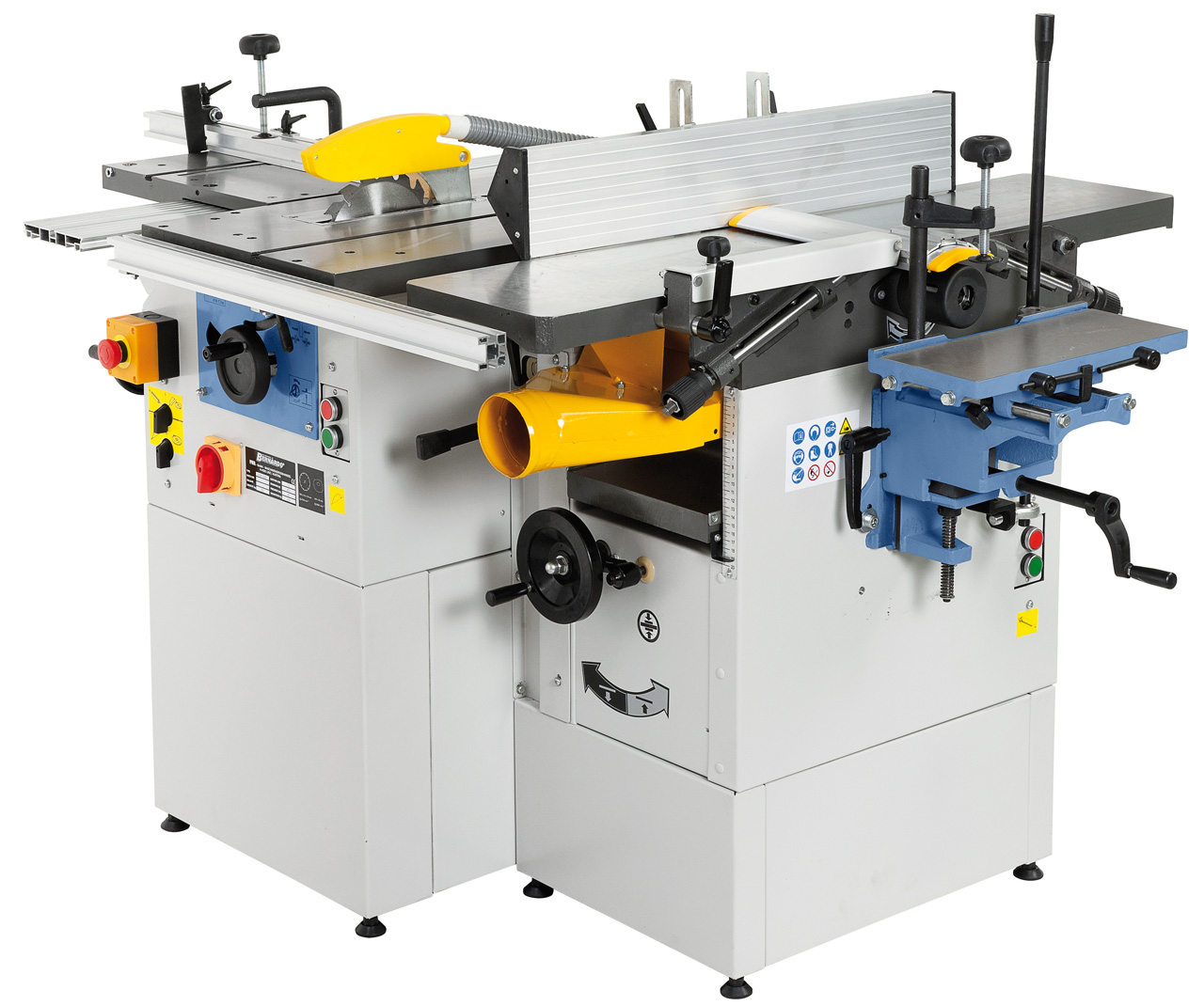

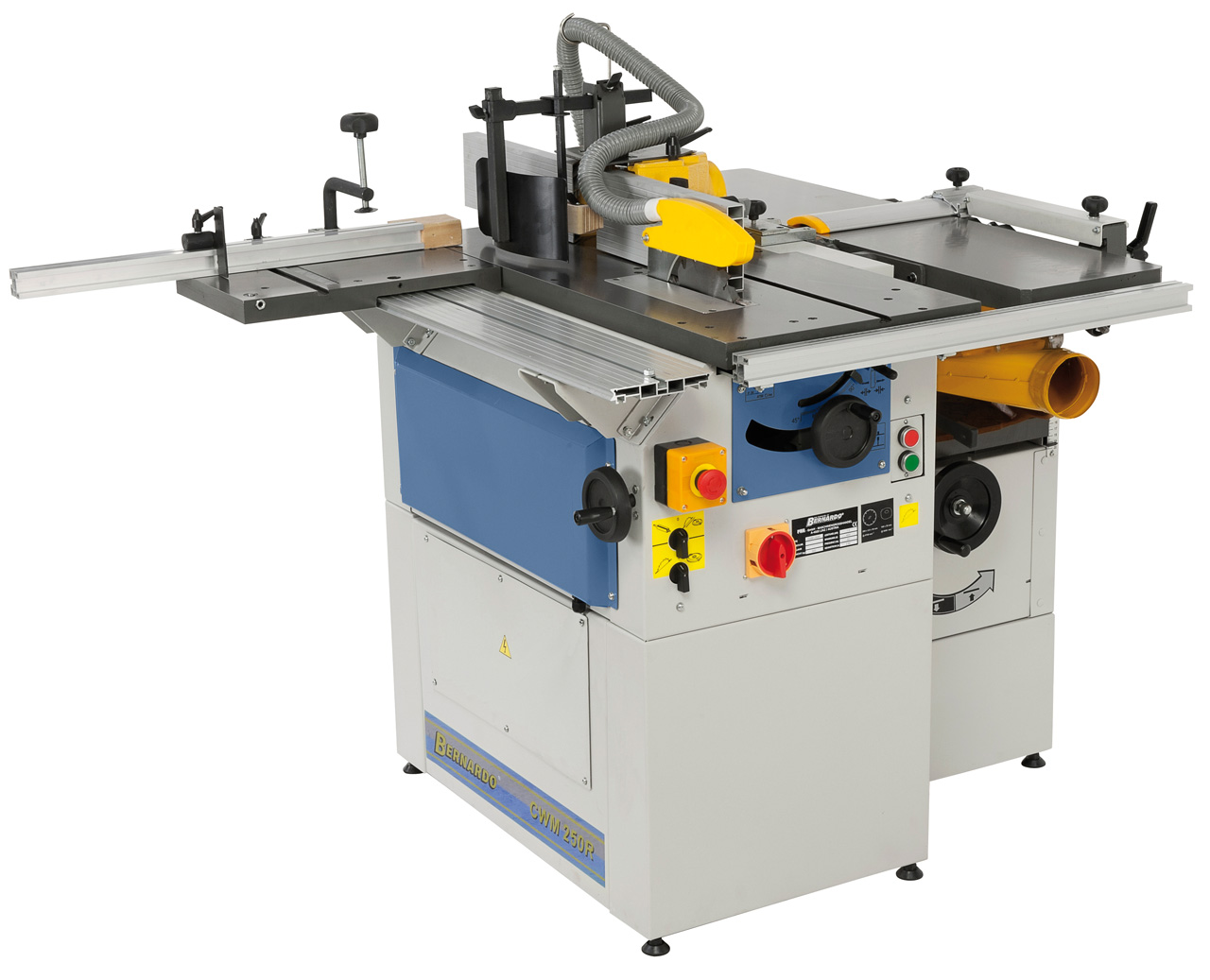

Universal combined machine Bernardo CWM 250 R - 400 V
The CWM 250 R is a versatile universal combi-machine that come complete with a roller table. Compact construction makes these model attractive for craftsmen and amateurs.
Scope of delivery Universal combined machine Bernardo CWM 250 R - 400 V
Universal combined machine Bernardo CWM 250 R - 400 VFeatures Universal combined machine Bernardo CWM 250 R - 400 V
- Solid grey, cast-iron table eliminates vibrations, precisely manufactured and polished
- Optional with mortising unit (16 mm capacity) available
- Ergonomically arranged handwheels allow for setting of saw unit

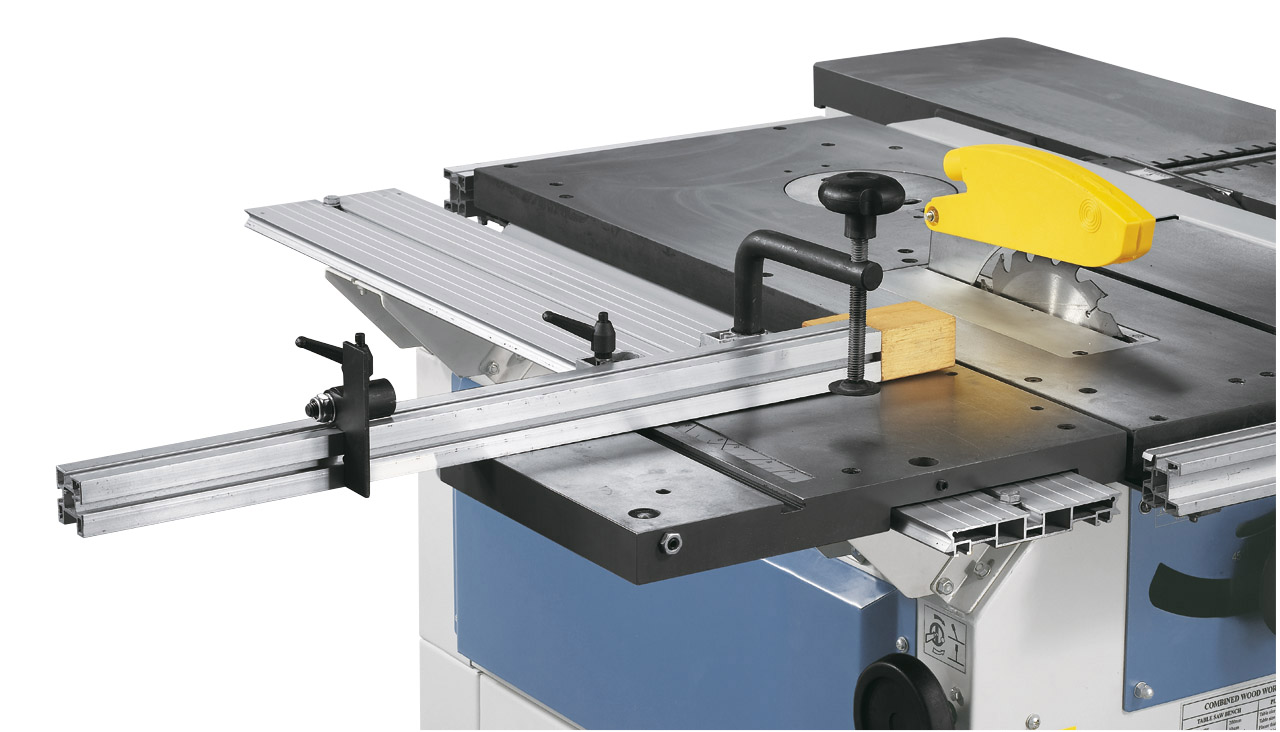

- Equipped with roller table featuring aluminium fence to increase user comfort
- Emergency stop button on front of machine guarantees high level of safety

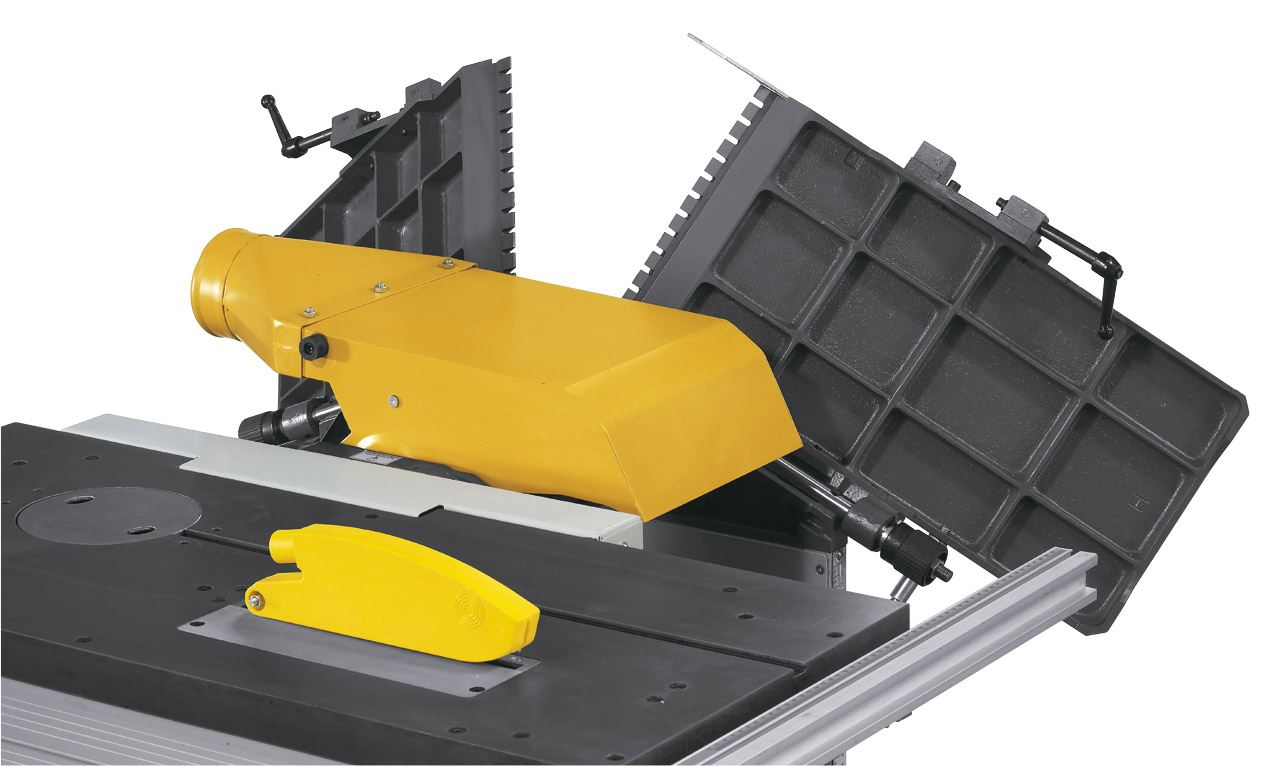

- Integrated, tiltable dust hood when thicknessing, extraction outlet 100 mm
- Perfectly suitable for accurate processing of panels, boards, planks etc.
- Dynamically balanced moulder spindle ensures vibration-free run
- Torsion-free planer table made of reinforced grey cast-iron
- Workpiece feed can be switched off when planning
Technical details Universal combined machine Bernardo CWM 250 R - 400 V
| Planer | |
| Planing width | 250 mm |
| Table length | 1090 mm |
| Table height | 860 mm |
| Shaft rotation speed | 4000 rpm |
| Cutter knives | 3 pcs. |
| Planer shaft diameter | 75 mm |

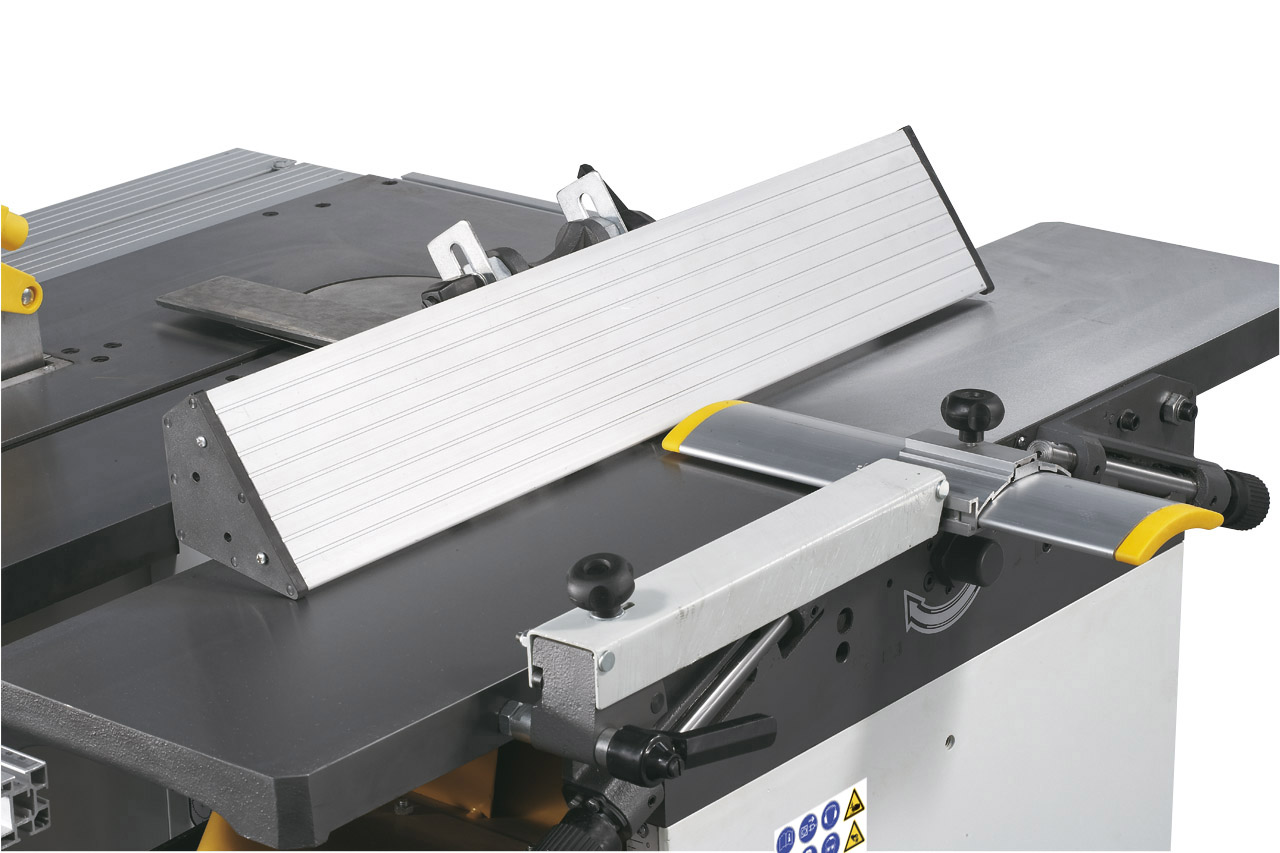

| Planer fence | 720 x 130 mm |
| Fence tiltable | 90° to 45° |
| Max. cutting depth | 3 mm |
| Motor power output S1 100% | 1,5 kW (2,0 HP) |
| Motor power input S6 40% | 2,1 kW (2,8 HP) |
| Thicknesser | |
| Table length | 600 mm |
| Working width | 245 mm |
| Working thickness, min/max. | 5 - 195 mm |
| Max. cutting depth | 2,5 mm |
| Feed speed | 8 m/min |
| Dust extraction outlet | 100 mm |

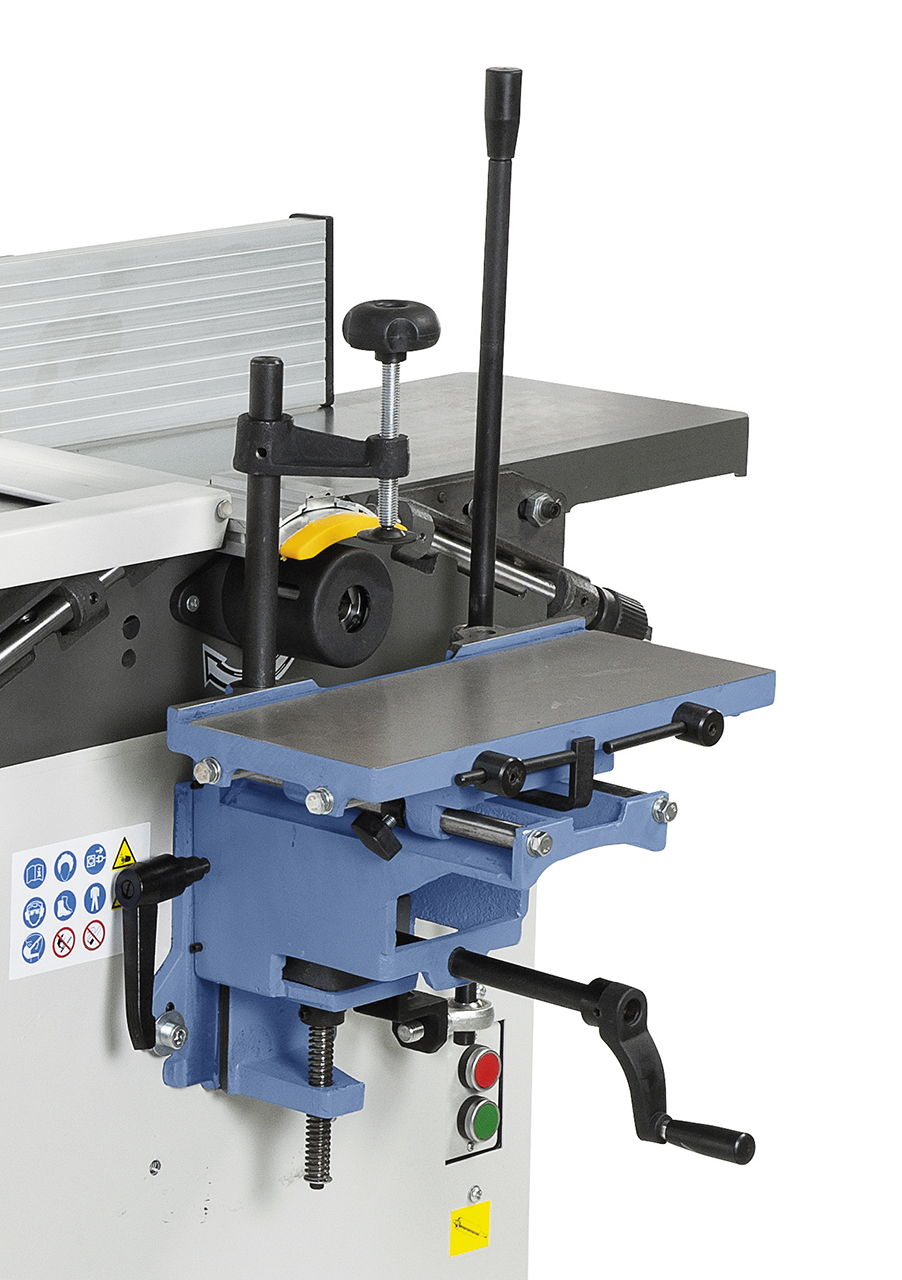

| Mortising unit (optional available) | |
| Table size | 365 x 145 mm |
| Westcott drill chuck | 0 - 16 mm |
| Max. drill depth | 95 mm |
| Drill width | 140 mm |
| Height adjustment | 75 mm |
| Circular saw | |
| Table size | 900 x 410 mm |
| Table height | 860 mm |
| Roller table | 400 x 250 mm |
| Cutting length | 670 mm |
| Max. sawblade diameter | 200 x 30 mm |
| Max. cutting height 90° / 45° | 60 / 50 mm |
| Cutting width on rip fence | 530 mm |
| Speed main sawblade | 4750 rpm |
| Dust extraction outlet | 100 mm |
| Motor power output S1 100% | 1,1 kW (1,5 HP) |
| Motor power input S6 40% | 1,5 kW (2,0 HP) |

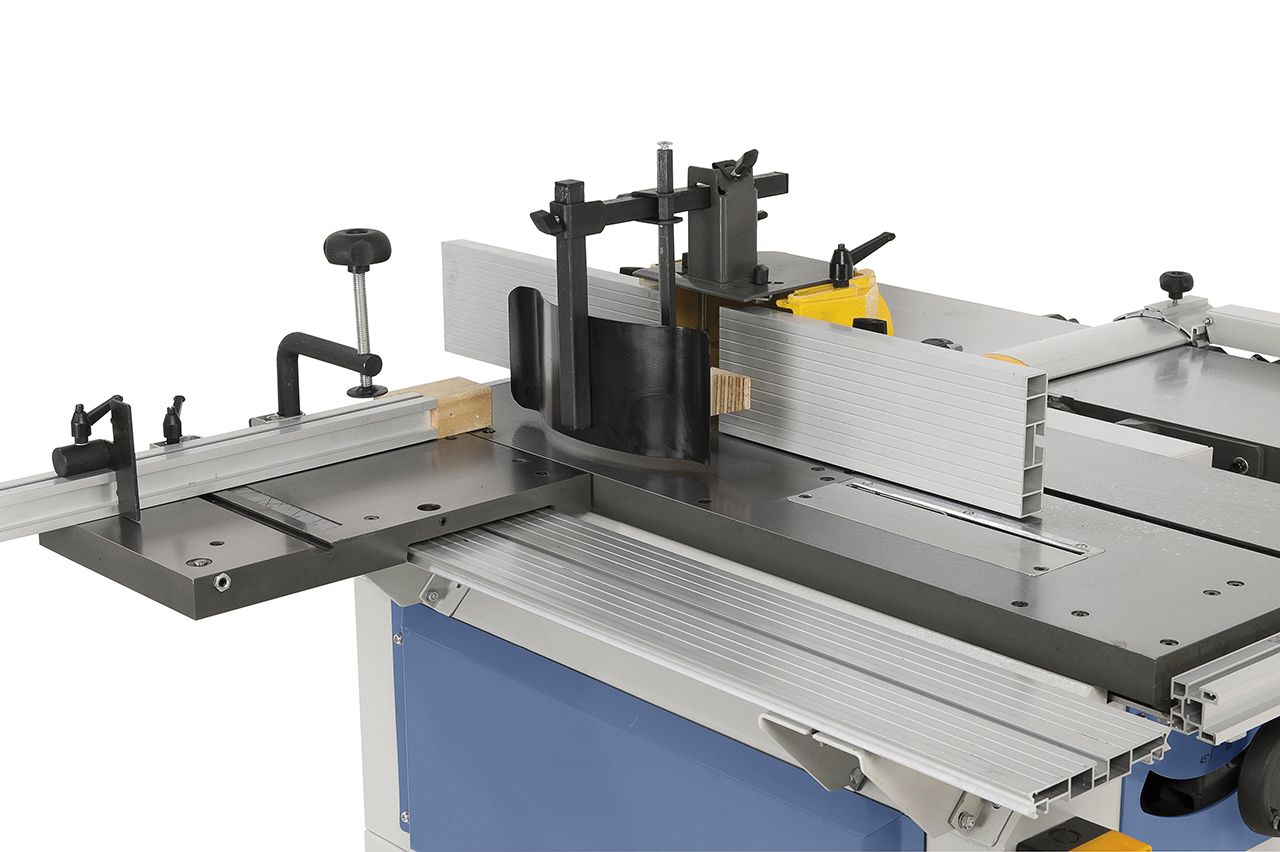

| Spindle moulder | |
| Spindle diameter | 30 mm |
| Height adjustment | 100 mm |
| Table opening | 145 mm |
| Working length of spindle | 70 mm |
| Max. tool diameter | |
| - at profiling | 140 mm |
| - at tenoning | 140 mm |
| Spindle speed | 6500 rpm |
| Motor power output S1 100% | 1,4 kW (1,9 HP) |
| Motor power input S6 40% | 2,0 kW (2,7 HP) |
| Voltage | 400 V |
| Machine dimension (W x D x H) | 1510 x 1330 x 1120 mm |
| Weight approx. | 280 kg |
