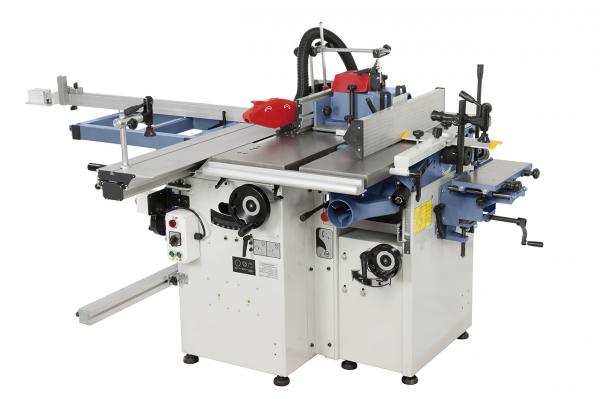

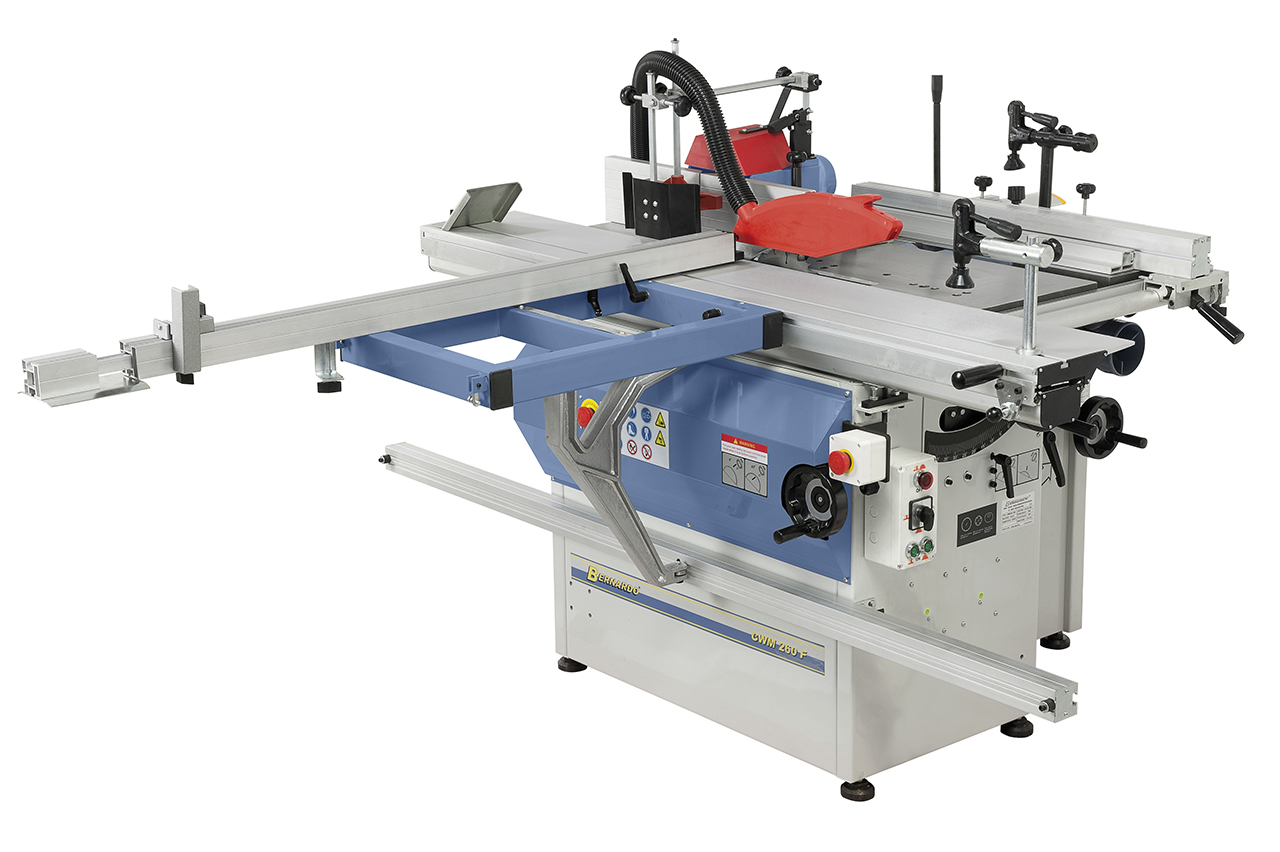

Universal combined machine Bernardo CWM 260 F - 1200
The CWM 260 F universal combi-machine is our entry-level model among our wood processing centres featuring a sliding table. The machine requires only little space but offers a large range of applications: planing, thicknessing, sawing, milling, drilling. Short conversion times, high user comfort and a sliding table at 1200 in length are unbeatable features of this unique model.
Scope of delivery Universal combined machine Bernardo CWM 260 F - 1200
2 x 20 mm / 8TFeatures Universal combined machine Bernardo CWM 260 F - 1200
- Maintenance-free, precisely bedded 3-knife cutterblock with HSS-knives

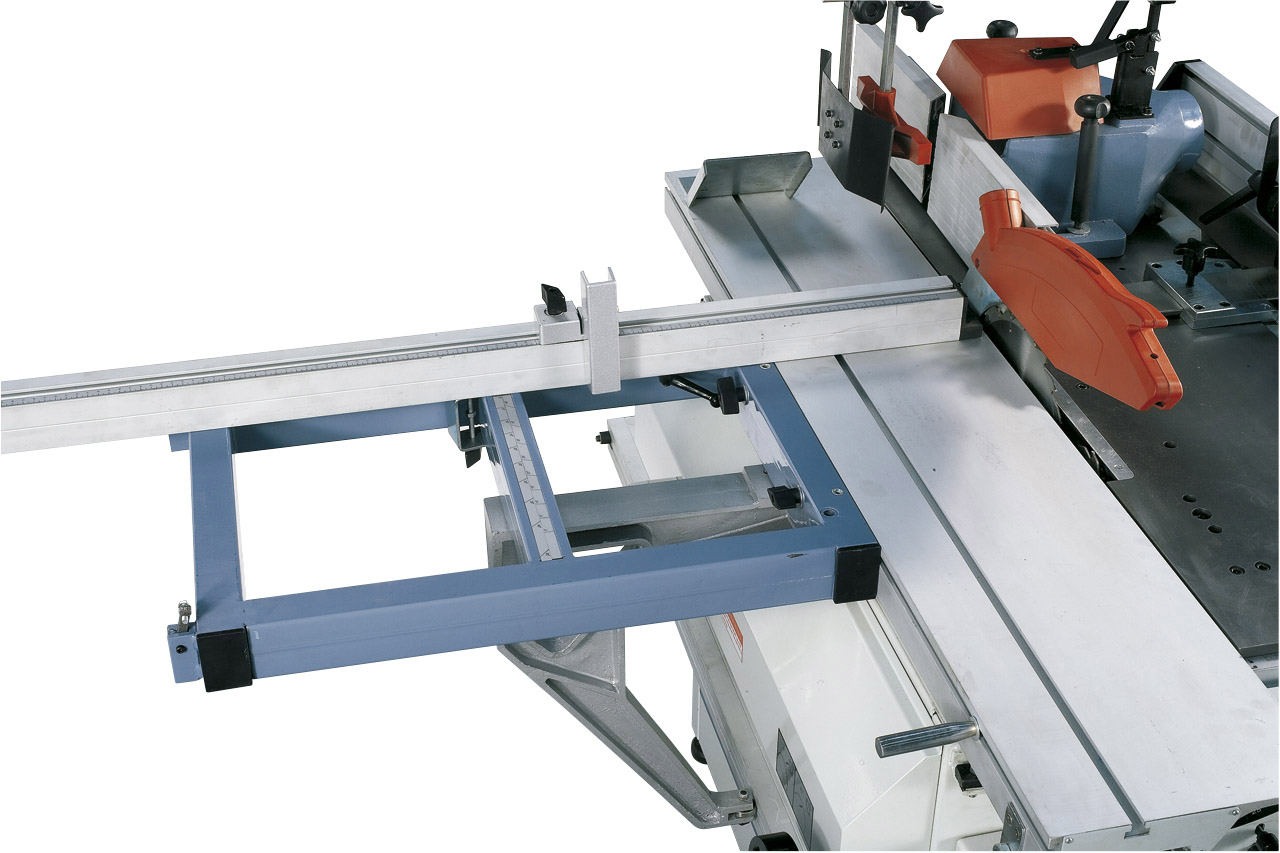

- Torsion-free, aluminium sliding table with prism-shaped guide
- Both planer tables feature fine adjustment and noise-reducing table lips

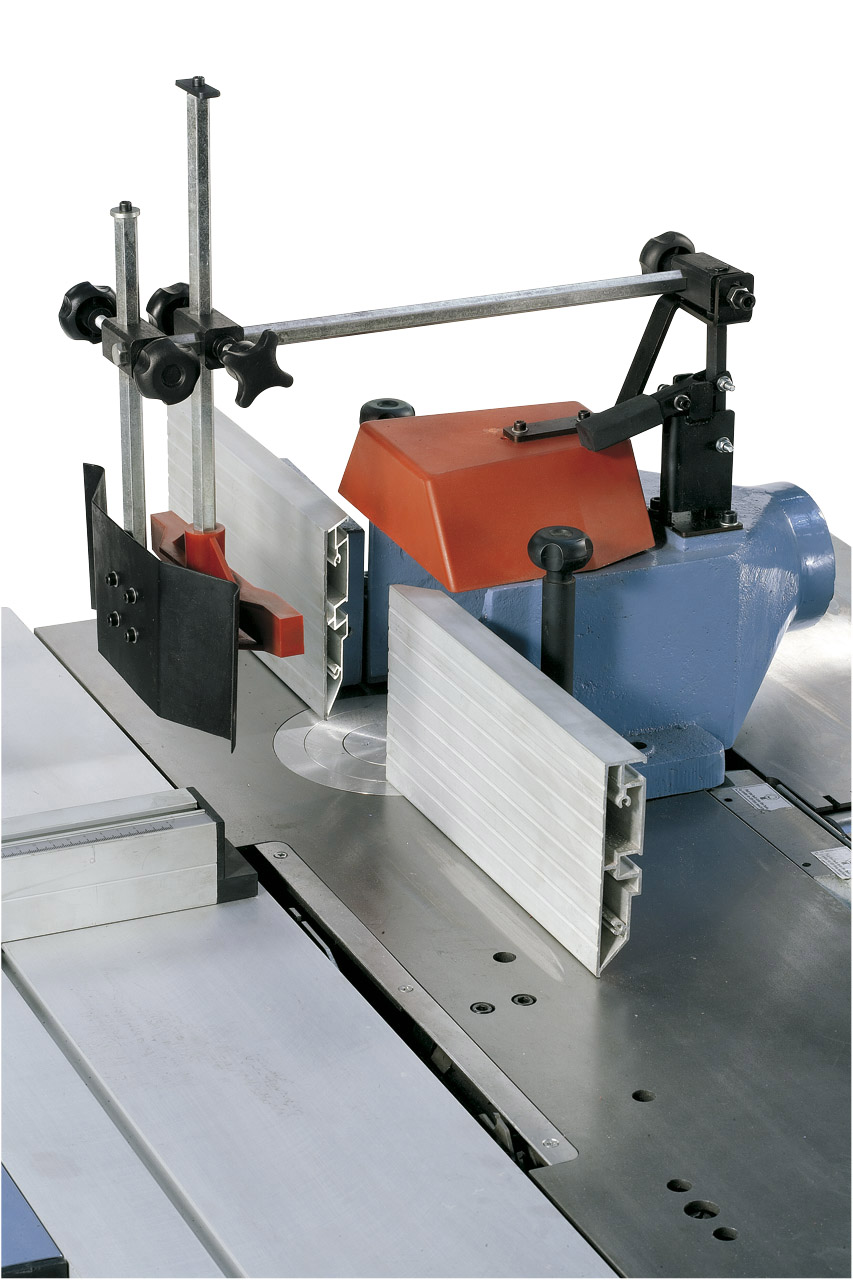

- Moulding fence with aluminium fence rails adjustable on both sides
- Moulder unit features 3 speeds for optimal adjustment to the workpiece

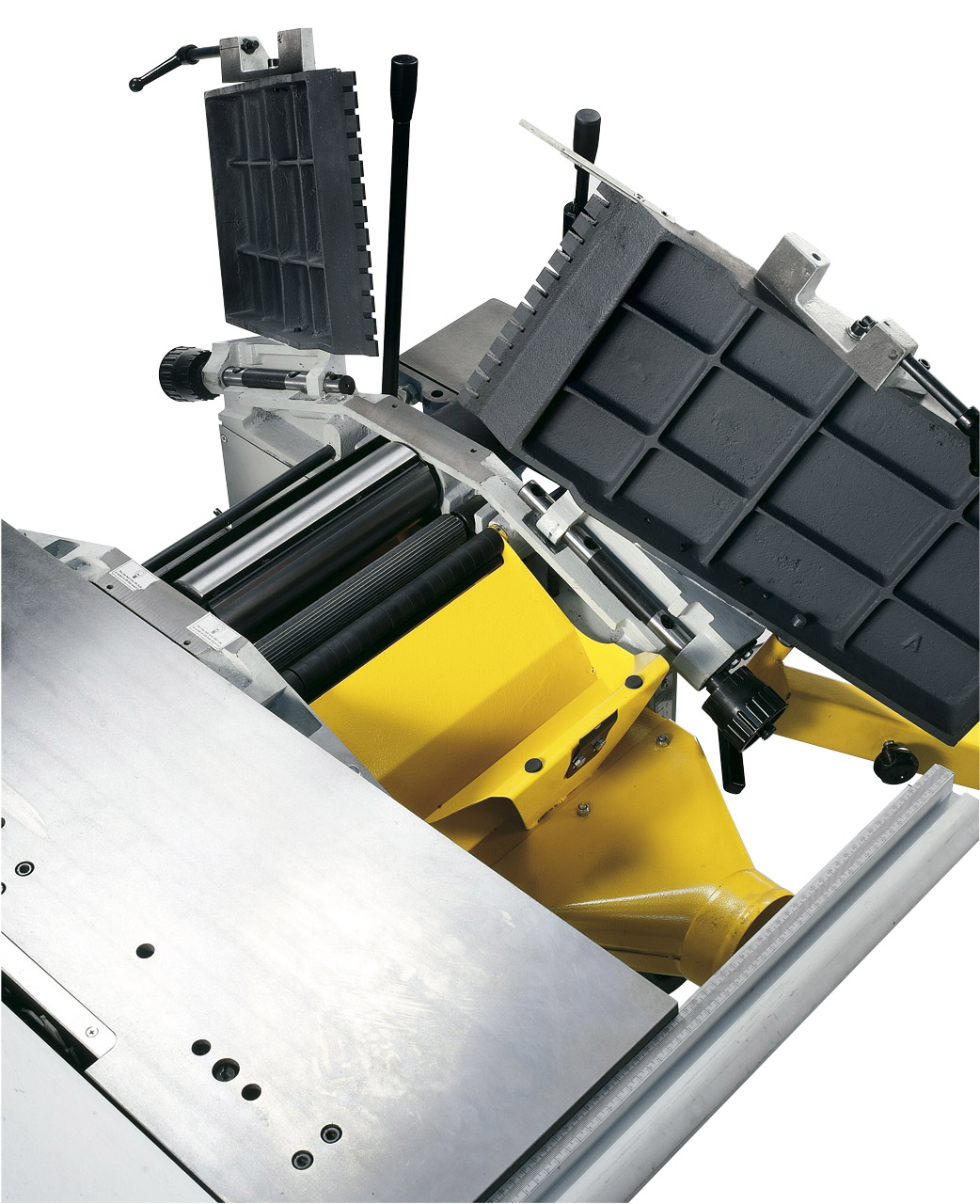

- Planer tables tilt into upright position for quick conversion to thicknessing
- All switches are logically arranged on the control panel
- Handwheel with scale allows for tilting of sawblade up to 45º
- Integrated, tiltable dust hood - extraction outlet 100 mm
- Solid aluminium planer fence, tilts 90º to 45º
- Square table in generous size allows for support of larger panels
Technical details Universal combined machine Bernardo CWM 260 F - 1200
| Planer |
|
| Planing width | 250 mm |
| Table length | 1080 mm |
| Table height | 820 mm |
| Shaft rotation speed | 3750 rpm |
| Cutter knives | 3 pcs. |
| Planer shaft diameter | 75 mm |
| Planer fence | 700 x 145 mm |
| Fence tiltable | 90° to 45° |
| Max. cutting depth | 5 mm |
| Motor power output S1 100% | 2,0 kW (2,7 HP) |
| Motor power input S6 40% | 2,8 kW (3,8 HP) |
| Thicknesser |
|
| Table length | 600 mm |
| Working width | 250 mm |
| Working thickness, min/max. | 5 - 190 mm |
| Max. cutting depth | 1,8 mm |
| Feed speed | 8 m/min |
| Dust extraction outlet | 100 mm |

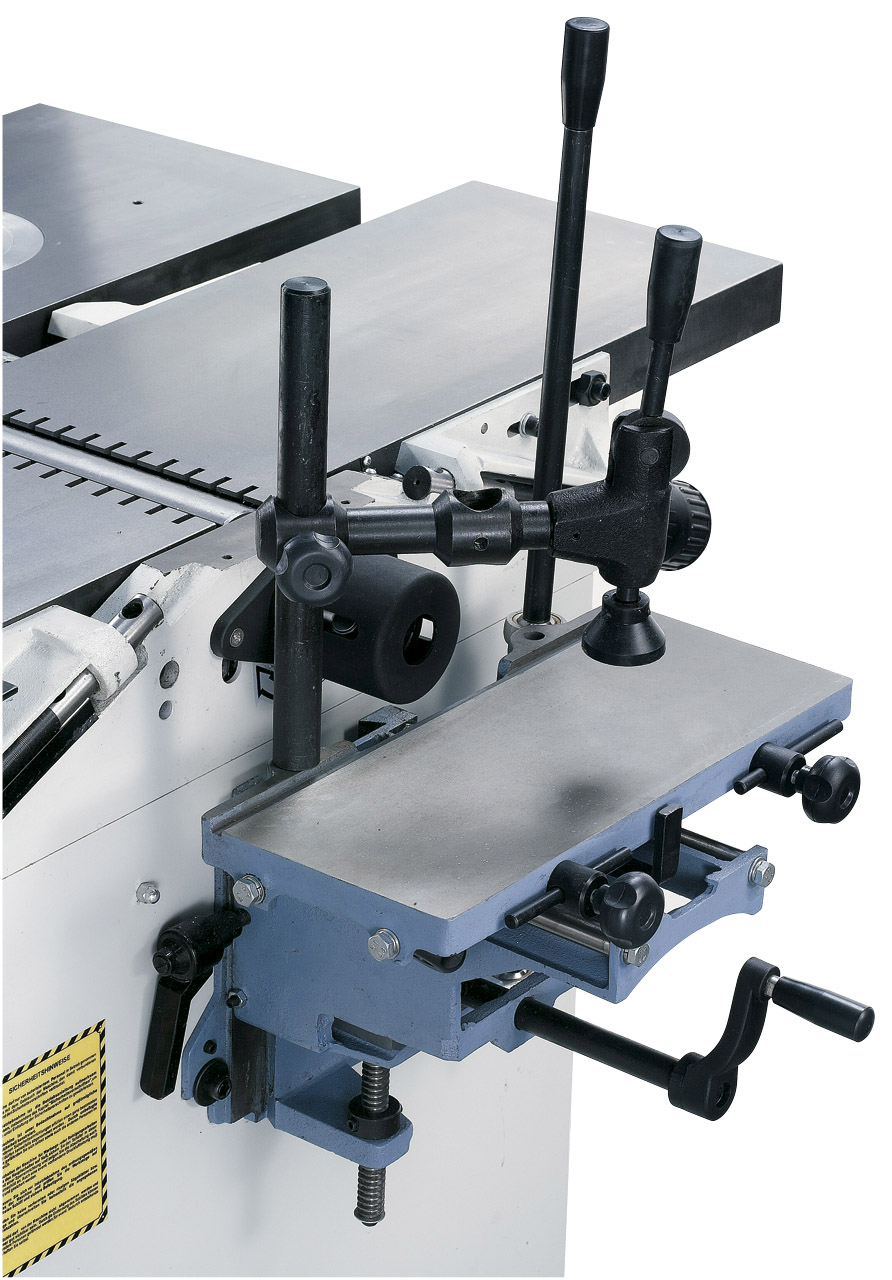

| Mortising unit | |
| Table size | 370 x 150 mm |
| Westcott drill chuck | 0 - 16 mm |
| Max. drill depth | 105 mm |
| Drill width | 140 mm |
| Height djustment | 85 mm |

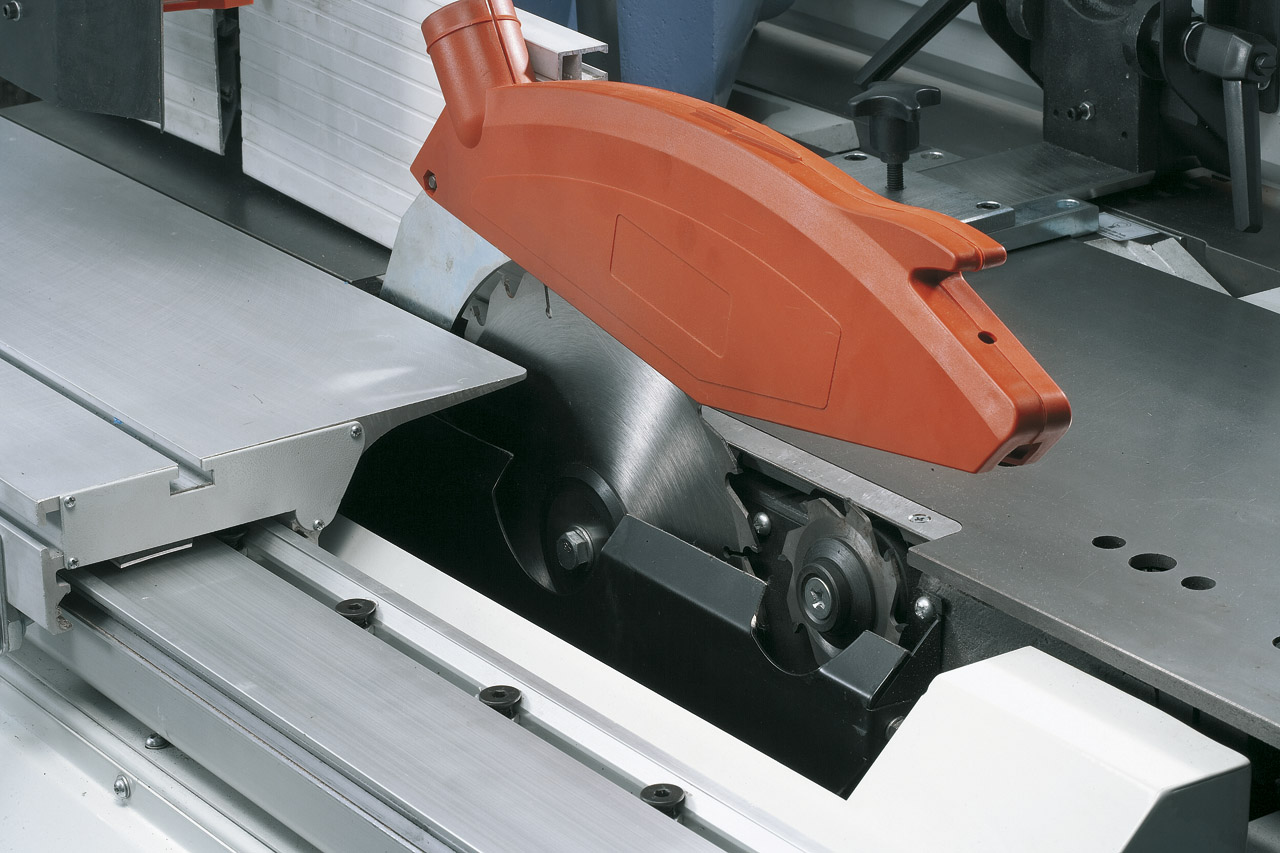

| Circular saw |
|
| Table size | 1045 x 300 mm |
| Table height | 820 mm |
| Square table | 600 x 410 mm |
| Sliding table | 1200 x 240 mm |
| Cutting length | 1300 mm |
| Max. sawblade diameter | 250 x 30 mm |
| Max. cutting height 90° / 45° | 65 / 55 mm |
| Cutting width on rip fence | 510 mm |
| Speed main sawblade | 4050 rpm |
| Speed scoring sawblade | 6300 rpm |
| Scoring sawblade | 80 x 20 mm |
| Dust extraction outlet | 100 mm |
| Motor power output S1 100% | 2,2 kW (3,0 HP) |
| Motor power input S6 40% | 3,0 kW (4,0 HP) |
| Spindle moulder |
|
| Spindle diameter | 30 mm |
| Height adjustment of spindle | 150 mm |
| Table opening | 150 mm |
| Working length of spindle | 90 mm |
| Max. tool diameter |
|
| - at profiling | 140 mm |
| - at tenoning | 200 mm |
| Spindle speed | 3500 / 5500 / 7000 U/min |
| Motor power output S1 100% | 2,2 kW (3,0 HP) |
| Motor power input S6 40% | 3,0 kW (4,0 HP) |
| Voltage | 400 V |
| Machine dimension (W x D x H) | 1400 x 2340 x 1150 mm |
| Weight approx. | 372 kg |
