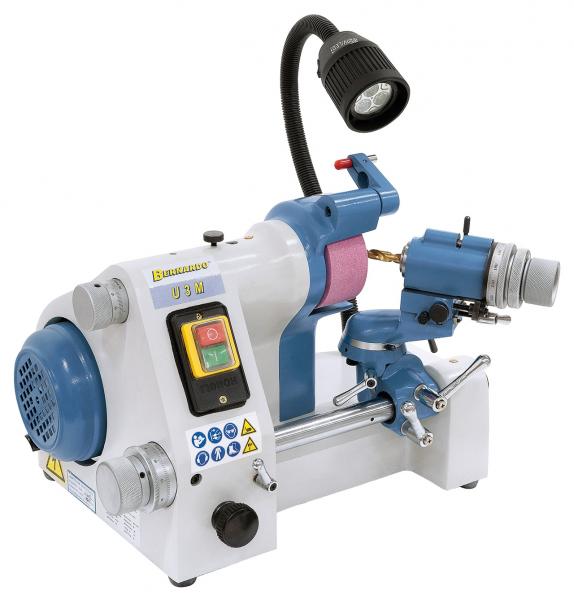

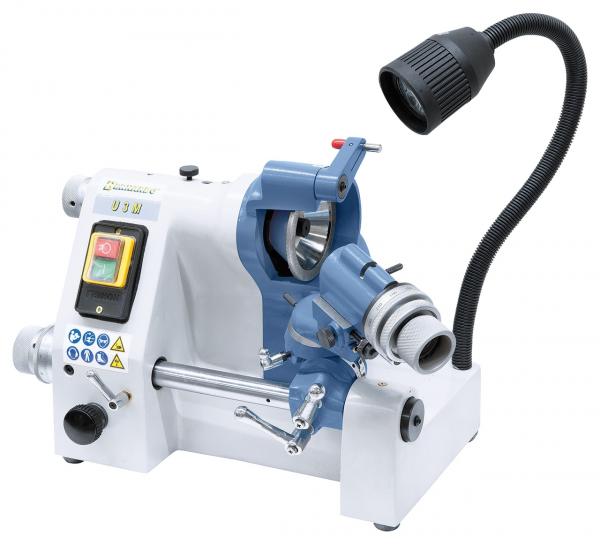

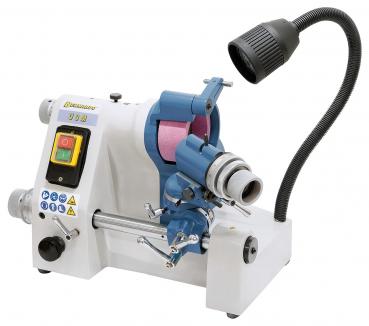

The U3M universal cutter grinder features various angles and adjustments, making it highly versatile. Furthermore, the large number of standard accessories makes this model excellent for price and performance.
Scope of delivery Universal cutter grinder Bernardo U3M - 230 V
8
Features Universal cutter grinder Bernardo U3M - 230 V
- Grinding of dies, twist drills, electrodes, gravers, live centers etc.
- High user-friendliness
- Various angles and adjustments allow taper, cylindrical and central grinding of graving tools
- Solid construction ensures rigorous, long lasting precision
- Head features 24 locking positions for grinding of polygones on dies or electrodes
- Wide range of standard accessories, such as attachment for twist drills, end mills or turning chisels, diamond wheel, collets
- Ideal for grinding of graving tools (engraving cutter)
- Precisely, vibration-free driven grinding spindle guarantees optimal results
Technical details Universal cutter grinder Bernardo U3M - 230 V
| Collet diameter min./max. | 3 - 18 mm |
| Sanding diameter max. | 25 mm |
| Taper grinding | 0 - 180° |
| Rear angle | 0 - 45° |
| Negative angle | 0 - 25° |
| Speed | 5000 rpm |
| Grinding wheel | 100 x 50 x 20 mm |
| Locking position dividing head | 24 (all 15°) |
| Motor power | 0,37 kW |
| Voltage |
230 V |
| Length | 450 mm |
| Width | 500 mm |
| Height | 400 mm |
| Weight approx. | 45 kg |
