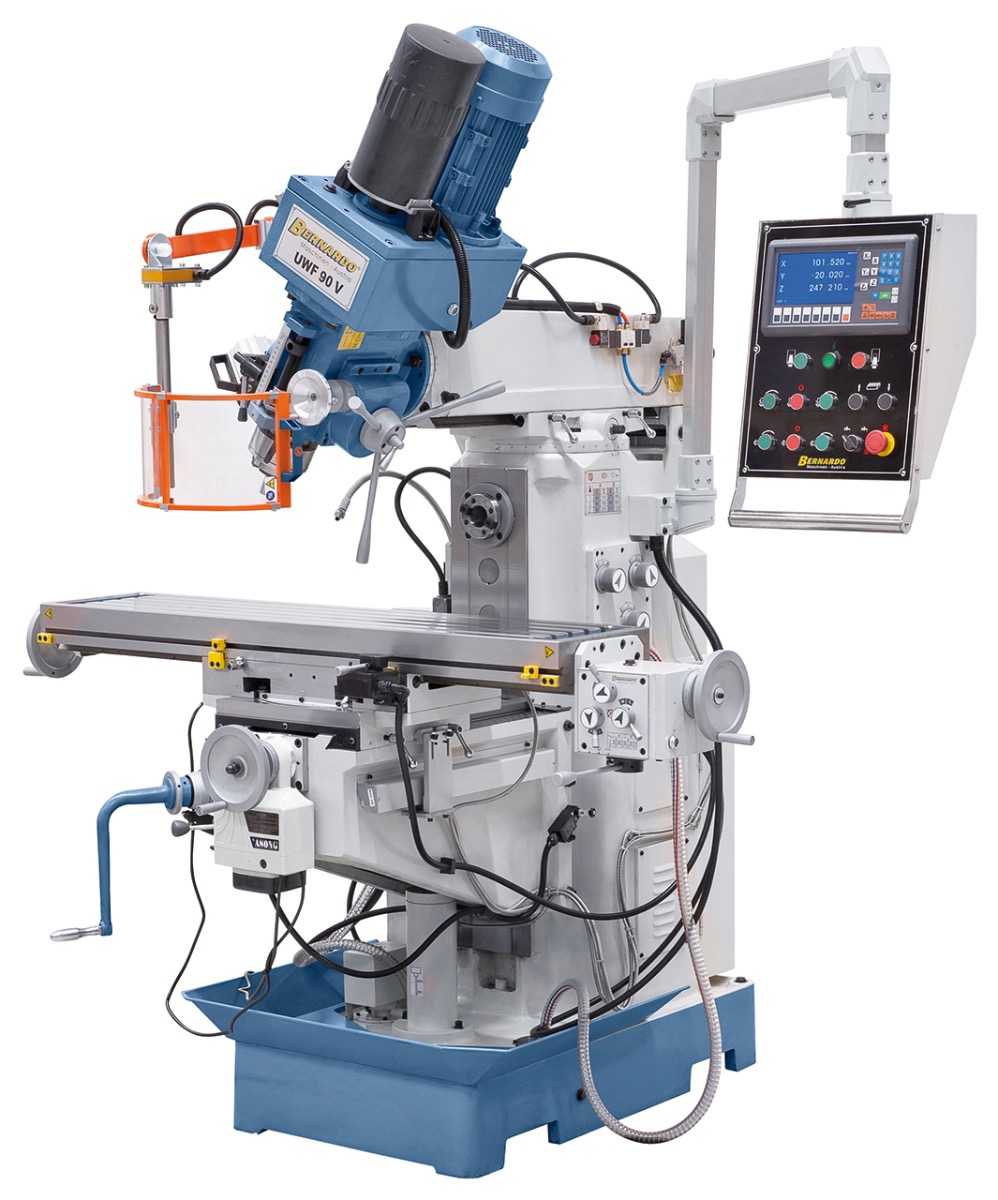

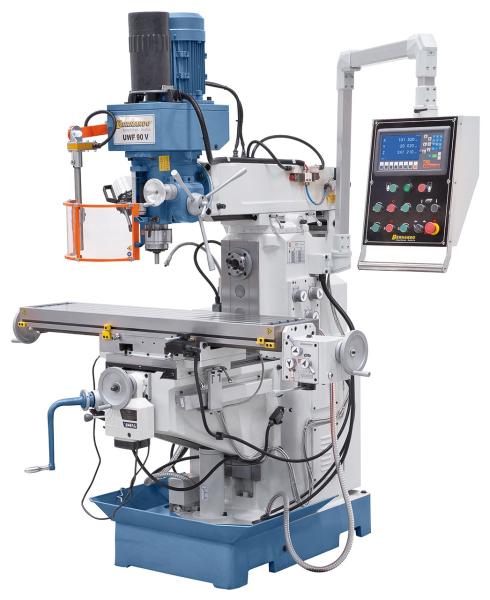

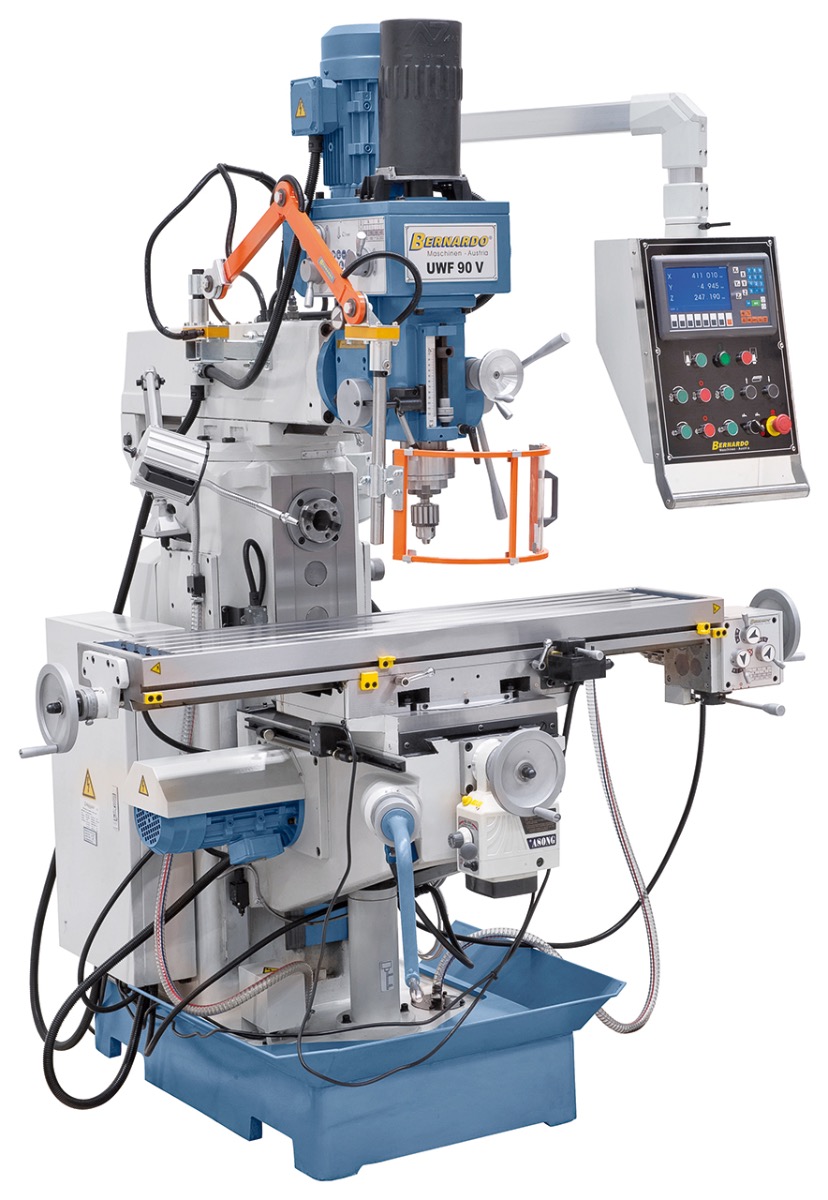

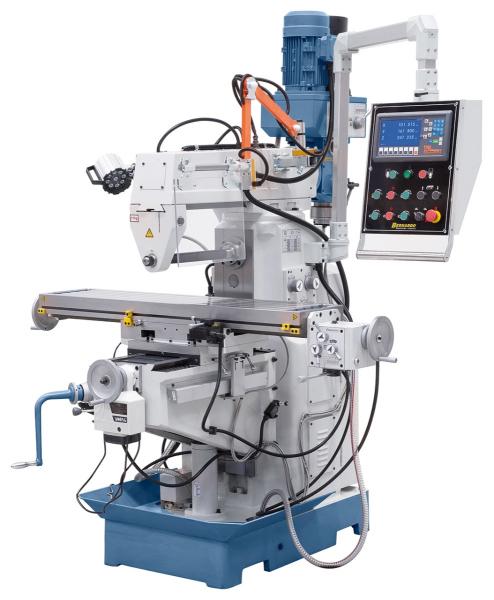

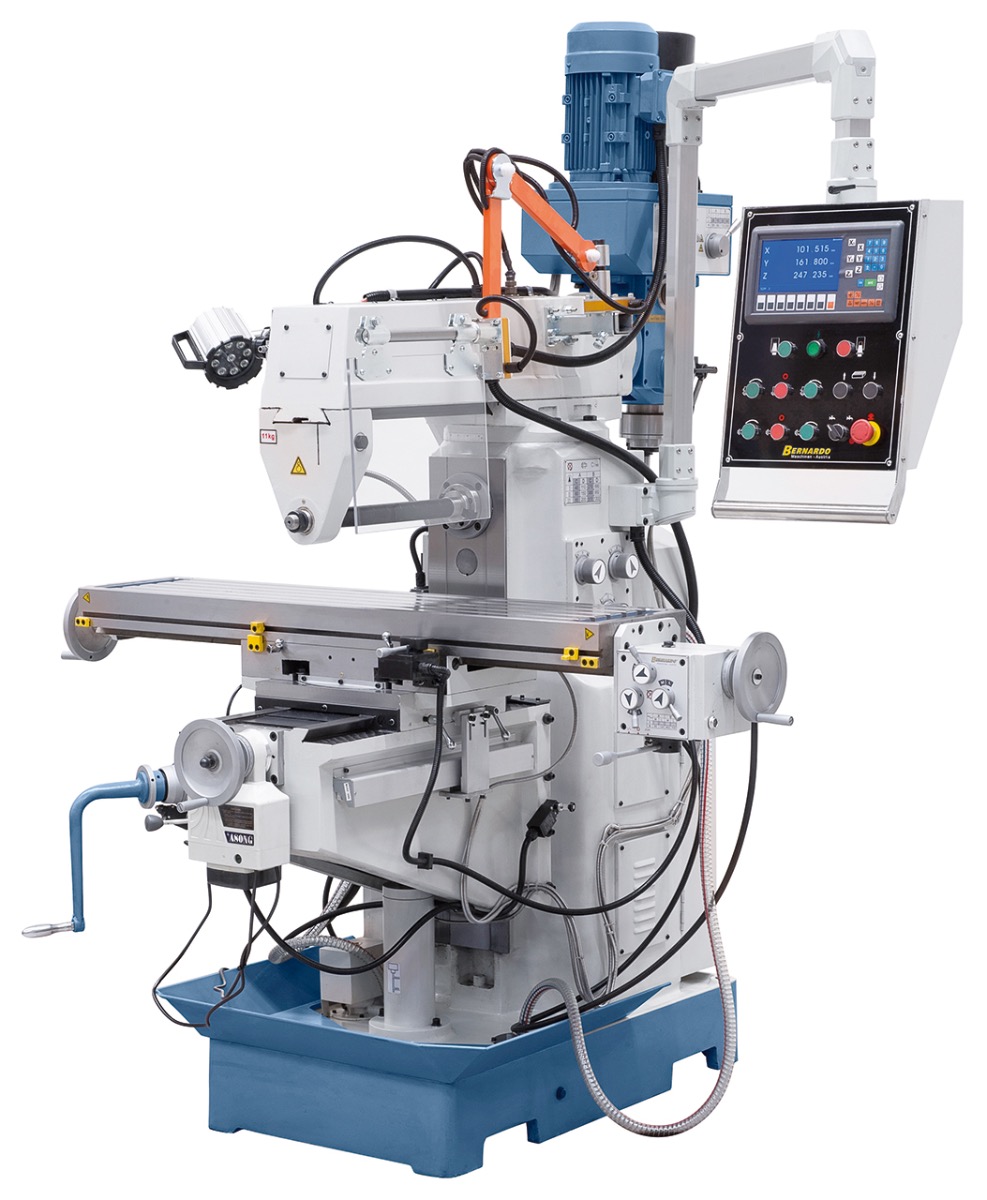

The UWF 90 V universal milling machine was designed for economical production of individual parts and small series with high accuracy. The outstanding user-friendliness makes this model particularly attractive for machinery and plant engineering, manufacturing and production of single parts. Furthermore, this model comes complete with an automatic spindle feed.
Scope of delivery Universal milling machine Bernardo UWF 90 V with pneumatic tool clamping
ISO 40/32 mm
- Coolant device
- LED machine light
- Tools
Features Universal milling machine Bernardo UWF 90 V with pneumatic tool clamping
- Pneumatic tool clamping device allows for convenient tool change
- Wide range of applications in general machine engineering, manufacturing, production of single parts

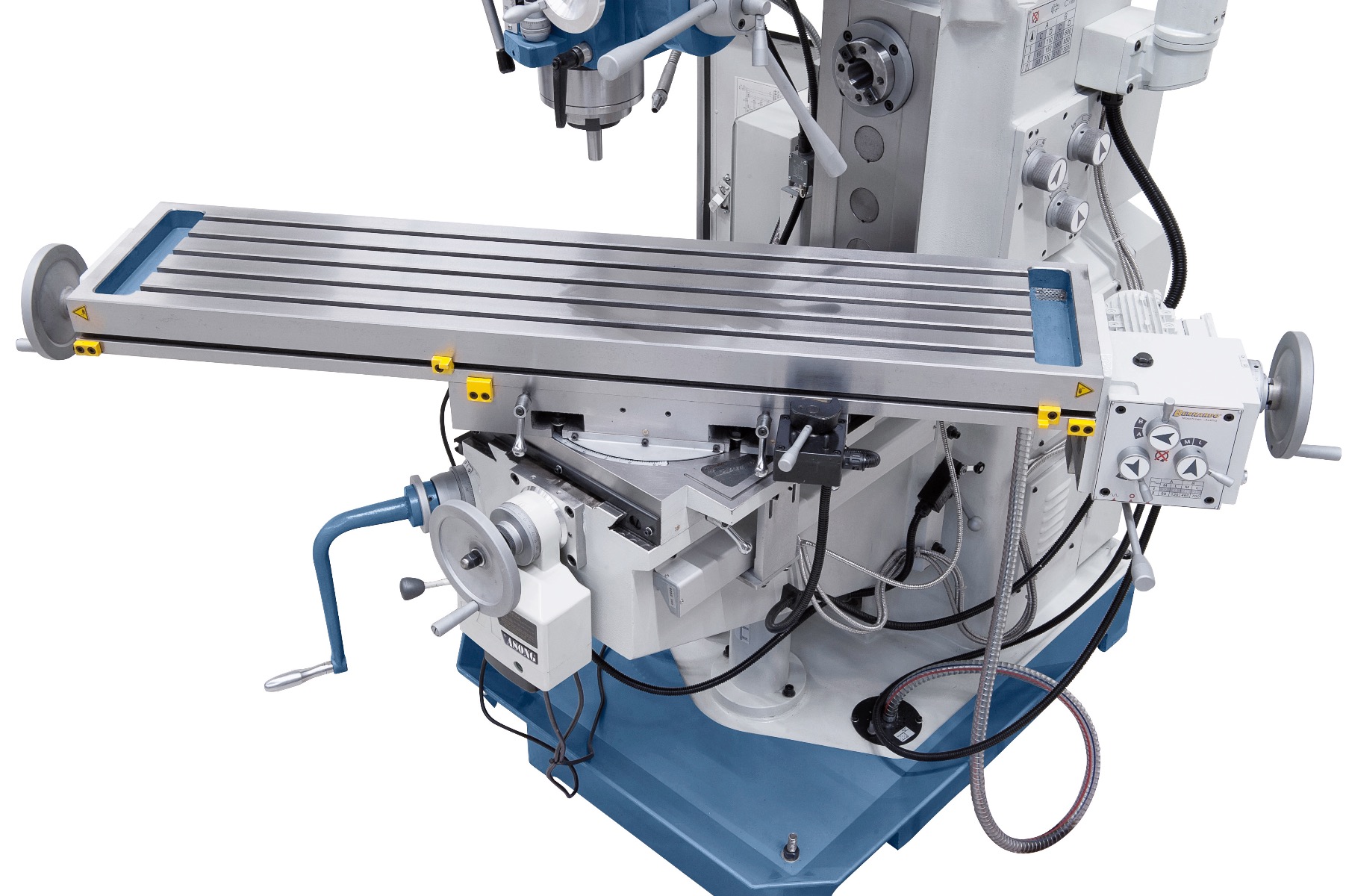

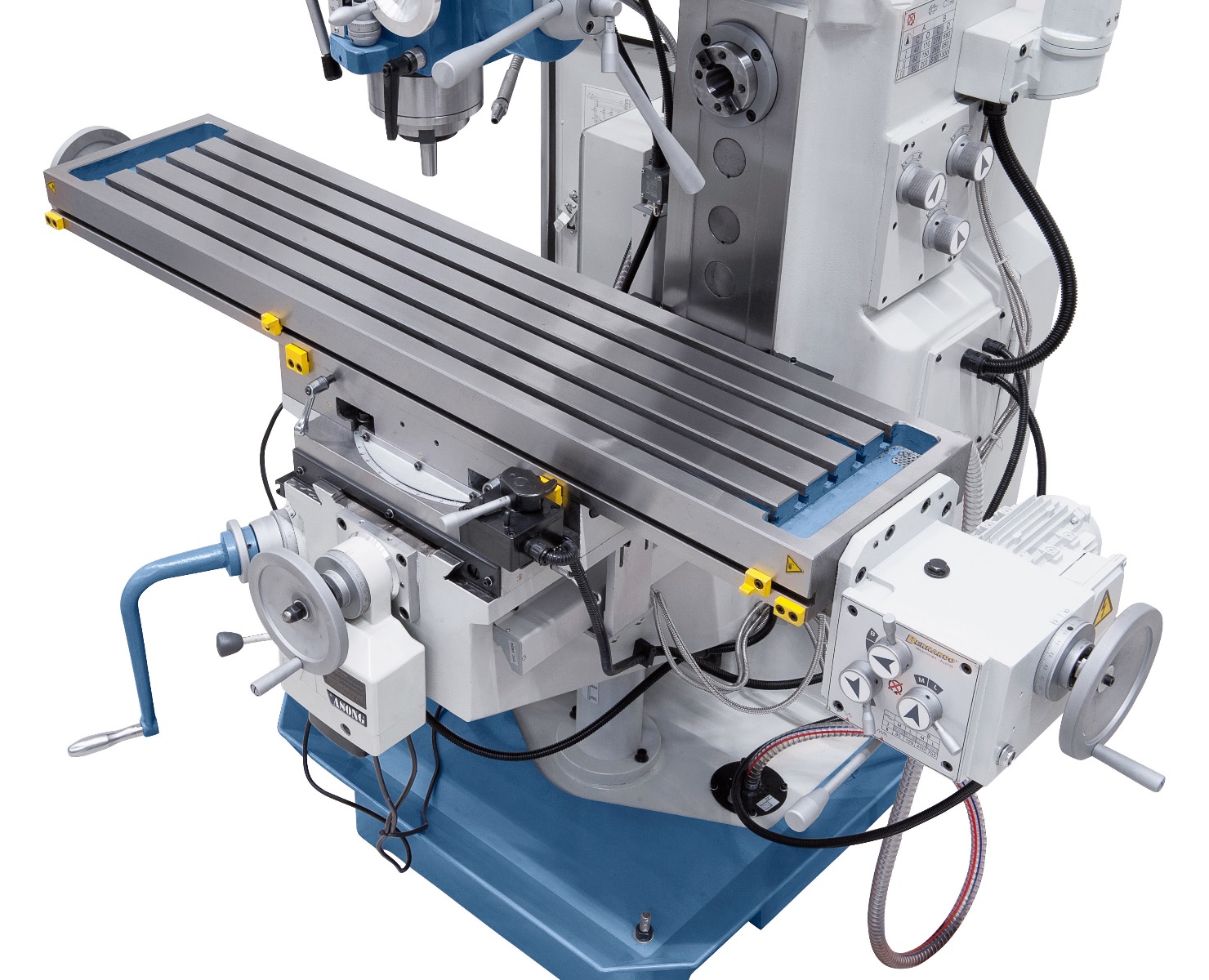

- Complete with automatic table feed in x- and y-axis including rapid feed
- Positioning motor for z–axis comes standard
- Automatic spindle feed (0,08 - 0,25 mm) comes standard
- Heavy cast-iron machine stand eliminates vibrations

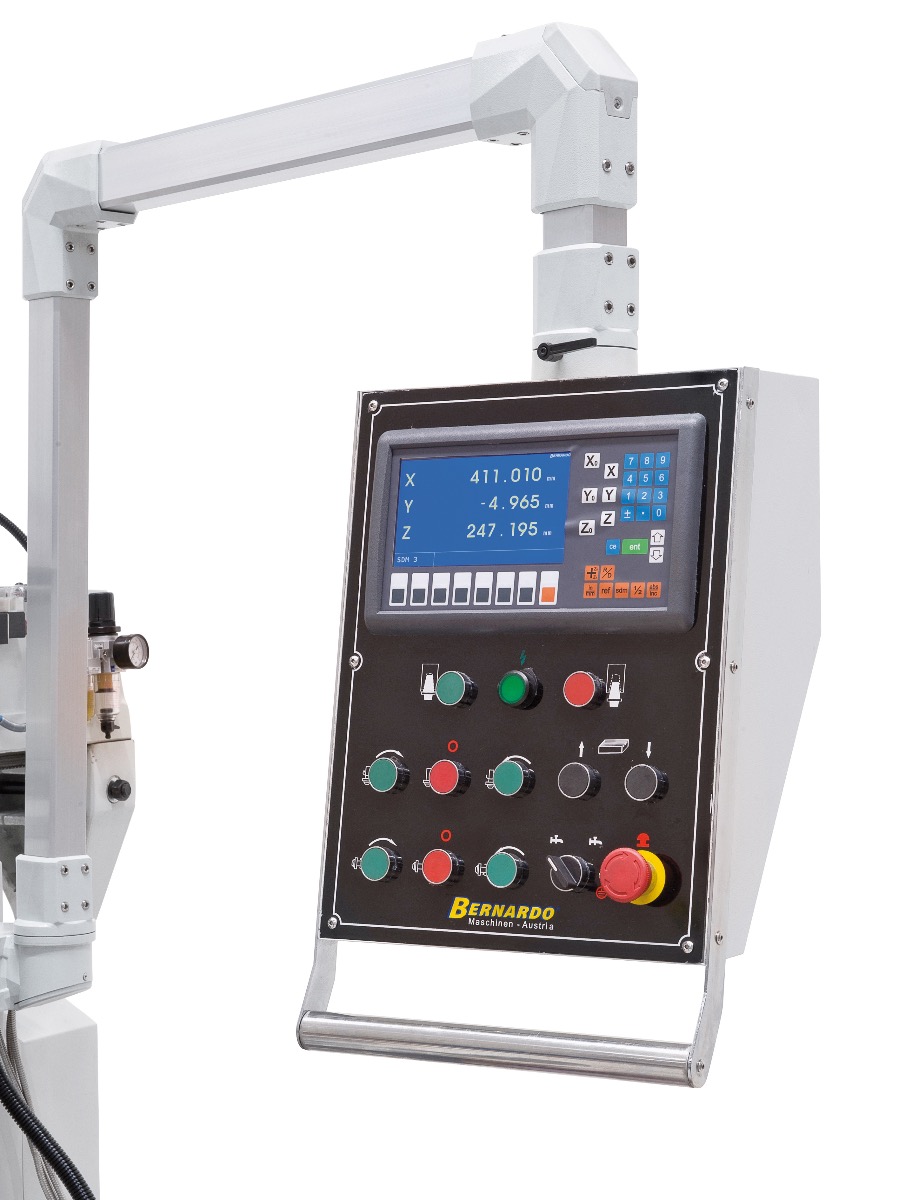

- Complete with 3-axis digital readout for maximum productivity
- Polished gear wheels, in oil bath, ensure smooth running
- Ideal for single and small-series production
Technical details Universal milling machine Bernardo UWF 90 V with pneumatic tool clamping
| Table size | 1270 x 280 mm |
| Spindle taper | ISO 40 |
| Spindle speed vertical | (8) 90 – 2000 rpm |

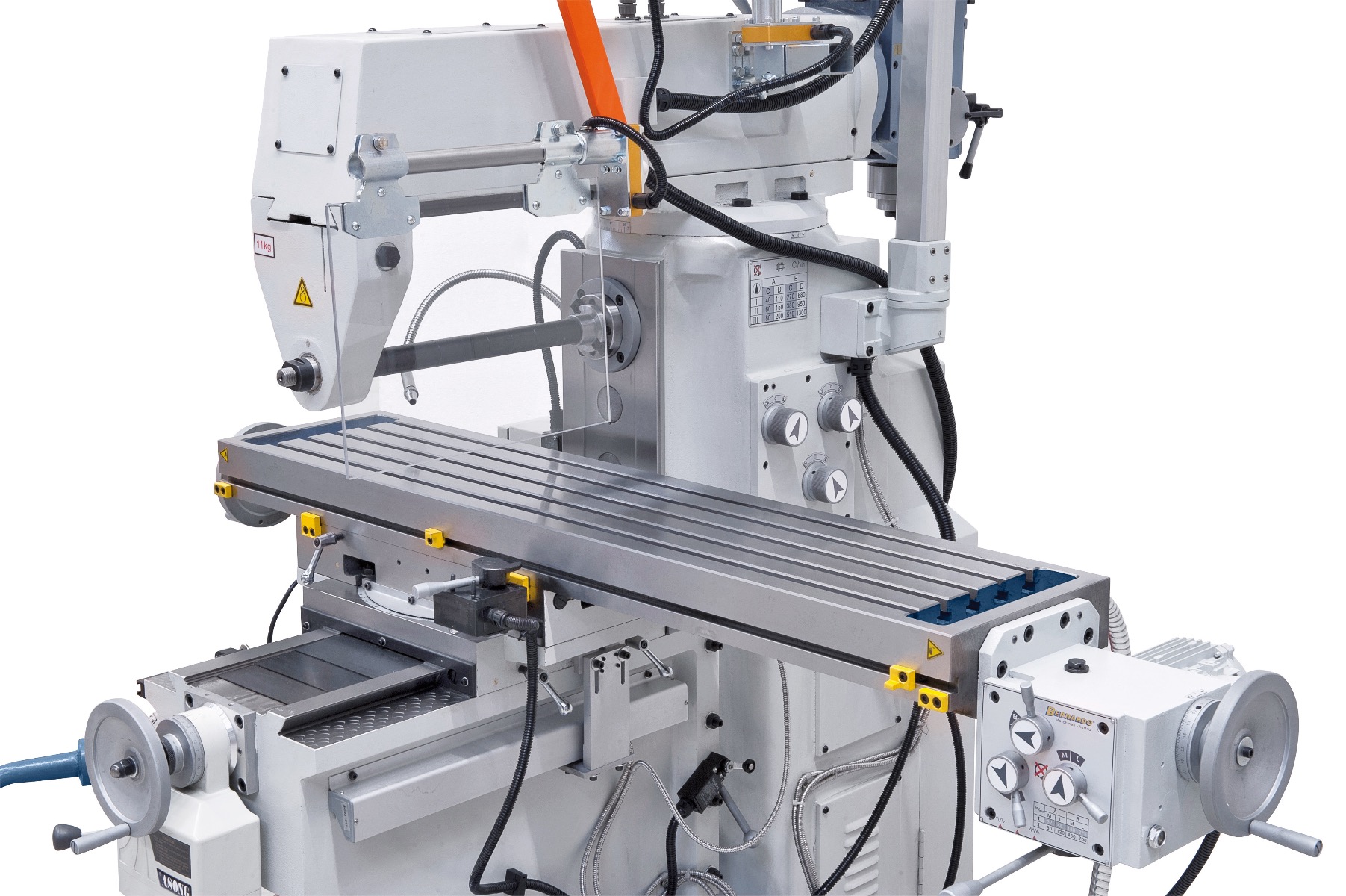

| Spindle speed horizontal | (12) 40 – 1300 rpm |
| Spindle stroke | 120 mm |
| Pinolenvorschub | 0,08 / 0,15 / 0,25 mm/rev. |
| Travel longitudinal (x) | 750 mm* |
| Travel cross (y) | 230 mm |
| Travel vertical (z) | 300 mm |
| Distance spindle to column | 240 – 740 mm |
| Table tiltable | -45° to +45° |
| Spindle head tilting range | -90° to +90° |
| Distance spindle to table | 125 – 425 mm |
| Feed range longitudinal | (8) 32 – 700 mm/min |
| Rapid feed z-axis | 660 mm/min |
| T-slot size | 14 mm |
| Motor power vertical | 2,2 kW |
| Motor power horizontal | 2,2 kW |
| Machine dimension (W x D x H) | 1750 x 1500 x 2200 mm |
| Weight approx. | 1310 kg |
| |
|
* manuell
