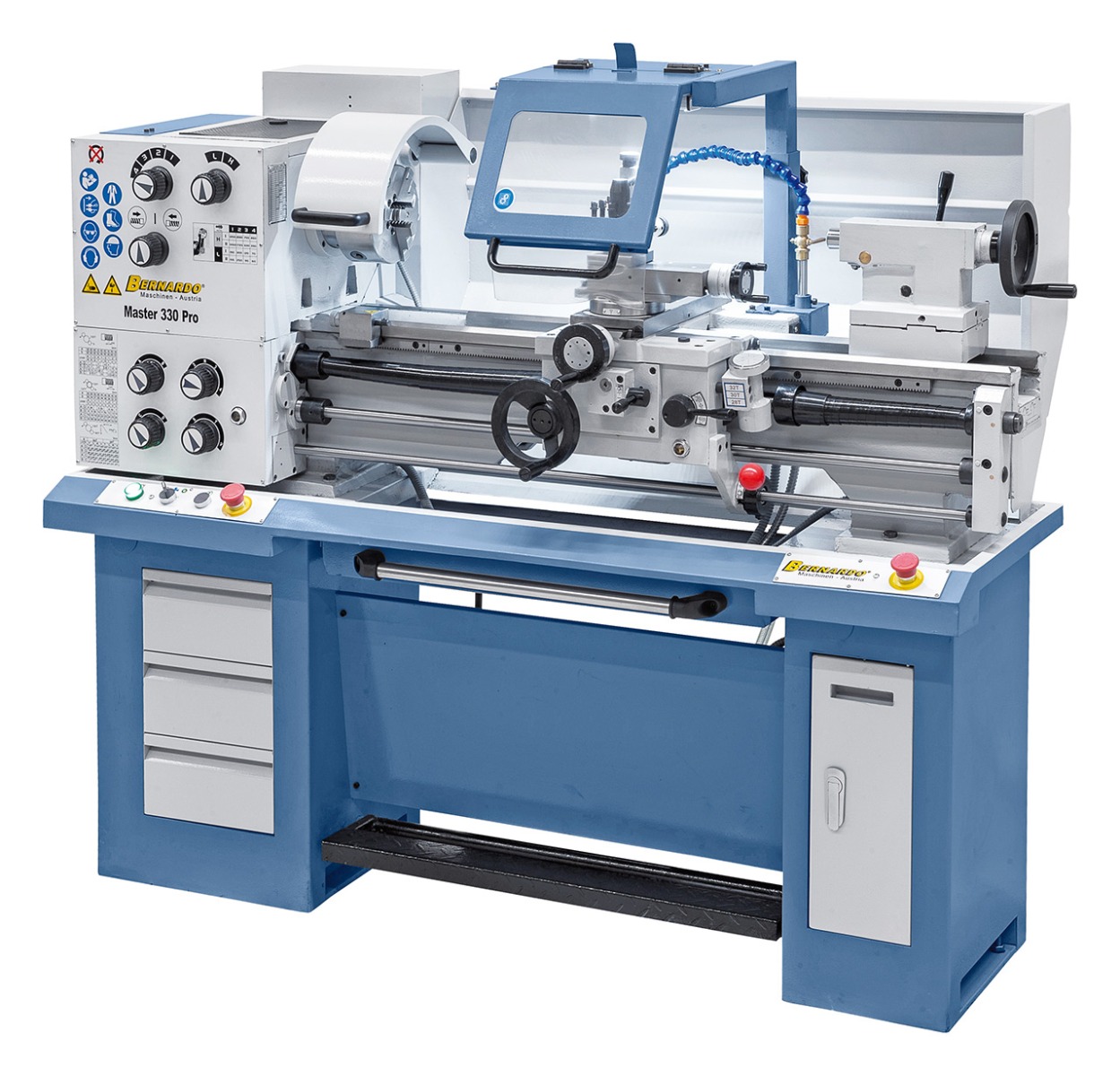

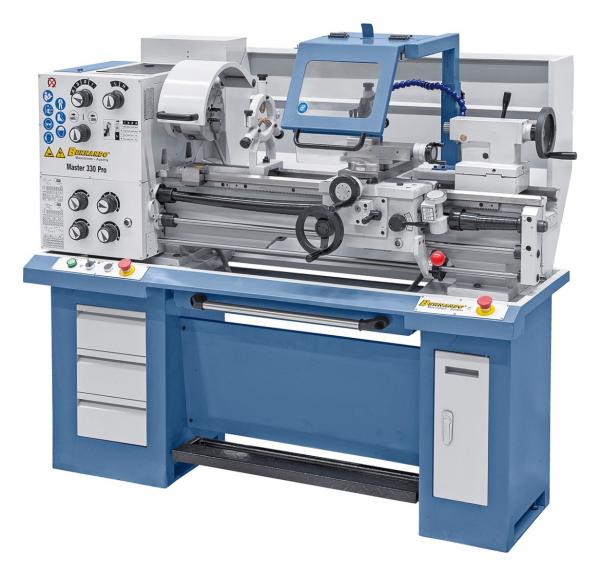

Universal turning lathes with digital readout Bernardo Master 330 Pro

The Master 330 Pro universal lathe is a fantastic model for small to medium-size turning works. Even its basic configuration includes important accessories, such as 3-jaw chuck, steady and follow rest, change gears etc. increasing the application area of this model significantly. For reducing the non-productive time, the model is also  available with a 3-axis digital readout.

Scope of delivery Universal turning lathes with digital readout Bernardo Master 330 Pro

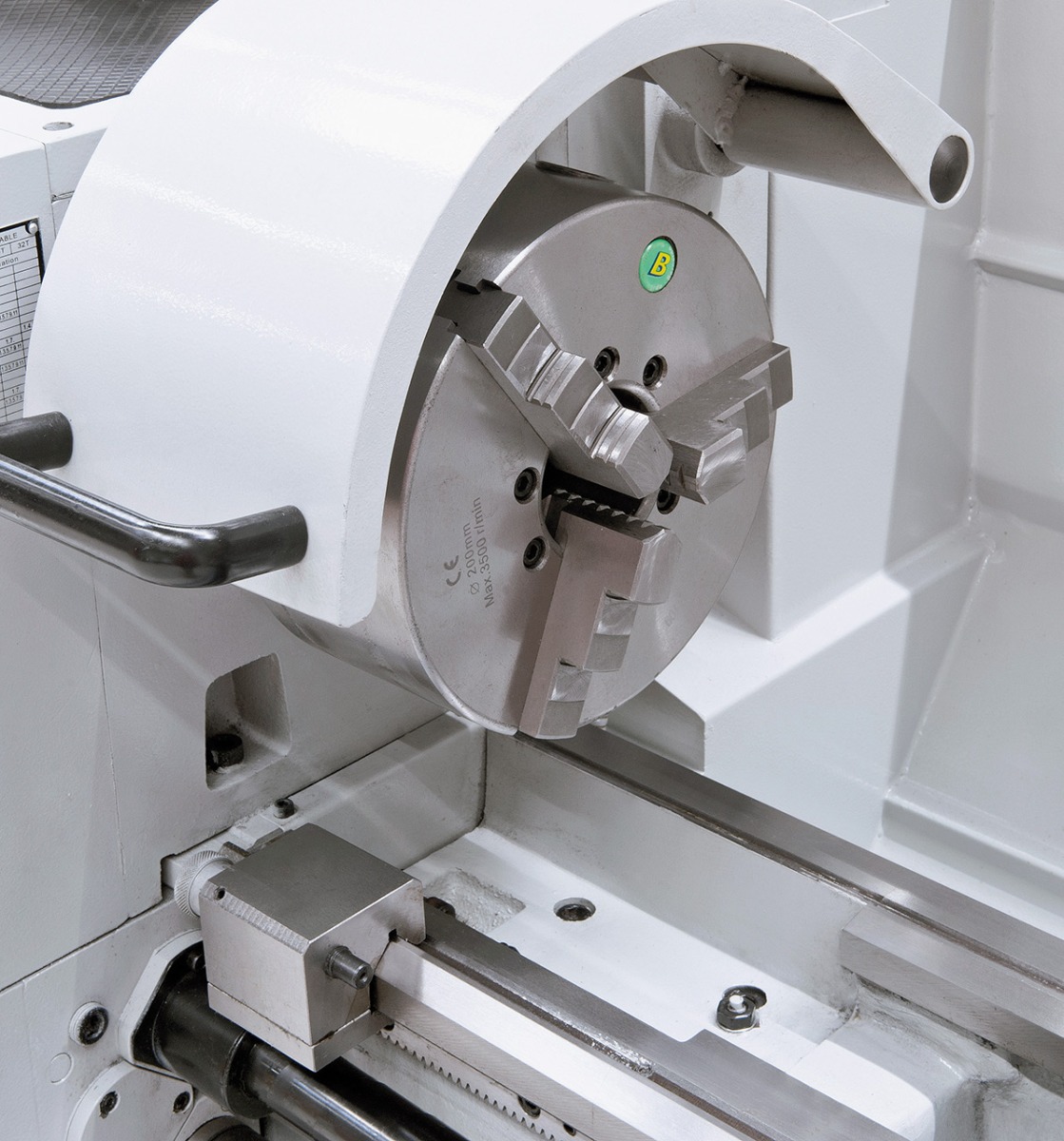

• 3-jaw chuck DK11-160 mm / D4
• Steady rest - Passage up to 50 mm
• Follow rest - Passage up to max. 30 mm
• Coolant device
• Extractable chip tray

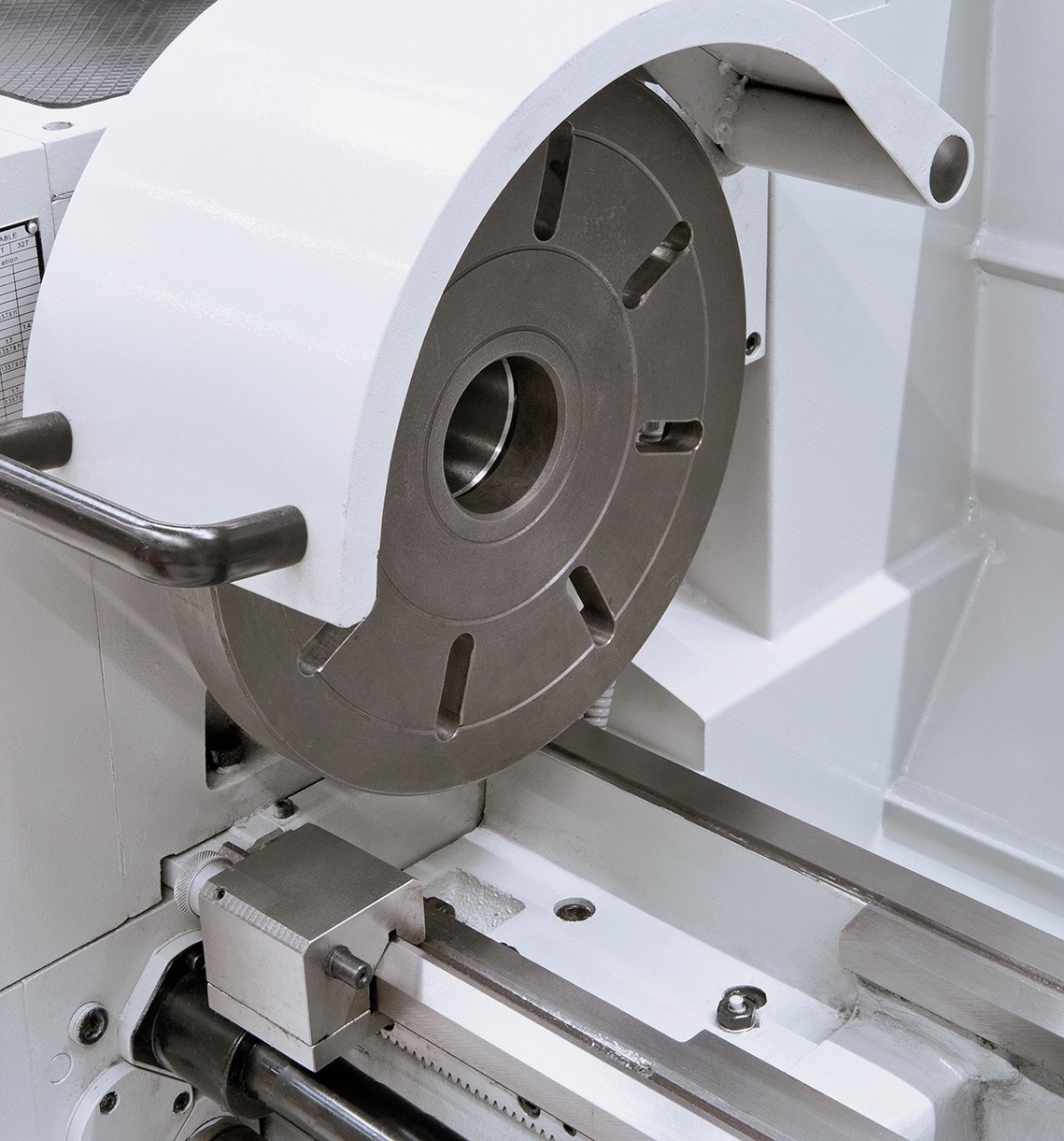

• Face plate 250 mm
• 4-way tool post holder
• Protective cover at 4-way tool post holder
• Safety clutch
• Micrometer longitudinal fence
• Thread dial
• LED machine light
• Morse taper drill sleeve
• Change gears
• 2 dead centers
• Foot pedal with brake function according to CE
• Motor with magnetic brake according to CE
• Stand
• Tools

Features Universal turning lathes with digital readout Bernardo Master 330 Pro

• Solid prism-shaped machine bed features additional reinforcements to keep vibrations to a minimum
• 38 mm spindle bore to machine large shaft diameters comes standard
• Ideal for processing of steel, non-ferrous materials and plastics
• Chip tray extracts to front, keeping space requirements to a minimum

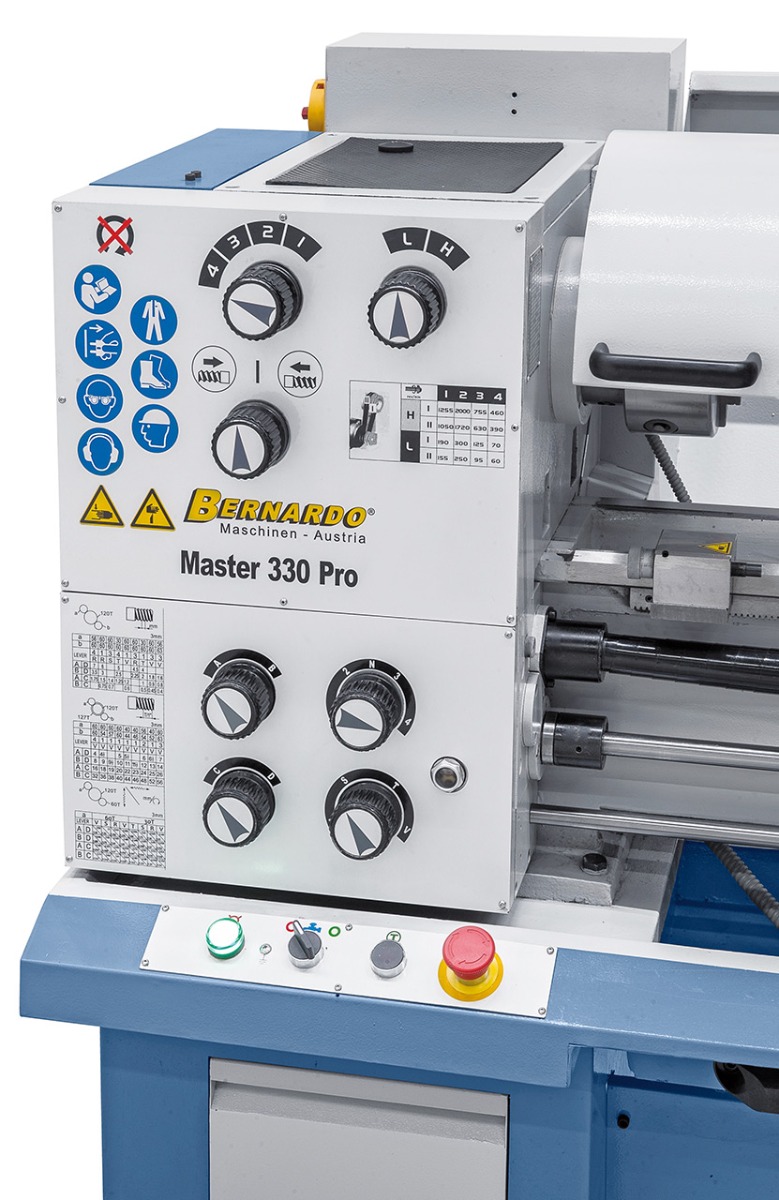

• Clear arranged speed and feed control settings, smooth operation and accurate control
• Electro-magnetic foot brake reduces downtime
• State-of-the-art spindle bedding with high-quality, angular ball bearings
• Grey cast-iron machine bed, inductive hardened and polished
• High spindle concentricity (≤ 0,009 mm)
• Hardened and polished spindle runs in oil bath
• Tailstock, spindle stock and all guides are adjustable
• Tailstock can be adjusted ± 5 mm for taper turning
