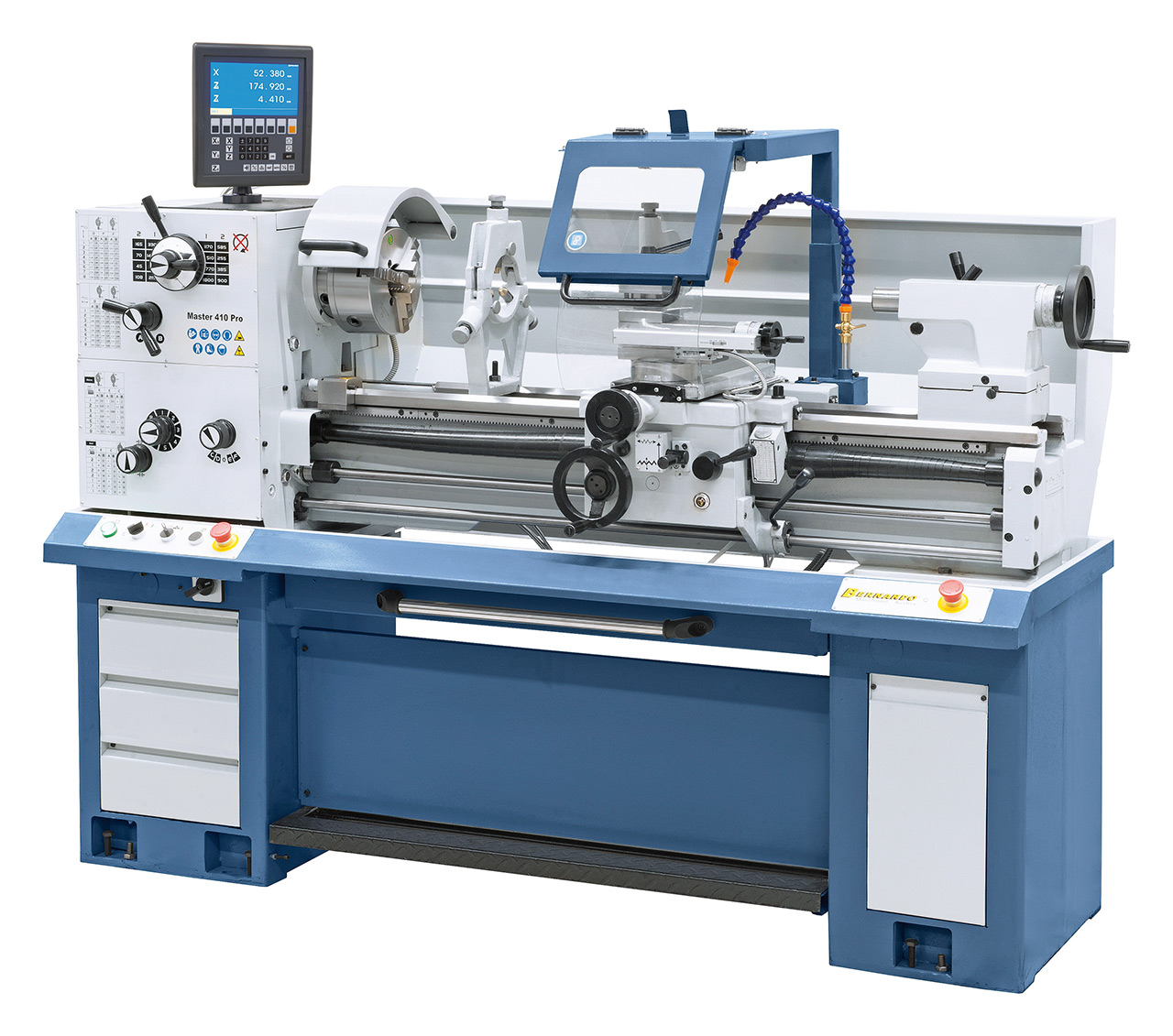

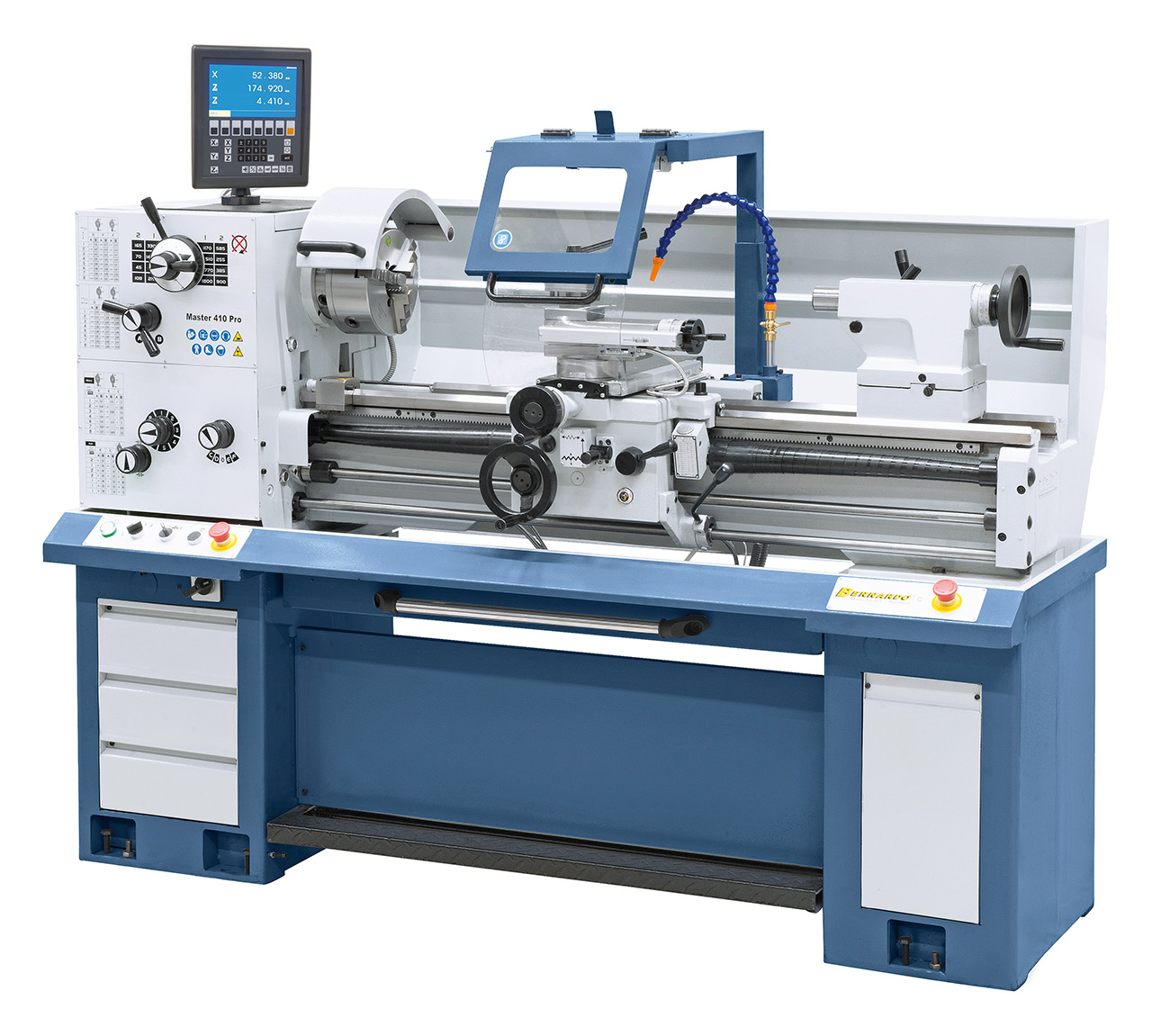

Universal turning lathes with digital readout Bernardo Master 410 Pro
The Master 410 Pro precision lathe feature a solid construction and practicality. Making this model truly versatile for technical schools, repair shops and training workshops is the standard equipment which comprises all major accessories such as 3-axis digital readout, rests, LED-machine lamp and safety precautions in accordance with CE-standards.
Scope of delivery Universal turning lathes with digital readout Bernardo Master 410 Pro
- 3-axis digital readout ES-12 V with LCD-display

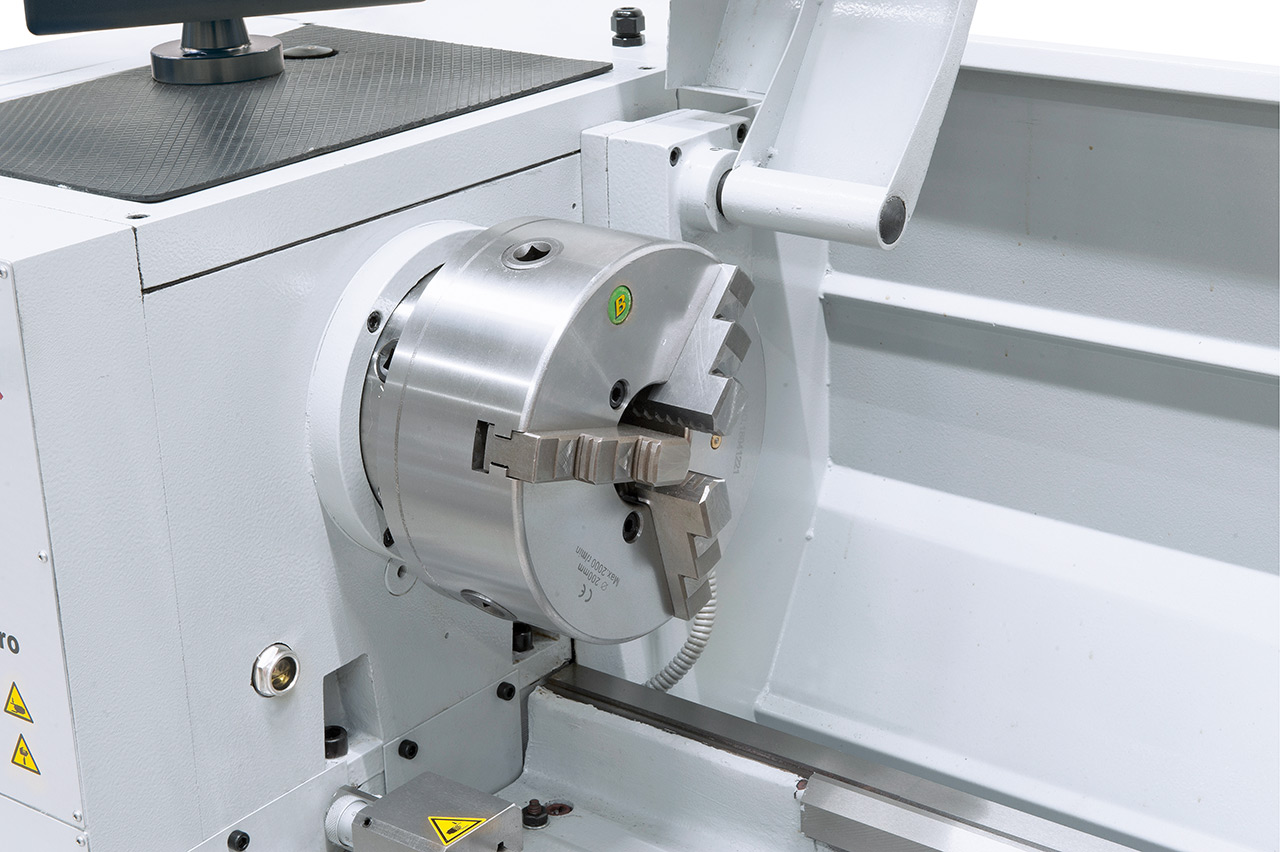

- 3-jaw chuck DK11-200 mm / D5
- Steady rest - Passage up to 70 mm
- Follow rest - Passage up to max. 60 mm
- Coolant device
- Initial filling with Shell Tellus 46
- Extractable chip tray
- Face plate 280 mm
- 4-way tool post holder

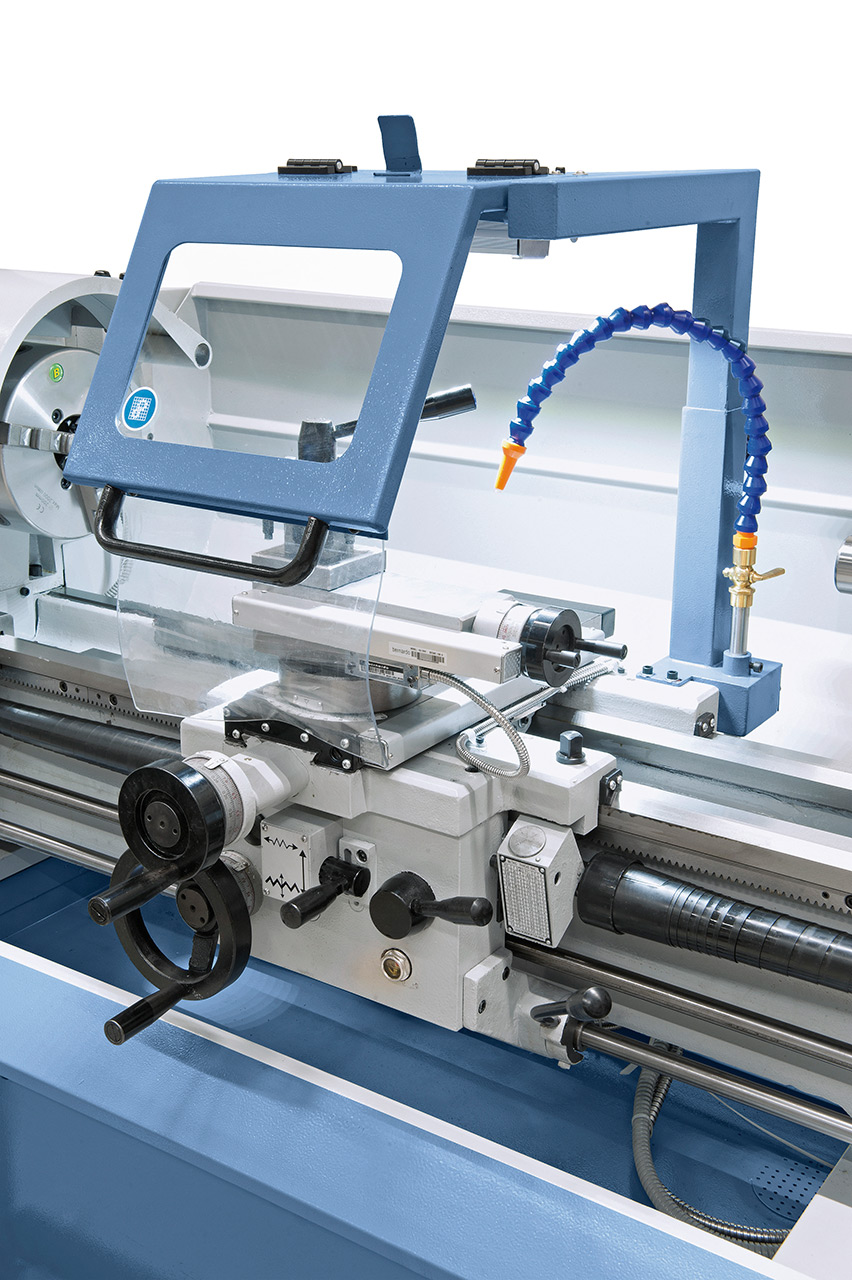

- Protective cover at 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence
- Thread dial
- LED machine light
- Morse taper drill sleeve
- Change gears
- 2 dead centers
- Foot pedal with brake function according to CE
- Motor with magnetic brake according to CE
- Splash guard
- Stand
- Tools
Features Universal turning lathes with digital readout Bernardo Master 410 Pro
- 52 mm spindle bore to machine large shaft diameters comes standard
- Perfect machine for technical schools, repair shops and training workshops
- Ideal for processing of steel, non-ferrous materials and plastics
- Removeable bridge allows machining of workpieces with a big diameter
- Chip tray extracts to front, keeping space requirements to a minimum

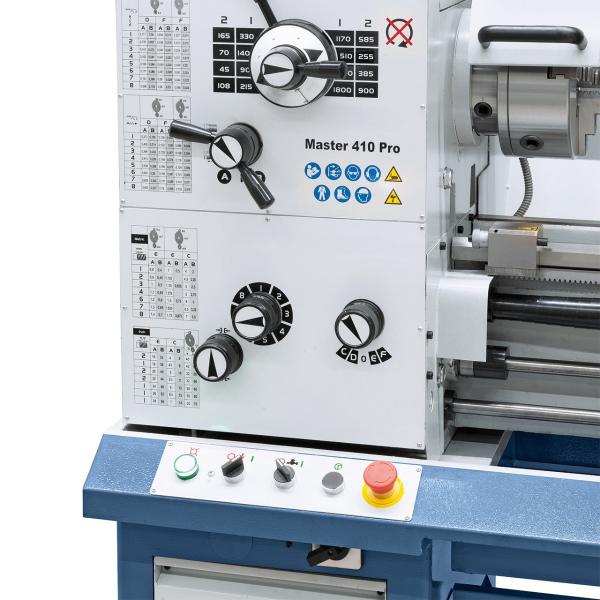

- Clear arranged speed and feed control settings, smooth operation and accurate control
- Electro-magnetic foot brake reduces downtime
- State-of-the-art spindle bedding with high-quality, angular ball bearings
- Grey cast-iron machine bed, inductive hardened and polished

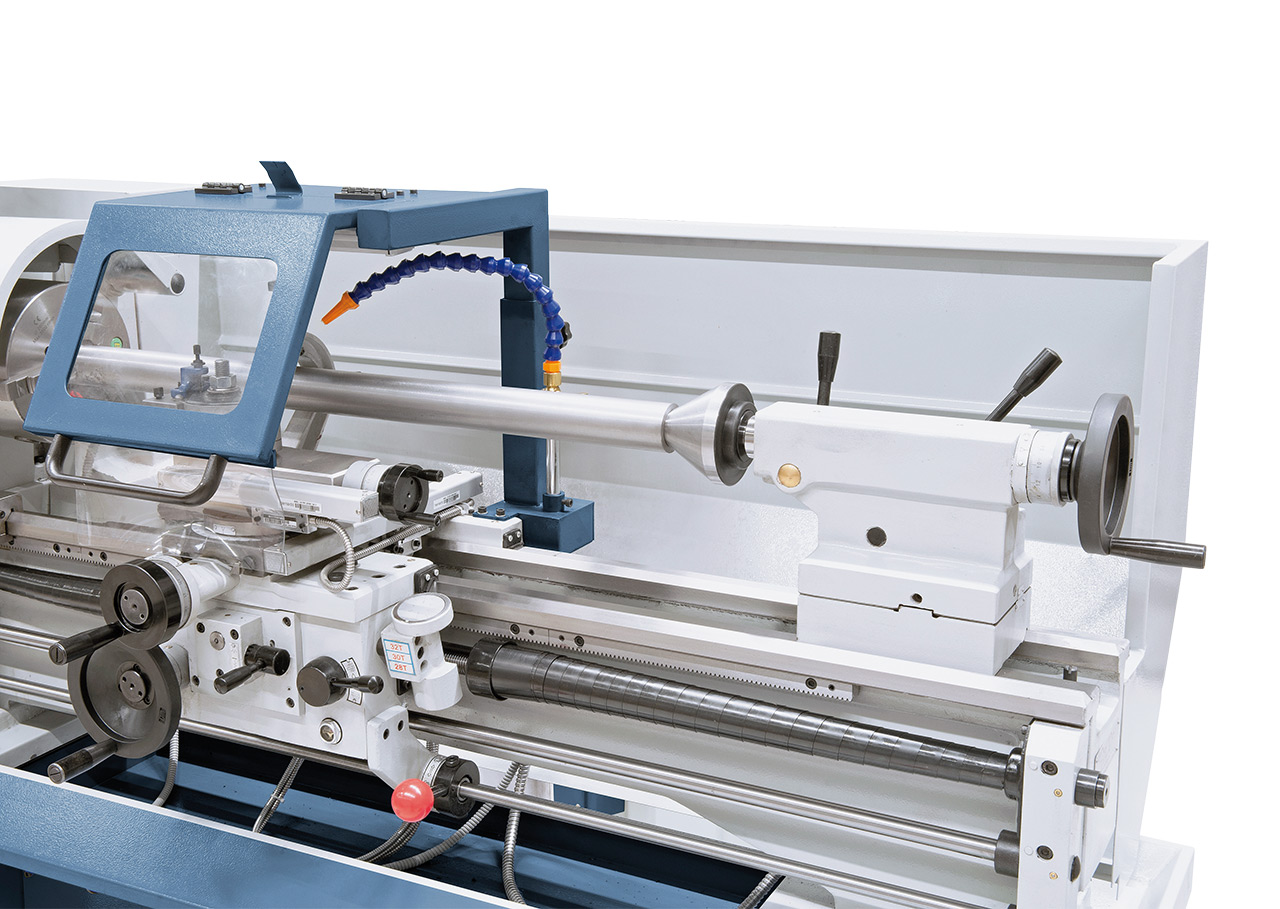

- One-hand clamping for tailstock, adjustable for taper turning
- High spindle concentricity (≤ 0,009 mm)
- Hardened and polished spindle runs in oil bath
- Tailstock, spindle stock and all guides are adjustable
Technical details Universal turning lathes with digital readout Bernardo Master 410 Pro
| Distance between centers | 1000 mm |
| Center height | 205 mm |
| Swing over bed | 410 mm |
| Swing over gap* | 530 mm |
| Swing over cross slide | 260 mm |
| Bed width | 205 mm |
| Spindle bore | 52 mm |
| Spindle nose fixture | DIN 55029, D1-5 |
| Speed range | (16) 45 – 1800 rpm |
| Longitudinal feed | (48) 0,043 – 0,653 mm/rev. |
| Cross feed | (48) 0,014 – 0,206 mm/rev. |
| Metric thread | (36) 0,4 – 7,0 mm |
| Inch thread | (28) 4 – 56 threads/1“ |
| Diameter of tailstock sleeve | 45 mm |
| Travel of tailstock sleeve | 125 mm |
| Taper of tailstock sleeve | MT 3 |
| Motor power | 1,5 / 2,4 kW |
| Machine dimension (W x D x H) | 1820 x 920 x 1500 mm |
| Weight approx. | 760 kg |
* Removeable bed length: 235 mm
