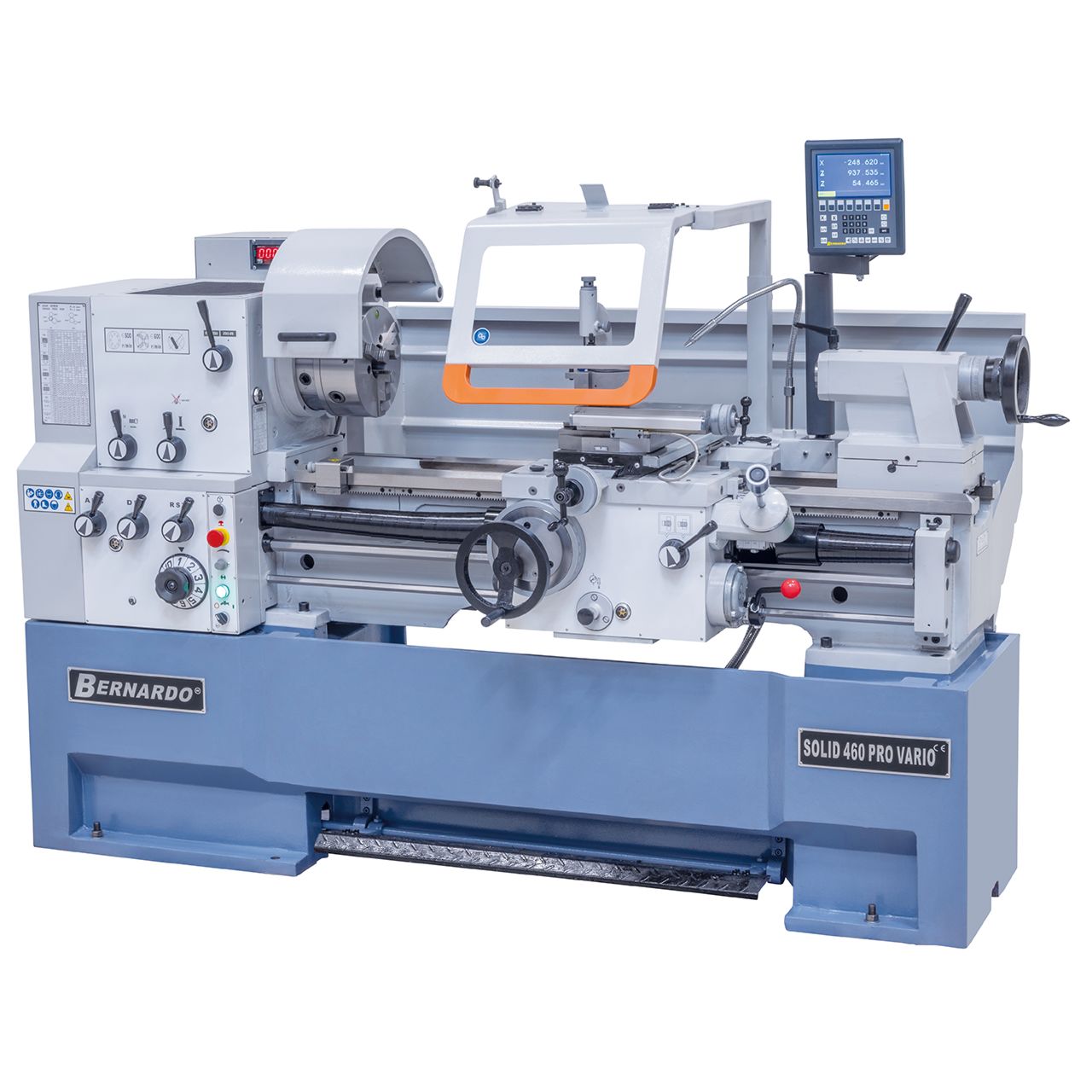

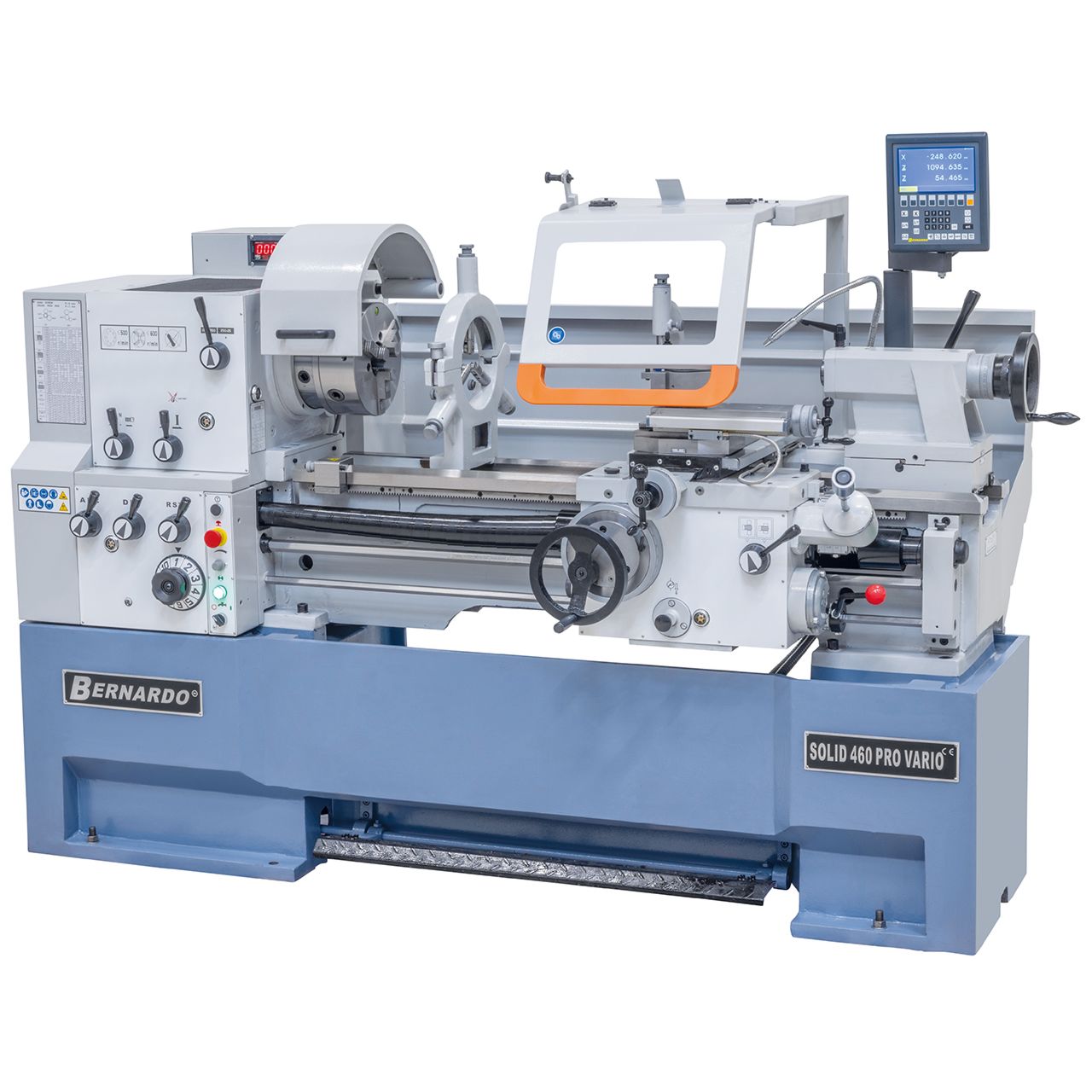

Universal turning lathes with stepless speed Bernardo Solid 460 x 1500 Pro Vario

The Solid 460 Pro Vario is a universal lathe, designed for the economic production of single parts and small series at highest possible accuracy. Its high user-friendliness makes this model ideal for engineering and construction plants, production and single part manufacturing.

Scope of delivery Universal turning lathes with stepless speed Bernardo Solid 460 x 1500 Pro Vario

• 3-axis digital readout with ES-12 V display
• 3-jaw chuck PS3-250 mm / D8

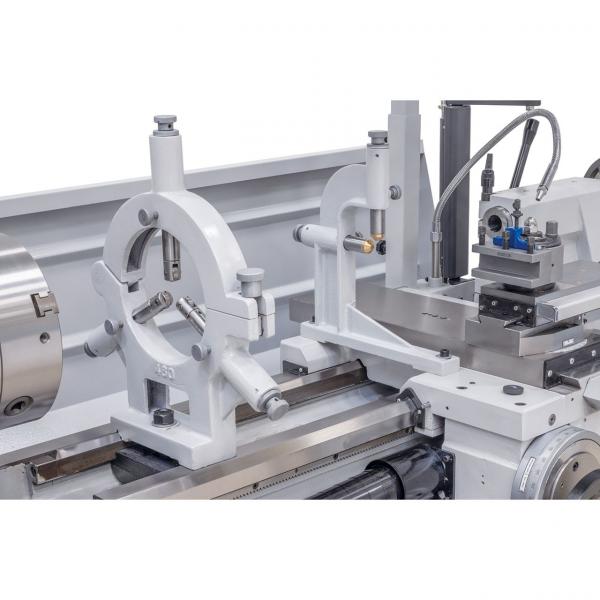

• Steady rest - Passage up to max. 150 mm
• Follow rest - Passage up to max. 110 mm
• Initial filling with Shell Tellus 46
• Face plate 350 mm
• 40 pos. tool post and holder set with 4 inserts
• Protective device at tool post holder
• Foot pedal with brake function according to CE
• Coolant device
• Frequency inverter
• Safety clutch
• Rapid feed longitudinal and cross

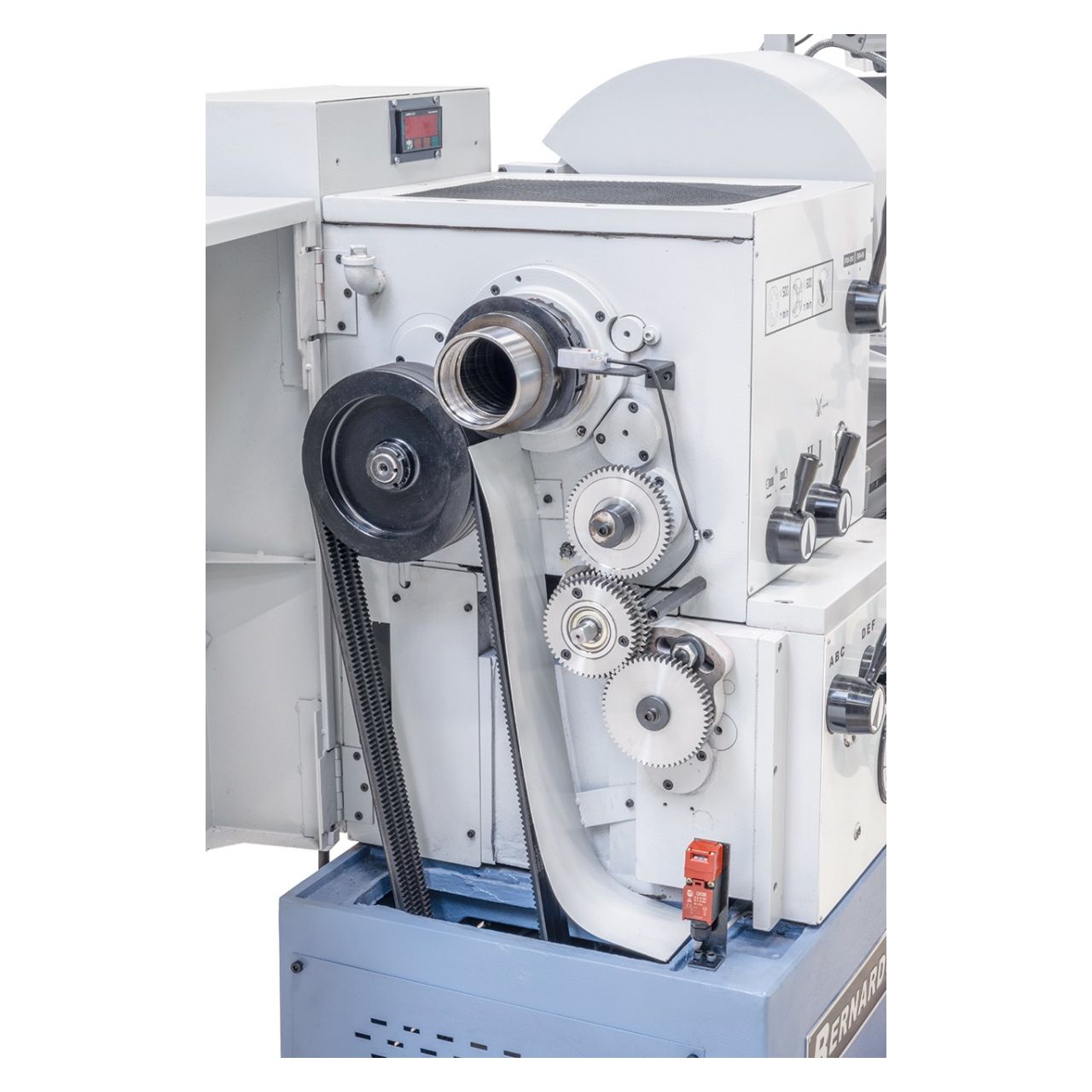

• Change gears
• Morse taper drill sleeve
• 2 dead centers
• Thread dial
• LED machine light
• Splash guard
• Tools

Features Universal turning lathes with stepless speed Bernardo Solid 460 x 1500 Pro Vario

• State-of-the-art main spindle bearing with high-quality angular ball bearings
• Serially with Delta-frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads

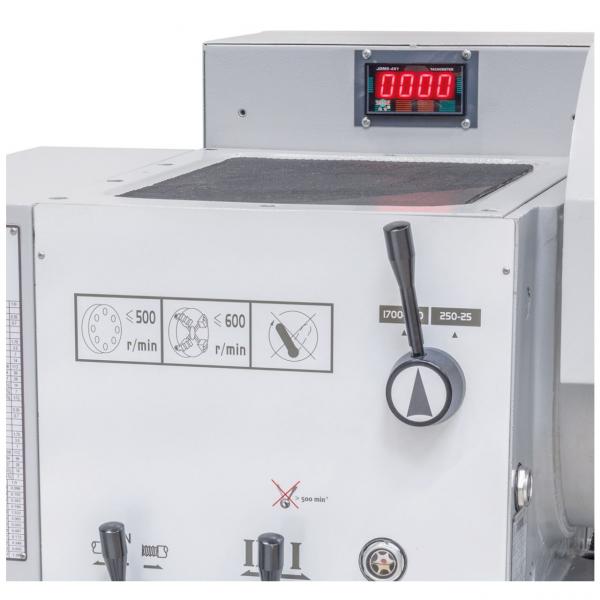

• Stepless speed adjustment, set speed can be read on digital display
• Hardened, polished gear wheels and shafts, even in feed unit
• Complete with longitudinal and cross rapid feed to reduce downtime
• Centrally positioned, practical feed and thread cutting controls (with leadscrew and feed rod)
• Large gear wheels, hardened and polished
• Straightforward speed and feed adjustments allow for easy and accurate settings
• Machine bed, cast in one piece, eliminates torsion and vibrations, resulting in best possible accuracy

Technical details Universal turning lathes with stepless speed Bernardo Solid 460 x 1500 Pro Vario
