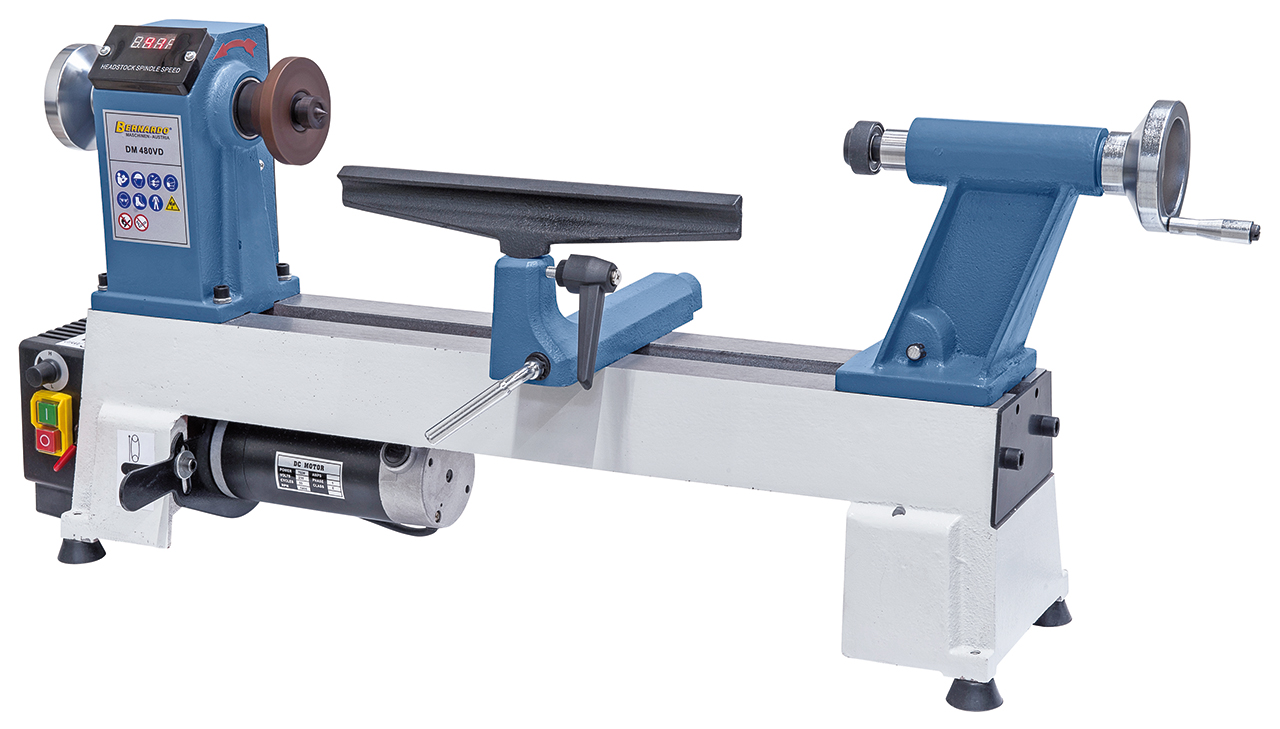

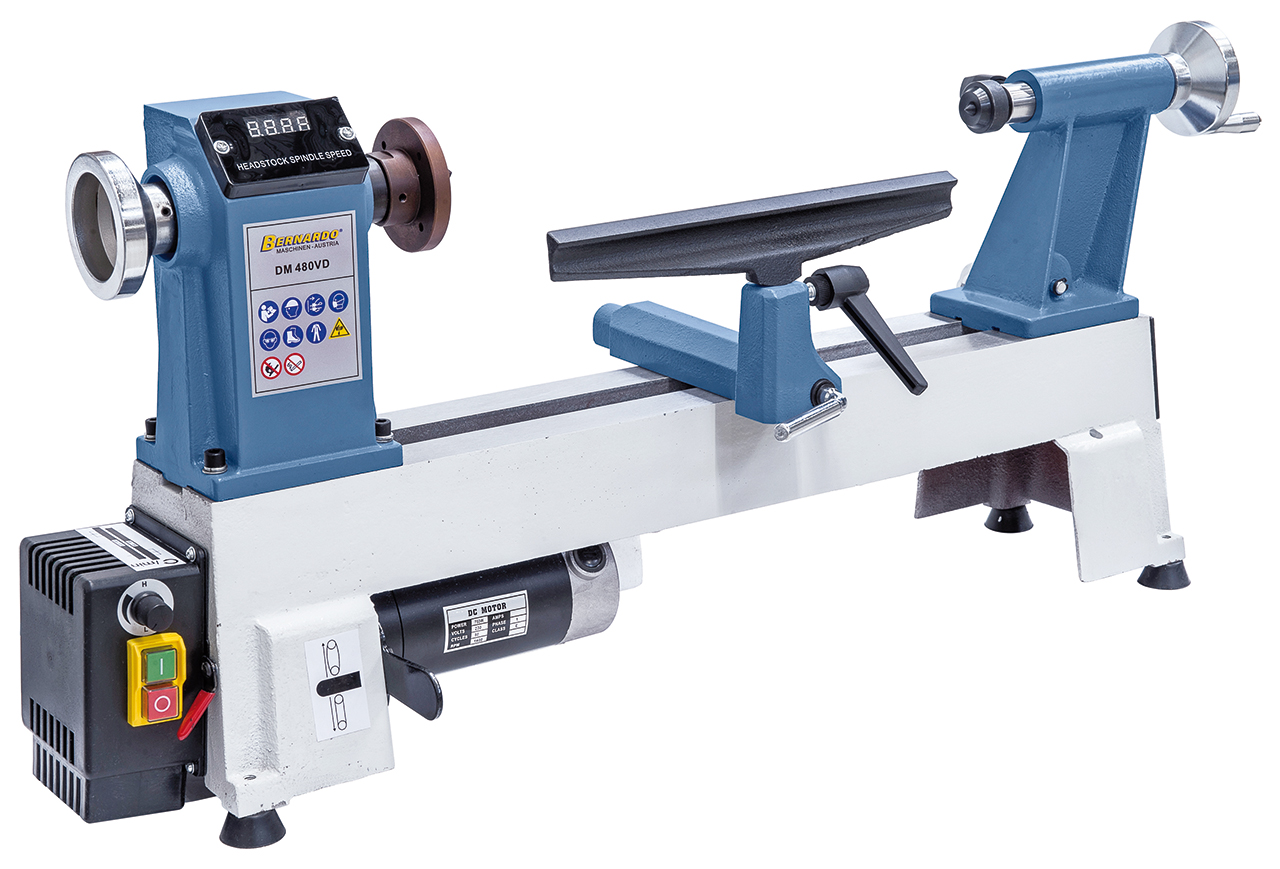

The DM 480 VD woodturning lathe features a solid grey cast construction to eliminate vibrations and ensure for top accuracy. The generous range of standard accessories (LED- display, stepless speed adjustment etc.) makes this model ideal choice for hobby craftsmen.
Scope of delivery Woodturning lathes Bernardo DM 480 VD
- 2 pcs. tool rest 150 / 300 mm
- Face plate 80 mm
- Spore drive center
- Live center
- Stepless speed adjustment
- LED speed indication
- Tools
Features Woodturning lathes Bernardo DM 480 VD
- Quick clamping lever allows for fast clamping of tailstock to machine bed
- Large speed range (2 steps) from 300 – 3700 rpm

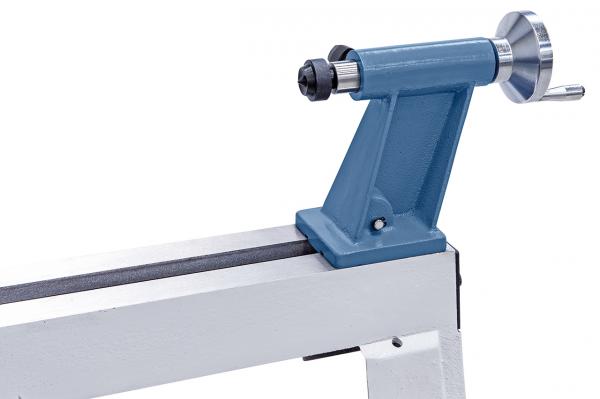

- Tailstock spindle features hole to allow processing of long workpieces
- Machine bed, tailstock and headstock made from rigid grey cast iron to eliminate vibrations

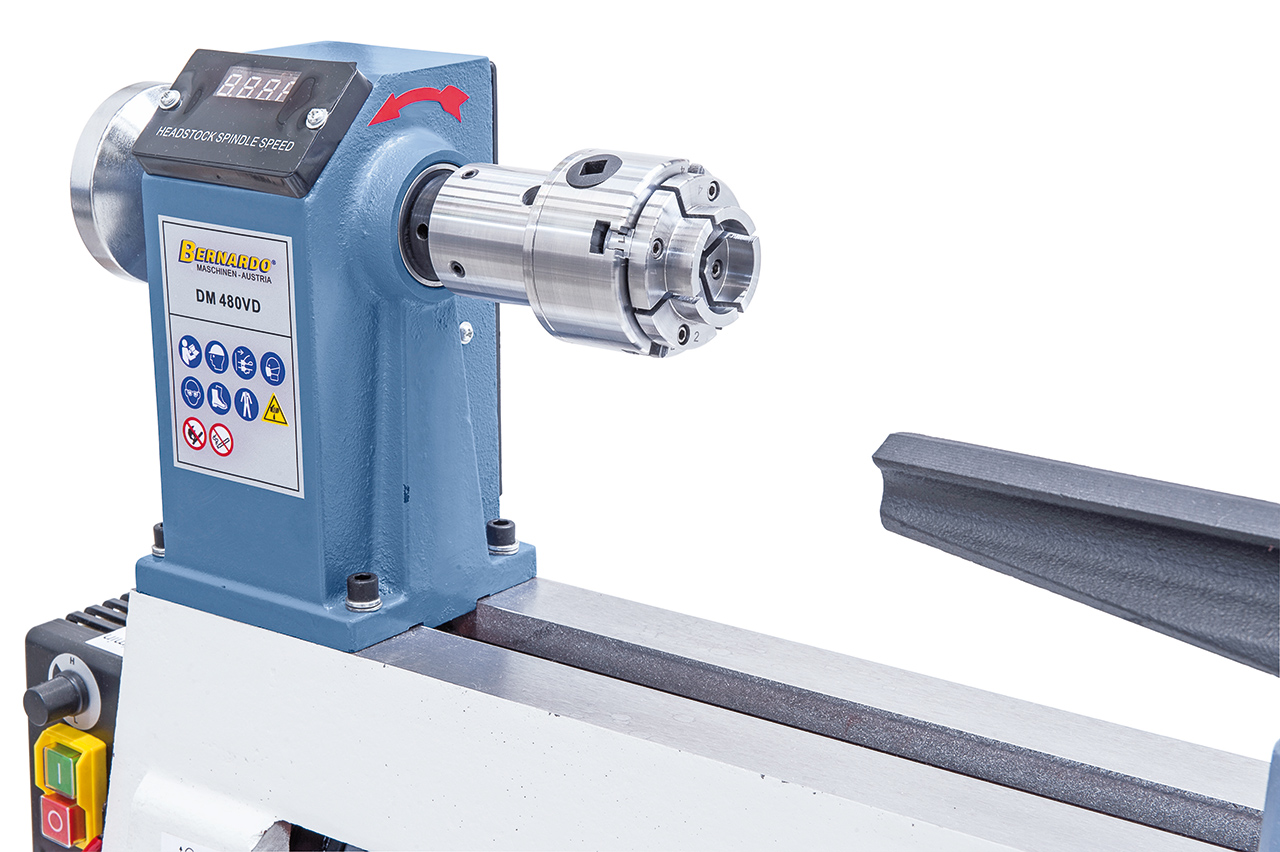

- Robust spindle, mounted with precision to ensure concentricity

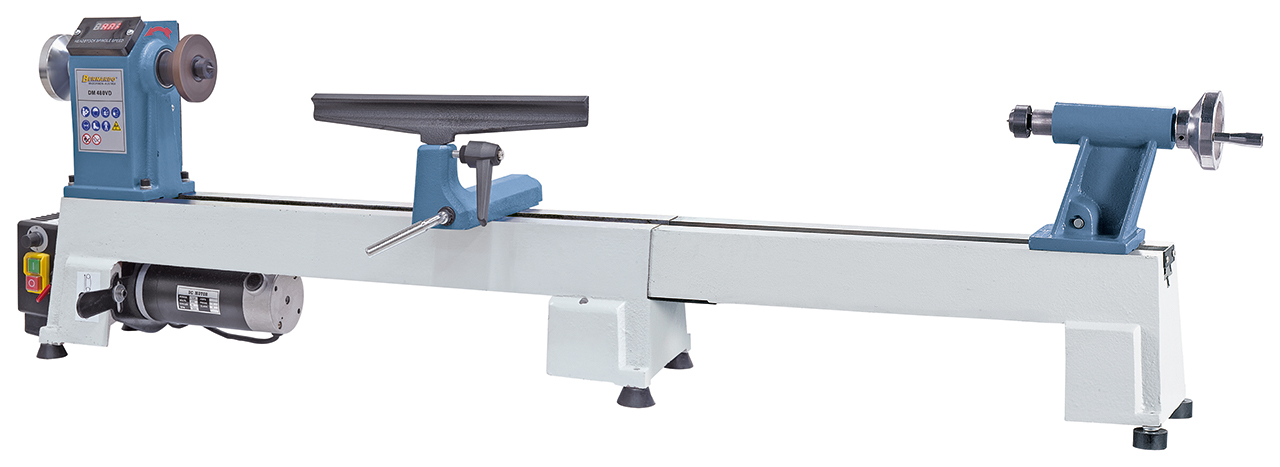

- Bed extension optionally available to extend distance between centers to 1020 mm

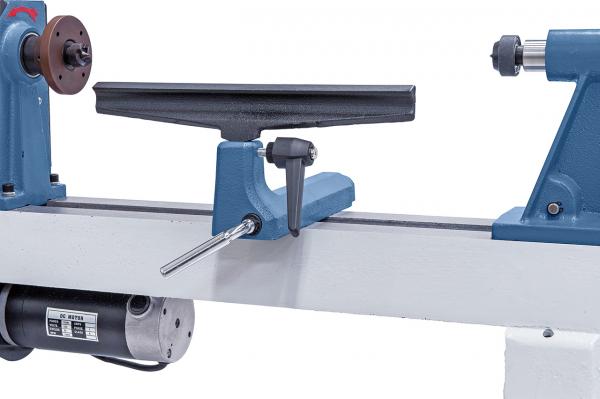

- Quick clamping lever allows for easy locking of tool rest

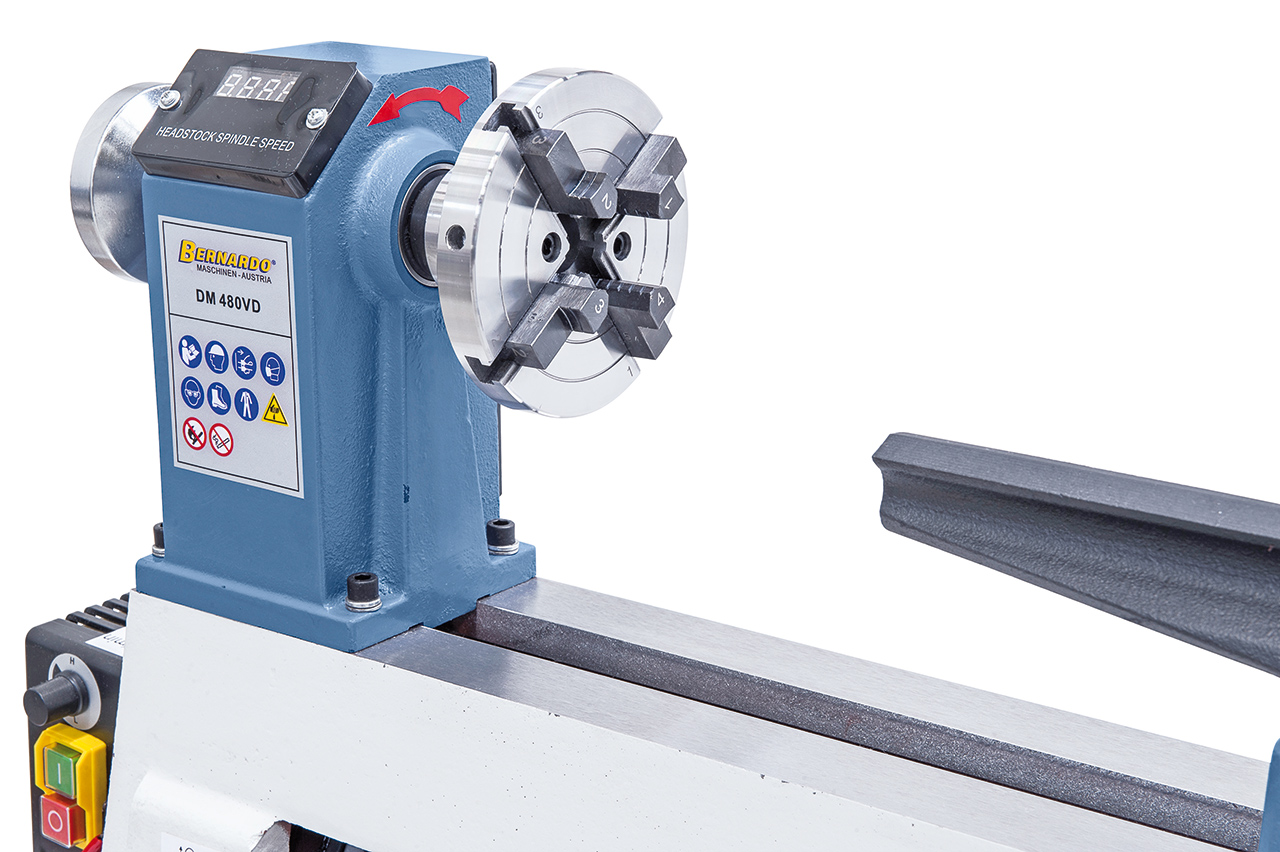

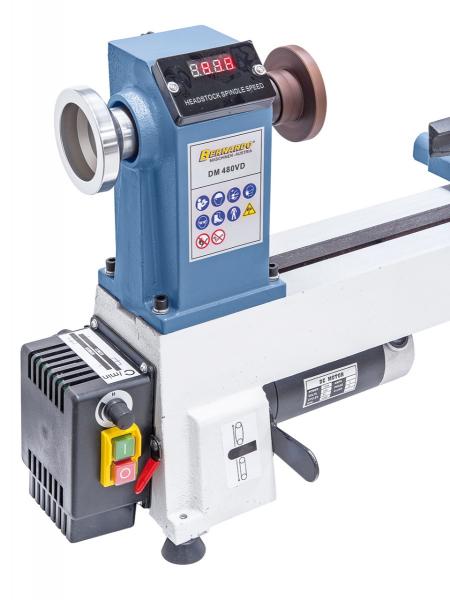

- Digital display allows for convenient adjustment of speed settings
Technical details Woodturning lathes Bernardo DM 480 VD
| Distance between centers | 460 mm |
| Distance between centers with extension* | 1020 mm |
| Working diameter | |
| - over guideway | 310 mm |
| - over support | 240 mm |
| Spindle speeds | 300 - 3700 rpm, stepless |
| Speed steps | L: 300 - 1200 1/min, H: 1000 - 3700 1/min |
| Spindle thread | M 33 x 3,5 mm |
| Taper of tailstock sleeve | MT 2 |
| Travel of tailstock sleeve | 55 mm |
| Motor power output S1 100% | 0,75 kW (1,0 HP) |
| Motor power input S6 40% | 1,1 kW (1,5 HP) |
| Voltage | 230 V |
| Machine dimension (W x D x H) | 950 x 300 x 410 mm |
| Weight approx. | 38 kg |
| |
* optional
